MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

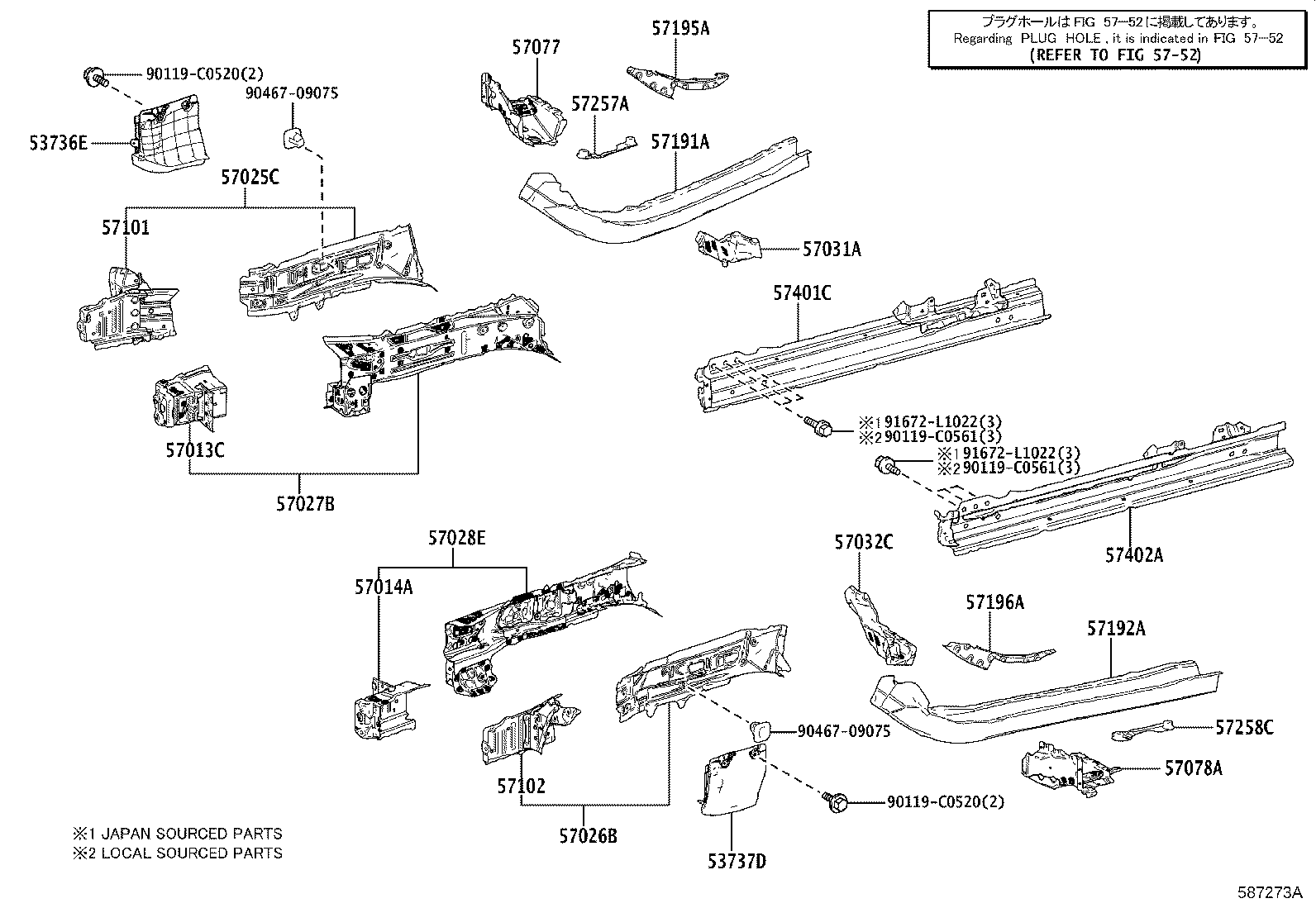

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

FLOOR SIDE MEMBER

diagram 53736E 53737D 57013C 57014A 57025C 57026B 57027B 57028E 57031A 57032C 57077 57078A 57101 57102 57191A 57192A 57195A 57196A 57257A 57258C 57401C 57402A 5752 90119C0520 90119C0520 90119C0561 90119C0561 9046709075 9046709075 91672L1022 91672L1022
Part # Description Qty Price
53736E - SEAL, FRONT FENDER APRON, RH
53736-0R050

AXAH5#,MXAA5#

 1
53737D - SEAL, FRONT FENDER APRON, LH
53737-0R020

AXAH5#,MXAA5#

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0R020

AXAH5#,MXAA5#

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0R020

AXAH5#,MXAA5#

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-0R030

AXAH5#,MXAA5#

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-0R030

AXAH5#,MXAA5#

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-0R020

AXAH5#,MXAA5#

 1
57028E - BRACKET SUB-ASSY, CONVERTER SUPPORT
57028-0R020

AXAH5#,MXAA5#

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-0R020

AXAH5#,MXAA5#

 1
57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-0R040

AXAH5#,MXAA5#

 1
57077 - BOX SUB-ASSY, TORQUE, FRONT RH
57077-0R020

AXAH5#,MXAA5#

 1
57078A - BOX SUB-ASSY, TORQUE, FRONT LH
57078-0R040

AXAH5#,MXAA5#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57023-0R020

AXAH5#,MXAA5#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57024-0R020

AXAH5#,MXAA5#

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-0R050

AXAH5#,MXAA5#

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-0R050

AXAH5#,MXAA5#

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-0R030

AXAH5#,MXAA5#

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-0R030

AXAH5#,MXAA5#

 1
57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH
57257-0R020

AXAH5#,MXAA5#

 1
57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH
57258-0R020

AXAH5#,MXAA5#

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-0R070

AXAH5#,MXAA5#

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-0R060

AXAH5#,MXAA5#

 1
Common parts
90119-C0520
90119-C0561
90467-09075
91672-L1022
Linked diagrams
5752

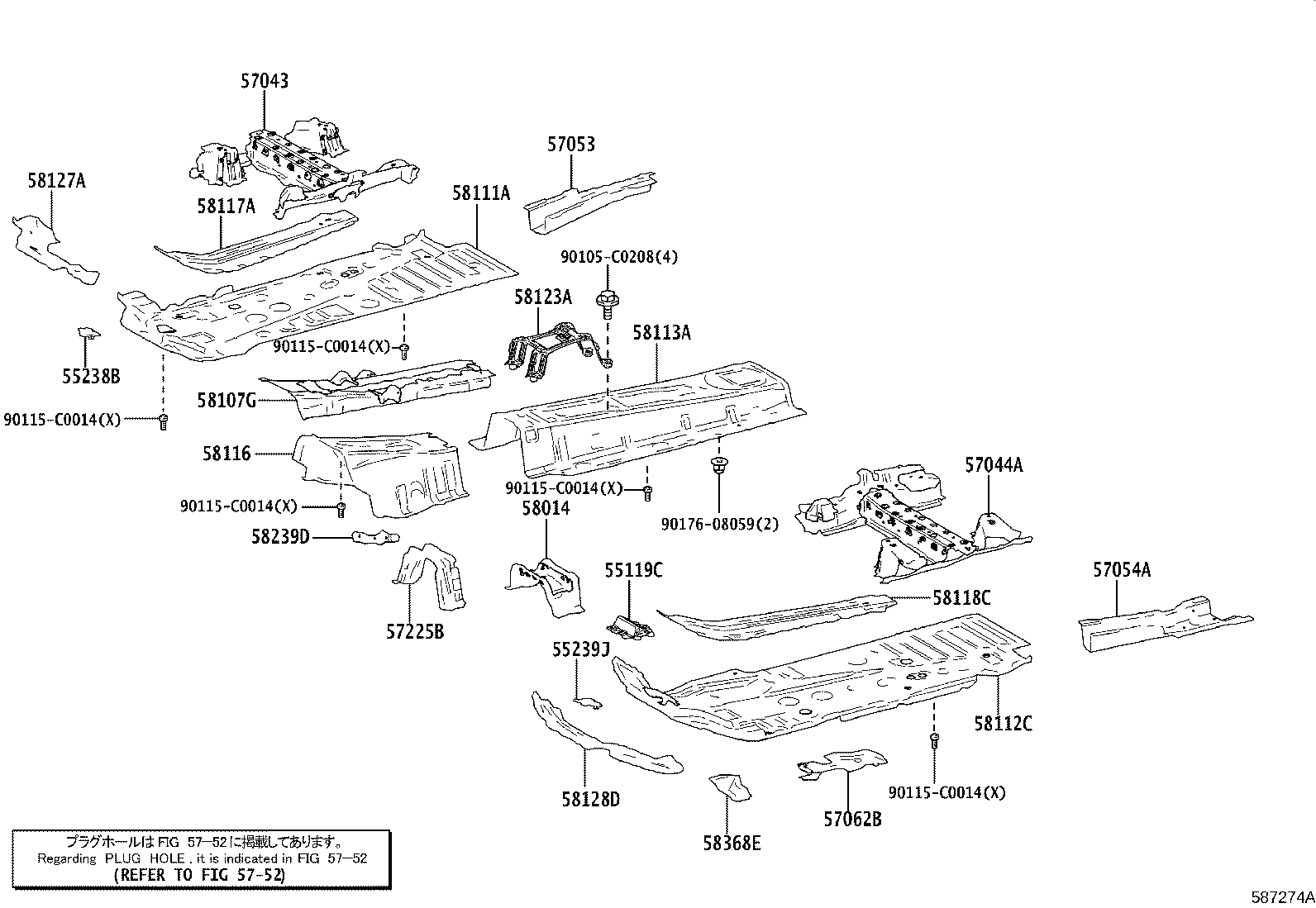

ILLUST NO. 2 OF 2(1911- )MXAA5#

Click highlighted areas on diagram

FLOOR PANEL

diagram 55119C 55238B 55239J 57043 57044A 57053 57054A 57062B 57225B 5752 58014 58107G 58111A 58112C 58113A 58116 58117A 58118C 58123A 58127A 58128D 58239D 58368E 90105C0208 90115C0014 90115C0014 90115C0014 90115C0014 90115C0014 9017608059
Part # Description Qty Price
55119C - BRACKET, CLUTCH BOOSTER
55119-0R020

AXAH5#,MXAA5#

 1
55238B - PLATE, DASH PANEL INSULATOR, LOWER RH
55238-0R020

AXAH5#,MXAA5#

 1
55239J - PLATE, DASH PANEL INSULATOR, LOWER LH
55239-0R020

AXAH5#,MXAA5#

 1
57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0R050

AXAH5#,MXAA5#

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0R050

AXAH5#,MXAA5#

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-0R040

AXAH5#,MXAA5#

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-0R050

MXAA5#

 1
57062B - BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57062-0R030

MXAA5#

 1
57225B - BRACE, FRONT MOUNTING BRACKET
57225-0R020

AXAH5#,MXAA5#

 1
58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58014-0R030

AXAH5#,MXAA5#

 1
58107G - REINFORCE SUB-ASSY, PARKING BRAKE BASE
58107-0R030

MXAA5#

 1
58111A - PAN, FRONT FLOOR, RH
58111-0R060

AXAH5#,MXAA5#

 1
58112C - PAN, FRONT FLOOR, LH
58112-0R050

AXAH5#,MXAA5#

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-0R060

MXAA5#

 1
58116 - PLATE, SHIFT CABLE MOUNTING
58116-0R020

AXAH5#,MXAA5#

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0R050

AXAH5#,MXAA5#

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0R040

AXAH5#,MXAA5#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-0R060

AXAH5#,MXAA5#

 1
58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58127-0R021

AXAH5#,MXAA5#

 1
58127-0R020

AXAH5#,MXAA5#

 1
58128D - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58128-0R040

AXAH5#,MXAA5#

 1
58239D - BRACKET, CABLE CLAMP
58239-0R020

AXAH5#,MXAA5#

 1
58368E - BRACKET, FUEL TUBE, NO.2
58368-0R020

AXAH5#,MXAA5#

 1
Common parts
90105-C0208
90115-C0014
90176-08059
Linked diagrams
5752
