MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1911- )

Click highlighted areas on diagram

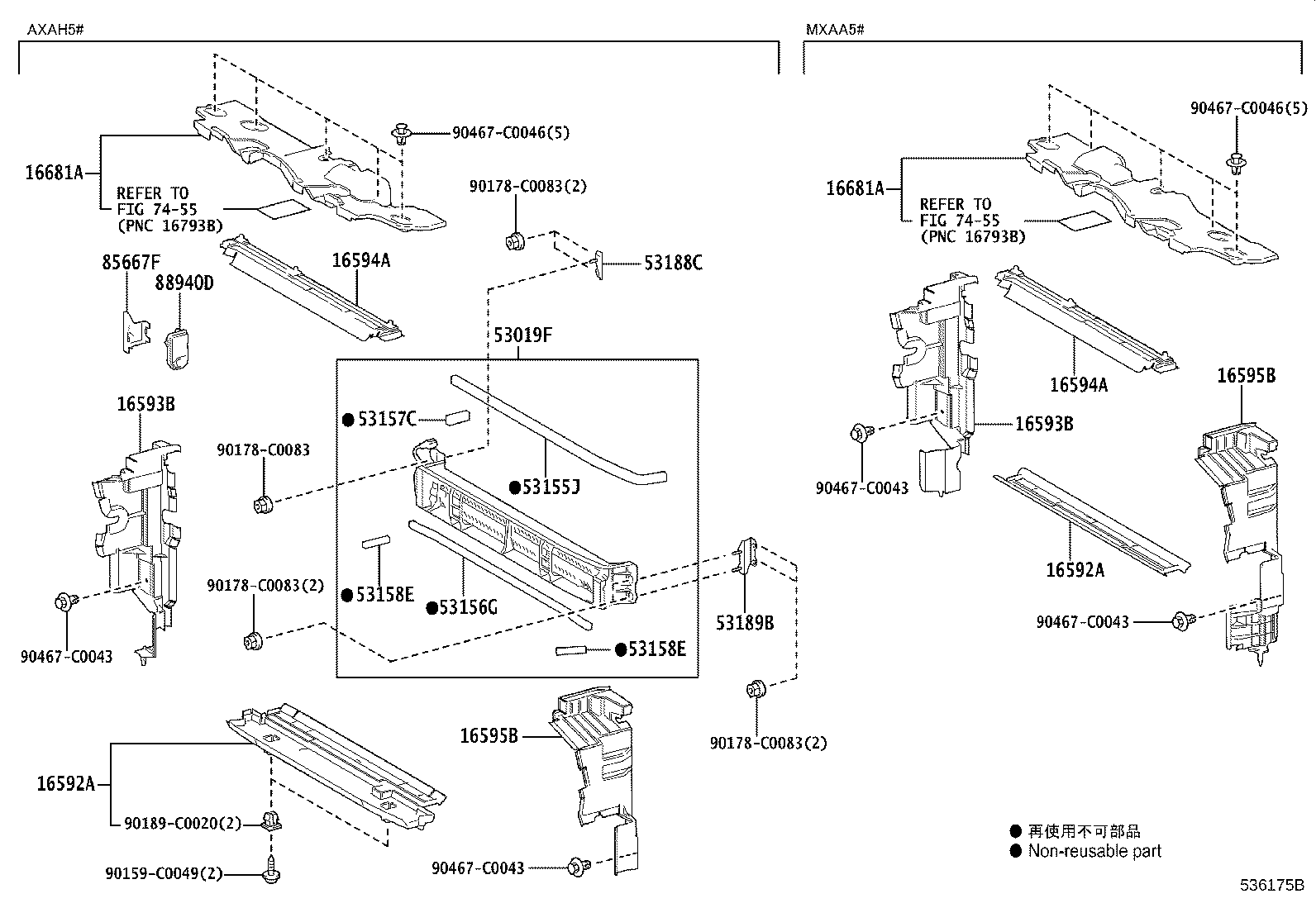

AIR GUIDE

diagram 16592A 16592A 16593B 16593B 16594A 16594A 16595B 16595B 16681A 16681A 53019F 53155J 53156G 53157C 53158E 53158E 53188C 53189B 7455 7455 85667F 88940D 90159C0049 90178C0083 90178C0083 90178C0083 90178C0083 90189C0020 90467C0043 90467C0043 90467C0043 90467C0043 90467C0046 90467C0046
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-F2050

M20DFKS..MXAA5#

 1
16592A - GUIDE, RADIATOR AIR, NO.3
16592-F2050

M20DFKS..MXAA5#

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-F2110

M20DFKS..MXAA5#

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-F2110

M20DFKS..MXAA5#

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-F0100

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-F0100

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-F2120

M20DFKS..MXAA5#

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-F2120

M20DFKS..MXAA5#

 1
16681A - PLATE, RADIATOR UPPER AIR GUIDE
16681-F2010

M20DFKS..MXAA5#

 1
16681A - PLATE, RADIATOR UPPER AIR GUIDE
16681-F2010

M20DFKS..MXAA5#

 1
Common parts
90159-C0049
90178-C0083
90189-C0020
90467-C0043
90467-C0046
Linked diagrams
7455

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

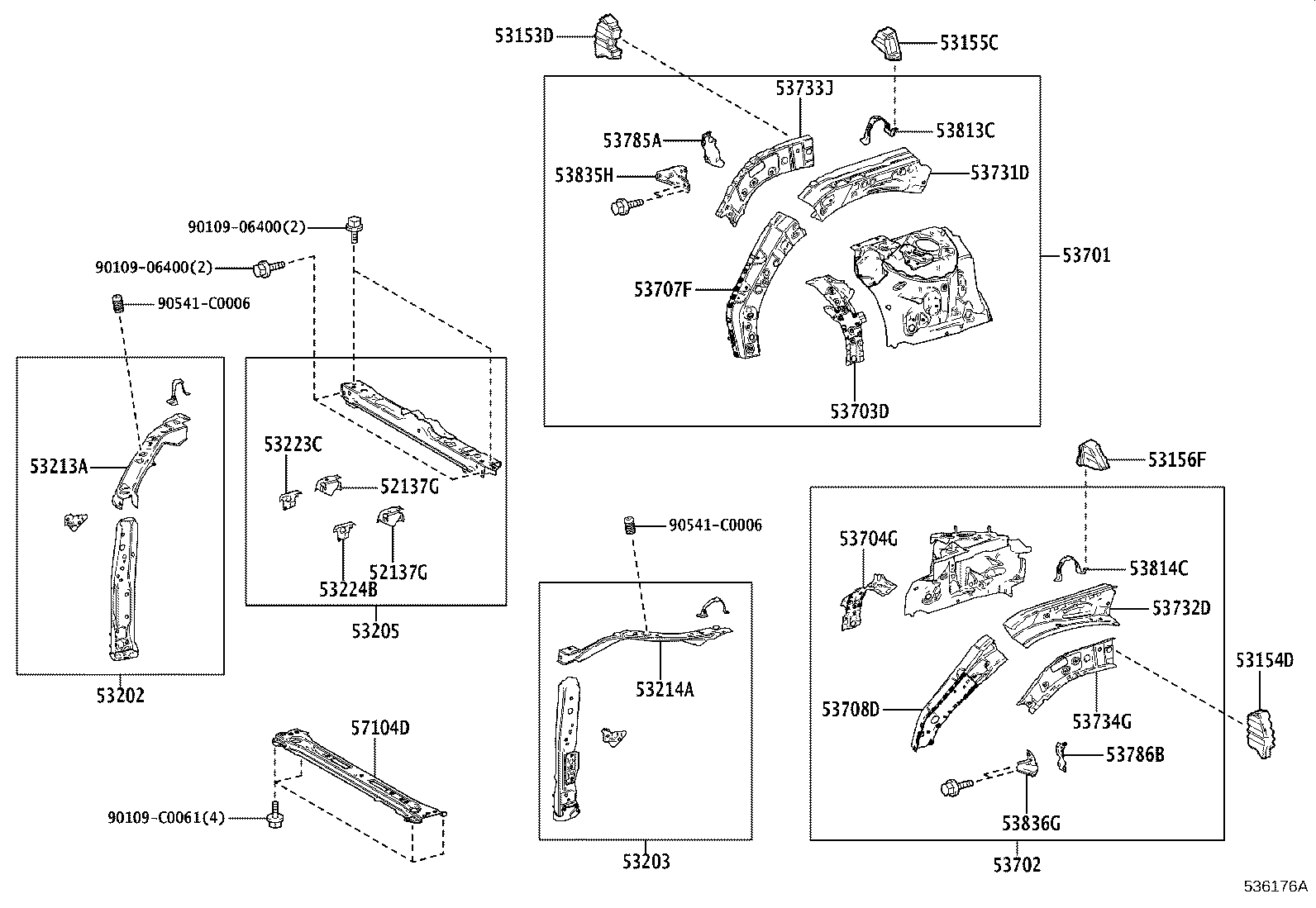

RADIATOR SUPPORT & FENDER APRON

diagram 52137G 52137G 53153D 53154D 53155C 53156F 53202 53203 53205 53213A 53214A 53223C 53224B 53701 53702 53703D 53704G 53707F 53708D 53731D 53732D 53733J 53734G 53785A 53786B 53813C 53814C 53835H 53836G 57104D 9010906400 9010906400 90109C0061 90541C0006 90541C0006
Part # Description Qty Price
52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52137-0R040

AXAH5#,MXAA5#

 2
52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52137-0R040

AXAH5#,MXAA5#

 2
53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-0R040

AXAH5#,MXAA5#

 1
53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-0R040

AXAH5#,MXAA5#

 1
53155C - SEAL, RADIATOR GRILLE, NO.1
53155-0R040

AXAH5#,MXAA5#

 1
53156F - SEAL, RADIATOR GRILLE, NO.2
53156-0R040

AXAH5#,MXAA5#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0R903

AXAH5#,MXAA5#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0R900

AXAH5#,MXAA5#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0R900

AXAH5#,MXAA5#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-0R060

AXAH5#,MXAA5#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-0R060

AXAH5#,MXAA5#

 1
53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH
53223-0R060

AXAH5#,MXAA5#

 1
53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH
53223-0R060

AXAH5#,MXAA5#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0R070

AXAH5#,MXAA5#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0R070

AXAH5#,MXAA5#

 1
53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH
53703-0R040

AXAH5#,MXAA5#

 1
53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH
53704-0R040

AXAH5#,MXAA5#

 1
53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53707-0R040

AXAH5#,MXAA5#

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-0R040

AXAH5#,MXAA5#

 1
53708-0R041

AXAH5#,MXAA5#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-0R060

AXAH5#,MXAA5#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-0R060

AXAH5#,MXAA5#

 1
53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53733-0R030

AXAH5#,MXAA5#

 1
53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53734-0R040

AXAH5#,MXAA5#

 1
53785A - GUSSET, FRONT FENDER APRON, UPPER RH
53785-0R020

AXAH5#,MXAA5#

 1
53786B - GUSSET, FRONT FENDER APRON, UPPER LH
53786-0R020

AXAH5#,MXAA5#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-0R060

AXAH5#,MXAA5#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-0R060

AXAH5#,MXAA5#

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-0R070

AXAH5#,MXAA5#

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-0R060

AXAH5#,MXAA5#

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-0R060

AXAH5#,MXAA5#

 1
Common parts
90109-06400
90109-C0061
90541-C0006

ILLUST NO. 3 OF 3(1911- )

Click highlighted areas on diagram

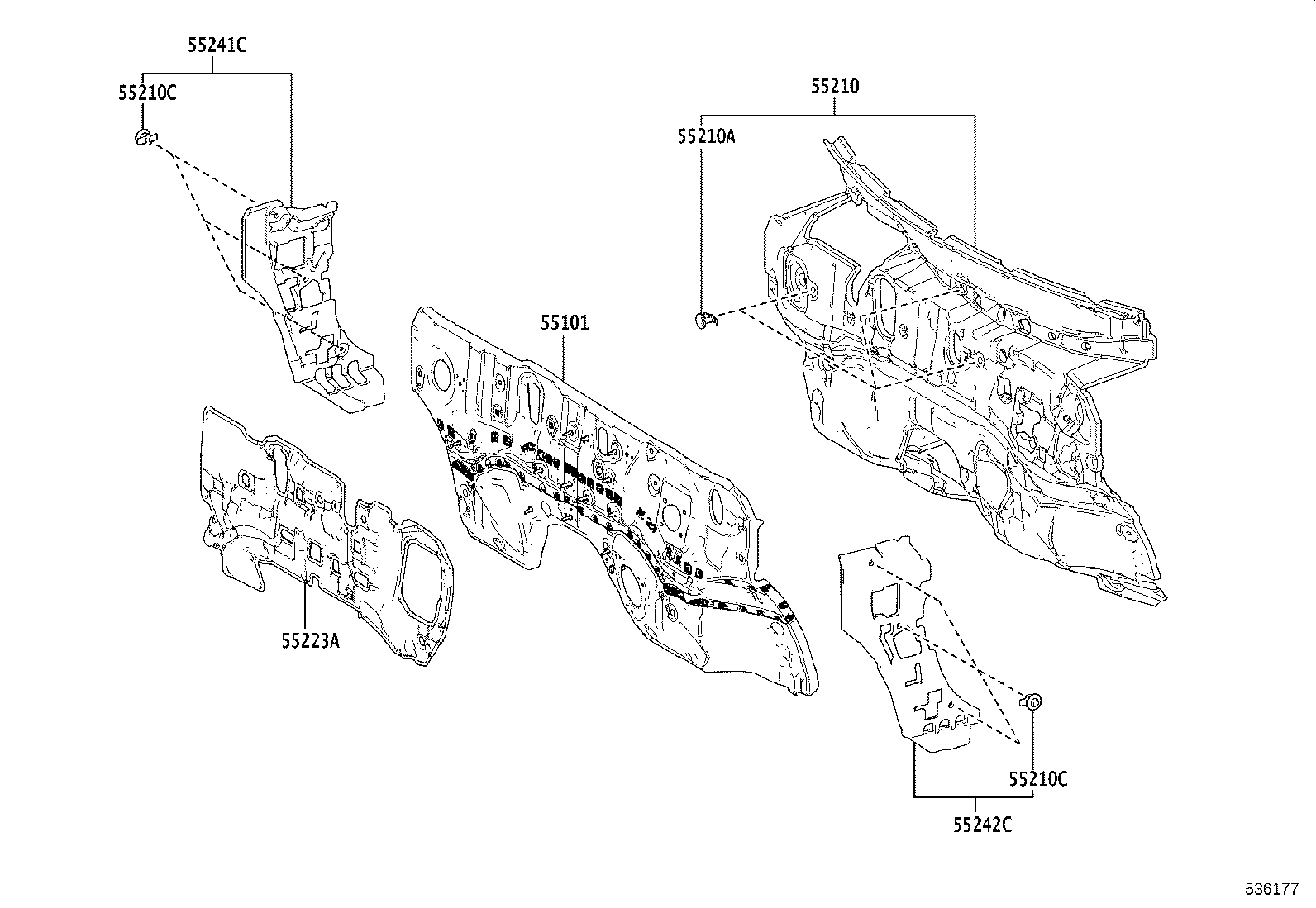

DASH PANEL

diagram 55101 55210 55210A 55210C 55210C 55223A 55241C 55242C
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-0R130

AXAH5#,MXAA5#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0R070

AXAH5#,MXAA5#

 1
55210A - CLIP
90467-11122

AXAH5#,MXAA5#

 3
55210C - CLIP
90467-13079

AXAH5#,MXAA5#

 6
55210C - CLIP
90467-13079

AXAH5#,MXAA5#

 6
55223A - INSULATOR, DASH PANEL, OUTER
55223-0R050

AXAH5#,MXAA5#

 1
55241C - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-0R020

AXAH5#,MXAA5#

 1
55242C - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-0R020

AXAH5#,MXAA5#

 1
