MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

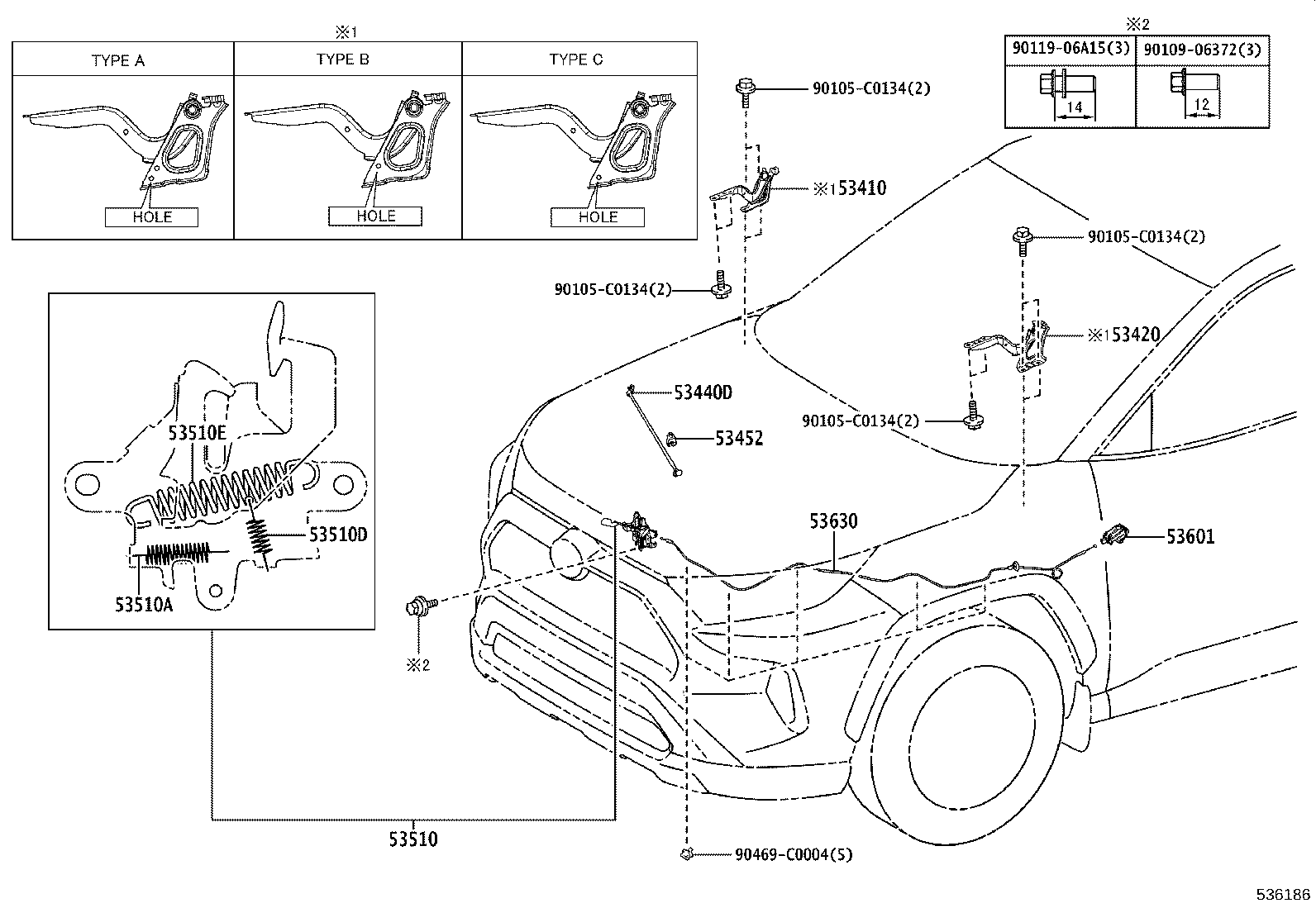

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53510 53510A 53510D 53510E 53601 53630 90105C0134 90105C0134 90105C0134 90105C0134 9010906372 9011906A15 90469C0004
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0R160

AXAH5#,MXAA5#

TYPE C:REFER ILLUST.

 1
53410-0R150

AXAH5#,MXAA5#

TYPE B:REFER ILLUST.

 1
53410-0R140

AXAH5#,MXAA5#

TYPE A:REFER ILLUST.

 1
53420 - HINGE ASSY, HOOD, LH
53420-0R150

AXAH5#,MXAA5#

TYPE B:REFER ILLUST.

 1
53420-0R140

AXAH5#,MXAA5#

TYPE A:REFER ILLUST.

 1
53420-0R160

AXAH5#,MXAA5#

TYPE C:REFER ILLUST.

 1
53440D - SUPPORT ASSY, HOOD
53440-0R060

AXAH5#,MXAA5#

 1
53452 - HOLDER, HOOD STAY
53452-0R030

AXAH5#,MXAA5#

 1
53510 - LOCK ASSY, HOOD
53510-0R080

AXAH5#,MXAA5#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AXAH5#,MXAA5#

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AXAH5#,MXAA5#

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-C0006

AXAH5#,MXAA5#

WD=1.5,CW=12

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D011C1

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0R060

AXAH5#,MXAA5#

 1
Common parts
90105-C0134
90109-06372
90119-06A15
90469-C0004
