MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

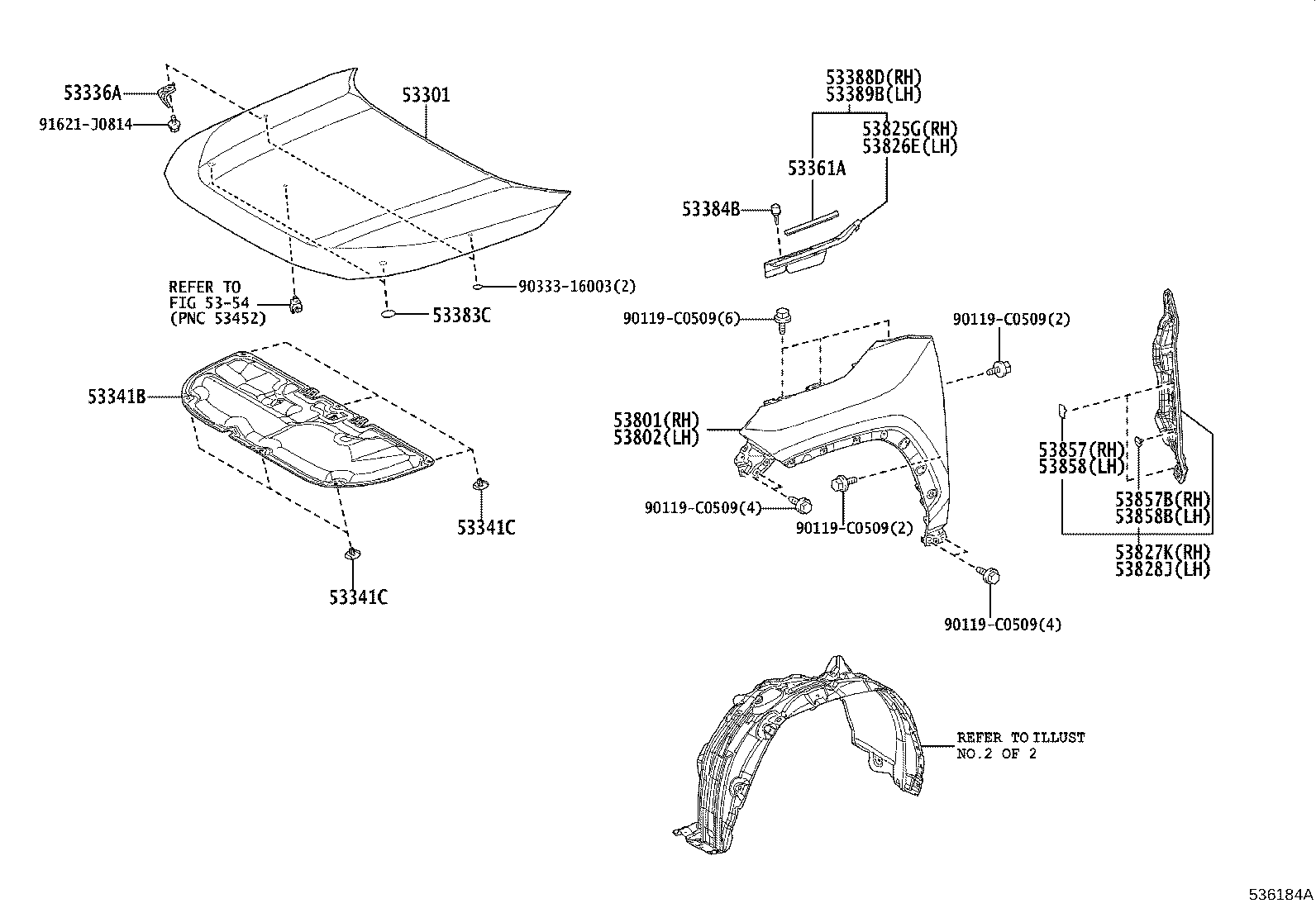

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

diagram 53301 53336A 53341B 53341C 53341C 53361A 53383C 53384B 53388D 53389B 5354 53801 53802 53825G 53826E 53827K 53828J 53857 53857B 53858 53858B 90119C0509 90119C0509 90119C0509 90119C0509 90119C0509 9033316003 91621J0814
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0R090

AXAH5#,MXAA5#

 1
53336A - BRACKET, HOOD STAY
53336-0R020

AXAH5#,MXAA5#

 1
53341B - INSULATOR, HOOD
53341-0R070

AXAH5#,MXAA5#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

AXAH5#,MXAA5#

 6
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

AXAH5#,MXAA5#

 6
53361A - WEATHERSTRIP, HOOD
53361-0R040

AXAH5#,MXAA5#

 2
53383C - SEAL, HOOD TO COWL TOP
90950-06096

AXAH5#,MXAA5#

 2
53384B - CUSHION, HOOD, CENTER
53384-22070

AXAH5#,MXAA5#

 2
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-0R060

AXAH5#,MXAA5#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-0R060

AXAH5#,MXAA5#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-0R140

AXAH5#,MXAA5#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-0R120

AXAH5#,MXAA5#

 1
53825G - PROTECTOR, FRONT FENDER, UPPER RH
53825-0R040

AXAH5#,MXAA5#

 1
53826E - PROTECTOR, FRONT FENDER, UPPER LH
53826-0R040

AXAH5#,MXAA5#

 1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0R060

AXAH5#,MXAA5#

 1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0R060

AXAH5#,MXAA5#

 1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010

AXAH5#,MXAA5#

 2
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-0R010

AXAH5#,MXAA5#

 1
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010

AXAH5#,MXAA5#

 2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-0R010

AXAH5#,MXAA5#

 1
Common parts
90119-C0509
90333-16003
91621-J0814
Linked diagrams
5354

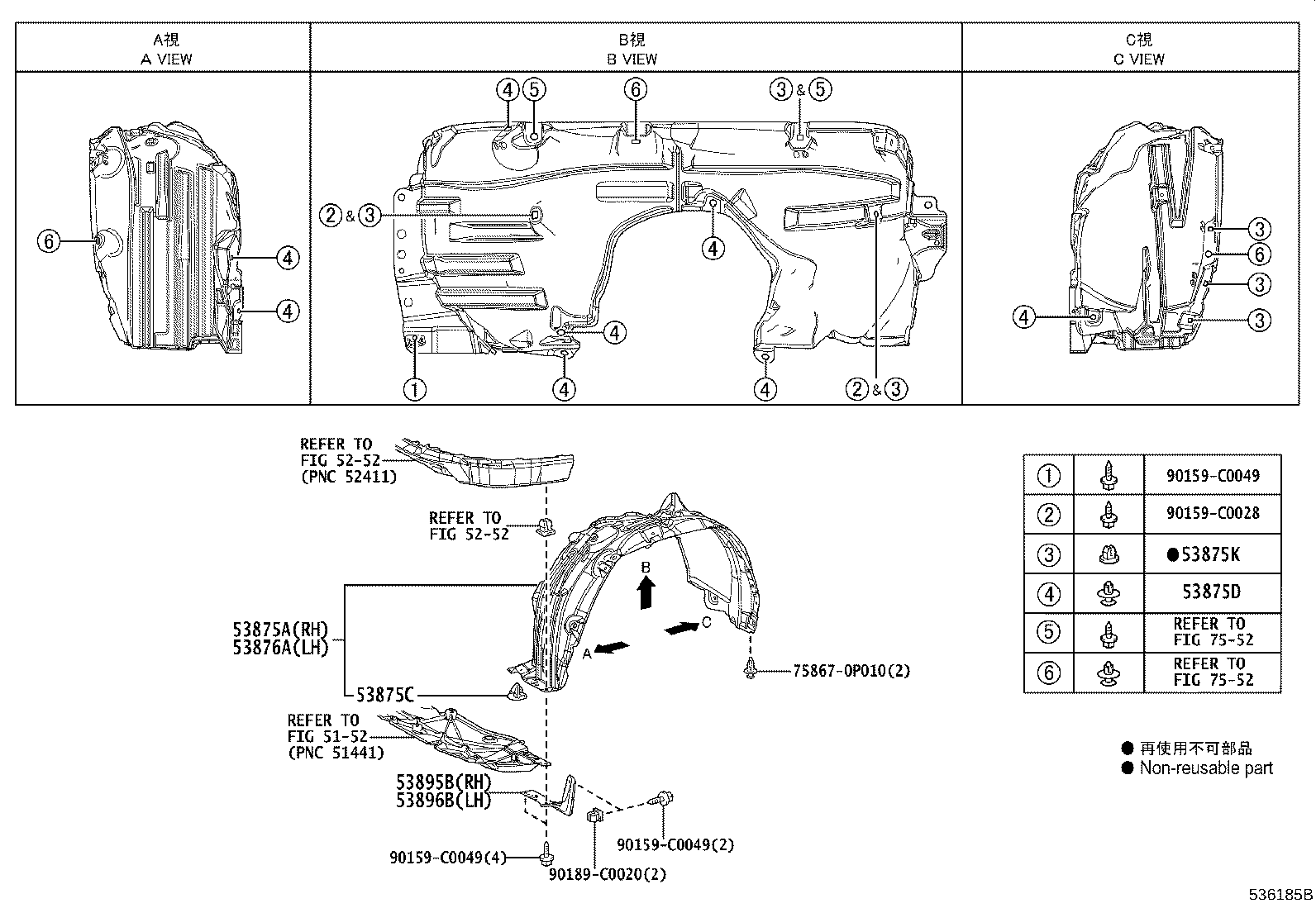

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

diagram 5152 5252 5252 53875A 53875C 53875D 53875K 53876A 53895B 53896B 7552 7552 758670P010 90159C0028 90159C0049 90159C0049 90159C0049 90189C0020
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-0R090

AXAH5#,MXAA5#

 1
53875C - CLIP, FRONT FENDER LINER
90467-06192

AXAH5#,MXAA5#

 4
53875D - CLIP, FRONT FENDER LINER, NO.2
90467-C0043

AXAH5#,MXAA5#

 16
53875K - GROMMET, SCREW
90189-C0022

AXAH5#,MXAA5#

 12
53876A - LINER, FRONT FENDER, LH
53876-0R090

AXAH5#,MXAA5#

 1
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-0R090

AXAH5#,MXAA5#

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-0R090

AXAH5#,MXAA5#

 1
Common parts
75867-0P010
90159-C0028
90159-C0049
90189-C0020
Linked diagrams
5152
5252
7552
