MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

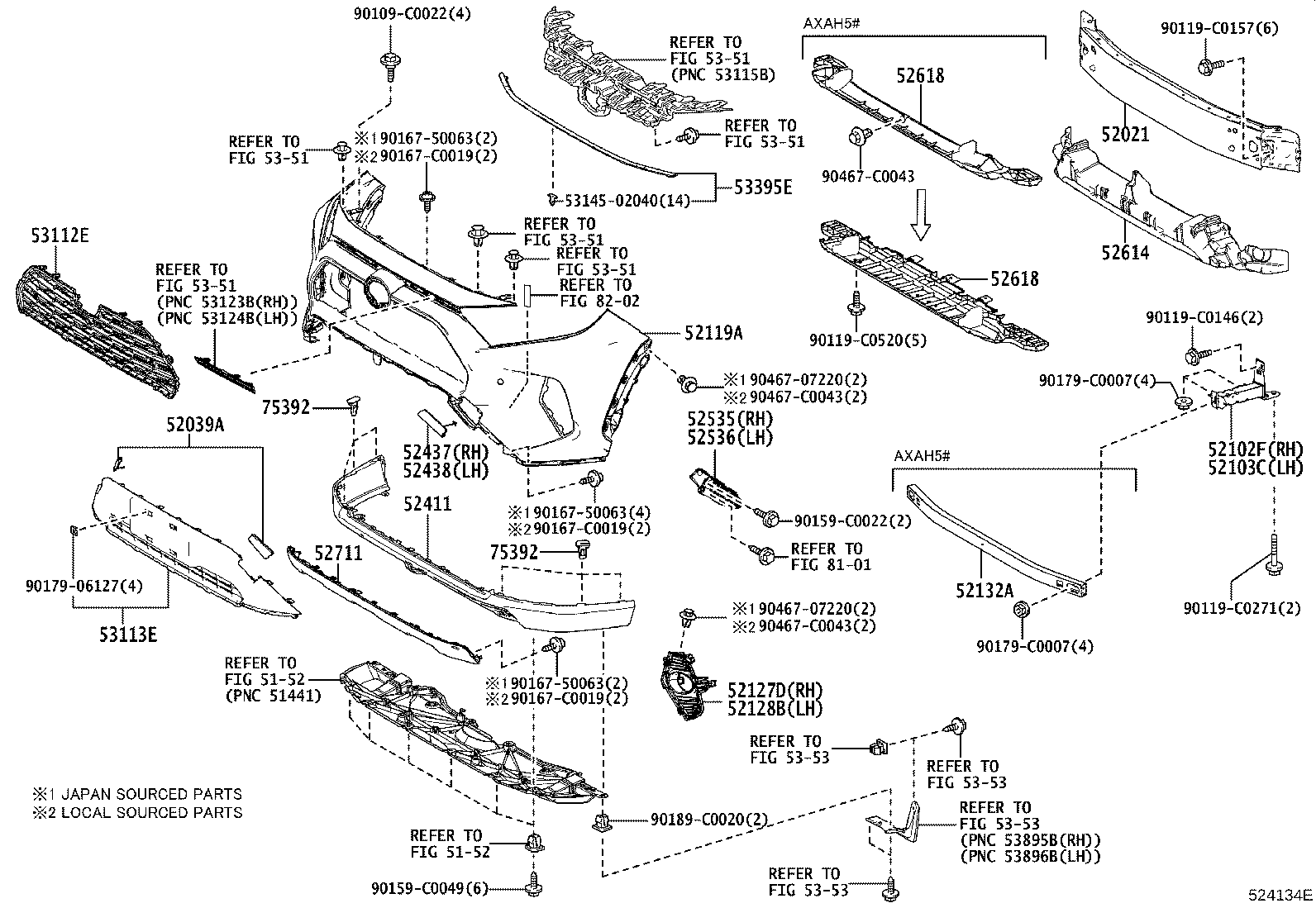

Click highlighted areas on diagram

diagram 5152 5152 52021 52039A 52102F 52103C 52119A 52127D 52128B 52132A 52411 52437 52438 52535 52536 52614 52618 52618 52711 53112E 53113E 5314502040 53395E 5351 5351 5351 5351 5351 5351 5353 5353 5353 5353 75392 75392 8101 8202 90109C0022 90119C0146 90119C0157 90119C0271 90119C0520 90159C0022 90159C0049 9016750063 9016750063 9016750063 90167C0019 90167C0019 90167C0019 9017906127 90179C0007 90179C0007 90189C0020 9046707220 9046707220 90467C0043 90467C0043 90467C0043
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0R110

AXAH5#,MXAA5#

 1
52039A - COVER SET, FRONT BUMPER HOLE
52039-0R010

AXAH5#,MXAA5#

 1
52102F - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52102-0R050

MXAA5#

 1
52103C - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52103-0R050

MXAA5#

 1
52119A - COVER, FRONT BUMPER
52119-0R928

AXAH5#,MXAA5#..G

PAINT REQ.

 1
52119-0R927

AXAH5#,MXAA5#..M,X

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0R190

AXAH5#,MXAA5#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0R190

AXAH5#,MXAA5#

 1
52411 - GUARD, FRONT BUMPER
52411-0R180

AXAH5#,MXAA5#

 1
52411-0R230

AXAH5#,MXAA5#

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-0R901

AXAH5#,MXAA5#

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-0R901

AXAH5#,MXAA5#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0R100

AXAH5#,MXAA5#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0R080

AXAH5#,MXAA5#

 1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-0R110

AXAH5#,MXAA5#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0R070

MXAA5#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0R070

MXAA5#

 1
52711 - MOULDING, FRONT BUMPER
52711-0R903

AXAH5#,MXAA5#..G,M

PAINT REQ.

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0R250

AXAH5#,MXAA5#..G

NO PAINT REQ.

 1
53112-0R230

AXAH5#,MXAA5#..M

NO PAINT REQ.

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-0R110

AXAH5#,MXAA5#

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0R090

AXAH5#,MXAA5#

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-0R030

AXAH5#,MXAA5#

 6
75392 - RETAINER, OUTSIDE MOULDING
75392-0R030

AXAH5#,MXAA5#

 6
Common parts
53145-02040
90109-C0022
90119-C0146
90119-C0157
90119-C0271
90119-C0520
90159-C0022
90159-C0049
90167-50063
90167-C0019
90179-06127
90179-C0007
90189-C0020
90467-07220
90467-C0043
Linked diagrams
5152
5351
5353
8101
8202
