MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

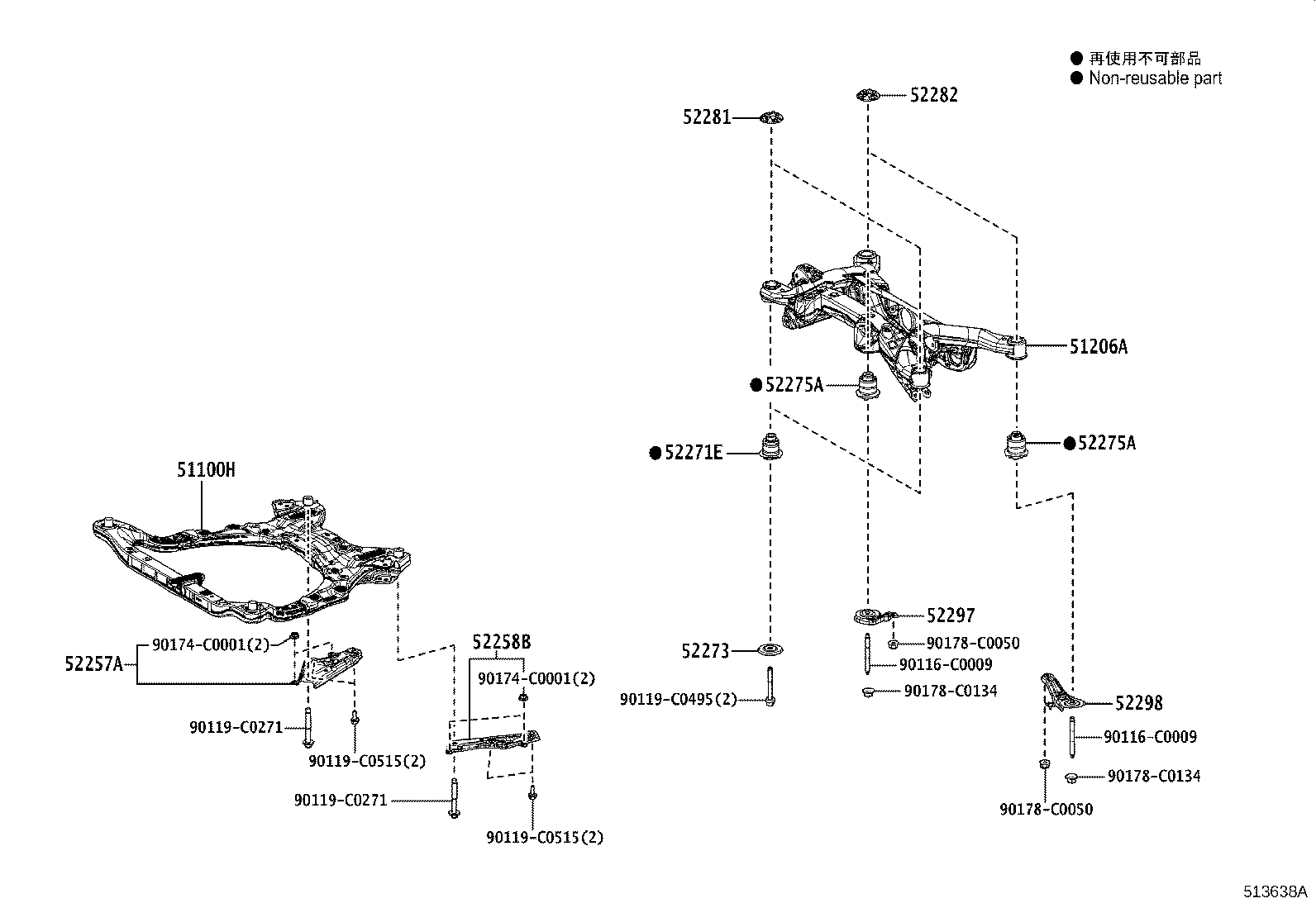

ILLUST NO. 1 OF 2(1911- )AXAH52,MXAA5#

Click highlighted areas on diagram

SUSPENSION MEMBER

diagram 51100H 51206A 52257A 52258B 52271E 52273 52275A 52275A 52281 52282 52297 52298 90116C0009 90116C0009 90119C0271 90119C0271 90119C0495 90119C0515 90119C0515 90174C0001 90174C0001 90178C0050 90178C0050 90178C0134 90178C0134
Part # Description Qty Price
51100H - FRAME ASSY, FRONT
51100-0R021

AXAH5#,MXAA5#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-0R070

MXAA54

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-0R050

AXAH5#,MXAA5#

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-0R050

AXAH5#,MXAA5#

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-0R020

AXAH5#,MXAA5#

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-0R060

AXAH5#,MXAA5#

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-0R020

AXAH5#,MXAA5#

RH

 1
52276-0R020

AXAH5#,MXAA5#

LH

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-0R020

AXAH5#,MXAA5#

RH

 1
52276-0R020

AXAH5#,MXAA5#

LH

 1
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-0R020

AXAH5#,MXAA5#

 2
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-0R020

AXAH5#,MXAA5#

 2
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-0R050

AXAH5#,MXAA5#

 1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52297-0R050

AXAH5#,MXAA5#

 1
Common parts
90116-C0009
90119-C0271
90119-C0495
90119-C0515
90174-C0001
90178-C0050
90178-C0134

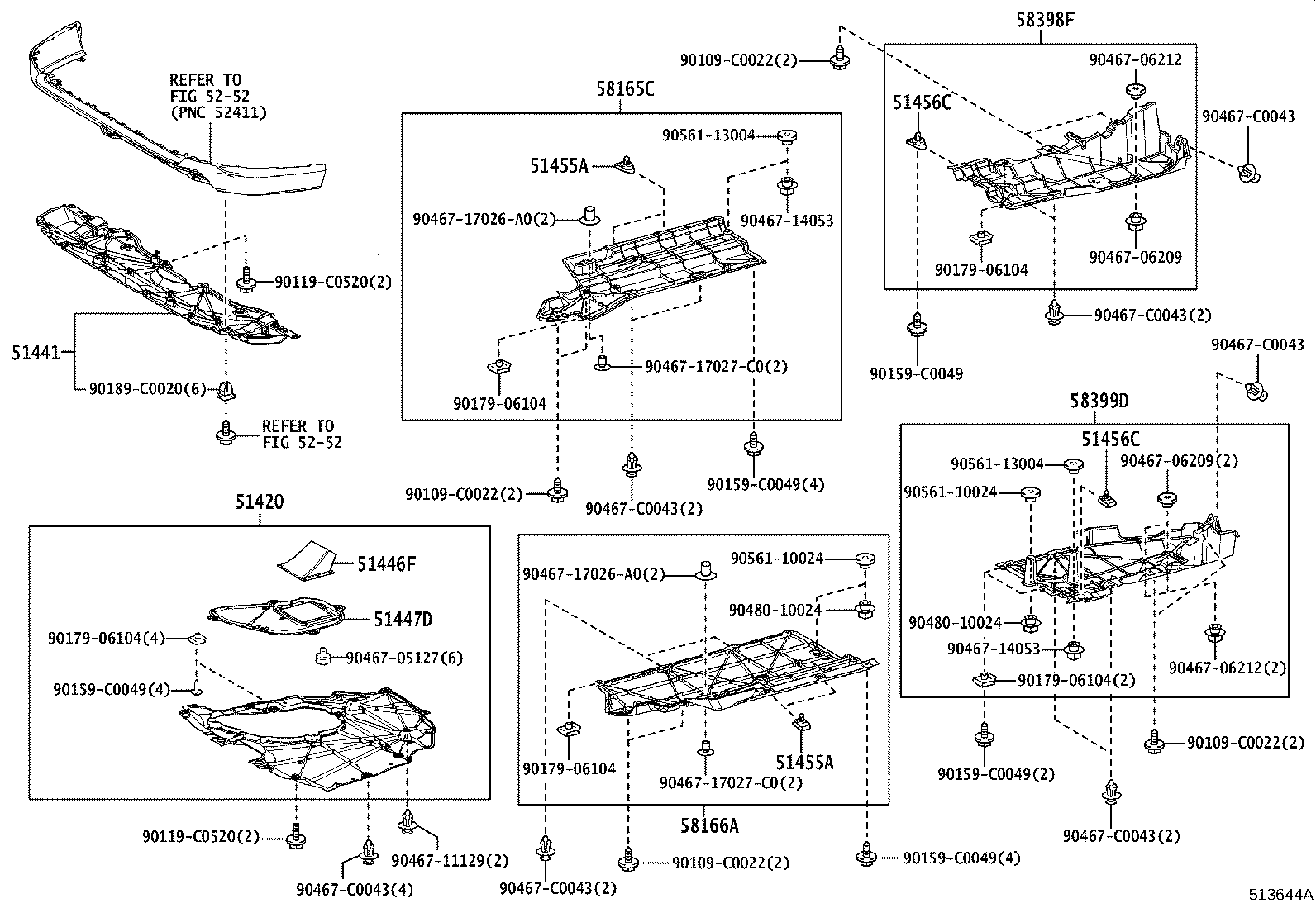

ILLUST NO. 2 OF 2(1911- )MXAA5#

Click highlighted areas on diagram

UNDER COVER

diagram 51420 51441 51446F 51447D 51455A 51455A 51456C 51456C 5252 5252 58165C 58166A 58398F 58399D 90109C0022 90109C0022 90109C0022 90109C0022 90119C0520 90119C0520 90159C0049 90159C0049 90159C0049 90159C0049 90159C0049 9017906104 9017906104 9017906104 9017906104 9017906104 90189C0020 9046705127 9046706209 9046706209 9046706212 9046706212 9046711129 9046714053 9046714053 9046717026A0 9046717026A0 9046717027C0 9046717027C0 90467C0043 90467C0043 90467C0043 90467C0043 90467C0043 90467C0043 90467C0043 9048010024 9048010024 9056110024 9056110024 9056113004 9056113004
Part # Description Qty Price
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-0R021

AXAH5#,MXAA5#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-0R110

AXAH5#,MXAA5#

 1
51446F - DUCT, ENGINE UNDER COVER
51446-07010

AXAH5#,MXAA5#

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-0R050

AXAH5#,MXAA5#

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-48020

MXAA5#

 4
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-48020

MXAA5#

 4
51456C - SEAL, ENGINE UNDER COVER, NO.2
51455-48030

MXAA5#

 2
51456C - SEAL, ENGINE UNDER COVER, NO.2
51455-48030

MXAA5#

 2
58165C - COVER, FRONT FLOOR, RH
58165-0R060

MXAA5#

 1
58166A - COVER, FRONT FLOOR, LH
58166-0R030

MXAA5#

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-0R090

MXAA5#

 1
58399D - COVER, FLOOR UNDER, NO.2
58399-0R030

MXAA5#

 1
Common parts
90109-C0022
90119-C0520
90159-C0049
90179-06104
90189-C0020
90467-05127
90467-06209
90467-06212
90467-11129
90467-14053
90467-17026A0
90467-17027C0
90467-C0043
90480-10024
90561-10024
90561-13004
Linked diagrams
5252
