MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

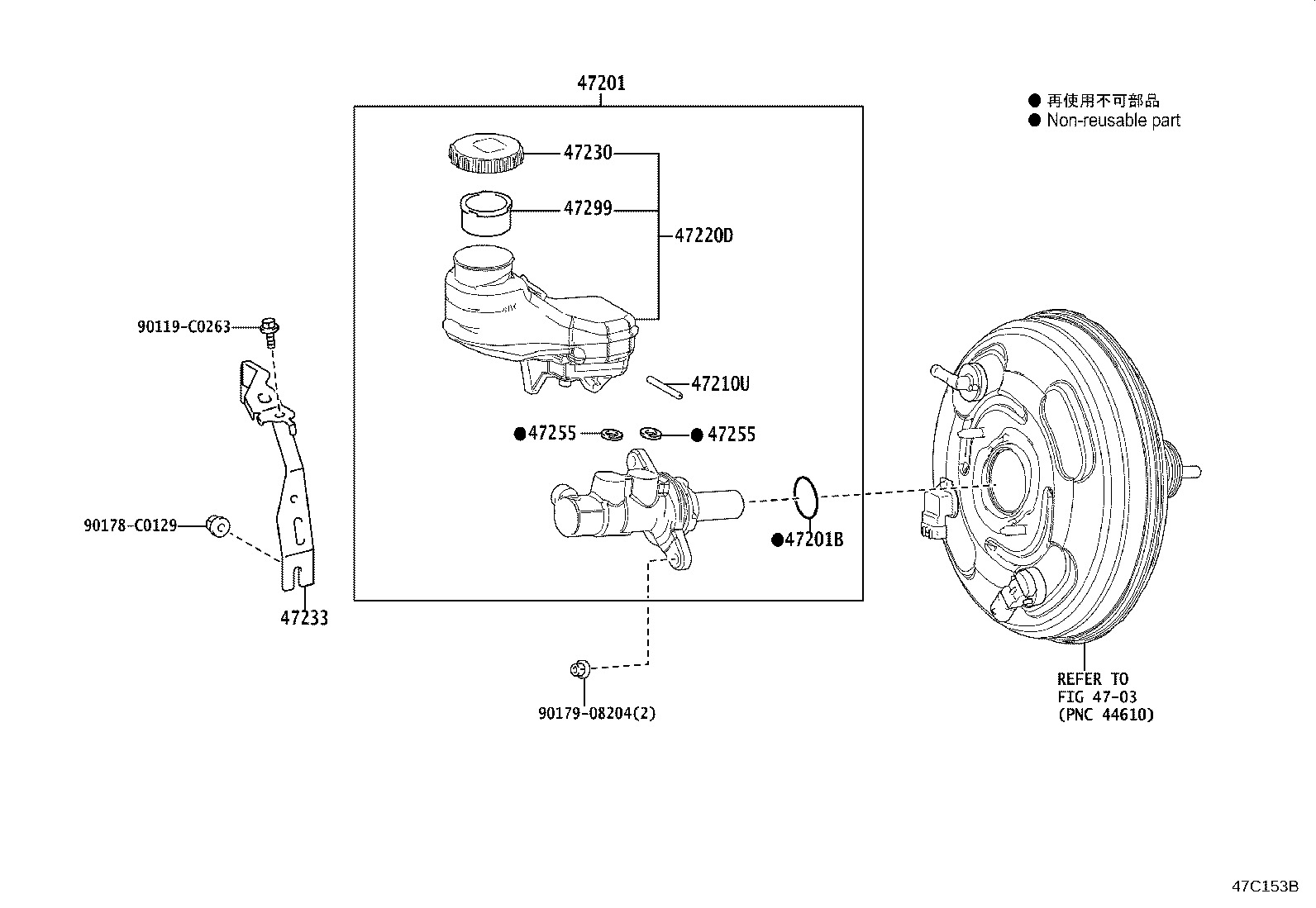

Click highlighted areas on diagram

diagram 4703 47201 47201B 47210U 47220D 47230 47233 47255 47255 47299 90119C0263 90178C0129 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0R150

MXAA5#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90016-AH902

MXAA5#

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-15803

MXAA5#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0R100

MXAA5#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

MXAA5#

 1
47233 - BRACKET, RESERVOIR
47233-0R030

MXAA5#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT002

MXAA5#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT002

MXAA5#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

MXAA5#

 1
Common parts
90119-C0263
90178-C0129
90179-08204
Linked diagrams
4703
