MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

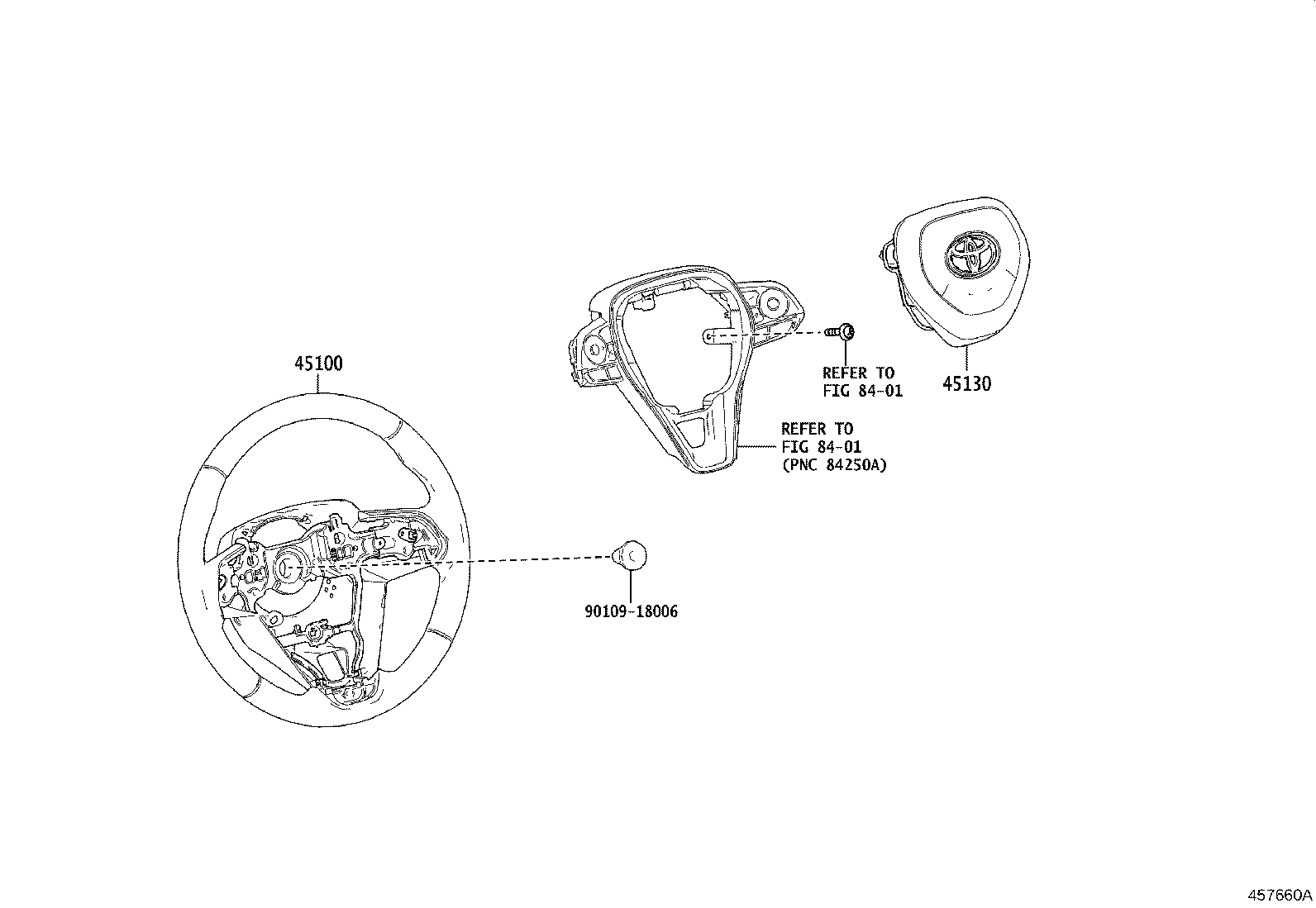

Click highlighted areas on diagram

diagram 45100 45130 8401 8401 9010918006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0Z320C0

AXAH52,MXAA5#..M

3-SPOKE,URETHANE,BLACK,TRIM1#,2#,4#

 1
45100-0Z330C1

AXAH5#,MXAA5#..G

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

 1
45100-0Z330C1

AXAH52,MXAA5#..M

3-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-0R070C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
Common parts
90109-18006
Linked diagrams
8401
