MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

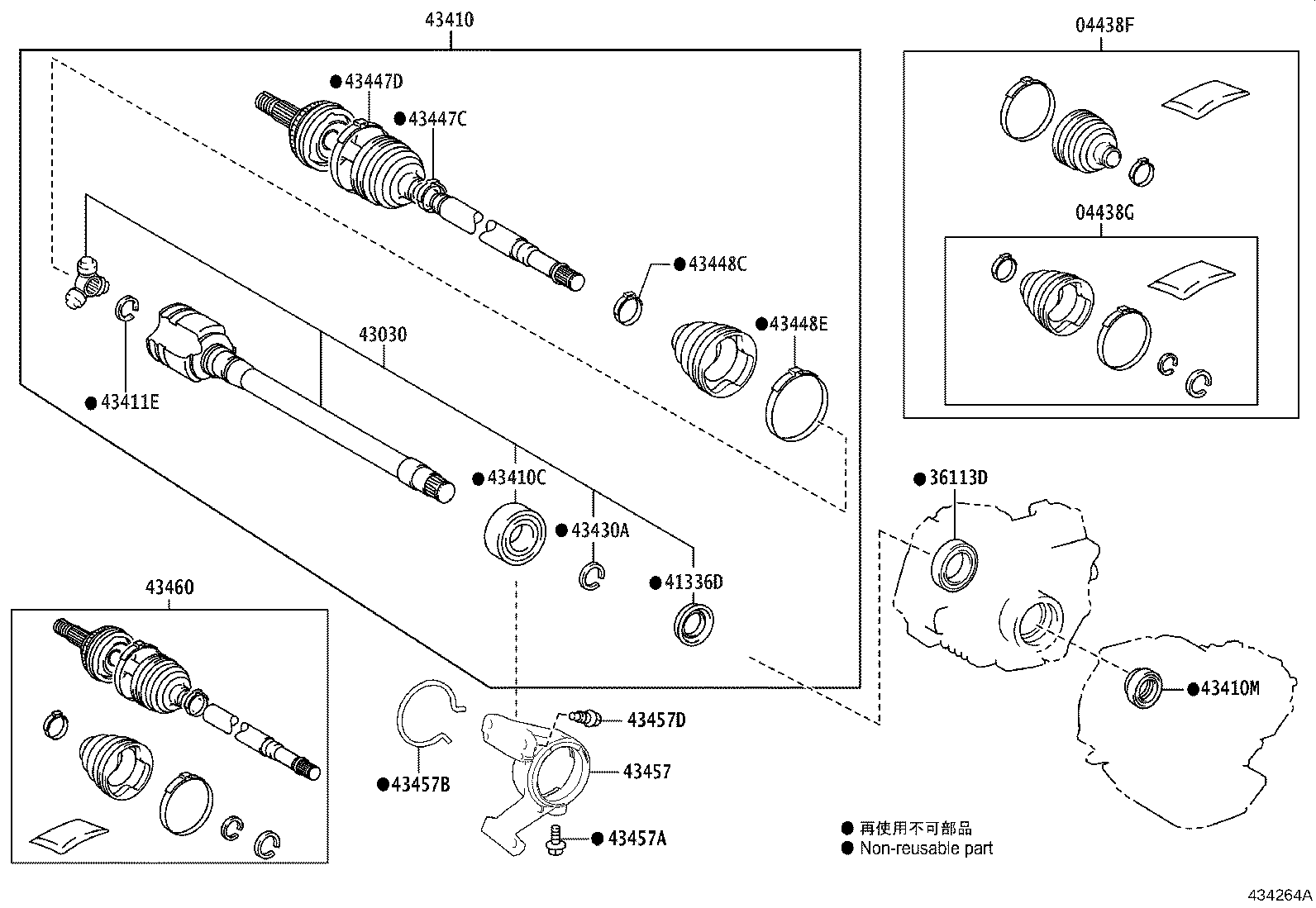

ILLUST NO. 1 OF 2(1911- )MXAA54

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43411E 43430A 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-02880

MXAA54

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-02830

MXAA54

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

MXAA54

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0R090

MXAA54

(L)

 1
41336-52020

MXAA54

(J)

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-0R180

MXAA54..M

 1
43030-0R190

MXAA54..G

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0R220

MXAA54..M

 1
43410-0R230

MXAA54..G

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-C0015

MXAA54

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

MXAA54

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-C0030

AXAH5#,MXAA5#

(L)

 1
43425-28010

AXAH5#,MXAA5#

(J)

 1
43430A - RING, SHAFT SNAP
90520-C0031

MXAA54

(L)

 1
90520-33008

MXAA54

(J)

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100

MXAA5#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090

MXAA5#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06B90

AXAH5#,MXAA5#

(L)

 1
42345-33120

AXAH5#,MXAA5#

(J)

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-33140

AXAH5#,MXAA5#

(J)

 1
42345-06B80

AXAH5#,MXAA5#

(L)

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-0R120

MXAA54

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

MXAA54

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

MXAA54

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-C0014

AXAH5#,MXAA5#

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-8Z826

MXAA54

 1

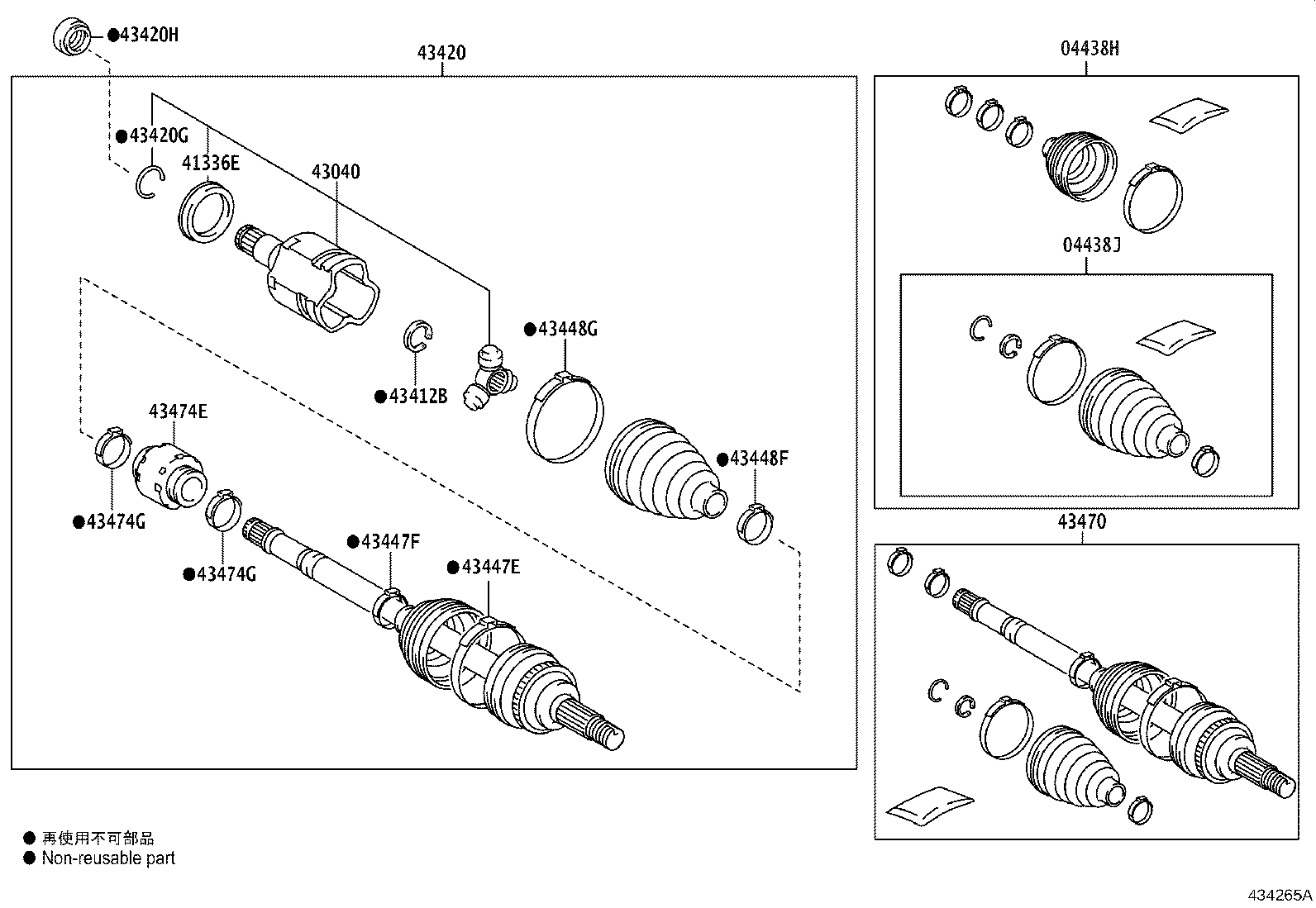

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-02870

MXAA5#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02820

AXAH5#,MXAA5#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-06340

AXAH5#,MXAA5#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-06350

AXAH5#,MXAA5#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-C0030

AXAH5#,MXAA5#

(L)

 1
43425-28010

AXAH5#,MXAA5#

(J)

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-07110

MXAA5#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

AXAH5#,MXAA5#

(J)

 1
90520-C0040

AXAH5#,MXAA5#

(L)

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50058

MXAA54

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090

MXAA5#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100

MXAA5#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06B90

AXAH5#,MXAA5#

(L)

 1
42345-33120

AXAH5#,MXAA5#

(J)

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-33140

AXAH5#,MXAA5#

(J)

 1
42345-06B80

AXAH5#,MXAA5#

(L)

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-8Z825

MXAA5#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-06190

MXAA5#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12090

AXAH5#,MXAA5#

(J)

 2
42345-06420

AXAH5#,MXAA5#

(L)

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12090

AXAH5#,MXAA5#

(J)

 2
42345-06420

AXAH5#,MXAA5#

(L)

 2
