MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)

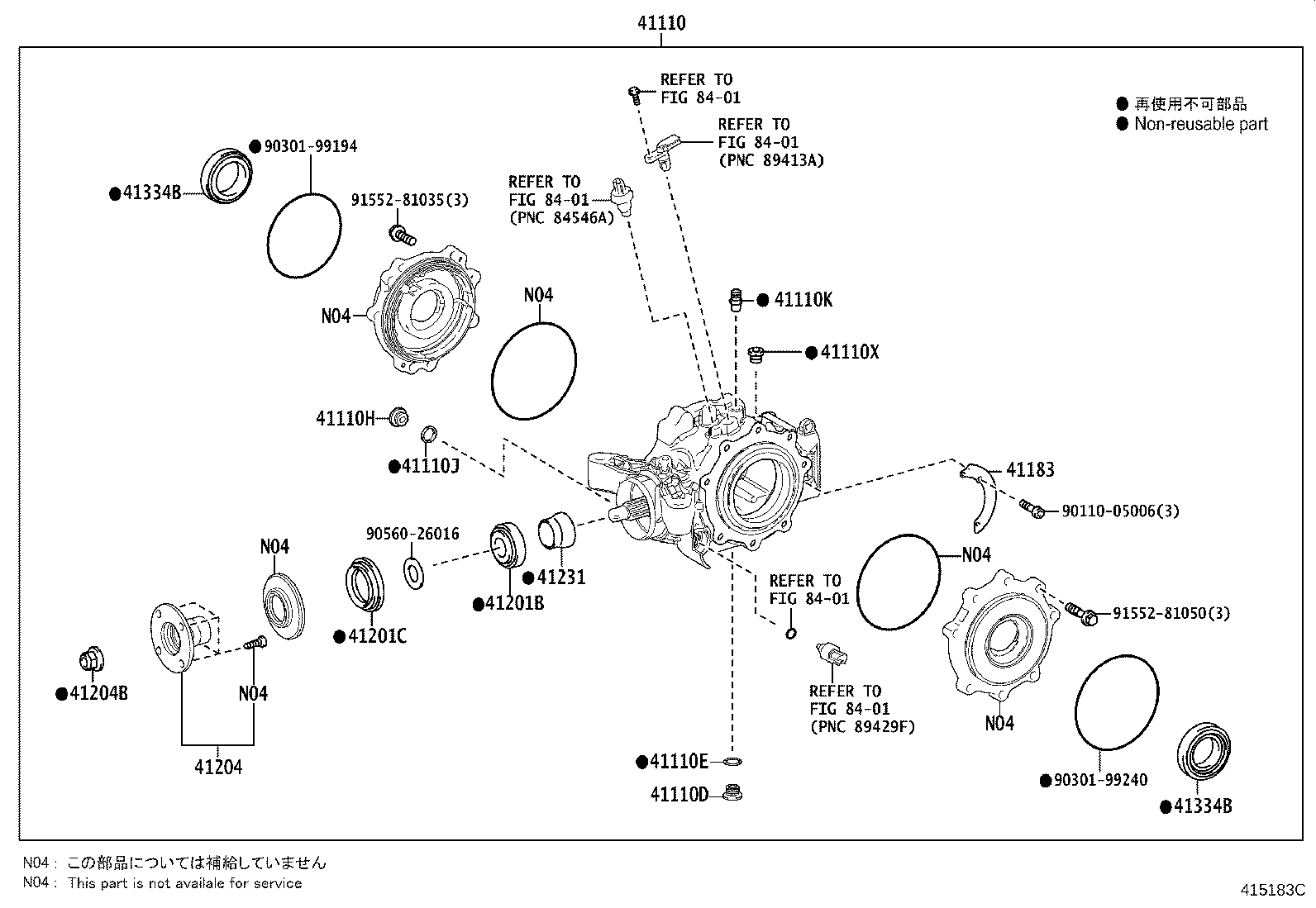

ILLUST NO. 1 OF 3(1911- )MXAA54..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-42053 |
MXAA54..G *FGR=38:17=2.235 |
1 | ||
| 41110-42060 |
MXAA54..M *FGR=41:18=2.277 |
1 | ||
| 41110-42052 |
MXAA54..G *FGR=38:17=2.235 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
MXAA54..G |
1 | ||
| 90341-18051 |
MXAA54..M |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
MXAA54 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18023 |
MXAA54 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
MXAA54 |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03075 |
MXAA54..G |
1 | ||
| 41110X - PLUG (FOR DIFFERENTIAL INSPECTION) | ||||
| 90344-53006 |
MXAA54..G |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-42020 |
MXAA54..G |
1 | ||
| 41183-52010 |
MXAA54..M |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30123 |
MXAA54..G |
1 | ||
| 90366-30090 |
MXAA54..M |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-37006 |
MXAA54..G |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-42010 |
MXAA54..G |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
MXAA54..M OD=41.6 |
1 | ||
| 90179-18020 |
MXAA54..G OD=33.5 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-42010 |
MXAA54..G |
1 | ||
| 41231-52010 |
MXAA54..M |
1 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-39002 |
MXAA54..G |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-39002 |
MXAA54..G |
2 | ||
| Common parts | ||||
| 90110-05006 | ||||
| 90301-99194 | ||||
| 90301-99240 | ||||
| 90560-26016 | ||||
| 91552-81035 | ||||
| 91552-81050 | ||||
| Linked diagrams | ||||
| 8401 | ||||

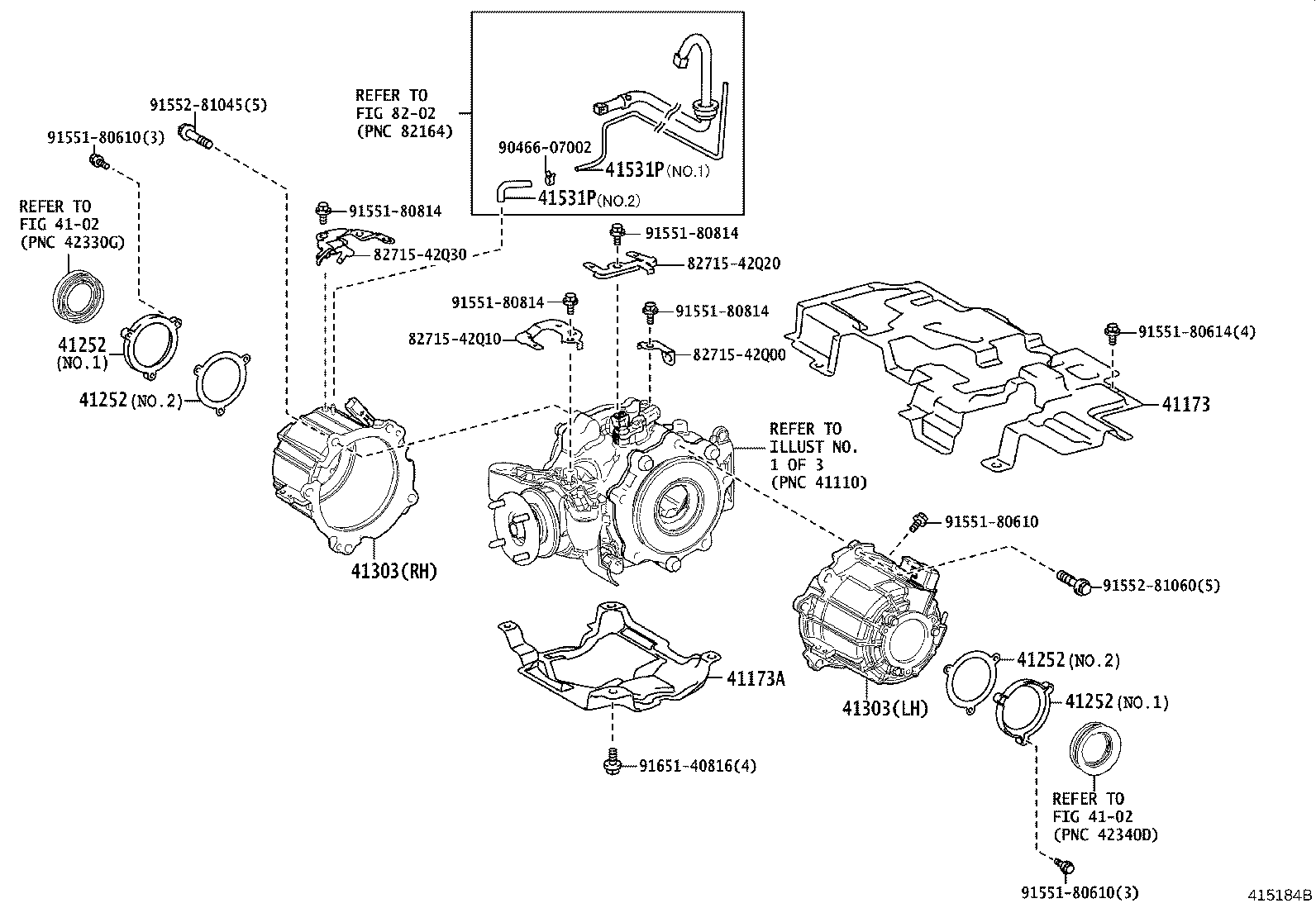

ILLUST NO. 2 OF 3(1911- )MXAA54..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41173 - COVER, DIFFERENTIAL DISCONNECT | ||||
| 41173-42011 |
MXAA54..G |
1 | ||
| 41173A - COVER, DIFFERENTIAL DISCONNECT, NO.2 | ||||
| 41173-42020 |
MXAA54..G |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-42040 |
MXAA54..G NO.1:REFER ILLUST. |
2 | ||
| 41252-42050 |
MXAA54..G NO.2:REFER ILLUST. |
2 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-42040 |
MXAA54..G NO.1:REFER ILLUST. |
2 | ||
| 41252-42050 |
MXAA54..G NO.2:REFER ILLUST. |
2 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-42040 |
MXAA54..G NO.1:REFER ILLUST. |
2 | ||
| 41252-42050 |
MXAA54..G NO.2:REFER ILLUST. |
2 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-42040 |
MXAA54..G NO.1:REFER ILLUST. |
2 | ||
| 41252-42050 |
MXAA54..G NO.2:REFER ILLUST. |
2 | ||
| 41303 - COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL | ||||
| 41303-42032 |
MXAA54..G LH |
1 | ||
| 41303-42041 |
MXAA54..G RH |
1 | ||
| 41303 - COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL | ||||
| 41303-42032 |
MXAA54..G LH |
1 | ||
| 41303-42041 |
MXAA54..G RH |
1 | ||
| 41531P - HOSE, REAR DIFFERENTIAL VACUUM | ||||
| 90446-04014 |
MXAA54 NO.1:REFER ILLUST. |
1 | ||
| 90999-92002 |
MXAA54 NO.2:REFER ILLUST. |
1 | ||
| 41531P - HOSE, REAR DIFFERENTIAL VACUUM | ||||
| 90446-04014 |
MXAA54 NO.1:REFER ILLUST. |
1 | ||
| 90999-92002 |
MXAA54 NO.2:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82715-42Q00 | ||||
| 82715-42Q10 | ||||
| 82715-42Q20 | ||||
| 82715-42Q30 | ||||
| 90466-07002 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91552-81045 | ||||
| 91552-81060 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||

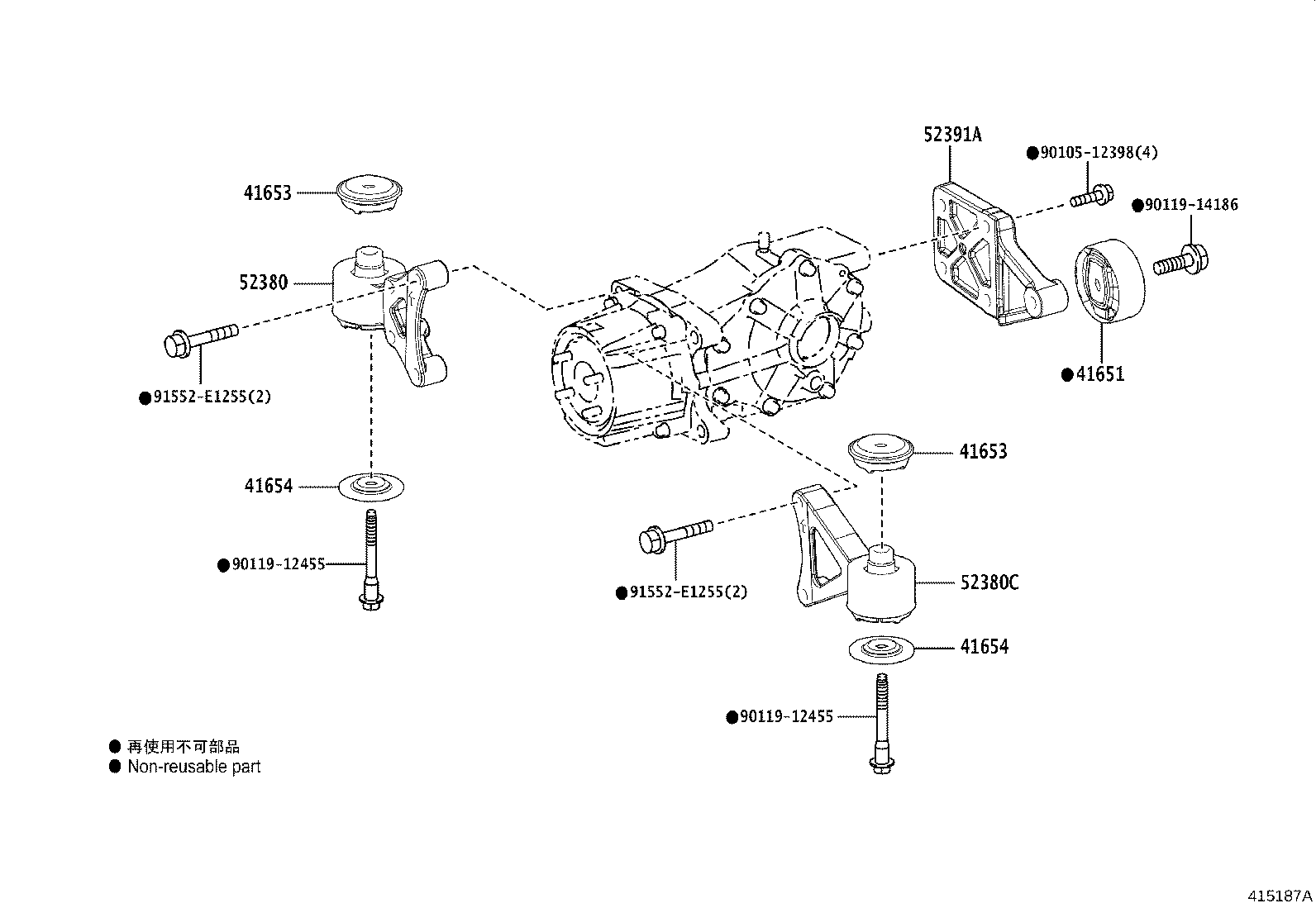

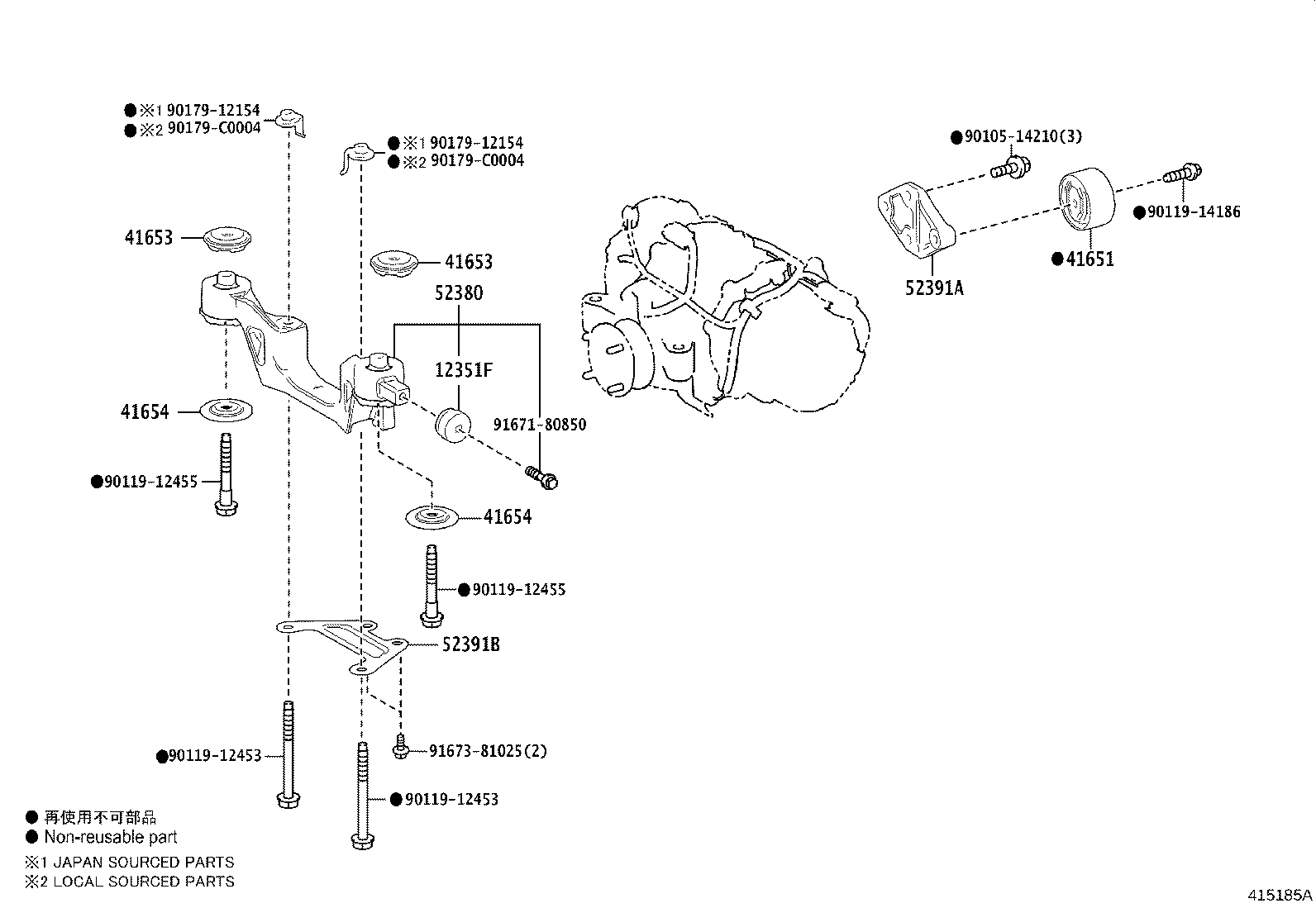

ILLUST NO. 3 OF 3(1911- )MXAA54..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12351F - DAMPER | ||||
| 12351-22060 |
M20DFKS..MXAA54..G |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-0R100 |
MXAA54 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0R030 |
MXAA54 H=18.4 |
2 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0R030 |
MXAA54 H=18.4 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41653-0R040 |
MXAA54 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41653-0R040 |
MXAA54 |
2 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-0R090 |
MXAA54..M |
1 | ||
| 52380-0R110 |
MXAA54..G |
1 | ||
| 52391A - SUPPORT, REAR DIFFERENTIAL | ||||
| 52391-0R170 |
MXAA54..G |
1 | ||
| 52391-0R160 |
MXAA54..M |
1 | ||
| 52391B - SUPPORT, DIFFERENTIAL | ||||
| 52391-42180 |
MXAA54..G |
1 | ||
| Common parts | ||||
| 90105-14210 | ||||
| 90119-12453 | ||||
| 90119-12455 | ||||
| 90119-14186 | ||||
| 90179-12154 | ||||
| 90179-C0004 | ||||
| 91671-80850 | ||||
| 91673-81025 | ||||

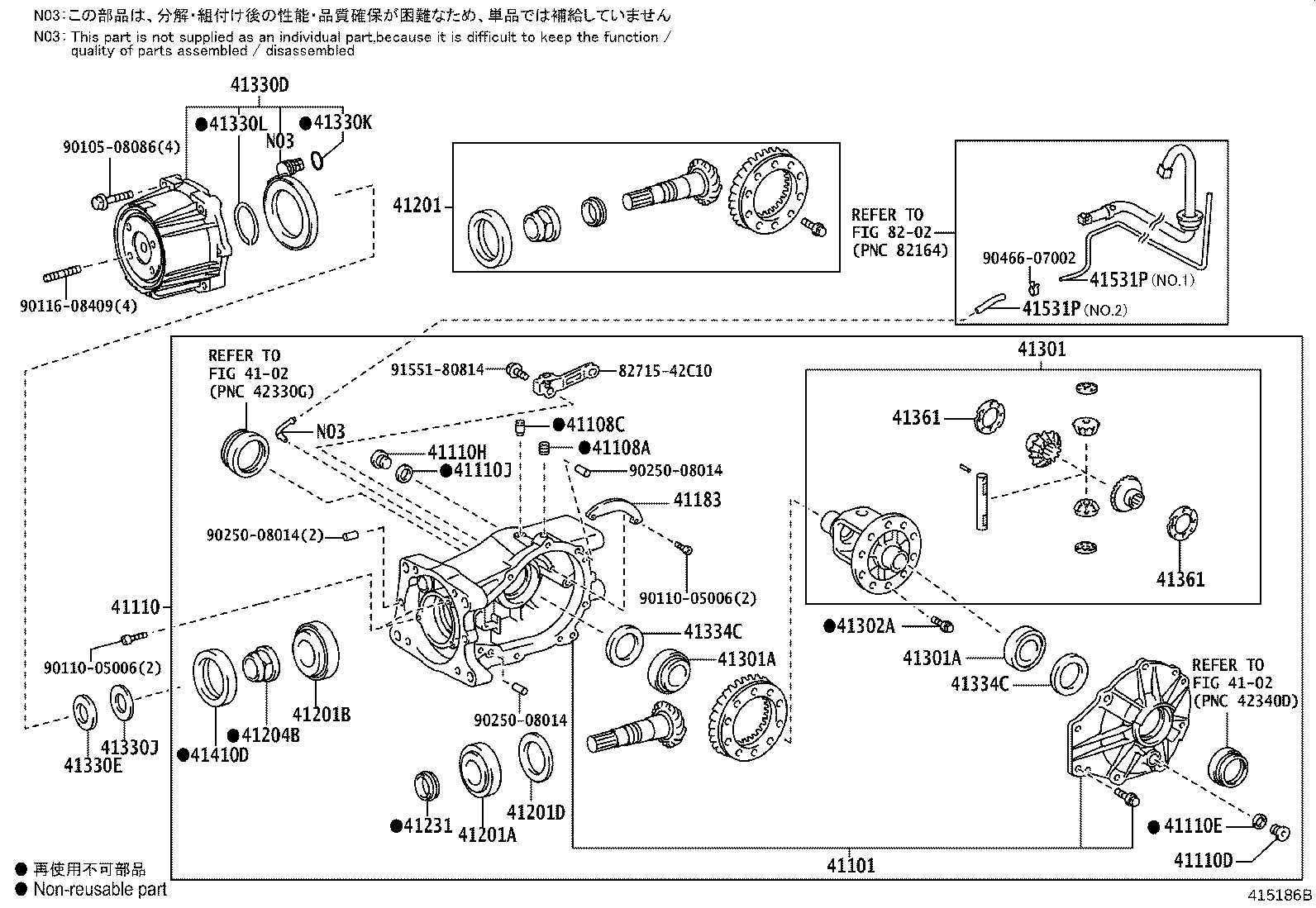

ILLUST NO. 1 OF 2(1911- )MXAA54..M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-42022 |
MXAA54..M |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90344-53006 |
MXAA54..M |
1 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03235 |
MXAA54..M |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-42053 |
MXAA54..G *FGR=38:17=2.235 |
1 | ||
| 41110-42060 |
MXAA54..M *FGR=41:18=2.277 |
1 | ||
| 41110-42052 |
MXAA54..G *FGR=38:17=2.235 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
MXAA54..G |
1 | ||
| 90341-18051 |
MXAA54..M |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
MXAA54 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18023 |
MXAA54 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
MXAA54 |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-42020 |
MXAA54..G |
1 | ||
| 41183-52010 |
MXAA54..M |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-59115 |
MXAA54..M *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35130 |
MXAA54..M |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30123 |
MXAA54..G |
1 | ||
| 90366-30090 |
MXAA54..M |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35043 |
MXAA54..M T=1.72,MARK 43 |
1 | ||
| 90564-35049 |
MXAA54..M T=1.78,MARK 49 |
1 | ||
| 90564-35047 |
MXAA54..M T=1.76,MARK 47 |
1 | ||
| 90564-35045 |
MXAA54..M T=1.74,MARK 45 |
1 | ||
| 90564-35063 |
MXAA54..M T=1.92,MARK 63 |
1 | ||
| 90564-35051 |
MXAA54..M T=1.80,MARK 51 |
1 | ||
| 90564-35055 |
MXAA54..M T=1.84,MARK 55 |
1 | ||
| 90564-35057 |
MXAA54..M T=1.86,MARK 57 |
1 | ||
| 90564-35081 |
MXAA54..M T=2.06,MARK 81 |
1 | ||
| 90564-35065 |
MXAA54..M T=1.94,MARK 65 |
1 | ||
| 90564-35059 |
MXAA54..M T=1.88,MARK 59 |
1 | ||
| 90564-35053 |
MXAA54..M T=1.82,MARK 53 |
1 | ||
| 90564-35083 |
MXAA54..M T=2.08,MARK 83 |
1 | ||
| 90564-35073 |
MXAA54..M T=1.98,MARK 73 |
1 | ||
| 90564-35041 |
MXAA54..M T=1.70,MARK 41 |
1 | ||
| 90564-35071 |
MXAA54..M T=1.96,MARK 71 |
1 | ||
| 90564-35061 |
MXAA54..M T=1.90,MARK 61 |
1 | ||
| 90564-35089 |
MXAA54..M T=2.14,MARK 89 |
1 | ||
| 90564-35079 |
MXAA54..M T=2.04,MARK 79 |
1 | ||
| 90564-35075 |
MXAA54..M T=2.00,MARK 75 |
1 | ||
| 90564-35085 |
MXAA54..M T=2.10,MARK 85 |
1 | ||
| 90564-35091 |
MXAA54..M T=2.16,MARK 91 |
1 | ||
| 90564-35087 |
MXAA54..M T=2.12,MARK 87 |
1 | ||
| 90564-35093 |
MXAA54..M T=2.18,MARK 93 |
1 | ||
| 90564-35077 |
MXAA54..M T=2.02,MARK 77 |
1 | ||
| 90564-35095 |
MXAA54..M T=2.20,MARK 95 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
MXAA54..M OD=41.6 |
1 | ||
| 90179-18020 |
MXAA54..G OD=33.5 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-42010 |
MXAA54..G |
1 | ||
| 41231-52010 |
MXAA54..M |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-52100 |
MXAA54..M |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-33003 |
MXAA54..M |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-33003 |
MXAA54..M |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-11034 |
MXAA54..M |
10 | ||
| 41330D - COUPLING ASSY, TRANSMISSION | ||||
| 41303-42023 |
MXAA54..M |
1 | ||
| 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) | ||||
| 90208-25001 |
MXAA54..M |
1 | ||
| 41330J - SHIM (FOR TRANSMISSION COUPLING) | ||||
| 90564-25026 |
MXAA54..M T=2.60,MARK 3 |
1 | ||
| 90564-25028 |
MXAA54..M T=2.15,MARK 5 |
1 | ||
| 90564-25031 |
MXAA54..M T=1.75,MARK 8 |
1 | ||
| 90564-25027 |
MXAA54..M T=1.85,MARK 4 |
1 | ||
| 90564-25024 |
MXAA54..M T=2.00,MARK 1 |
1 | ||
| 90564-25037 |
MXAA54..M T=2.20,MARK 14 |
1 | ||
| 90564-25033 |
MXAA54..M T=1.90,MARK 10 |
1 | ||
| 90564-25040 |
MXAA54..M T=2.40,MARK 17 |
1 | ||
| 90564-25032 |
MXAA54..M T=1.80,MARK 9 |
1 | ||
| 90564-25039 |
MXAA54..M T=2.35,MARK 16 |
1 | ||
| 90564-25038 |
MXAA54..M T=2.25,MARK 15 |
1 | ||
| 90564-25025 |
MXAA54..M T=2.30,MARK 2 |
1 | ||
| 90564-25041 |
MXAA54..M T=2.50,MARK 18 |
1 | ||
| 90564-25034 |
MXAA54..M T=1.95,MARK 11 |
1 | ||
| 90564-25036 |
MXAA54..M T=2.10,MARK 13 |
1 | ||
| 90564-25042 |
MXAA54..M T=2.55,MARK 19 |
1 | ||
| 90564-25035 |
MXAA54..M T=2.05,MARK 12 |
1 | ||
| 90564-25029 |
MXAA54..M T=2.45,MARK 6 |
1 | ||
| 90564-25043 |
MXAA54..M T=2.65,MARK 20 |
1 | ||
| 90564-25044 |
MXAA54..M T=2.70,MARK 21 |
1 | ||
| 41330K - RING, O (FOR TRANSMISSION COUPLING) | ||||
| 90301-16015 |
MXAA54..M |
1 | ||
| 41330L - RING, SNAP (FOR TRANSMISSION COUPLING) | ||||
| 90520-59004 |
MXAA54..M |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-37022 |
MXAA54..M T=1.60 |
1 | ||
| 90564-37023 |
MXAA54..M T=1.63 |
1 | ||
| 90564-37024 |
MXAA54..M T=1.66 |
1 | ||
| 90564-37026 |
MXAA54..M T=1.72 |
1 | ||
| 90564-37025 |
MXAA54..M T=1.69 |
1 | ||
| 90564-37027 |
MXAA54..M T=1.75 |
1 | ||
| 90564-37034 |
MXAA54..M T=1.96 |
1 | ||
| 90564-37040 |
MXAA54..M T=2.14 |
1 | ||
| 90564-37030 |
MXAA54..M T=1.84 |
1 | ||
| 90564-37029 |
MXAA54..M T=1.81 |
1 | ||
| 90564-37028 |
MXAA54..M T=1.78 |
1 | ||
| 90564-37032 |
MXAA54..M T=1.90 |
1 | ||
| 90564-37037 |
MXAA54..M T=2.05 |
1 | ||
| 90564-37039 |
MXAA54..M T=2.11 |
1 | ||
| 90564-37033 |
MXAA54..M T=1.93 |
1 | ||
| 90564-37031 |
MXAA54..M T=1.87 |
1 | ||
| 90564-37035 |
MXAA54..M T=1.99 |
1 | ||
| 90564-37045 |
MXAA54..M T=2.29 |
1 | ||
| 90564-37053 |
MXAA54..M T=2.53 |
1 | ||
| 90564-37046 |
MXAA54..M T=2.32 |
1 | ||
| 90564-37048 |
MXAA54..M T=2.38 |
1 | ||
| 90564-37049 |
MXAA54..M T=2.41 |
1 | ||
| 90564-37043 |
MXAA54..M T=2.23 |
1 | ||
| 90564-37047 |
MXAA54..M T=2.35 |
1 | ||
| 90564-37036 |
MXAA54..M T=2.02 |
1 | ||
| 90564-37054 |
MXAA54..M T=2.56 |
1 | ||
| 90564-37056 |
MXAA54..M T=2.62 |
1 | ||
| 90564-37050 |
MXAA54..M T=2.44 |
1 | ||
| 90564-37042 |
MXAA54..M T=2.20 |
1 | ||
| 90564-37044 |
MXAA54..M T=2.26 |
1 | ||
| 90564-37052 |
MXAA54..M T=2.50 |
1 | ||
| 90564-37041 |
MXAA54..M T=2.17 |
1 | ||
| 90564-37055 |
MXAA54..M T=2.59 |
1 | ||
| 90564-37051 |
MXAA54..M T=2.47 |
1 | ||
| 90564-37038 |
MXAA54..M T=2.08 |
1 | ||
| 90564-37057 |
MXAA54..M T=2.65 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-37022 |
MXAA54..M T=1.60 |
1 | ||
| 90564-37023 |
MXAA54..M T=1.63 |
1 | ||
| 90564-37024 |
MXAA54..M T=1.66 |
1 | ||
| 90564-37026 |
MXAA54..M T=1.72 |
1 | ||
| 90564-37025 |
MXAA54..M T=1.69 |
1 | ||
| 90564-37027 |
MXAA54..M T=1.75 |
1 | ||
| 90564-37034 |
MXAA54..M T=1.96 |
1 | ||
| 90564-37040 |
MXAA54..M T=2.14 |
1 | ||
| 90564-37030 |
MXAA54..M T=1.84 |
1 | ||
| 90564-37029 |
MXAA54..M T=1.81 |
1 | ||
| 90564-37028 |
MXAA54..M T=1.78 |
1 | ||
| 90564-37032 |
MXAA54..M T=1.90 |
1 | ||
| 90564-37037 |
MXAA54..M T=2.05 |
1 | ||
| 90564-37039 |
MXAA54..M T=2.11 |
1 | ||
| 90564-37033 |
MXAA54..M T=1.93 |
1 | ||
| 90564-37031 |
MXAA54..M T=1.87 |
1 | ||
| 90564-37035 |
MXAA54..M T=1.99 |
1 | ||
| 90564-37045 |
MXAA54..M T=2.29 |
1 | ||
| 90564-37053 |
MXAA54..M T=2.53 |
1 | ||
| 90564-37046 |
MXAA54..M T=2.32 |
1 | ||
| 90564-37048 |
MXAA54..M T=2.38 |
1 | ||
| 90564-37049 |
MXAA54..M T=2.41 |
1 | ||
| 90564-37043 |
MXAA54..M T=2.23 |
1 | ||
| 90564-37047 |
MXAA54..M T=2.35 |
1 | ||
| 90564-37036 |
MXAA54..M T=2.02 |
1 | ||
| 90564-37054 |
MXAA54..M T=2.56 |
1 | ||
| 90564-37056 |
MXAA54..M T=2.62 |
1 | ||
| 90564-37050 |
MXAA54..M T=2.44 |
1 | ||
| 90564-37042 |
MXAA54..M T=2.20 |
1 | ||
| 90564-37044 |
MXAA54..M T=2.26 |
1 | ||
| 90564-37052 |
MXAA54..M T=2.50 |
1 | ||
| 90564-37041 |
MXAA54..M T=2.17 |
1 | ||
| 90564-37055 |
MXAA54..M T=2.59 |
1 | ||
| 90564-37051 |
MXAA54..M T=2.47 |
1 | ||
| 90564-37038 |
MXAA54..M T=2.08 |
1 | ||
| 90564-37057 |
MXAA54..M T=2.65 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52230 |
MXAA54..M T=1.75 |
1 | ||
| 41361-52180 |
MXAA54..M T=1.50 |
1 | ||
| 41361-52220 |
MXAA54..M T=1.70 |
1 | ||
| 41361-52240 |
MXAA54..M T=1.40 |
1 | ||
| 41361-52200 |
MXAA54..M T=1.60 |
1 | ||
| 41361-52190 |
MXAA54..M T=1.55 |
1 | ||
| 41361-52250 |
MXAA54..M T=1.45 |
1 | ||
| 41361-52210 |
MXAA54..M T=1.65 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52230 |
MXAA54..M T=1.75 |
1 | ||
| 41361-52180 |
MXAA54..M T=1.50 |
1 | ||
| 41361-52220 |
MXAA54..M T=1.70 |
1 | ||
| 41361-52240 |
MXAA54..M T=1.40 |
1 | ||
| 41361-52200 |
MXAA54..M T=1.60 |
1 | ||
| 41361-52190 |
MXAA54..M T=1.55 |
1 | ||
| 41361-52250 |
MXAA54..M T=1.45 |
1 | ||
| 41361-52210 |
MXAA54..M T=1.65 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90311-54006 |
MXAA54..M |
1 | ||
| 41531P - HOSE, REAR DIFFERENTIAL VACUUM | ||||
| 90446-04014 |
MXAA54 NO.1:REFER ILLUST. |
1 | ||
| 90999-92002 |
MXAA54 NO.2:REFER ILLUST. |
1 | ||
| 41531P - HOSE, REAR DIFFERENTIAL VACUUM | ||||
| 90446-04014 |
MXAA54 NO.1:REFER ILLUST. |
1 | ||
| 90999-92002 |
MXAA54 NO.2:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82715-42C10 | ||||
| 90105-08086 | ||||
| 90110-05006 | ||||
| 90116-08409 | ||||
| 90250-08014 | ||||
| 90466-07002 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1911- )MXAA54..M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-0R100 |
MXAA54 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0R030 |
MXAA54 H=18.4 |
2 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0R030 |
MXAA54 H=18.4 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41653-0R040 |
MXAA54 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41653-0R040 |
MXAA54 |
2 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-0R090 |
MXAA54..M |
1 | ||
| 52380-0R110 |
MXAA54..G |
1 | ||
| 52380C - SUPPORT, REAR DIFFERENTIAL, NO.2 | ||||
| 52380-0R100 |
MXAA54..M |
1 | ||
| 52391A - SUPPORT, REAR DIFFERENTIAL | ||||
| 52391-0R170 |
MXAA54..G |
1 | ||
| 52391-0R160 |
MXAA54..M |
1 | ||
| Common parts | ||||
| 90105-12398 | ||||
| 90119-12455 | ||||
| 90119-14186 | ||||
| 91552-E1255 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
