MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA54

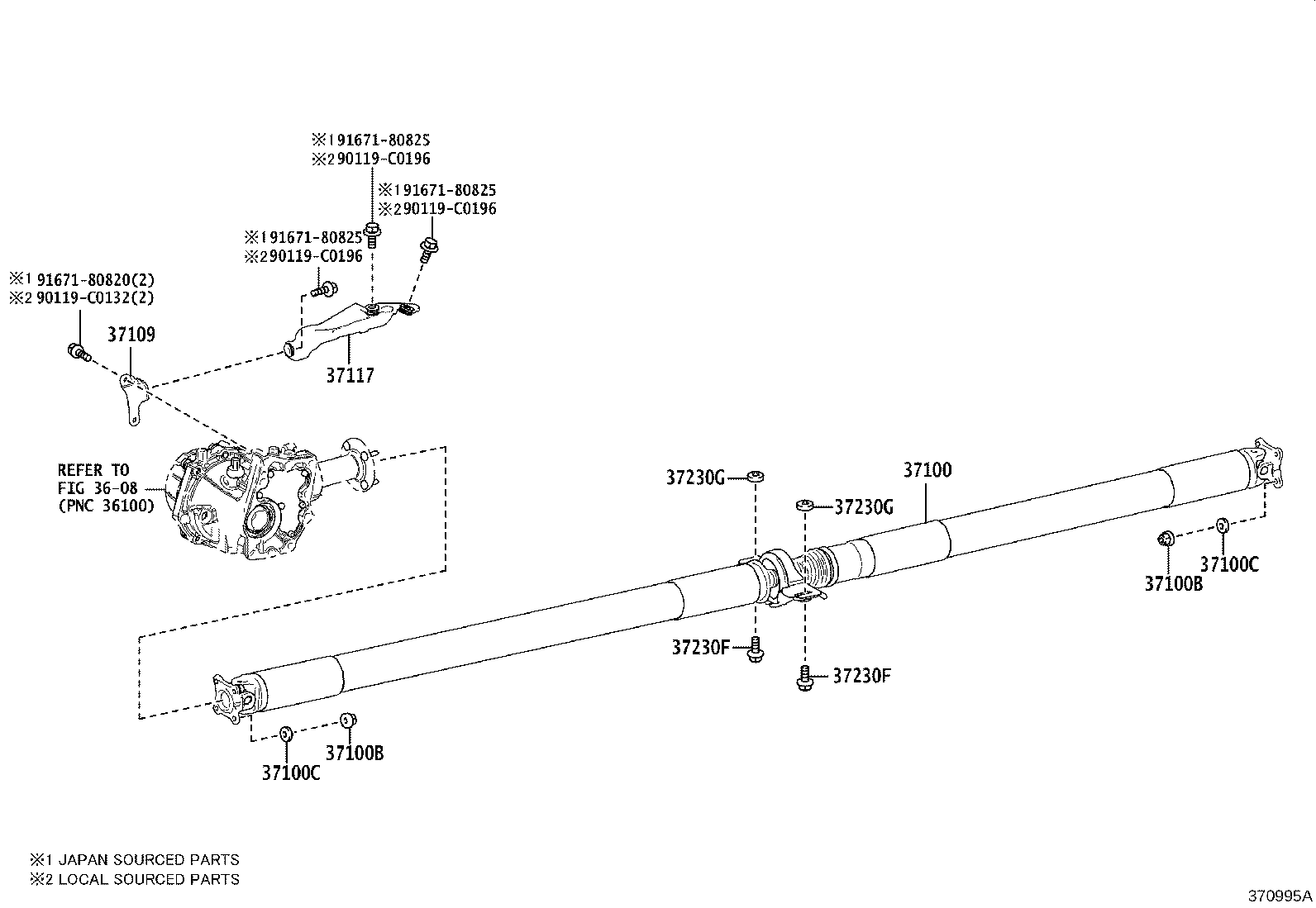

Click highlighted areas on diagram

diagram 3608 37100 37100B 37100B 37100C 37100C 37109 37117 37230F 37230F 37230G 37230G 90119C0132 90119C0196 90119C0196 90119C0196 9167180820 9167180825 9167180825 9167180825
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-0R030

MXAA54..G

 1
37100-0R020

MXAA54..M

 1
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-C0066

MXAA54

 8
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-C0066

MXAA54

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08097

MXAA54

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08097

MXAA54

 8
37109 - BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1
37109-0R020

MXAA54

 1
37117 - INSULATOR, PROPELLER SHAFT HEAT
37117-0R020

MXAA54

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-C0288

MXAA54

 2
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-C0288

MXAA54

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

MXAA54

T=4.5

 1
90201-10123

MXAA54

T=2.0

 1
90201-10083

MXAA54

T=6.5

 1
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

MXAA54

T=4.5

 1
90201-10123

MXAA54

T=2.0

 1
90201-10083

MXAA54

T=6.5

 1
Common parts
90119-C0132
90119-C0196
91671-80820
91671-80825
Linked diagrams
3608
