MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA54..G

Click highlighted areas on diagram

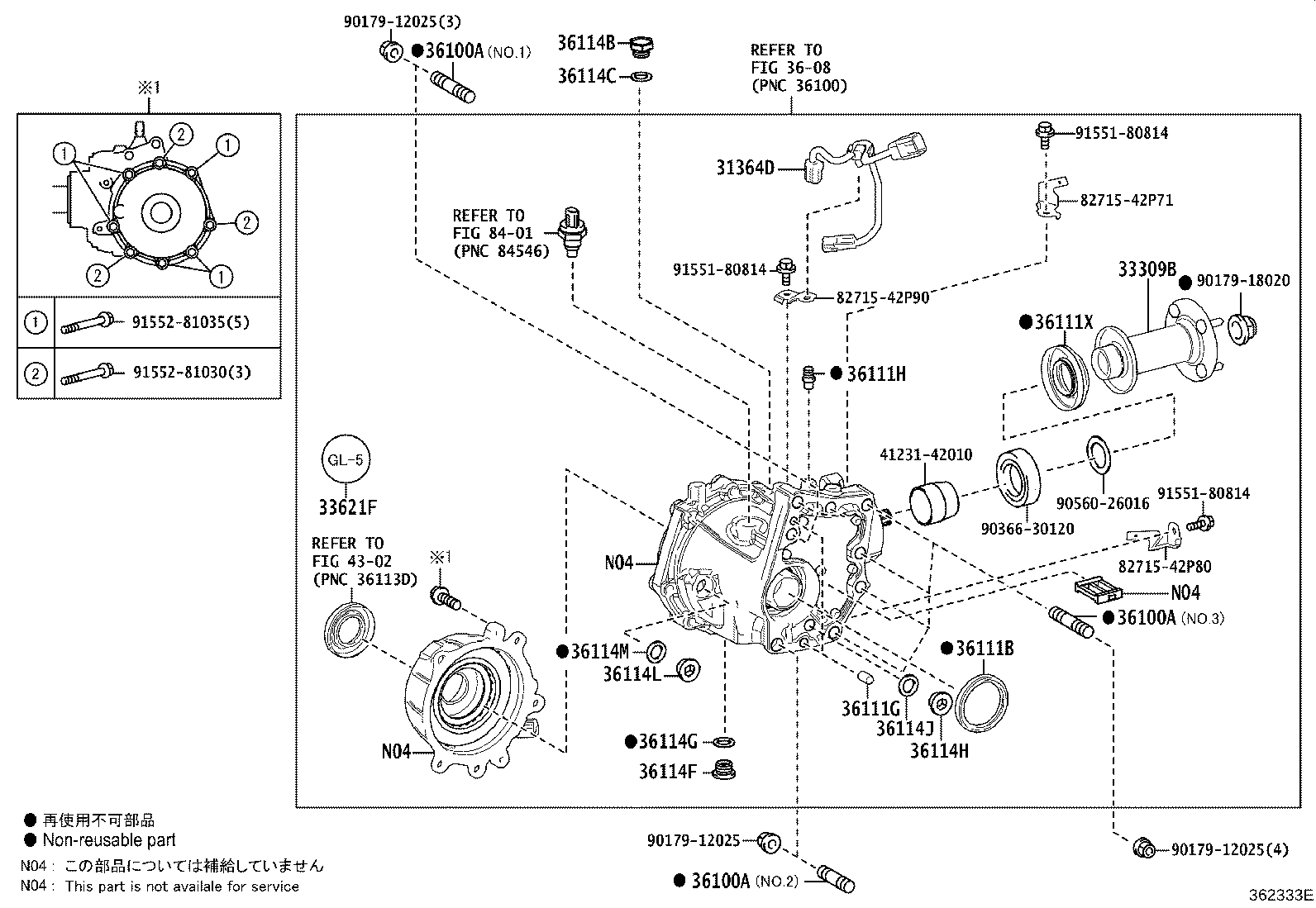

diagram 31364D 33309B 33621F 3608 36100A 36100A 36100A 36111B 36111G 36111H 36111X 36114B 36114C 36114F 36114G 36114H 36114J 36114L 36114M 4123142010 4302 8271542P71 8271542P80 8271542P90 8401 9017912025 9017912025 9017912025 9017918020 9036630120 9056026016 9155180814 9155180814 9155180814 9155281030 9155281035
Part # Description Qty Price
31364D - WIRE, CLUTCH CONTROL SOLENOID
31364-42010

MXAA54..G

 1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-42010

MXAA54..G

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

MXAA54..G

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

MXAA54

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

MXAA54..G

L=20,OD=10

 2
90250-10017

MXAA54..M

L=20,OD=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

MXAA54..M

 1
90930-03031

MXAA54..G

 1
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90311-37005

MXAA54..G

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

MXAA54

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

MXAA54

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18035

MXAA54..G

 1
90341-18051

MXAA54..M

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

MXAA54

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18046

MXAA54..G

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

MXAA54..G

 1
36114L - PLUG, FILLER(FOR TRANSFER)
90341-18023

MXAA54

 1
36114M - GASKET (FOR TRANSFER FILLER PLUG)
12157-10010

MXAA54

 1
Common parts
41231-42010
82715-42P71
82715-42P80
82715-42P90
90179-12025
90179-18020
90366-30120
90560-26016
91551-80814
91552-81030
91552-81035
Linked diagrams
3608
4302
8401

(1911- )MXAA54..M

Click highlighted areas on diagram

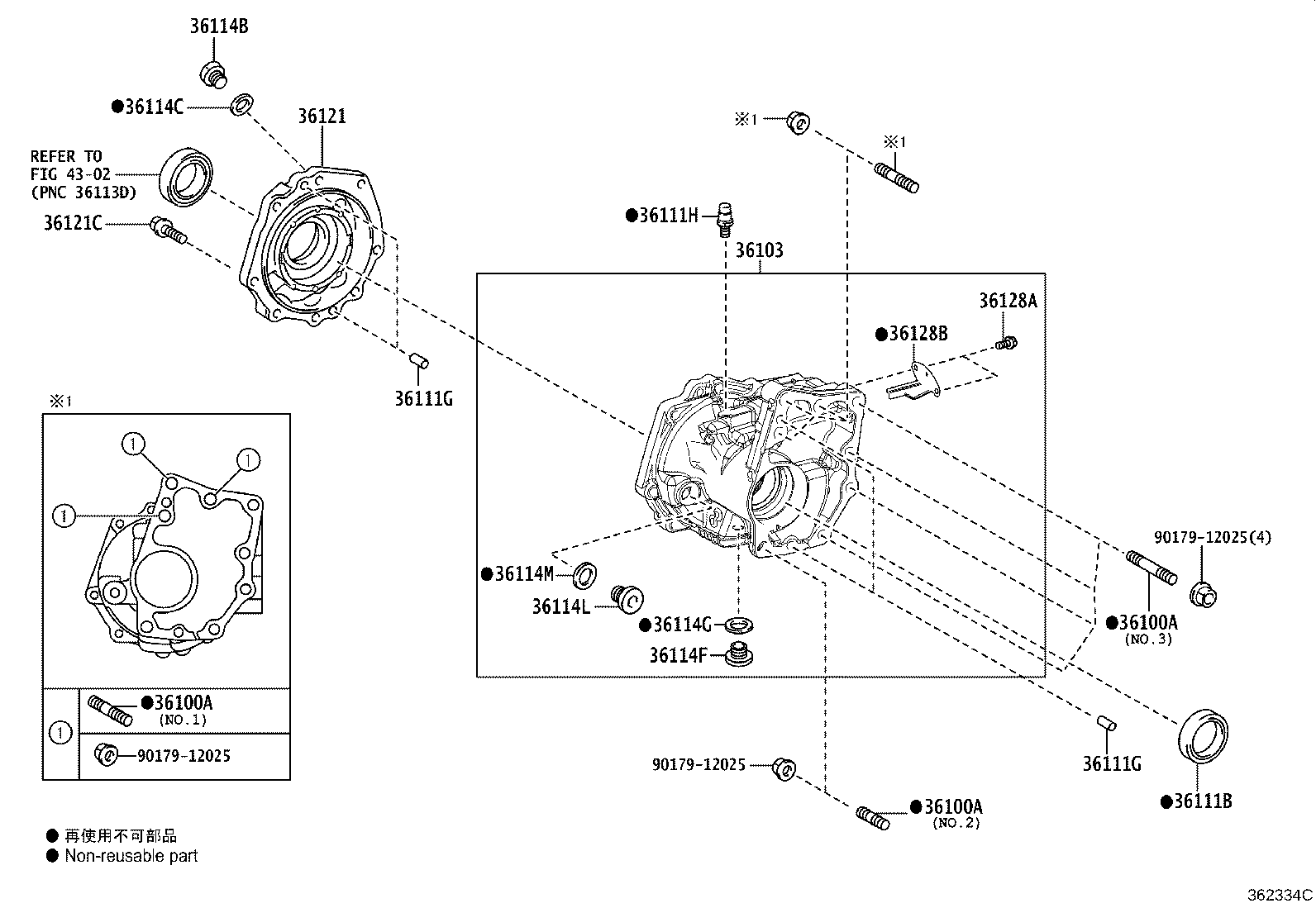

diagram 36100A 36100A 36100A 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114L 36114M 36121 36121C 36128A 36128B 4302 9017912025 9017912025 9017912025
Part # Description Qty Price
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

MXAA54

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12052

MXAA54

S=22 & 22,L=53,NO.2:REFER ILLUST.

 1
90116-12051

MXAA54

S=22 & 22,L=73,NO.1:REFER ILLUST.

 3
36103 - CASE SUB-ASSY, TRANSFER
36103-42070

MXAA54..M

 1
36103-52030

MXAA54..M

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

MXAA54

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

MXAA54..G

L=20,OD=10

 2
90250-10017

MXAA54..M

L=20,OD=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

MXAA54..G

L=20,OD=10

 2
90250-10017

MXAA54..M

L=20,OD=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

MXAA54..M

 1
90930-03031

MXAA54..G

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

MXAA54

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

MXAA54

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18035

MXAA54..G

 1
90341-18051

MXAA54..M

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

MXAA54

 1
36114L - PLUG, FILLER(FOR TRANSFER)
90341-18023

MXAA54

 1
36114M - GASKET (FOR TRANSFER FILLER PLUG)
12157-10010

MXAA54

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

MXAA54..M

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

MXAA54..M

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

MXAA54..M

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

MXAA54..M

 1
Common parts
90179-12025
Linked diagrams
4302
