MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

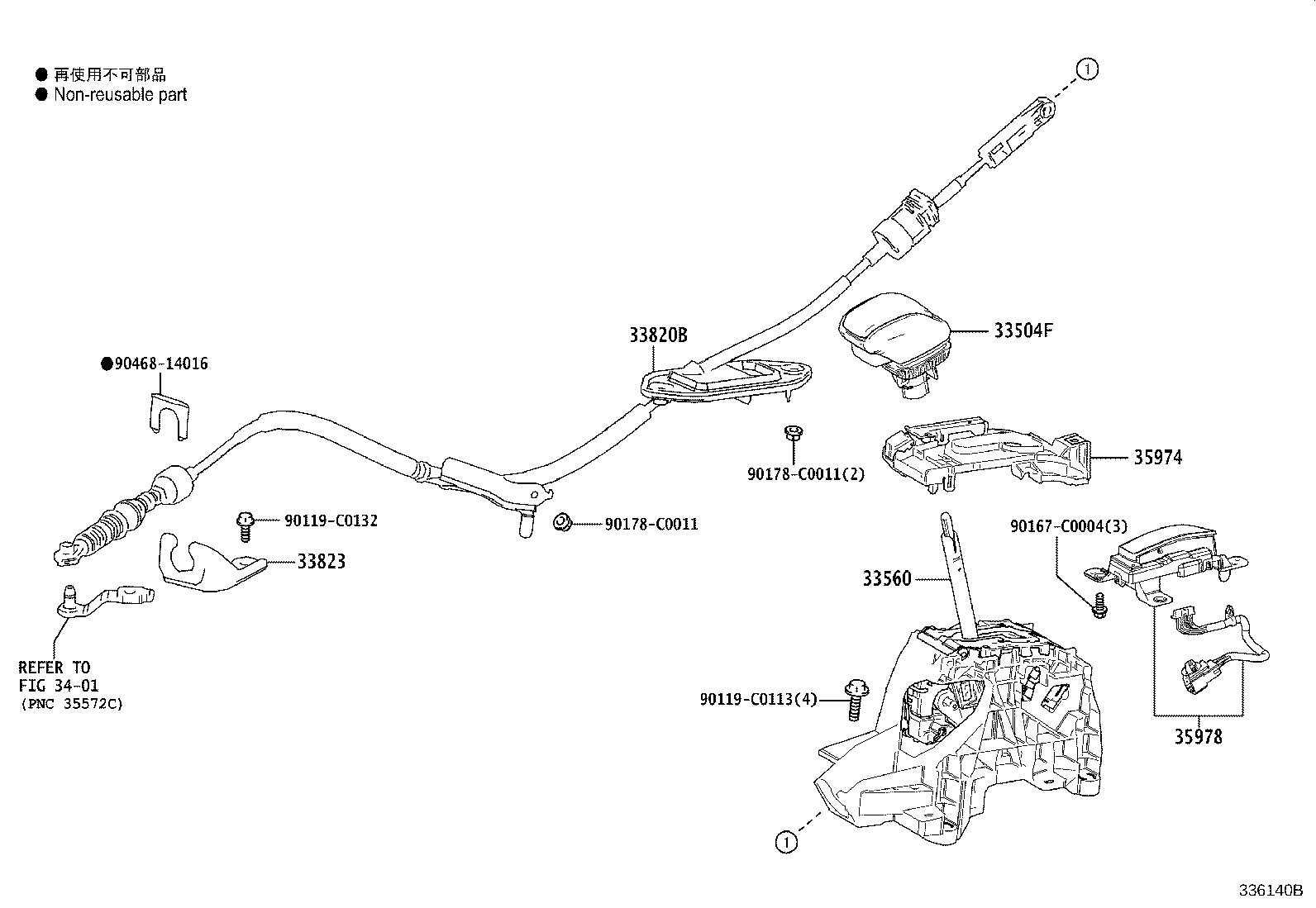

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33823 3401 35974 35978 90119C0113 90119C0132 90167C0004 90178C0011 90178C0011 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0R140C0

AXAH5#,MXAA5#..G

BLACK,TRIM1#,2#,4#

 1
33504-0R130C0

AXAH52,MXAA5#..M

BLACK,TRIM1#,2#,4#

 1
33504-0R140C0

AXAH52,MXAA5#..M

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4110

MXAA5#..G,M

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0R181

MXAA5#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-F4040

MXAA5#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0R020

AXAH5#,MXAA5#

 1
35978 - INDICATOR, SHIFT POSITION
35978-0R030

MXAA5#

 1
Common parts
90119-C0113
90119-C0132
90167-C0004
90178-C0011
90468-14016
Linked diagrams
3401
