MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)
(1911- )M20DFKS

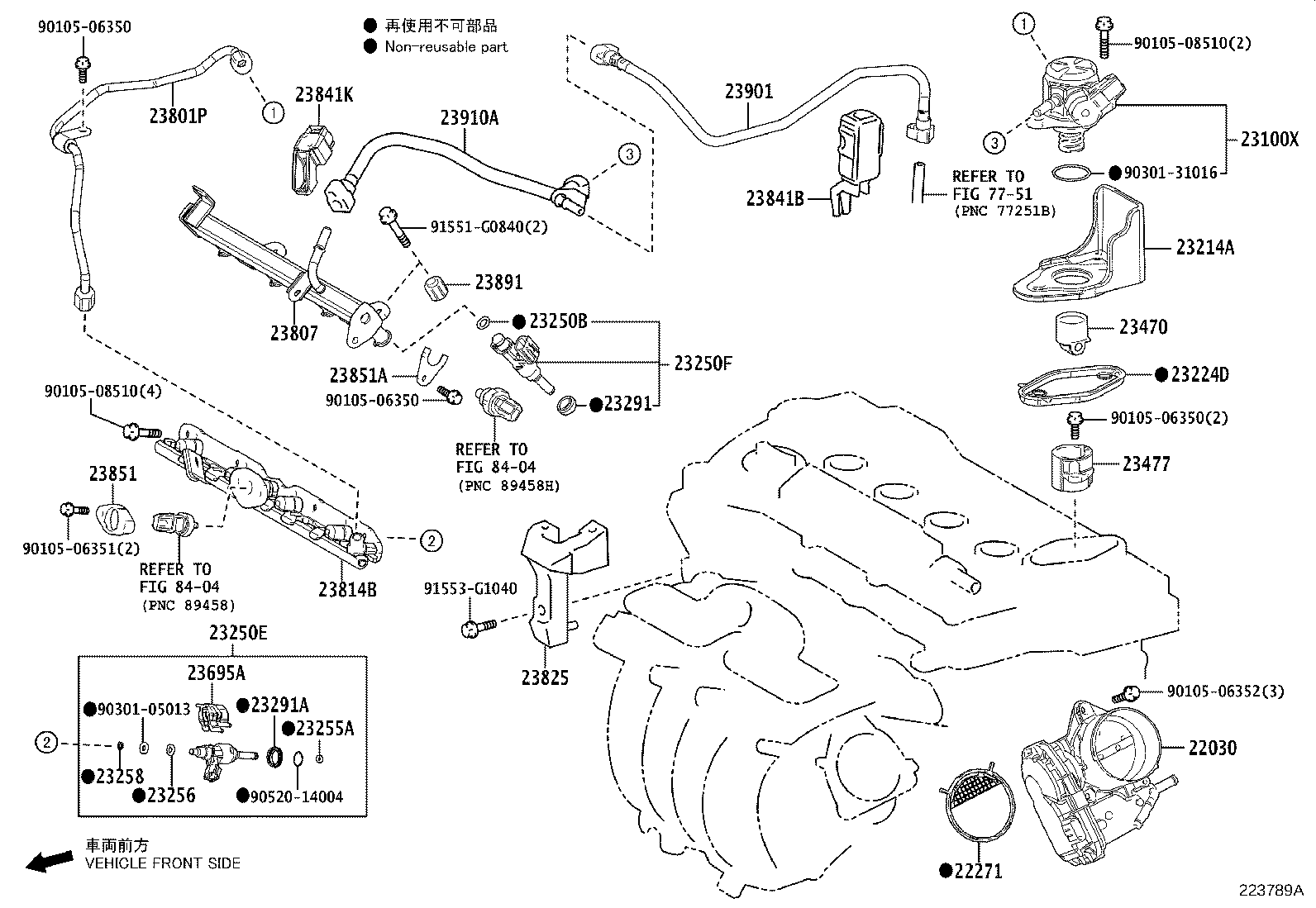

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-F2030 |
M20DFKS..MXAA5# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-24010 |
M20DFKS..MXAA5# |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 23214A - PROTECTOR, FUEL PUMP | ||||
| 23214-F2040 |
M20DFKS..MXAA5# |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-25010 |
M20DFKS..MXAA5# |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-C0072 |
M20DFKS..MXAA5# (L) |
4 | ||
| 90301-07037 |
M20DFKS..MXAA5# (J) |
4 | ||
| 23250E - INJECTOR ASSY, FUEL(FOR DIRECT) | ||||
| 23209-F203004 |
M20DFKS..MXAA5# MARK 4 |
4 | ||
| 23209-F203001 |
M20DFKS..MXAA5# MARK 1 |
4 | ||
| 23209-F203009 |
M20DFKS..MXAA5# MARK 9 |
4 | ||
| 23209-F203007 |
M20DFKS..MXAA5# MARK 7 |
4 | ||
| 23209-F203006 |
M20DFKS..MXAA5# MARK 6 |
4 | ||
| 23209-F203008 |
M20DFKS..MXAA5# MARK 8 |
4 | ||
| 23209-F203005 |
M20DFKS..MXAA5# MARK 5 |
4 | ||
| 23209-F203002 |
M20DFKS..MXAA5# MARK 2 |
4 | ||
| 23209-F203003 |
M20DFKS..MXAA5# MARK 3 |
4 | ||
| 23250F - INJECTOR ASSY, FUEL(FOR PORT) | ||||
| 23209-29165 |
M20DFKS..MXAA5# |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-25010 |
M20DFKS..MXAA5# |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-25010 |
M20DFKS..MXAA5# |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31030 |
M20DFKS..MXAA5# |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
M20DFKS..MXAA5# |
4 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
M20DFKS..MXAA5# |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-0Y010 |
M20DFKS..MXAA5# |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-F2060 |
M20DFKS..MXAA5# |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-24010 |
M20DFKS..MXAA5# |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-F2030 |
M20DFKS..MXAA5# |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-24010 |
M20DFKS..MXAA5# |
1 | ||
| 23825 - GUARD, FUEL DELIVERY | ||||
| 23825-24010 |
M20DFKS..MXAA5# |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-F0020 |
M20DFKS..MXAA5# |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-25040 |
M20DFKS..MXAA5# |
1 | ||
| 23841-25040 |
M20DFKS..MXAA5# (J) |
1 | ||
| 23841-F2020 |
M20DFKS..MXAA5# (L) |
1 | ||
| 23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1 | ||||
| 23851-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2 | ||||
| 23851-F2030 |
M20DFKS..MXAA5# |
1 | ||
| 23891 - SPACER, FUEL DELIVERY | ||||
| 23891-24010 |
M20DFKS..MXAA5# |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-F0200 |
M20DFKS..MXAA5# |
1 | ||
| 23910A - TUBE SUB-ASSY, FUEL | ||||
| 23901-24081 |
M20DFKS..MXAA5# (J) |
1 | ||
| 23901-F2100 |
M20DFKS..MXAA5# |
1 | ||
| 23901-F2100 |
M20DFKS..MXAA5# (L) |
1 | ||
| Common parts | ||||
| 90105-06350 | ||||
| 90105-06351 | ||||
| 90105-06352 | ||||
| 90105-08510 | ||||
| 90301-05013 | ||||
| 90301-31016 | ||||
| 90520-14004 | ||||
| 91551-G0840 | ||||
| 91553-G1040 | ||||
| Linked diagrams | ||||
| 7751 | ||||
| 8404 | ||||
