MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )M20DFKS..MXAA54

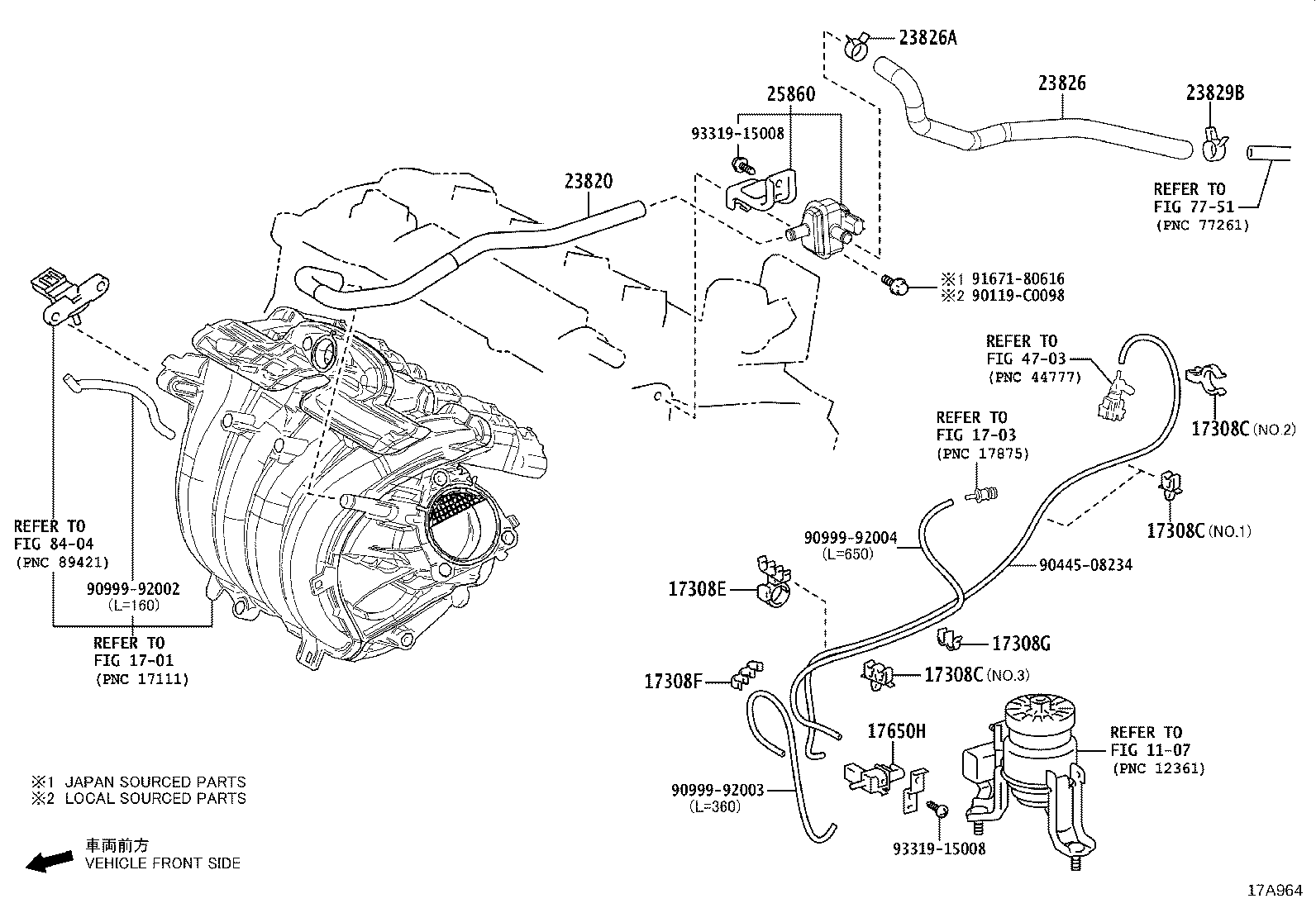

Click highlighted areas on diagram

diagram 1107 1701 1703 17308C 17308C 17308C 17308E 17308F 17308G 17650H 23820 23826 23826A 23829B 25860 4703 7751 8404 90119C0098 9044508234 9099992002 9099992003 9099992004 9167180616 9331915008 9331915008
Part # Description Qty Price
17308C - CLAMP(FOR VACUUM HOSE)
44783-42080

M20DFKS..MXAA54

NO.3:REFER ILLUST.

 1
44783-42070

M20DFKS..MXAA5#

NO.2:REFER ILLUST.

 1
44783-42040

M20DFKS..MXAA5#

NO.1:REFER ILLUST.

 2
17308C - CLAMP(FOR VACUUM HOSE)
44783-42080

M20DFKS..MXAA54

NO.3:REFER ILLUST.

 1
44783-42070

M20DFKS..MXAA5#

NO.2:REFER ILLUST.

 1
44783-42040

M20DFKS..MXAA5#

NO.1:REFER ILLUST.

 2
17308C - CLAMP(FOR VACUUM HOSE)
44783-42080

M20DFKS..MXAA54

NO.3:REFER ILLUST.

 1
44783-42070

M20DFKS..MXAA5#

NO.2:REFER ILLUST.

 1
44783-42040

M20DFKS..MXAA5#

NO.1:REFER ILLUST.

 2
17308E - CLAMP, NO.3(FOR VACUUM HOSE)
44783-42100

M20DFKS..MXAA54

 1
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
90464-00074

M20DFKS..MXAA54

 1
17308G - CLAMP, NO.5(FOR VACUUM HOSE)
90464-00082

M20DFKS..MXAA54

 1
17650H - VALVE, VACUUM SWITCHING
90910-12059

M20DFKS..MXAA5#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-F2030

M20DFKS..MXAA5#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-F0210

M20DFKS..MXAA5#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96133-41501

M20DFKS..MXAA5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96133-41501

M20DFKS..MXAA5#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-24010

M20DFKS..MXAA5#

 1
25860-F2050

M20DFKS..MXAA5#

 1
Common parts
90119-C0098
90445-08234
90999-92002
90999-92003
90999-92004
91671-80616
93319-15008
