MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )M20DFKS

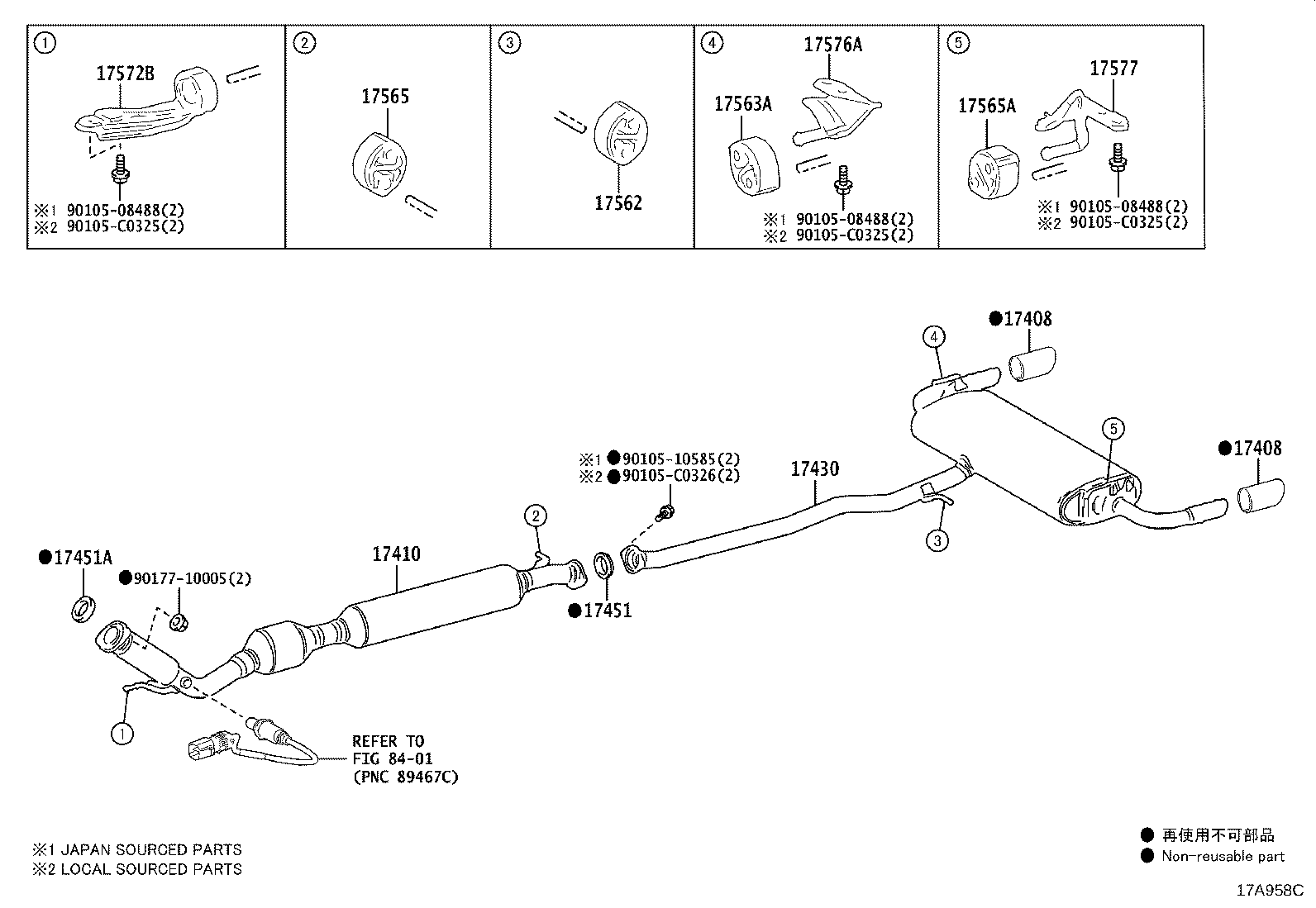

Click highlighted areas on diagram

diagram 17408 17408 17410 17430 17451 17451A 17562 17563A 17565 17565A 17572B 17576A 17577 8401 9010508488 9010508488 9010508488 9010510585 90105C0325 90105C0325 90105C0325 90105C0326 9017710005
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0010

A25BFXS,M20DFKS..AXAH5#,MXAA5#..G,M

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0010

A25BFXS,M20DFKS..AXAH5#,MXAA5#..G,M

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0230

M20DFKS..MXAA5#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F0250

M20DFKS..MXAA5#

 1
17430-F0252

M20DFKS..MXAA5#

 1
17430-F0251

M20DFKS..MXAA5#

 1
17451 - GASKET, EXHAUST PIPE
17451-25040

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17451-F0140

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-C6003

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0D080

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0D080

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T011

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D080

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-F0060

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-F0070

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17576-F0071

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-F0060

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
17577-F0061

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
Common parts
90105-08488
90105-10585
90105-C0325
90105-C0326
90177-10005
Linked diagrams
8401
