MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )M20DFKS

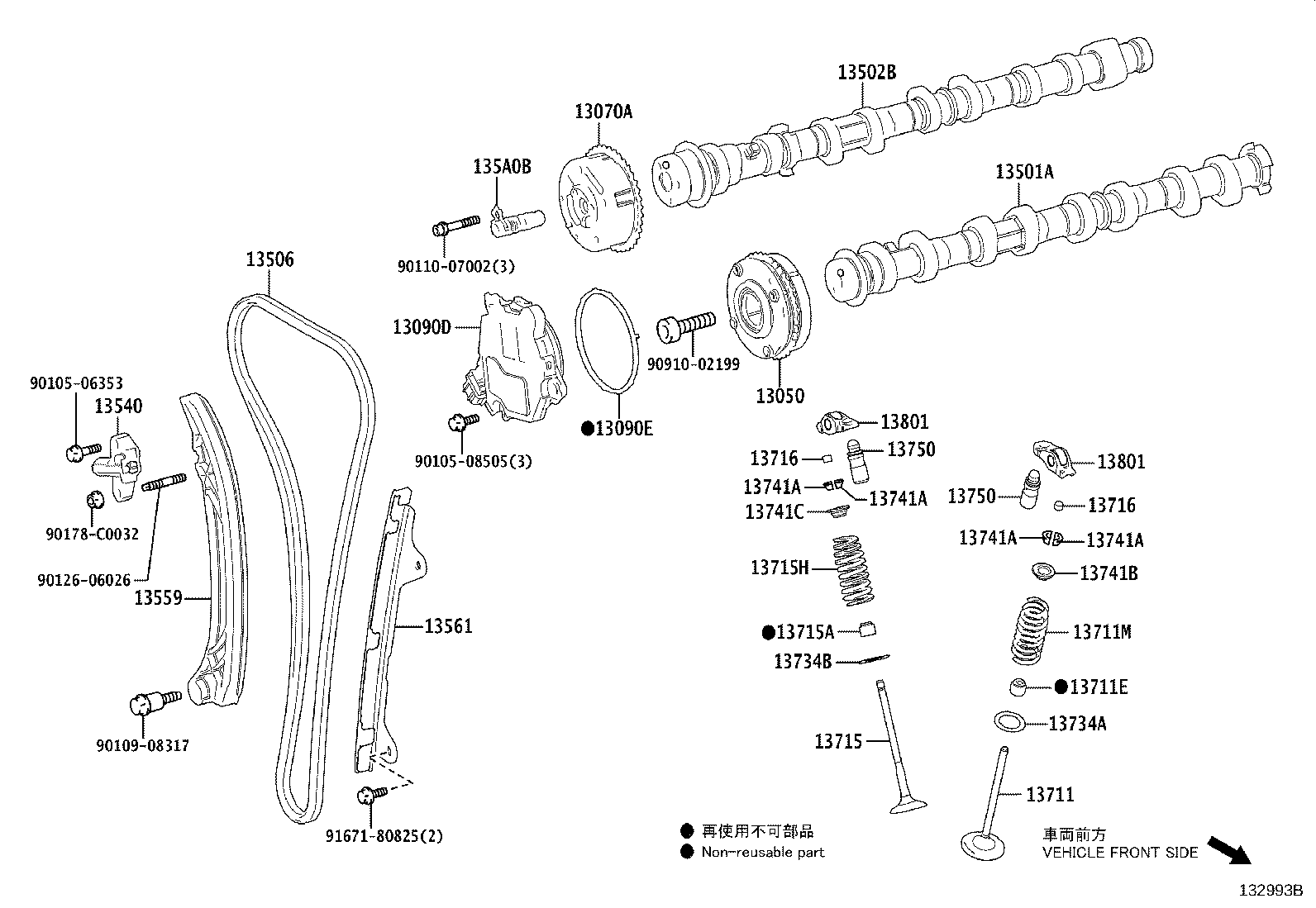

Click highlighted areas on diagram

diagram 13050 13070A 13090D 13090E 13501A 13502B 13506 13540 13559 13561 135A0B 13711 13711E 13711M 13715 13715A 13715H 13716 13716 13734A 13734B 13741A 13741A 13741A 13741A 13741B 13741C 13750 13750 13801 13801 9010506353 9010508505 9010908317 9011007002 9012606026 90178C0032 9091002199 9167180825
Part # Description Qty Price
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-25010

M20DFKS..MXAA5#

 1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-F2020

M20DFKS..MXAA5#

 1
13090D - MOTOR ASSY, CAM TIMING CONTROL W/EDU
13090-25010

M20DFKS..MXAA5#

 1
13090E - RING, O(FOR CAM TIMING CONTROL MOTOR)
90301-C0081

M20DFKS..MXAA5#

 1
13501A - CAMSHAFT SUB-ASSY, INTAKE
13501-F2040

M20DFKS..MXAA5#

 1
13502B - CAMSHAFT SUB-ASSY, EXHAUST
13502-F2040

M20DFKS..MXAA5#

 1
13506 - CHAIN SUB-ASSY
13506-F2020

M20DFKS..MXAA5#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-F2010

M20DFKS..MXAA5#

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-F2020

M20DFKS..MXAA5#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-F3010

M20DFKS..MXAA5#

 1
135A0B - VALVE ASSY, CAMSHAFT TIMING
135A0-F2020

M20DFKS..MXAA5#

 1
13711 - VALVE, INTAKE
13711-F2040

M20DFKS..MXAA5#

 8
13711E - SEAL, INTAKE VALVE STEM OIL
90913-T2001

M20DFKS..MXAA5#

 8
13711M - SPRING, COMPRESSION(FOR INTAKE VALVE)
90501-C0062

M20DFKS..MXAA5#

 8
13715 - VALVE, EXHAUST
13715-F2030

M20DFKS..MXAA5#

 8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-T2003

M20DFKS..MXAA5#

 8
13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE)
90501-C0063

M20DFKS..MXAA5#

 8
13716 - CAP, VALVE STEM
13716-F2020

M20DFKS..MXAA5#

 16
13716 - CAP, VALVE STEM
13716-F2020

M20DFKS..MXAA5#

 16
13734A - SEAT, INTAKE VALVE SPRING
13734-0P020

M20DFKS..MXAA5#

 8
13734B - SEAT, EXHAUST VALVE SPRING
13734-0P020

M20DFKS..MXAA5#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

M20DFKS..MXAA5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

M20DFKS..MXAA5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

M20DFKS..MXAA5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

M20DFKS..MXAA5#

 32
13741B - RETAINER, INTAKE VALVE SPRING
13741-0Y050

M20DFKS..MXAA5#

 8
13741C - RETAINER, EXHAUST VALVE SPRING
13741-0Y050

M20DFKS..MXAA5#

 8
13750 - ADJUSTER ASSY, VALVE LASH
13750-F2030

M20DFKS..MXAA5#

 16
13750 - ADJUSTER ASSY, VALVE LASH
13750-F2030

M20DFKS..MXAA5#

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-F2030

M20DFKS..MXAA5#

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-F2030

M20DFKS..MXAA5#

 16
Common parts
90105-06353
90105-08505
90109-08317
90110-07002
90126-06026
90178-C0032
90910-02199
91671-80825
