MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )M20DFKS..MXAA54

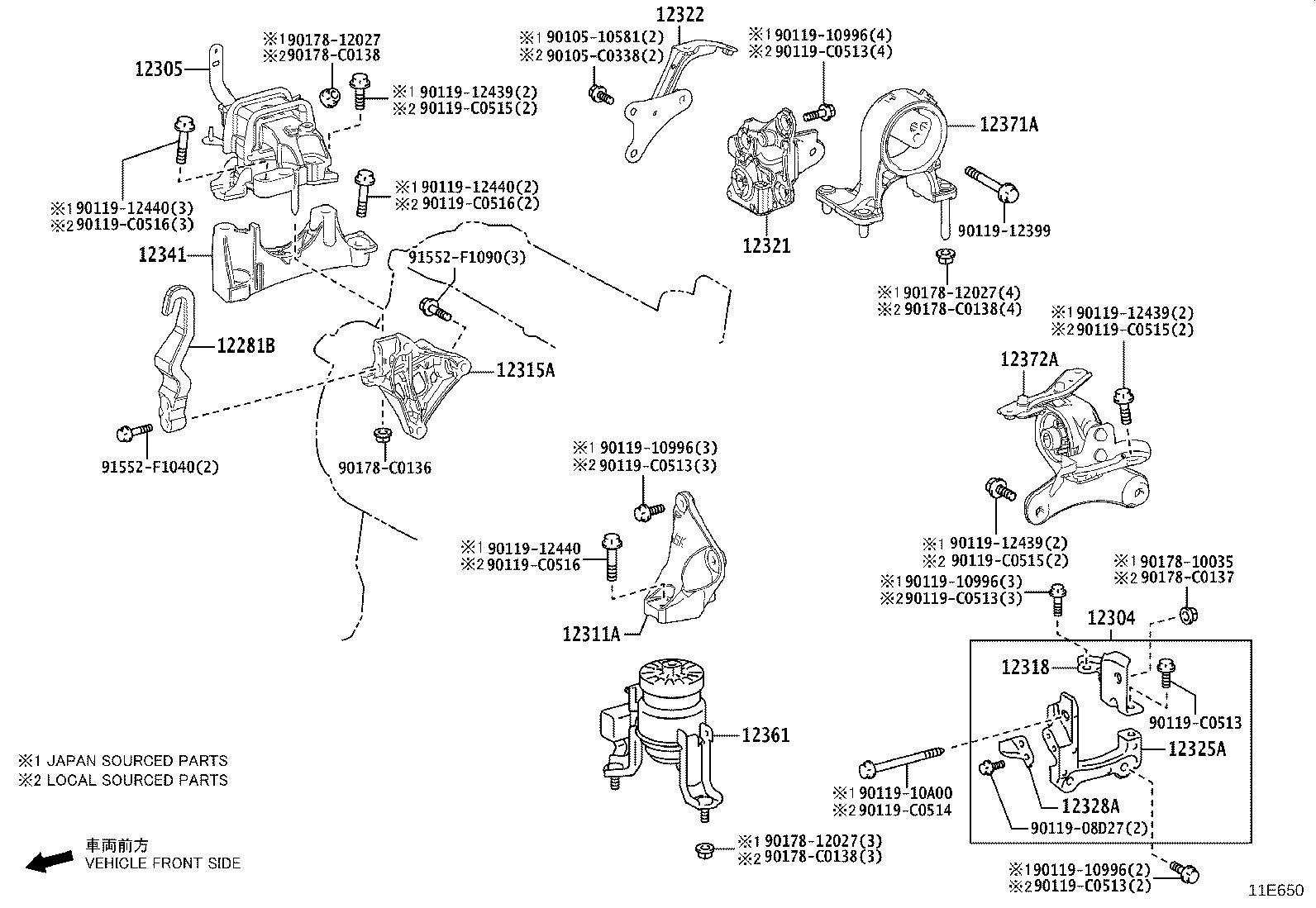

Click highlighted areas on diagram

diagram 12281B 12304 12305 12311A 12315A 12318 12321 12322 12325A 12328A 12341 12361 12371A 12372A 9010510581 90105C0338 9011908D27 9011910996 9011910996 9011910996 9011910996 9011910A00 9011912399 9011912439 9011912439 9011912439 9011912440 9011912440 9011912440 90119C0513 90119C0513 90119C0513 90119C0513 90119C0513 90119C0514 90119C0515 90119C0515 90119C0515 90119C0516 90119C0516 90119C0516 9017810035 9017812027 9017812027 9017812027 90178C0136 90178C0137 90178C0138 90178C0138 90178C0138 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-F2010

M20DFKS..MXAA5#

 1
12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH
12304-F2010

M20DFKS..MXAA5#

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F2060

M20DFKS..MXAA5#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-F2010

M20DFKS..MXAA5#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-F2050

M20DFKS..MXAA5#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-F2060

M20DFKS..MXAA5#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-F2030

M20DFKS..MXAA54

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-F2010

M20DFKS..MXAA54

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-F2060

M20DFKS..MXAA5#

 1
12328A - STAY, ENGINE MOUNTING, NO.2 LH
12328-F2020

M20DFKS..MXAA5#

 1
12341 - SPACER, ENGINE MOUNTING
12341-F0050

M20DFKS..MXAA5#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-F2020

M20DFKS..MXAA5#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-F2030

M20DFKS..MXAA54

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-F2090

M20DFKS..MXAA5#

 1
Common parts
90105-10581
90105-C0338
90119-08D27
90119-10996
90119-10A00
90119-12399
90119-12439
90119-12440
90119-C0513
90119-C0514
90119-C0515
90119-C0516
90178-10035
90178-12027
90178-C0136
90178-C0137
90178-C0138
91552-F1040
91552-F1090
