MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

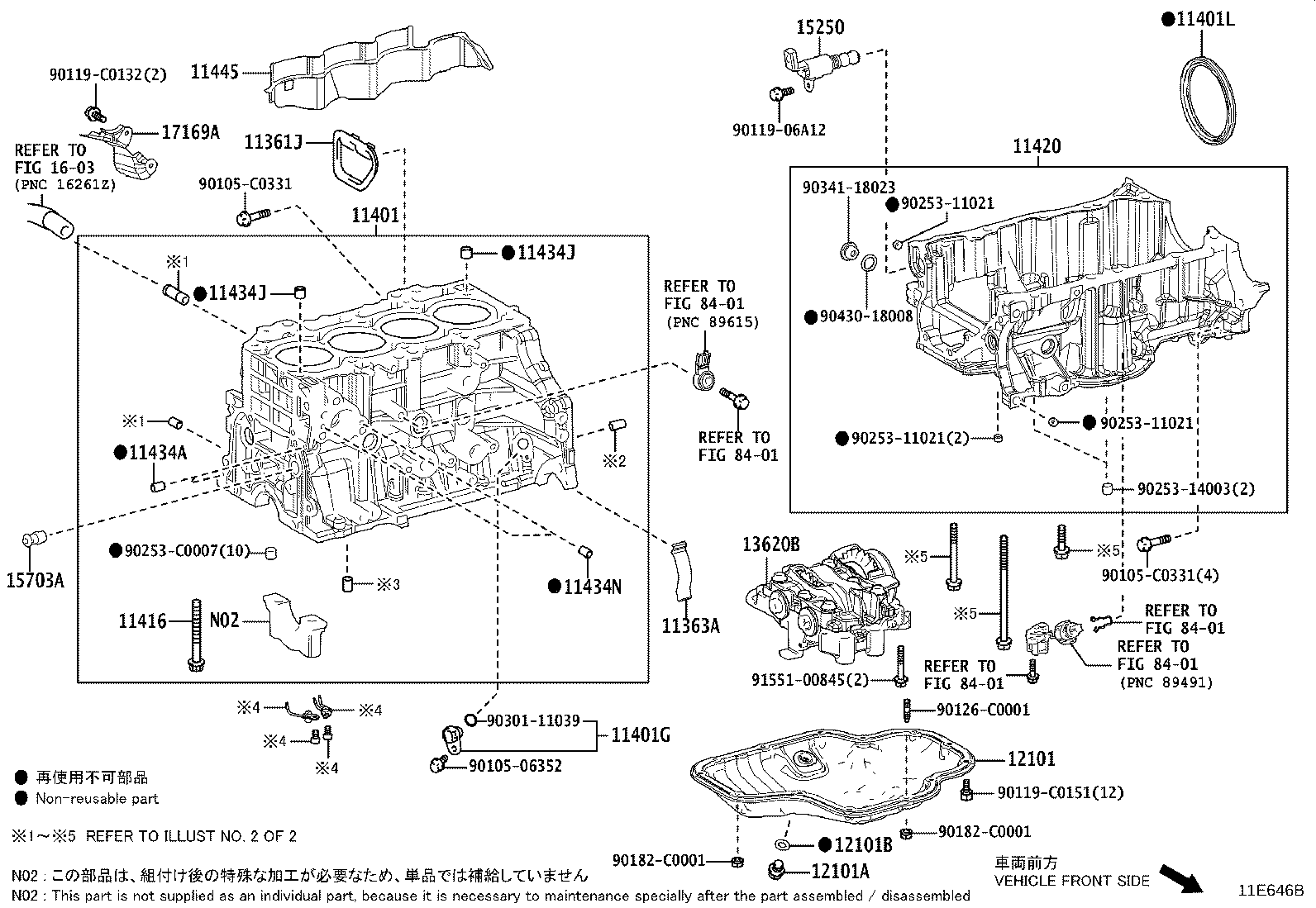

ILLUST NO. 1 OF 2(1911- )M20DFKS

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401G 11401L 11416 11420 11434A 11434J 11434J 11434N 11445 12101 12101A 12101B 13620B 15250 15703A 1603 17169A 8401 8401 8401 8401 8401 9010506352 90105C0331 90105C0331 9011906A12 90119C0132 90119C0151 90126C0001 90182C0001 90182C0001 9025311021 9025311021 9025311021 9025314003 90253C0007 9030111039 9034118023 9043018008 9155100845
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-F2030

M20DFKS..MXAA5#

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-F2030

M20DFKS..MXAA5#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-F9040

M20DFKS..MXAA5#

 1
11401G - SENSOR, CRANK POSITION
90919-05094

M20DFKS..MXAA5#

 1
11401L - SEAL, ENGINE REAR OIL
90311-C0055

M20DFKS..MXAA5#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

M20DFKS..MXAA5#

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-F2060

M20DFKS..MXAA5#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

M20DFKS..MXAA5#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M20DFKS..MXAA5#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M20DFKS..MXAA5#

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

M20DFKS..MXAA5#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-F2040

M20DFKS..MXAA5#

 1
12101 - PAN SUB-ASSY, OIL
12102-F2080

M20DFKS..MXAA5#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-C0013

M20DFKS..MXAA5#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-C0005

M20DFKS..MXAA5#

 1
13620B - BALANCER ASSY, ENGINE
13620-F2010

M20DFKS..MXAA5#

 1
15250 - VALVE ASSY, OIL PRESSURE CONTROL
15250-25010

M20DFKS..MXAA5#

 1
15703A - VALVE SUB-ASSY, OIL NOZZLE
15703-25011

M20DFKS..MXAA5#

 1
17169A - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-F2040

M20DFKS..MXAA5#

 1
Common parts
90105-06352
90105-C0331
90119-06A12
90119-C0132
90119-C0151
90126-C0001
90182-C0001
90253-11021
90253-14003
90253-C0007
90301-11039
90341-18023
90430-18008
91551-00845
Linked diagrams
1603
8401

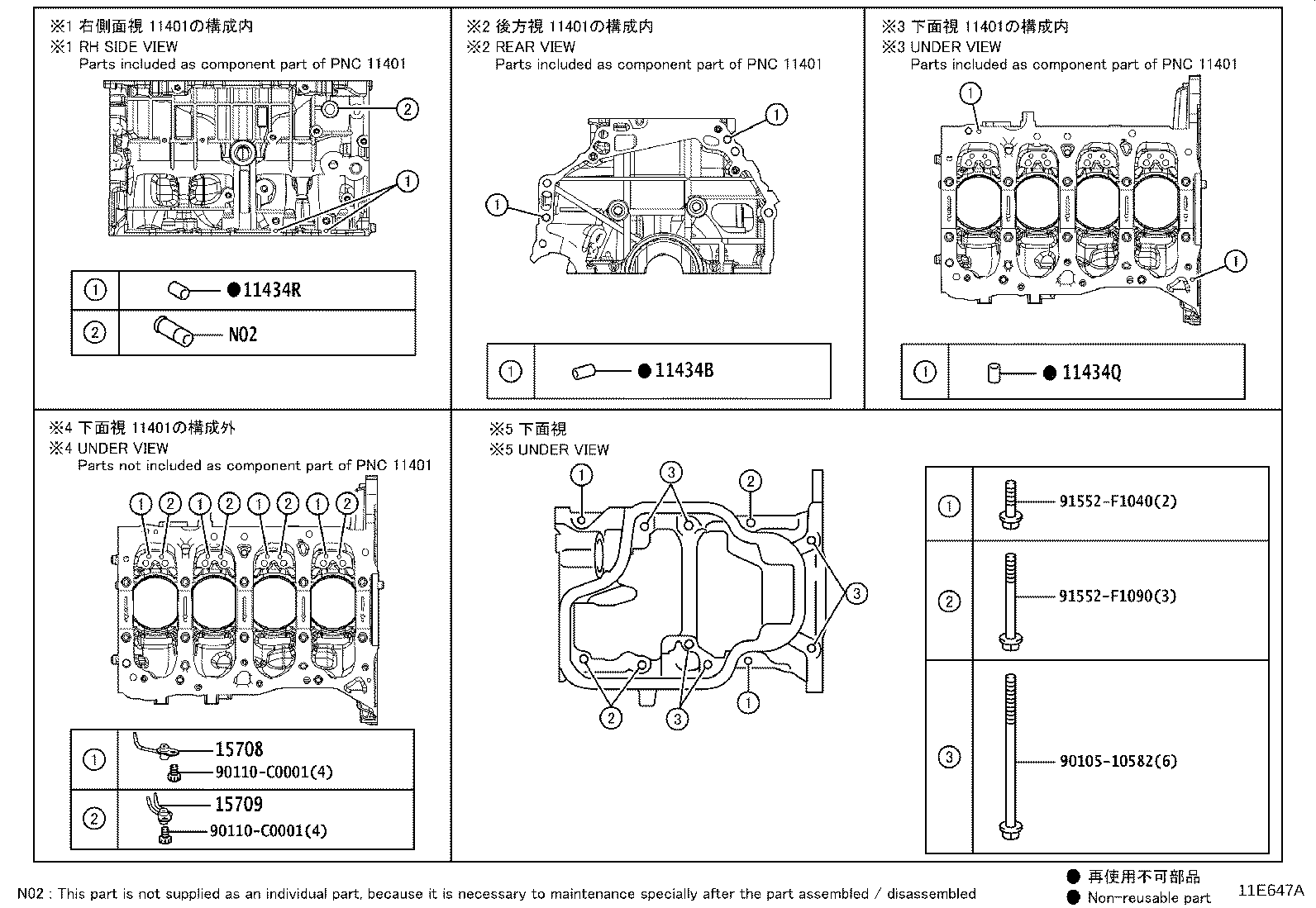

ILLUST NO. 2 OF 2(1911- )M20DFKS

Click highlighted areas on diagram

diagram 11434B 11434Q 11434R 15708 15709 9010510582 90110C0001 90110C0001 91552F1040 91552F1090
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-C0012

M20DFKS..MXAA5#

L=22,OD=10

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

M20DFKS..MXAA5#

L=14,OD=6

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

M20DFKS..MXAA5#

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-F2010

M20DFKS..MXAA5#

 4
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-F2010

M20DFKS..MXAA5#

 4
Common parts
90105-10582
90110-C0001
91552-F1040
91552-F1090
