MXAA52L-SNXXBC (2019)
Toyota Rav4 (China)

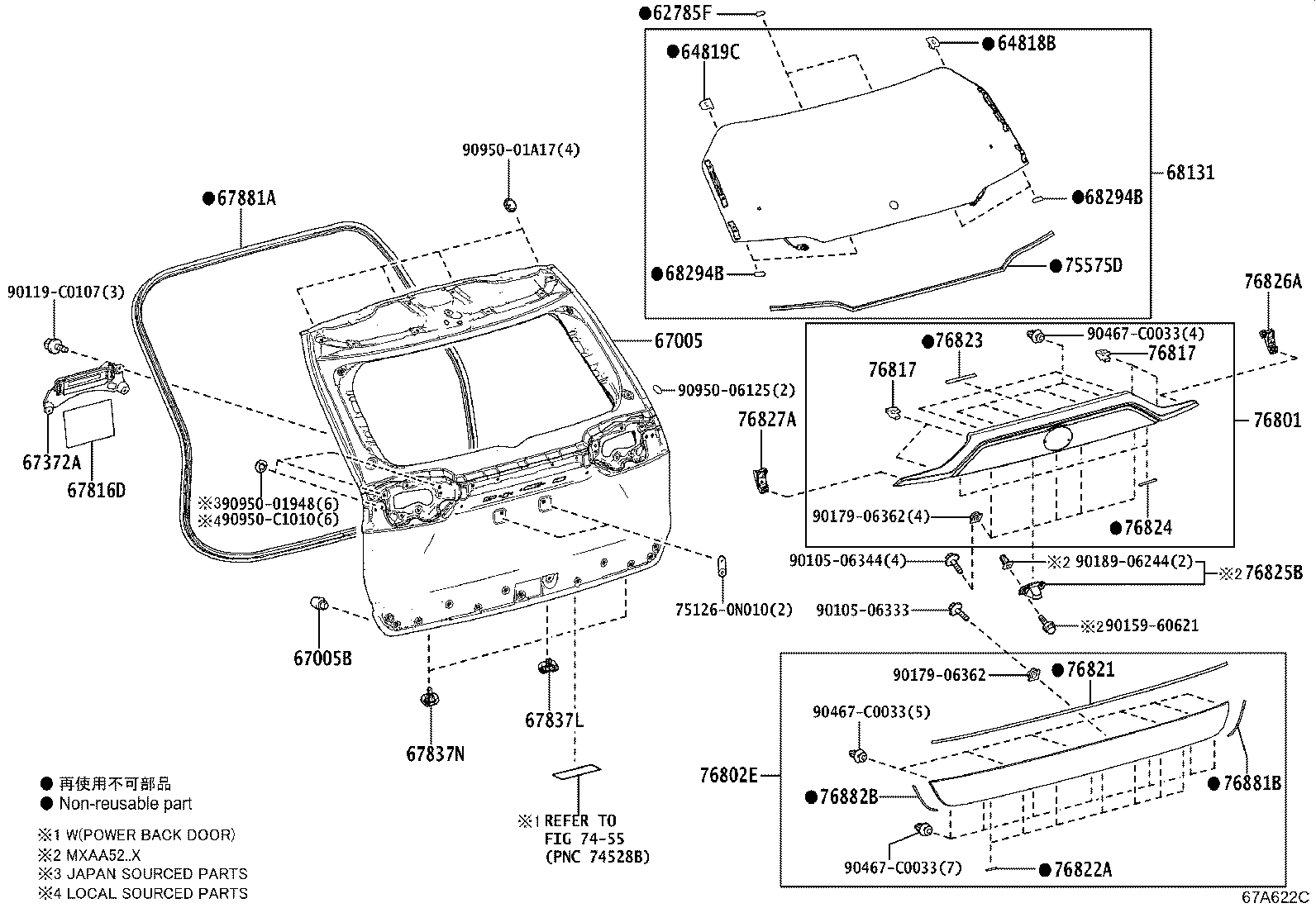

ILLUST NO. 1 OF 2(1911- )
BACK DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-0R020 |
AXAH5#,MXAA5# |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-0R340 |
AXAH54..M;AXAH52,MXAA5# |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 69478-0R020 |
AXAH5#,MXAA5# |
2 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 67816D - SHEET, BACK DOOR PANEL SILENCER | ||||
| 67816-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-0R110 |
AXAH5#,MXAA5# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-0R100 |
AXAH5#,MXAA5# W(SPONGE PAD) |
1 | ||
| 67881-42070 |
AXAH5#,MXAA5# (J) |
1 | ||
| 67881-0R060 |
AXAH5#,MXAA5# (L) |
1 | ||
| 67881-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-0R200 |
AXAH5#,MXAA5# |
1 | ||
| 68105-0R150 |
AXAH5#,MXAA5# |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAH5#,MXAA5# |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AXAH5#,MXAA5# |
4 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-0R110D0 |
AXAH5#,MXAA5#..M RED MC.,2PN ,2RY ,3T3 |
1 | ||
| 76801-0R110A0 |
AXAH5#,MXAA5#..M WHITE PEARL CS.,070 ,2KR |
1 | ||
| 76801-0R110B0 |
AXAH5#,MXAA5#..M ASH GRAY ME.,1K6 ,2RZ |
1 | ||
| 76801-0R110D0 |
MXAA52..X RED MC.,3T3 |
1 | ||
| 76801-0R110A0 |
MXAA52..X WHITE PEARL CS.,070 |
1 | ||
| 76801-0R110G0 |
MXAA52..X URBAN KHAKI,6X3 |
1 | ||
| 76801-0R110G0 |
AXAH5#,MXAA5#..M URBAN KHAKI,2QU ,6X3 |
1 | ||
| 76801-0R110B0 |
MXAA52..X ASH GRAY ME.,1K6 |
1 | ||
| 76801-0R110E0 |
MXAA52..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-0R110C0 |
AXAH5#,MXAA5#..M BLACK MC.,209 ,2RX |
1 | ||
| 76801-0R110J0 |
AXAH5#,MXAA5#..M CYAN METALLIC,2QV ,8W9 |
1 | ||
| 76801-0R110E0 |
AXAH5#,MXAA5#..M AVANT-GARDE BRONZE ME.,2SA ,4V8 |
1 | ||
| 76801-0R110C0 |
MXAA52..X BLACK MC.,209 |
1 | ||
| 76801-0R110A1 |
MXAA52..X PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 76801-0R110J0 |
MXAA52..X CYAN METALLIC,8W9 |
1 | ||
| 76801-0R110A1 |
AXAH5#,MXAA5#..M PLATINUM WHITE PEARL MC.,089 ,2PU |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-05171 |
AXAH5#,MXAA5# |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-05171 |
AXAH5#,MXAA5# |
4 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-0R030 |
AXAH5#,MXAA5# |
7 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-0R050 |
AXAH5#,MXAA5#..M,X |
3 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76824-0R030 |
AXAH5#,MXAA5#..M,X |
2 | ||
| 76825B - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-0R080 |
MXAA52..X |
1 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH | ||||
| 76881-0R010 |
AXAH5#,MXAA5# |
1 | ||
| 76882B - PROTECTOR, BACK DOOR LOWER MOULDING, LH | ||||
| 76881-0R010 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 75126-0N010 | ||||
| 90105-06333 | ||||
| 90105-06344 | ||||
| 90119-C0107 | ||||
| 90159-60621 | ||||
| 90179-06362 | ||||
| 90189-06244 | ||||
| 90467-C0033 | ||||
| 90950-01948 | ||||
| 90950-01A17 | ||||
| 90950-06125 | ||||
| 90950-C1010 | ||||
| Linked diagrams | ||||
| 7455 | ||||

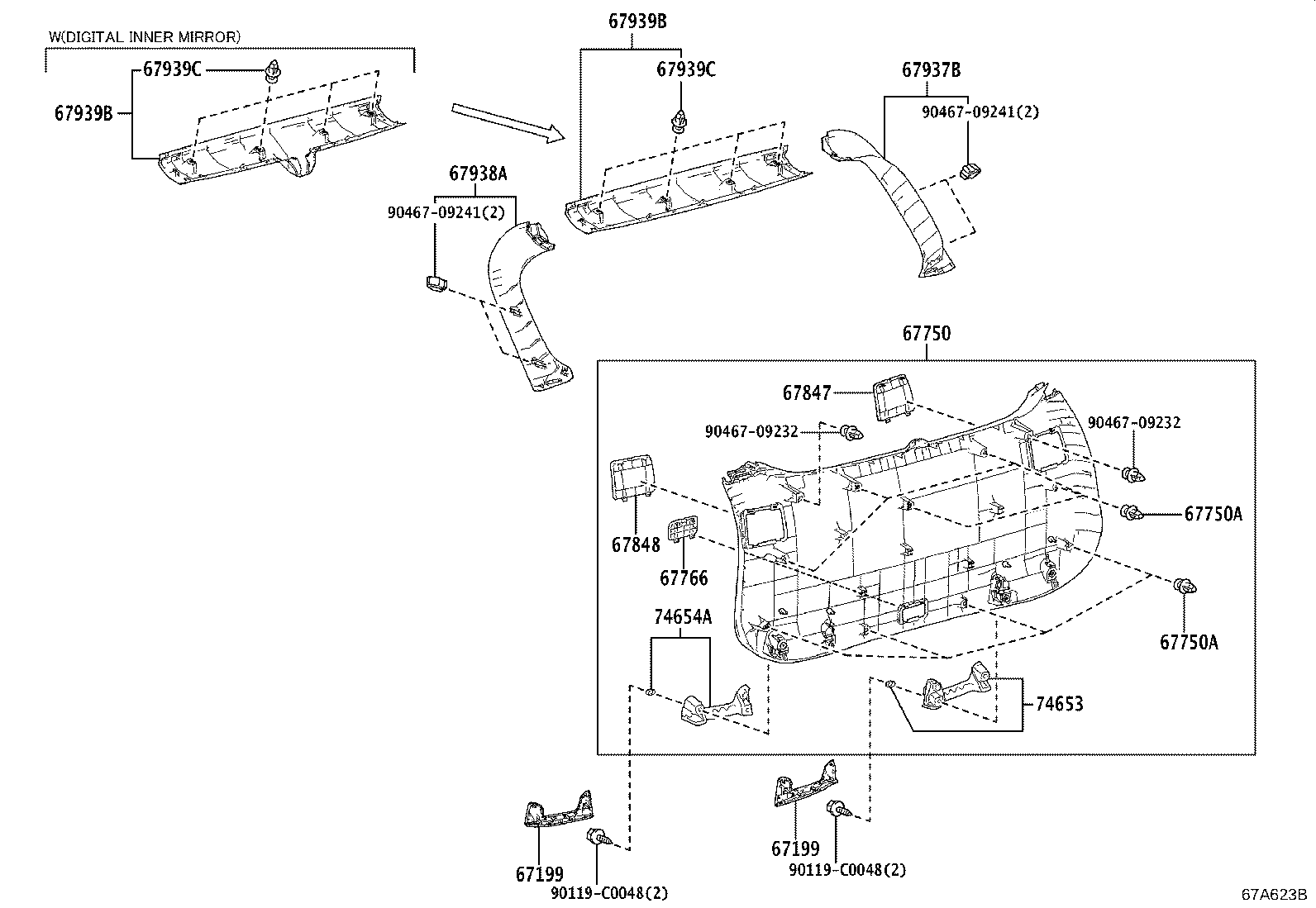

ILLUST NO. 2 OF 2(1911- )
BACK DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67199 - COVER, BACK DOOR HANDLE | ||||
| 69196-0R020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 69195-0R020C0 |
MXAA52..X BLACK,TRIM2#,4#,RH |
1 | ||
| 69195-0R020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 69196-0R020C0 |
MXAA52..X BLACK,TRIM2#,4#,LH |
1 | ||
| 67199 - COVER, BACK DOOR HANDLE | ||||
| 69196-0R020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 69195-0R020C0 |
MXAA52..X BLACK,TRIM2#,4#,RH |
1 | ||
| 69195-0R020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 69196-0R020C0 |
MXAA52..X BLACK,TRIM2#,4#,LH |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67750-0R100C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
9 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
9 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67766-0R040C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-0R070C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67847-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67848-0R040C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-0R060C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67937-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67938-0R070C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-0R080C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67939-0R080C0 |
AXAH5#..M;MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-0R080C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 67939-0R080C0 |
AXAH5#..M;MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-C0036 |
MXAA5#;AXAH5#..M |
4 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-C0036 |
MXAA5#;AXAH5#..M |
4 | ||
| 74653 - GRIP, BACK DOOR ASSIST, RH | ||||
| 74653-0R030C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 74653-0R030C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 74654A - GRIP, BACK DOOR ASSIST, LH | ||||
| 74654-0R030C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 74654-0R030C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-C0048 | ||||
| 90467-09232 | ||||
| 90467-09241 | ||||
