MXAA52L-SNXXBC (2019)
Toyota Rav4 (China)

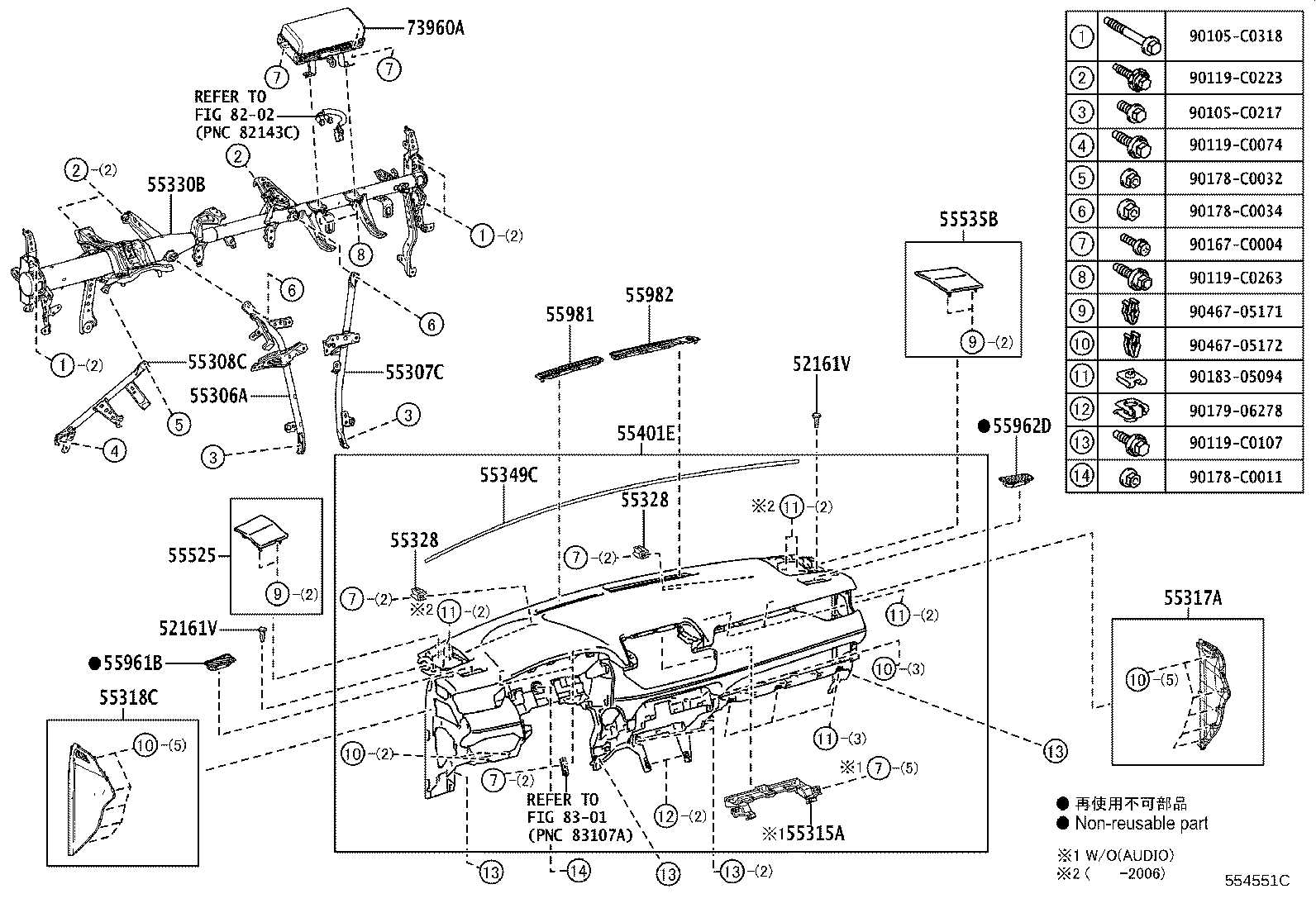

ILLUST NO. 1 OF 2(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-02040 |
AXAH5#,MXAA5# |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-02040 |
AXAH5#,MXAA5# |
2 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0R080 |
AXAH5#,MXAA5# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-0R060 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0R060C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55317-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0R030C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55318-0R030C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
AXAH5#,MXAA5# (L) |
4 | ||
| 55328-60090 |
AXAH5#,MXAA5# |
4 | ||
| 55328-60090 |
AXAH5#,MXAA5# (J) |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
AXAH5#,MXAA5# (L) |
4 | ||
| 55328-60090 |
AXAH5#,MXAA5# |
4 | ||
| 55328-60090 |
AXAH5#,MXAA5# (J) |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0R120 |
AXAH5#,MXAA5# |
1 | ||
| 55330-0R121 |
AXAH5#,MXAA5# |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-0R040C0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1# |
1 | ||
| 55401-0R030C7 |
MXAA52..X SOFT BLACK,TRIM2# |
1 | ||
| 55401-0R030C3 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1# |
1 | ||
| 55401-0R030C2 |
AXAH5#,MXAA5#..G,M BEIGE,TRIM4# |
1 | ||
| 55401-0R040C2 |
AXAH5#,MXAA5#..G,M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55401-0R040C7 |
AXAH5#,MXAA5#..G,M SOFT BLACK,TRIM2# |
1 | ||
| 55401-0R030C7 |
AXAH5#,MXAA5#..G,M SOFT BLACK,TRIM2# |
1 | ||
| 55401-0R030C2 |
MXAA52..X BEIGE,TRIM4# |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-0R060C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55525-0R070C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-0R060C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55535-0R070C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0R020C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55961-0R020C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55962D - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-0R020C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55962-0R020C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-0R020C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55981-0R020C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-0R020C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55982-0R020C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0R071 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90105-C0217 | ||||
| 90105-C0318 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90119-C0223 | ||||
| 90119-C0263 | ||||
| 90167-C0004 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8301 | ||||

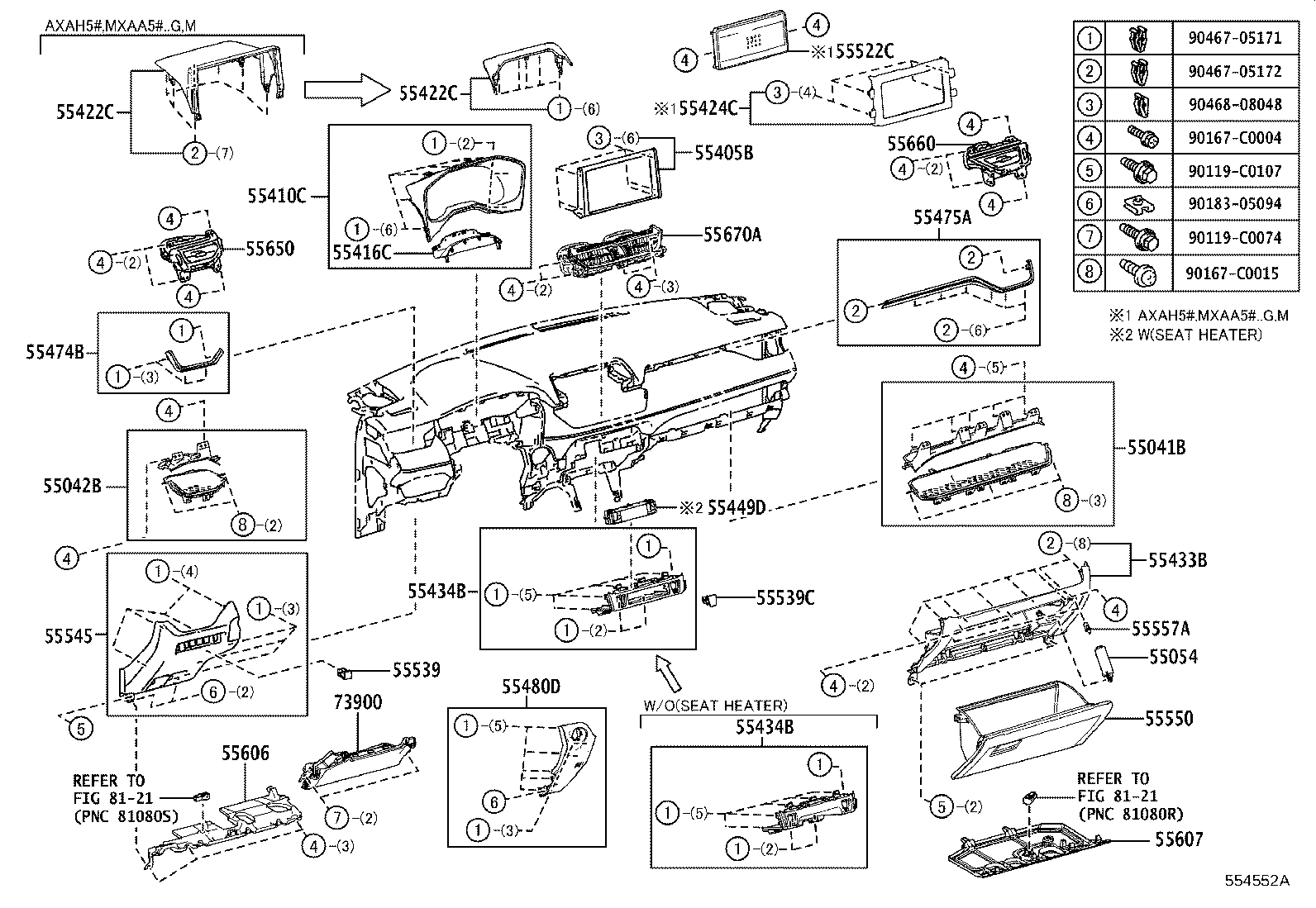

ILLUST NO. 2 OF 2(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-0R040C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55041-0R040C1 |
AXAH5#,MXAA5#..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0R030C1 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55042-0R030C1 |
AXAH5#,MXAA5#..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXAH5#,MXAA5# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0R050 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55405-42020 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55405-42020 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55422-42040 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55422-0R030 |
MXAA52..X |
1 | ||
| 55422-42040 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55422-0R040 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55422-42040 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55422-0R030 |
MXAA52..X |
1 | ||
| 55422-42040 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55422-0R040 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55424C - PANEL, RADIO TUNER FINISH | ||||
| 55424-42020 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55424-42020 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0R080C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55433-0R080C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0R110 |
AXAH52,MXAA5#..M,X |
1 | ||
| 55434-0R090 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0R110 |
AXAH52,MXAA5#..M,X |
1 | ||
| 55434-0R090 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 83950-0R260 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-0R030C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55480-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-52020 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 55522-52020 |
AXAH5#,MXAA5#..G,M AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-07020 |
AXAH54..M;AXAH52,MXAA5# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0R080C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55545-0R080C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0R070C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 55550-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
AXAH5#,MXAA5# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0R090 |
AXAH5#,MXAA5# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0R090 |
AXAH52,MXAA5#..M LEATHER PACKAGE |
1 | ||
| 55650-0R080 |
AXAH52,MXAA5#..M,X |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0R080 |
AXAH52,MXAA5#..M,X |
1 | ||
| 55660-0R090 |
AXAH52,MXAA5#..M LEATHER PACKAGE |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0R150 |
AXAH52,MXAA5#..M,X |
1 | ||
| 55670-0R160 |
AXAH52,MXAA5#..M LEATHER PACKAGE |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0R040C0 |
MXAA52..X BLACK,TRIM2#,4# |
1 | ||
| 73900-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90167-C0004 | ||||
| 90167-C0015 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| Linked diagrams | ||||
| 8121 | ||||
