MXAA52L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

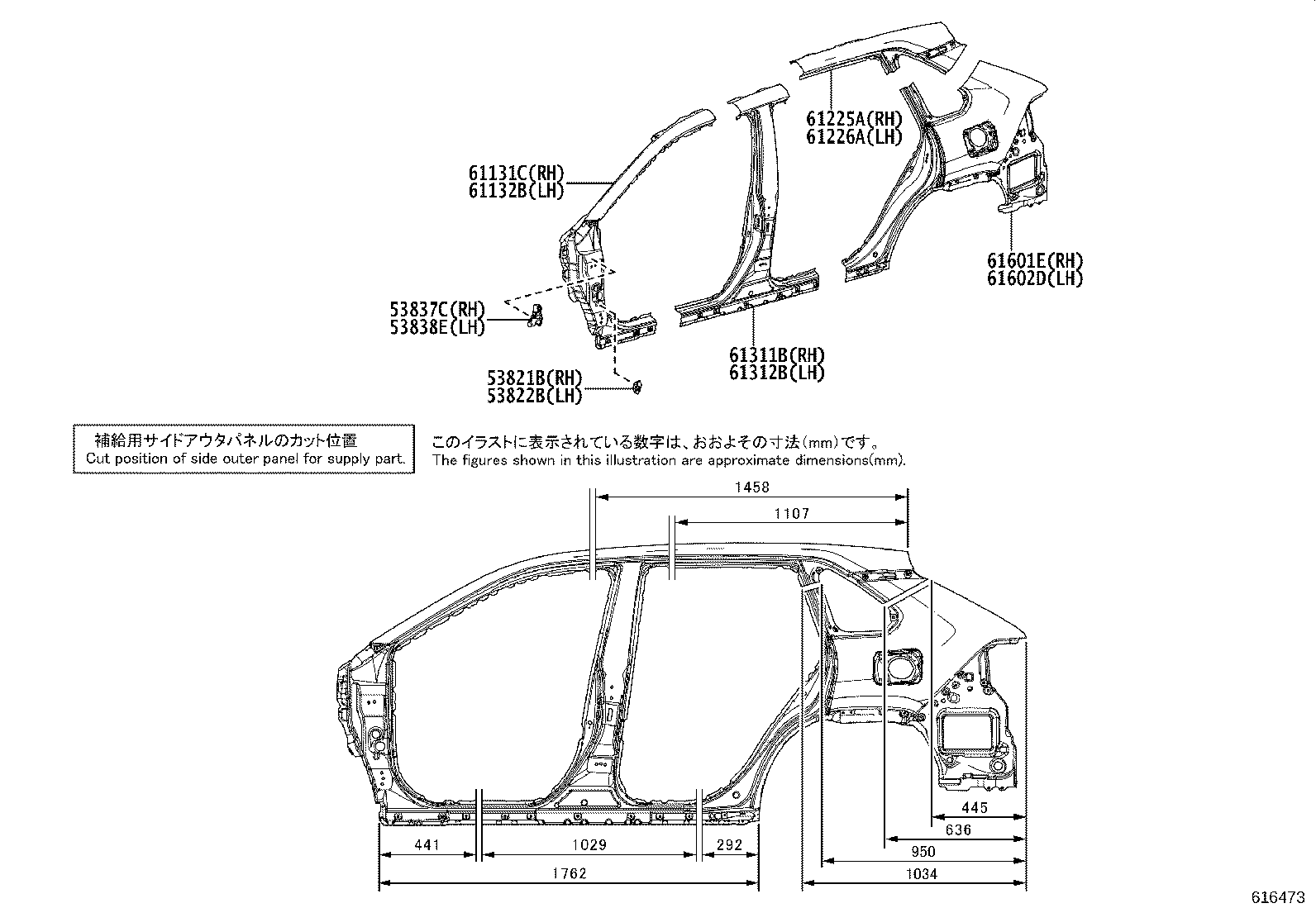

ILLUST NO. 1 OF 3(1911- )

Click highlighted areas on diagram

OUTER PANEL

diagram 53821B 53822B 53837C 53838E 61131C 61132B 61225A 61226A 61311B 61312B 61601E 61602D
Part # Description Qty Price
53821B - BRACKET, FRONT FENDER, REAR RH
53821-0R050

AXAH5#,MXAA5#

 1
53822B - BRACKET, FRONT FENDER, REAR LH
53821-0R050

AXAH5#,MXAA5#

 1
53837C - BRACKET, FRONT SIDE PANEL, NO.2 RH
53837-0R020

AXAH5#,MXAA5#

 1
53838E - BRACKET, FRONT SIDE PANEL, NO.2 LH
53838-0R020

AXAH5#,MXAA5#

 1
61131C - PILLAR, FRONT BODY, OUTER RH
61131-0R070

AXAH5#,MXAA5#

 1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-0R080

AXAH5#,MXAA5#

 1
61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH
61210-0R020

AXAH5#,MXAA5#

 1
61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH
61220-0R020

AXAH5#,MXAA5#

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-0R070

AXAH5#,MXAA5#

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-0R080

AXAH5#,MXAA5#

 1
61601E - PANEL SUB-ASSY, QUARTER, OUTER RH
61601-0R170

AXAH5#,MXAA5#

 1
61602D - PANEL SUB-ASSY, QUARTER, OUTER LH
61602-0R170

AXAH5#,MXAA5#

 1

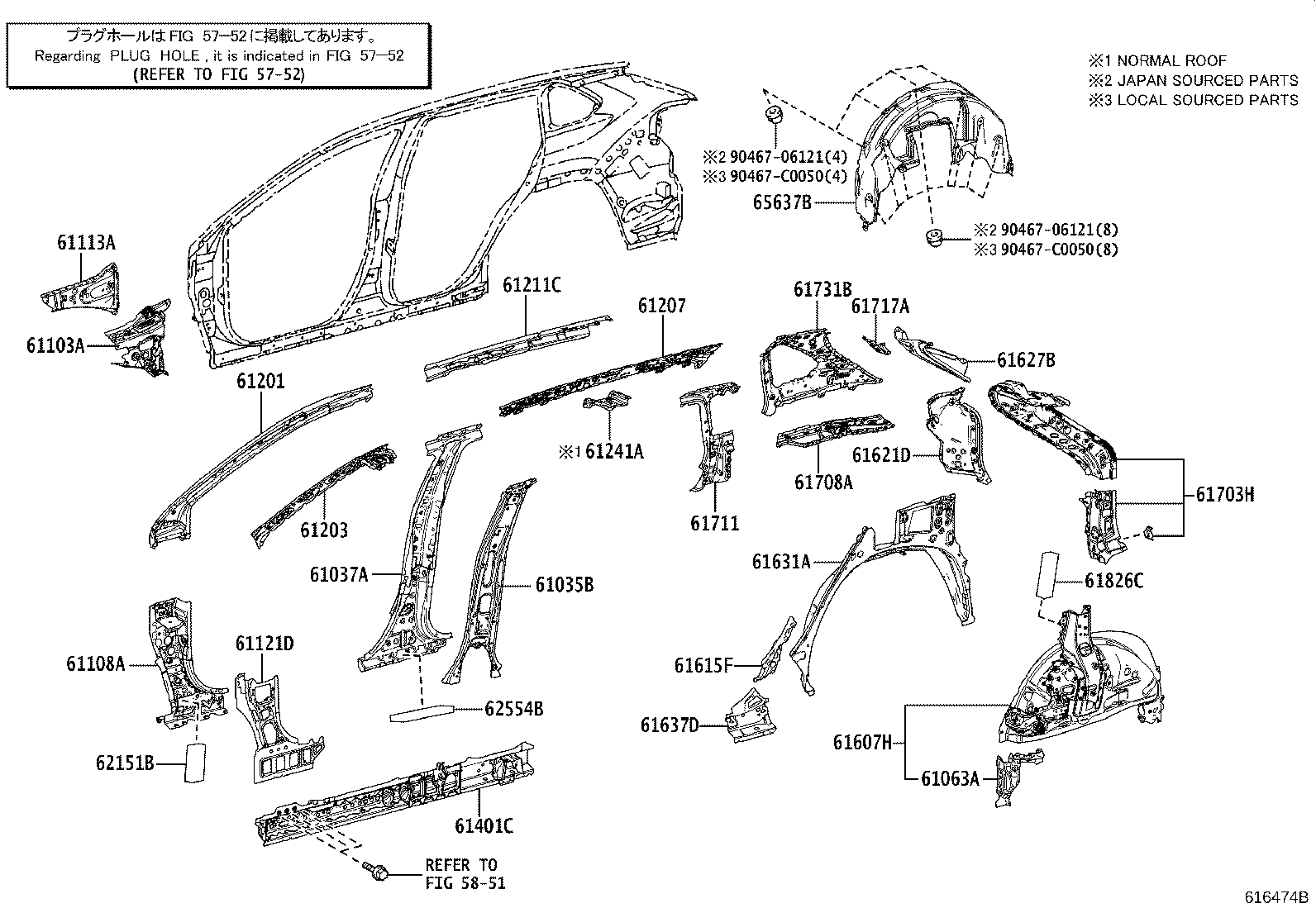

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

INNER PANEL, RH

diagram 5752 5851 61035B 61037A 61063A 61103A 61108A 61113A 61121D 61201 61203 61207 61211C 61241A 61401C 61607H 61615F 61621D 61627B 61631A 61637D 61703H 61708A 61711 61717A 61731B 61826C 62151B 62554B 65637B 9046706121 9046706121 90467C0050 90467C0050
Part # Description Qty Price
61035B - PILLAR SUB-ASSY, NO.4 INNER, RH
61035-0R040

AXAH5#,MXAA5#

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-0R907

AXAH5#,MXAA5#

 1
61037-0R904

AXAH5#,MXAA5#

 1
61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH
61063-0R040

AXAH5#,MXAA5#

 1
61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH
61103-0R060

AXAH5#,MXAA5#

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-0R070

AXAH5#,MXAA5#

 1
61113A - PANEL, SIDE, OUTER NO.2 RH
61113-0R010

AXAH5#,MXAA5#

 1
61121D - PANEL, COWL SIDE, RH
61121-0R060

AXAH5#,MXAA5#

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-0R902

AXAH5#,MXAA5#

 1
61201-0R905

AXAH5#,MXAA5#

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-0R020

AXAH5#,MXAA5#

 1
61207 - RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH
61207-0R030

AXAH5#,MXAA5#

 1
61211C - RAIL, ROOF SIDE, RH
61077-0R020

AXAH5#,MXAA5#

 1
61241A - GUSSET, ROOF SIDE RAIL, REAR RH
61241-0R020

MXAA52..X

 1
61401C - PANEL SUB-ASSY, ROCKER, OUTER RH
61401-0R020

AXAH5#,MXAA5#

 1
61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61607-0R070

AXAH5#,MXAA5#

 1
61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH
61615-0R020

AXAH5#,MXAA5#

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-0R060

AXAH5#,MXAA5#

 1
61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH
61627-0R060

AXAH5#,MXAA5#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-0R070

AXAH5#,MXAA5#

 1
61637D - REINFORCEMENT, QUARTER, INNER RH
61637-0R020

AXAH5#,MXAA5#

 1
61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61703-0R902

AXAH5#,MXAA5#

 1
61708A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH
61708-0R060

AXAH5#,MXAA5#

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-0R060

AXAH5#,MXAA5#

 1
61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH
61717-0R040

AXAH5#,MXAA5#

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-0R060

AXAH5#,MXAA5#

 1
61826C - PAD, NOISE SHUTTER, NO.3
61826-0R040

AXAH5#,MXAA5#

 2
62151B - PAD, COWL SIDE SILENCER
62151-0R060

AXAH5#,MXAA5#

 2
62554B - PAD, PILLAR, NO.4
62554-0R270

AXAH5#,MXAA5#

 2
65637B - LINER, REAR WHEEL HOUSE, RH
65637-0R030

AXAH5#,MXAA5#

 1
Common parts
90467-06121
90467-C0050
Linked diagrams
5752
5851

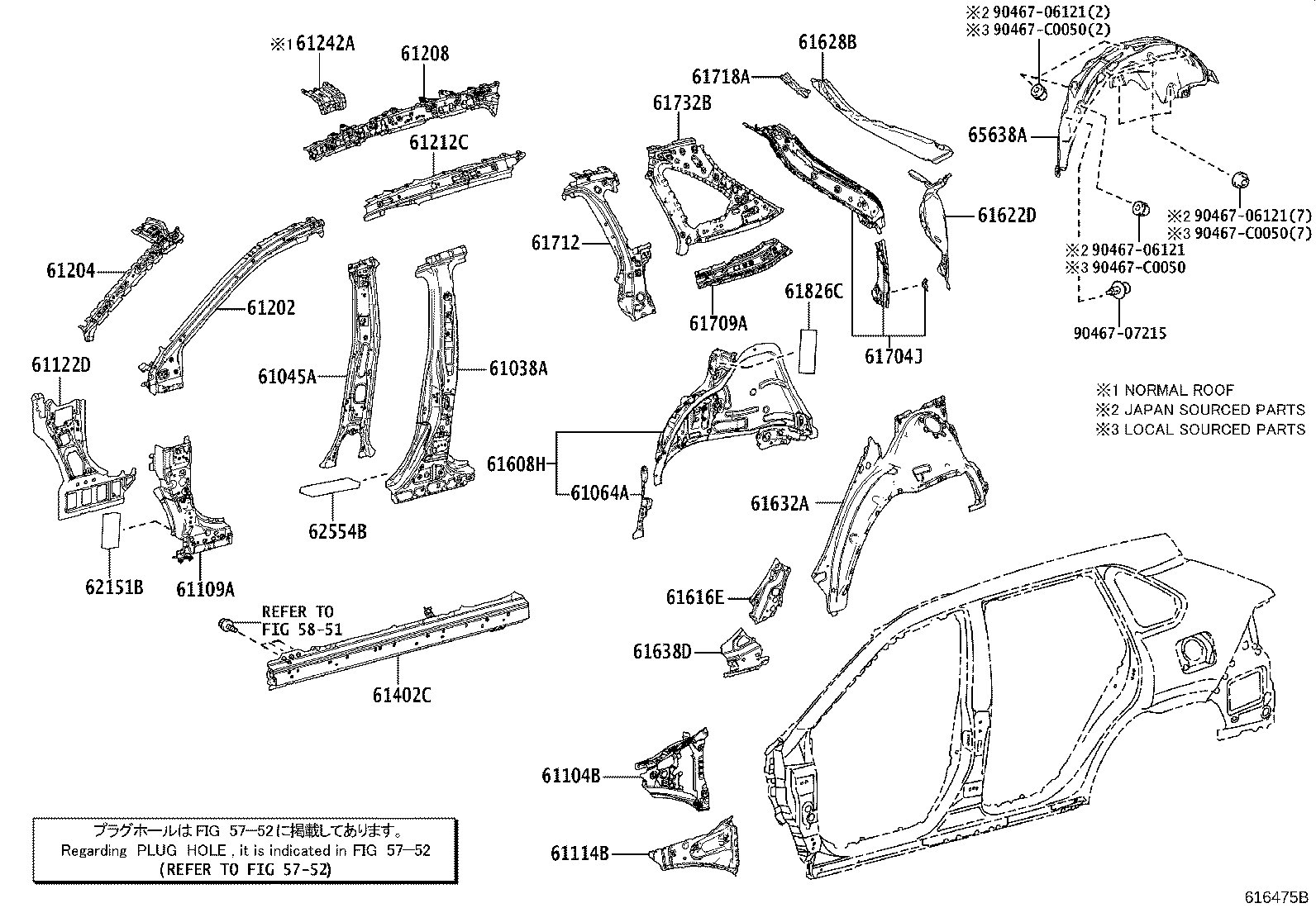

ILLUST NO. 3 OF 3(1911- )

Click highlighted areas on diagram

INNER PANEL, LH

diagram 5752 5851 61038A 61045A 61064A 61104B 61109A 61114B 61122D 61202 61204 61208 61212C 61242A 61402C 61608H 61616E 61622D 61628B 61632A 61638D 61704J 61709A 61712 61718A 61732B 61826C 62151B 62554B 65638A 9046706121 9046706121 9046706121 9046707215 90467C0050 90467C0050 90467C0050
Part # Description Qty Price
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-0R907

AXAH5#,MXAA5#

 1
61038-0R904

AXAH5#,MXAA5#

 1
61045A - PILLAR SUB-ASSY, NO.4 INNER, LH
61045-0R040

AXAH5#,MXAA5#

 1
61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH
61064-0R040

AXAH5#,MXAA5#

 1
61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH
61104-0R060

AXAH5#,MXAA5#

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-0R070

AXAH5#,MXAA5#

 1
61114B - PANEL, SIDE, OUTER NO.2 LH
61114-0R020

AXAH5#,MXAA5#

 1
61122D - PANEL, COWL SIDE, LH
61122-0R050

AXAH5#,MXAA5#

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-0R905

AXAH5#,MXAA5#

 1
61202-0R902

AXAH5#,MXAA5#

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-0R020

AXAH5#,MXAA5#

 1
61208 - RAIL SUB-ASSY, ROOF SIDE, INNER CENTER LH
61208-0R030

AXAH5#,MXAA5#

 1
61212C - RAIL, ROOF SIDE, LH
61087-0R020

AXAH5#,MXAA5#

 1
61242A - GUSSET, ROOF SIDE RAIL, REAR LH
61242-0R020

MXAA52..X

 1
61402C - PANEL SUB-ASSY, ROCKER, OUTER LH
61402-0R030

AXAH5#,MXAA5#

 1
61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61608-0R070

AXAH5#,MXAA5#

 1
61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH
61616-0R020

AXAH5#,MXAA5#

 1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-0R060

AXAH5#,MXAA5#

 1
61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH
61628-0R060

AXAH5#,MXAA5#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-0R901

AXAH5#,MXAA5#

 1
61638D - REINFORCEMENT, QUARTER, INNER LH
61638-0R030

AXAH5#,MXAA5#

 1
61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61704-0R902

AXAH5#,MXAA5#

 1
61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH
61709-0R020

AXAH5#,MXAA5#

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-0R060

AXAH5#,MXAA5#

 1
61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH
61718-0R040

AXAH5#,MXAA5#

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-0R060

AXAH5#,MXAA5#

 1
61826C - PAD, NOISE SHUTTER, NO.3
61826-0R040

AXAH5#,MXAA5#

 2
62151B - PAD, COWL SIDE SILENCER
62151-0R060

AXAH5#,MXAA5#

 2
62554B - PAD, PILLAR, NO.4
62554-0R270

AXAH5#,MXAA5#

 2
65638A - LINER, REAR WHEEL HOUSE, LH
65638-0R030

AXAH5#,MXAA5#

 1
Common parts
90467-06121
90467-07215
90467-C0050
Linked diagrams
5752
5851
