MXAA52L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

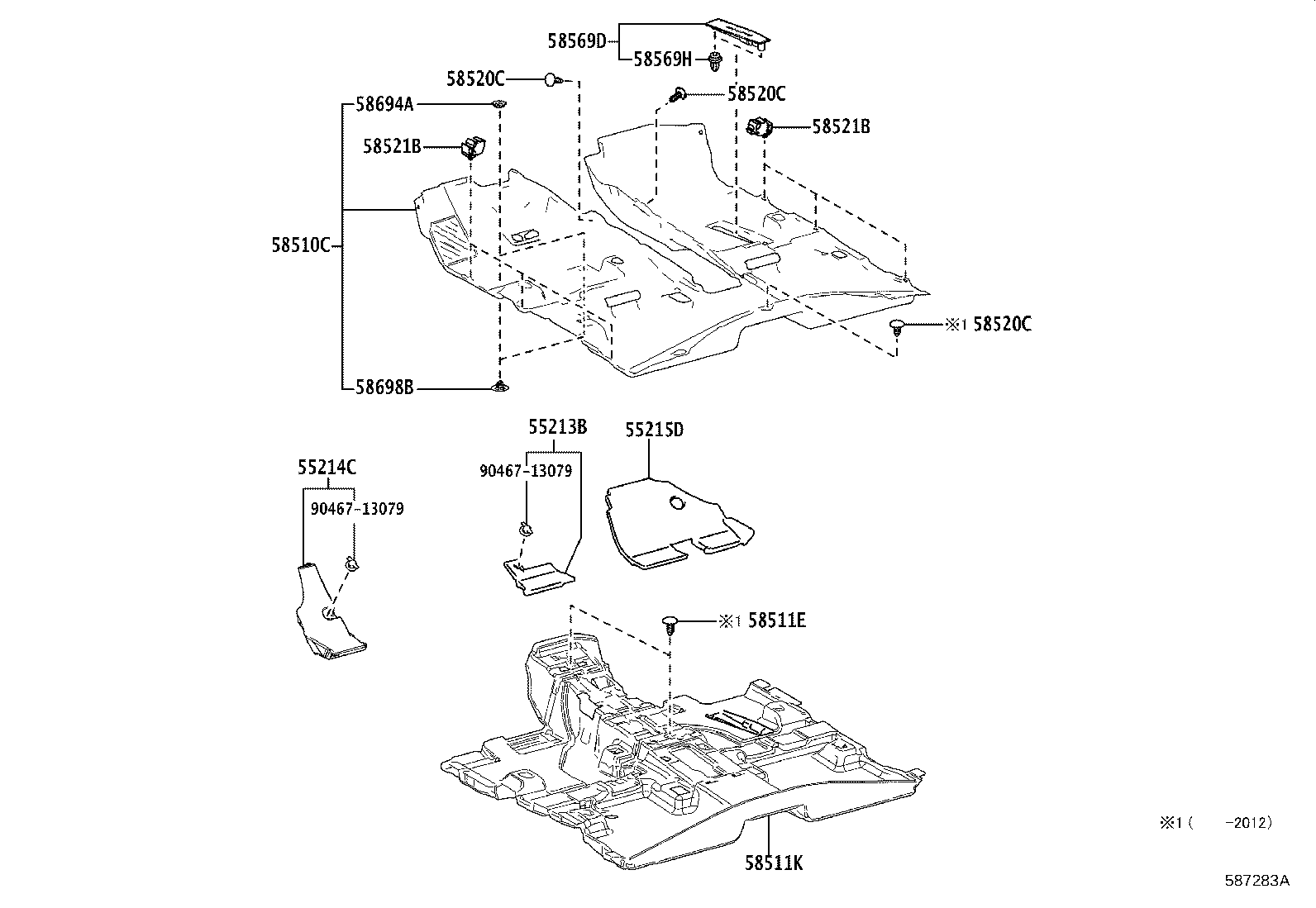

ILLUST NO. 1 OF 2(1911- )MXAA5#

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58510C 58511E 58511K 58520C 58520C 58520C 58521B 58521B 58569D 58569H 58694A 58698B 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0R020

AXAH5#,MXAA5#

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R060

AXAH5#,MXAA5#

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0R020

AXAH5#,MXAA5#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-0R170C1

MXAA52..X

BLACK,TRIM2#,4#

 1
58510-0R170C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-C0054C0

AXAH5#,MXAA5#

BLACK

 2
58511K - MAT, FLOOR, NO.1
58511-0R030

MXAA5#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 3
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 3
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 3
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 3
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 3
90467-C0016C1

MXAA52..X

BLACK,TRIM2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 2
90467-C0016C1

MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 3
58521B - HOOK, FLOOR CARPET
58521-33070

AXAH5#,MXAA5#

 6
58521B - HOOK, FLOOR CARPET
58521-33070

AXAH5#,MXAA5#

 6
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-0R030C0

MXAA52..X

BLACK,TRIM2#,4#

 1
58569-0R030C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
58569H - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
62217-13010

AXAH5#,MXAA5#

 2
58694A - PLATE, MAT SET, UPPER
58694-33010

AXAH5#,MXAA5#

 2
58698B - PLATE, MAT SET, LOWER
58698-33010

AXAH5#,MXAA5#

 2
Common parts
90467-13079

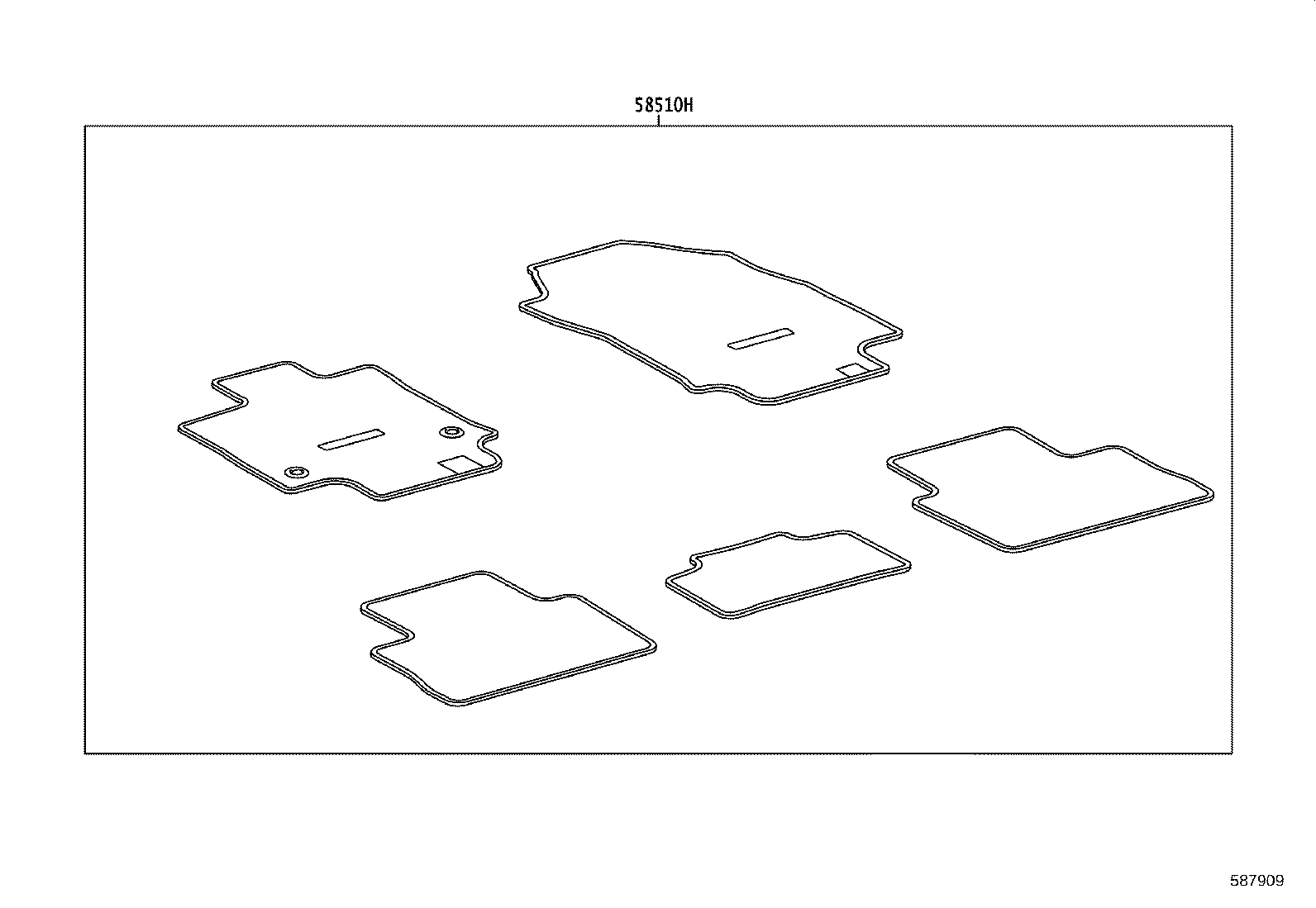

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58510-YYX90C0

MXAA52..X

ACCESSORY MAT-WITH,BLACK,TRIM2#,4#

 1
58510-YYX90C0

AXAH5#,MXAA5#..G,M

ACCESSORY MAT-WITH,BLACK,TRIM1#,2#,4#

 1
