MXAA52L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

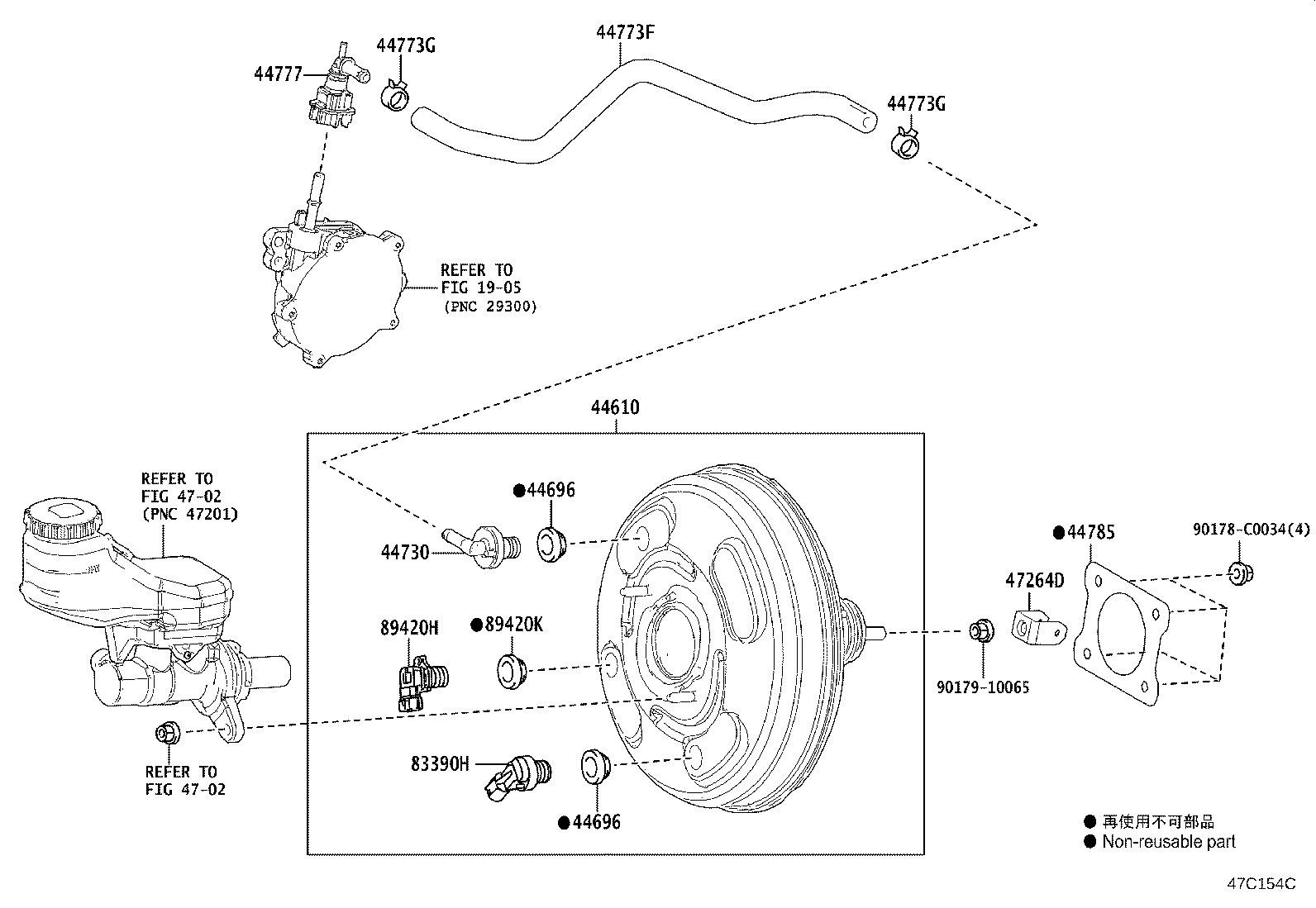

Click highlighted areas on diagram

diagram 1905 44610 44696 44696 44730 44773F 44773G 44773G 44777 44785 4702 4702 47264D 83390H 89420H 89420K 90178C0034 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0R140

MXAA5#

 1
44610-0R141

MXAA5#

 1
44696 - GROMMET, CHECK VALVE
90080-48071

MXAA5#

 2
44696 - GROMMET, CHECK VALVE
90080-48071

MXAA5#

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010

MXAA5#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0R030

MXAA5#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-C0034

MXAA5#

(L)

 2
90467-16014

MXAA5#

(J)

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-C0034

MXAA5#

(L)

 2
90467-16014

MXAA5#

(J)

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-33010

MXAA5#

 1
44785 - GASKET, BRAKE BOOSTER
44785-02050

MXAA5#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0R030

MXAA5#

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

MXAA5#

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

MXAA5#

 1
89420K - GROMMET, VACUUM SENSOR
90080-48071

MXAA5#

 1
Common parts
90178-C0034
90179-10065
Linked diagrams
1905
4702
