MXAA52L-SNXMBC (2019)
Toyota Rav4 (China)
Production
Nov 2019
-
Sep 9999
Engine
M20DFKS
Transmission
HTWC CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1911- )M20DFKS

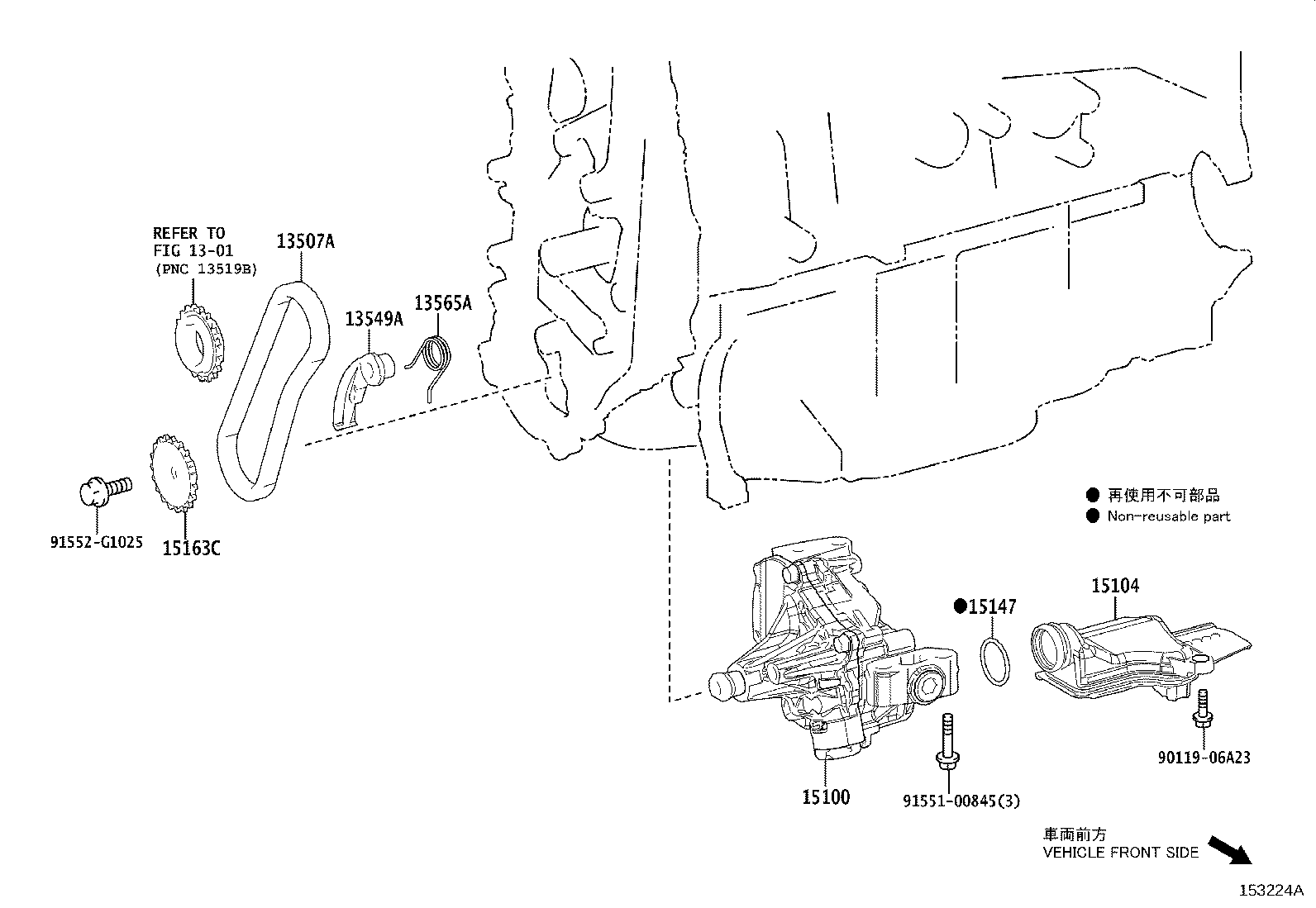

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13507A - CHAIN SUB-ASSY, OIL PUMP DRIVE | ||||
| 13507-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 13549A - PLATE, CHAIN TENSIONER | ||||
| 13549-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 13565A - SPRING, CHAIN DAMPER | ||||
| 13565-F2020 |
M20DFKS..MXAA5# |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-F2030 |
M20DFKS..MXAA5# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-F2050 |
M20DFKS..MXAA5# |
1 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-F2010 |
M20DFKS..MXAA5# |
1 | ||
| 15163C - SPROCKET, OIL PUMP DRIVE SHAFT | ||||
| 15163-F2020 |
M20DFKS..MXAA5# |
1 | ||
| Common parts | ||||
| 90119-06A23 | ||||
| 91551-00845 | ||||
| 91552-G1025 | ||||
| Linked diagrams | ||||
| 1301 | ||||
