MXAA52L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

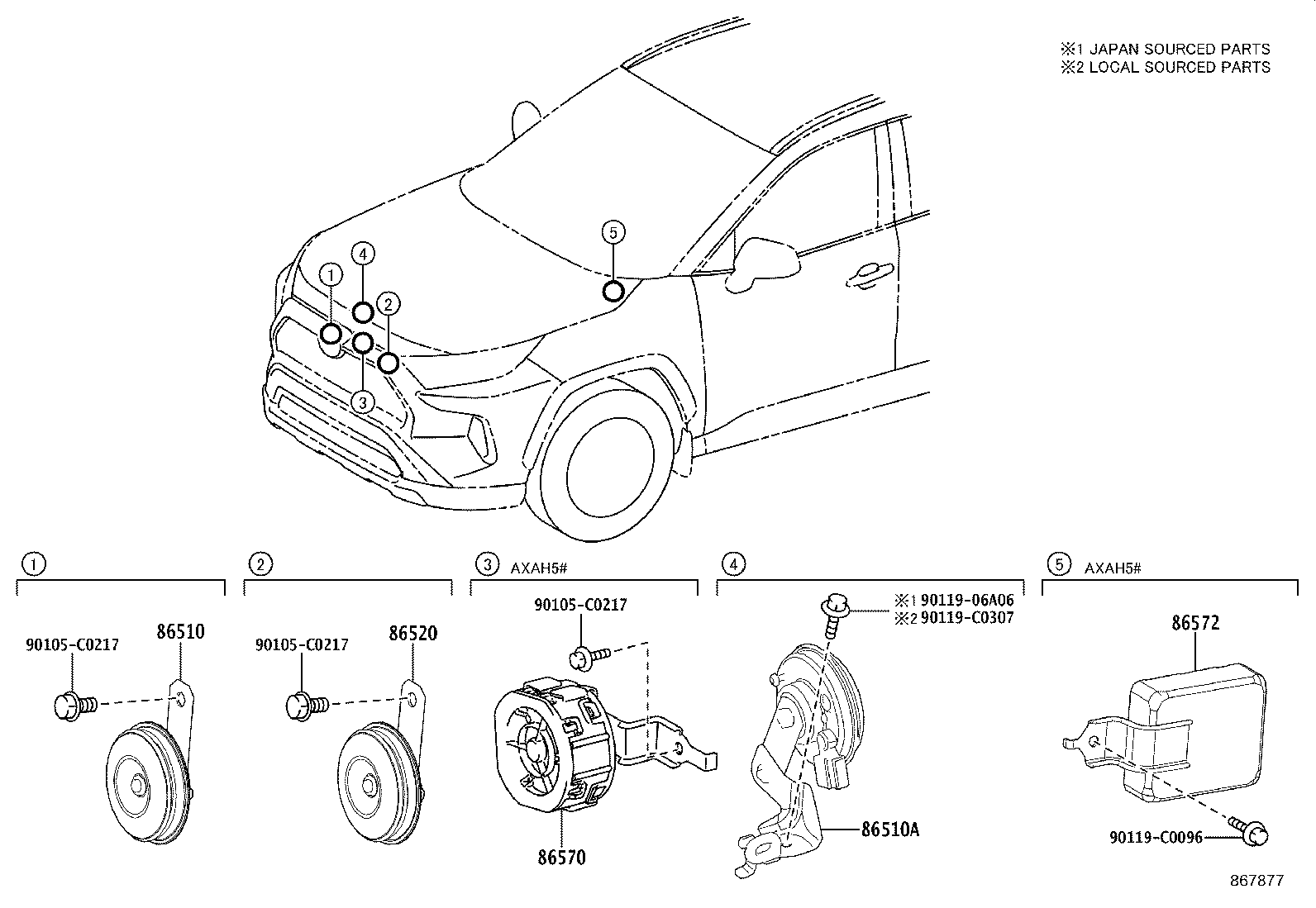

Click highlighted areas on diagram

diagram 86510 86510A 86520 86570 86572 90105C0217 90105C0217 90105C0217 9011906A06 90119C0096 90119C0307
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0R041

AXAH5#,MXAA5#

 1
86510A - HORN ASSY, SECURITY
86560-07030

AXAH5#,MXAA5#..G,M

 1
86520 - HORN ASSY, LOW PITCHED
86520-0R041

AXAH5#,MXAA5#

 1
Common parts
90105-C0217
90119-06A06
90119-C0096
90119-C0307
