MXAA52L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

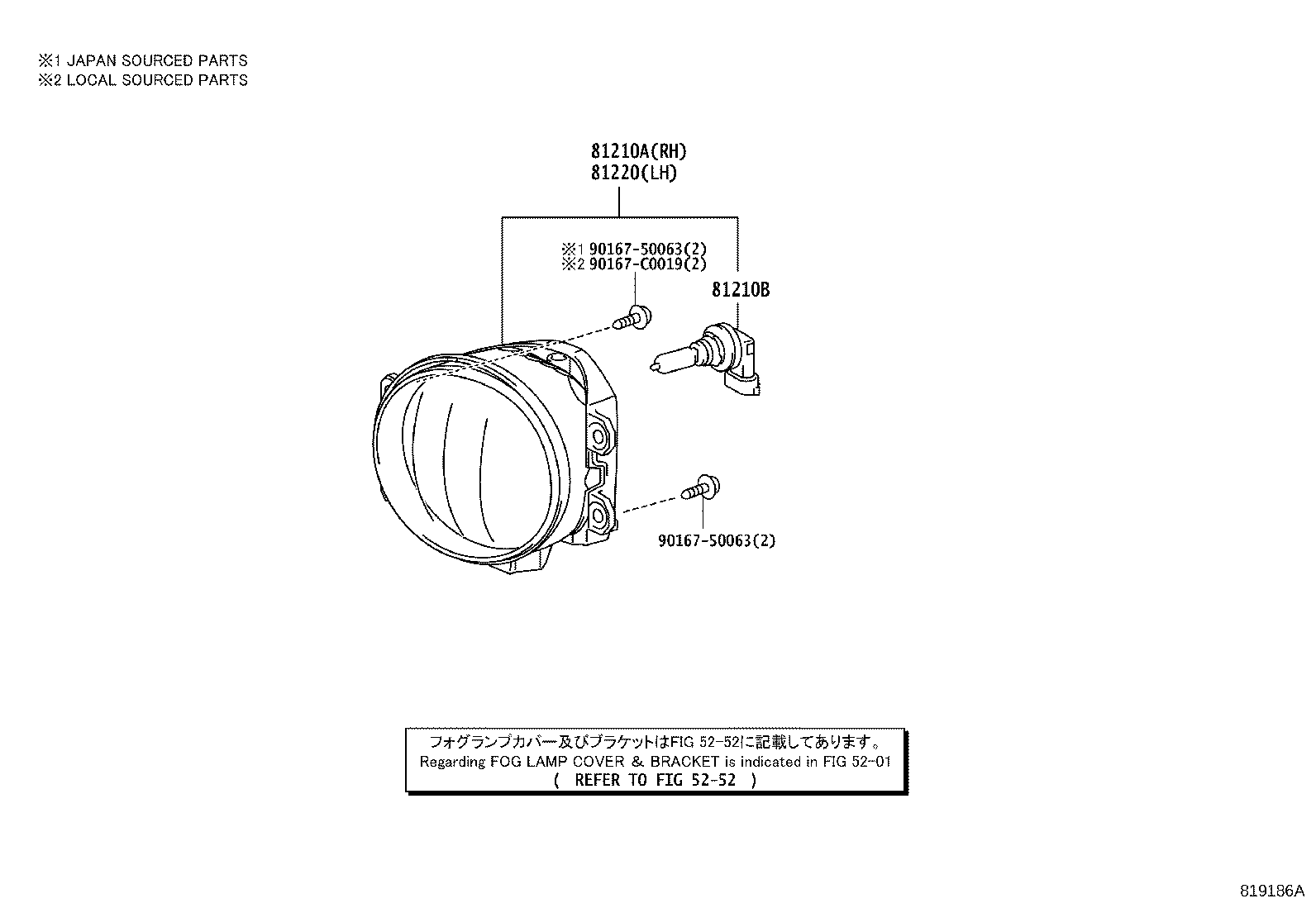

Click highlighted areas on diagram

diagram 5252 81210A 81210B 81220 9016750063 9016750063 90167C0019
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D100

AXAH5#,MXAA5#

 1
81210B - BULB, FOG LAMP
90981-CD003

AXAH5#,MXAA5#

12V 19W

 2
81220 - LAMP ASSY, FOG, LH
81220-0D100

AXAH5#,MXAA5#

 1
Common parts
90167-50063
90167-C0019
Linked diagrams
5252
