MXAA52L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

Click highlighted areas on diagram

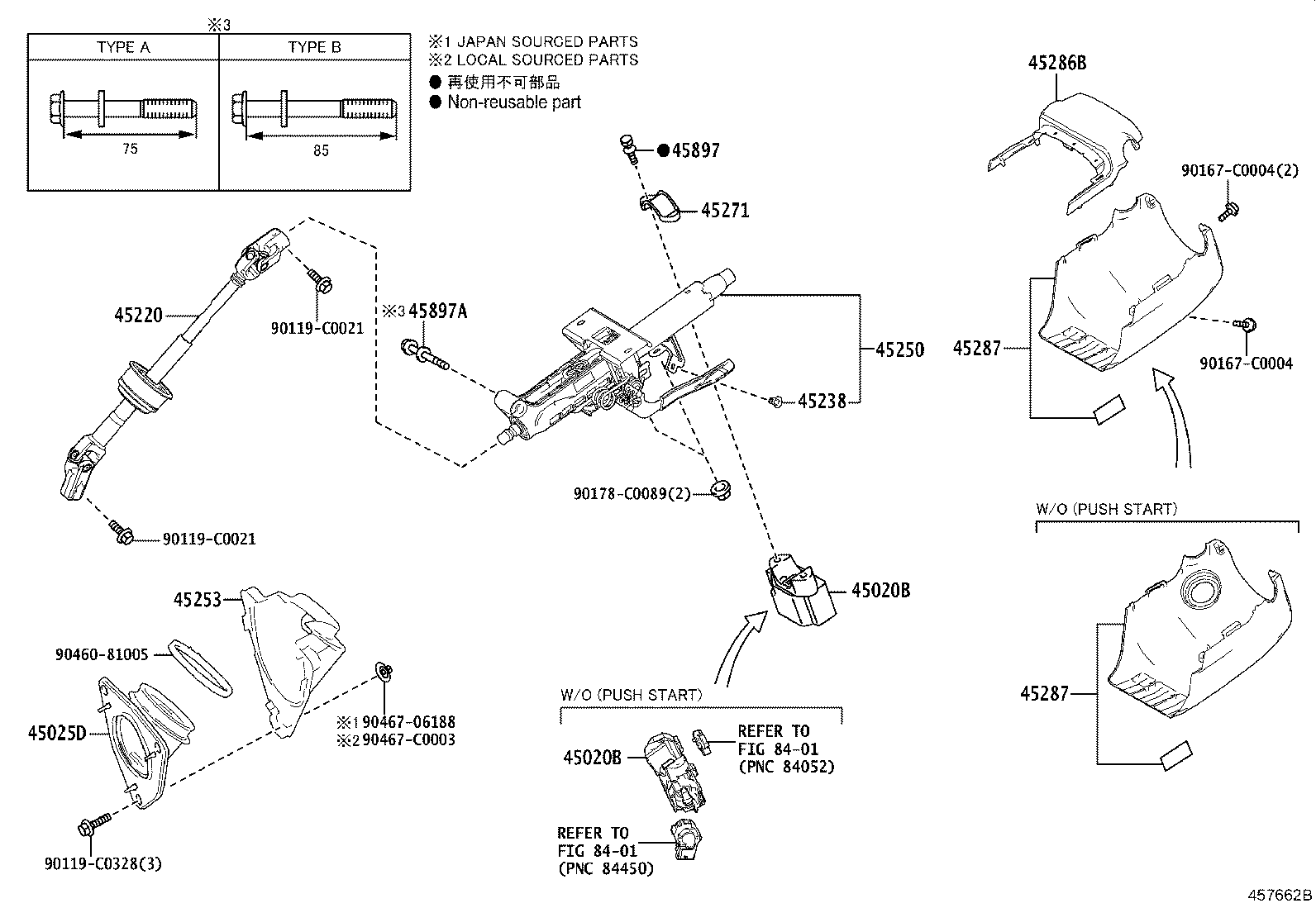

diagram 45020B 45020B 45025D 45220 45238 45250 45253 45271 45286B 45287 45287 45897 45897A 8401 8401 90119C0021 90119C0021 90119C0328 90167C0004 90167C0004 90178C0089 9046081005 9046706188 90467C0003
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02510

MXAA52..X

 1
45020-06290

AXAH5#,MXAA5#..G,M

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02510

MXAA52..X

 1
45020-06290

AXAH5#,MXAA5#..G,M

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0R050

AXAH5#,MXAA5#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0R020

AXAH5#,MXAA5#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

AXAH5#,MXAA5#

 1
45250 - COLUMN ASSY, STEERING
45250-0R050

AXAH5#,MXAA5#..G,M

 1
45250-0R040

MXAA52..X

 1
45253 - COVER, STEERING COLUMN HOLE
45253-0R020

AXAH5#,MXAA5#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

AXAH5#,MXAA5#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-07070C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
45286-07070C0

MXAA52..X

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-07090C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
45287-0R090C0

MXAA52..X

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-07090C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
45287-0R090C0

MXAA52..X

BLACK,TRIM2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AXAH5#,MXAA5#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-C0427

AXAH5#,MXAA5#

TYPE B:REFER ILLUST.

 1
90119-10980

AXAH5#,MXAA5#

TYPE A:REFER ILLUST.

 1
Common parts
90119-C0021
90119-C0328
90167-C0004
90178-C0089
90460-81005
90467-06188
90467-C0003
Linked diagrams
8401
