AXAH54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

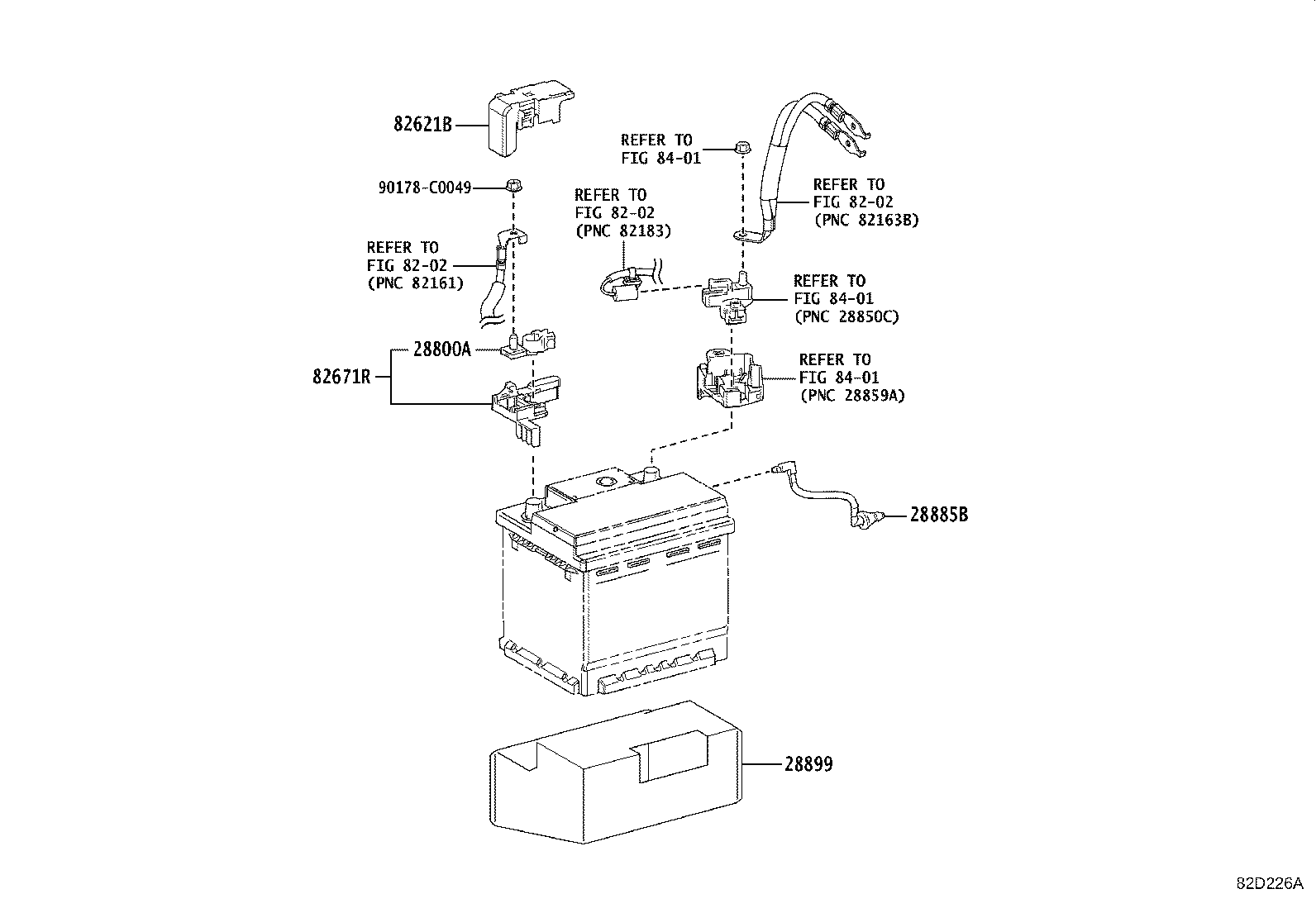

ILLUST NO. 1 OF 3(1911- )AXAH5#

Click highlighted areas on diagram

12V BATTERY

diagram 28800A 28885B 28899 8202 8202 8202 82621B 82671R 8401 8401 8401 90178C0049
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

A25BFXS..AXAH5#

 1
28885B - HOSE, BATTERY
28885-F0050

A25BFXS..AXAH5#

 1
28899 - INSULATOR, BATTERY
28899-F2100

A25BFXS..AXAH5#

 1
82621B - COVER, FUSIBLE LINK
82621-42020

AXAH5#

 1
82671R - STOPPER, BATTERY TERMINAL
82670-42010

AXAH5#

 1
Common parts
90178-C0049
Linked diagrams
8202
8401

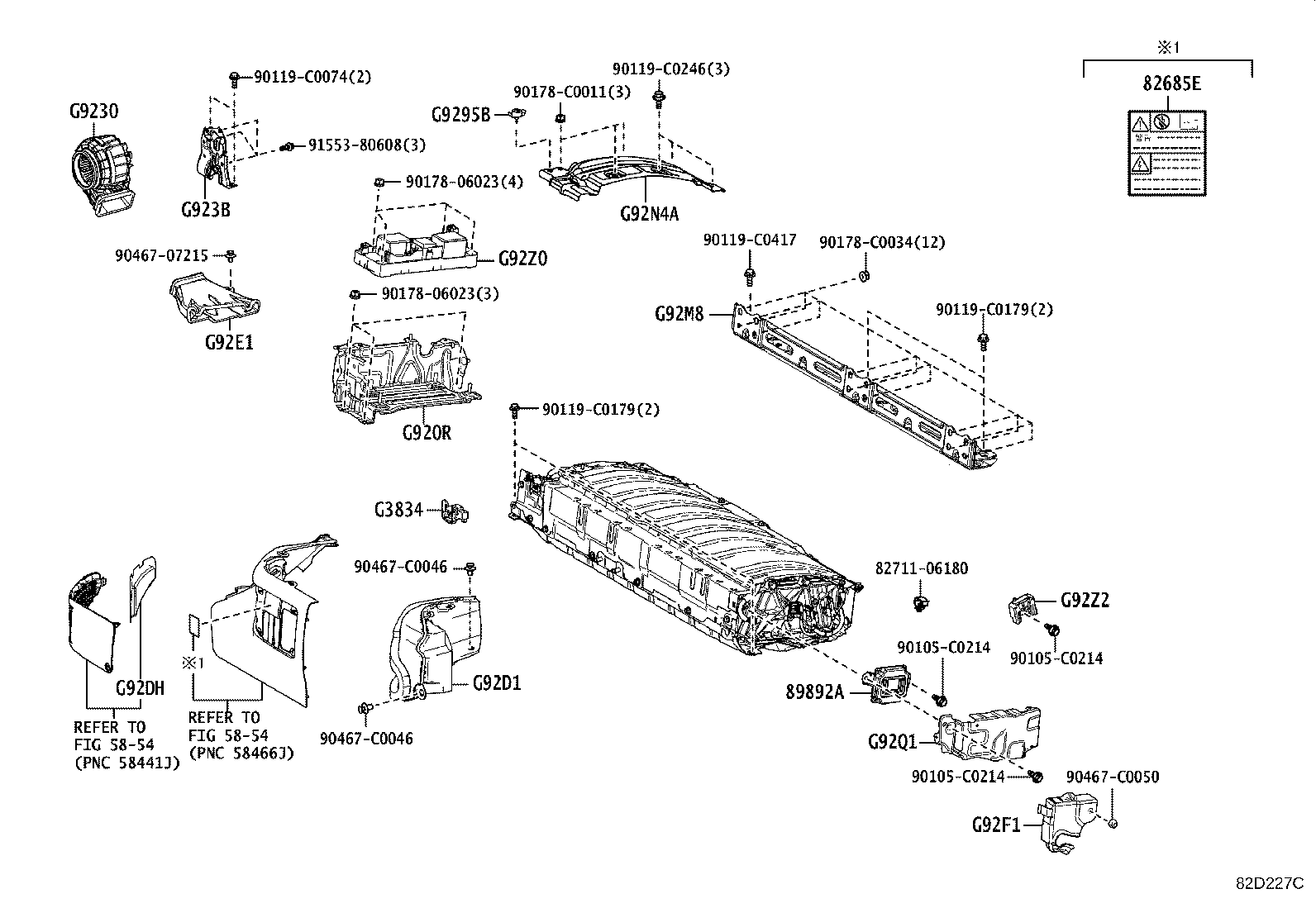

ILLUST NO. 2 OF 3(1911- )AXAH5#

Click highlighted areas on diagram

HV BATTERY

diagram 5854 5854 82685E 8271106180 89892A 90105C0214 90105C0214 90105C0214 90119C0074 90119C0179 90119C0179 90119C0246 90119C0417 9017806023 9017806023 90178C0011 90178C0034 9046707215 90467C0046 90467C0046 90467C0050 9155380608 G3834 G920R G9230 G923B G9295B G92D1 G92DH G92E1 G92F1 G92M8 G92N4A G92Q1 G92Z0 G92Z2
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-02030

AXAH5#

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-33040

AXAH5#

 1
G3834 - GRIP, SERVICE PLUG
G3834-02010

AXAH5#

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-33030

AXAH5#

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-06010

AXAH5#

 1
G9230-33050

AXAH5#

 1
G923B - BRACKET, BATTERY COOLING BLOWER
G923B-0R020

AXAH5#

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-02010

AXAH5#

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-0R020

AXAH5#

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-42010

AXAH5#

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-33020

AXAH5#

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-07010

AXAH5#

 1
G92M8 - BRACKET, HV BATTERY UPPER CARRIER, NO.2
G92M8-0R020

AXAH5#

 1
G92N4A - PANEL, HV BATTERY RH COVER, NO.1
G92N4-33040

AXAH5#

 1
G92Q1 - PANEL, HV BATTERY SHIELD, NO.1
G92Q1-33050

AXAH5#

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-02010

AXAH5#

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

AXAH5#

 1
Common parts
82711-06180
90105-C0214
90119-C0074
90119-C0179
90119-C0246
90119-C0417
90178-06023
90178-C0011
90178-C0034
90467-07215
90467-C0046
90467-C0050
91553-80608
Linked diagrams
5854

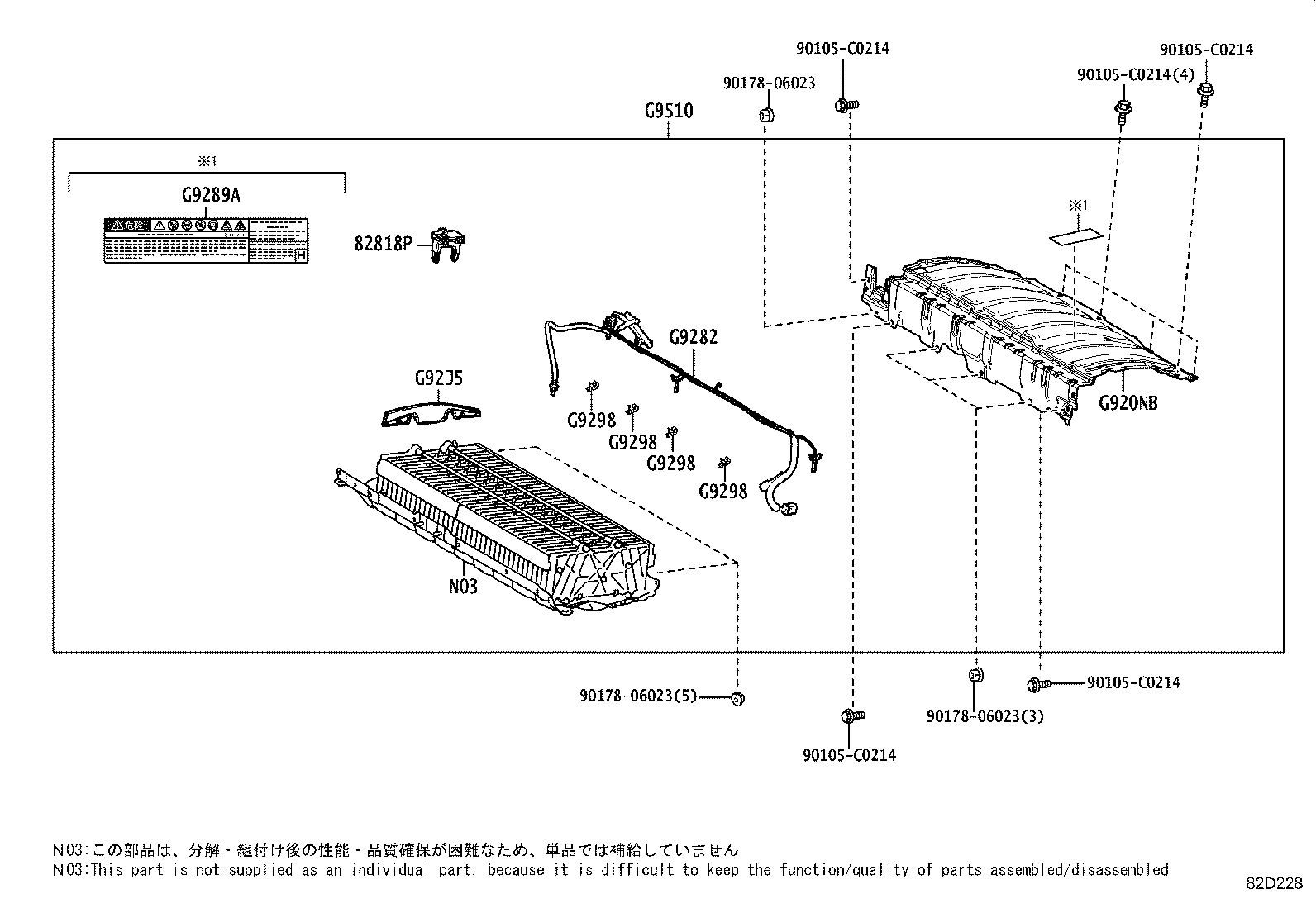

ILLUST NO. 3 OF 3(1911- )AXAH5#

Click highlighted areas on diagram

HV BATTERY

diagram 82818P 90105C0214 90105C0214 90105C0214 90105C0214 90105C0214 9017806023 9017806023 9017806023 G920NB G9282 G9289A G9298 G9298 G9298 G9298 G92J5 G9510
Part # Description Qty Price
82818P - PROTECTOR, WIRING HARNESS
82817-47Q60

AXAH5#

 1
G920NB - COVER SUB-ASSY, HV BATTERY, UPPER
G920N-33050

AXAH5#

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-06010

AXAH5#

 1
G9289A - LABEL, BATTERY CAUTION
G9288-02010

AXAH5#

 1
G9298 - CLAMP, HV BATTERY
G928E-47010

AXAH5#

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

AXAH5#

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

AXAH5#

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

AXAH5#

 4
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-02020

AXAH5#

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-06010

AXAH5#

 1
Common parts
90105-C0214
90178-06023
