AXAH54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

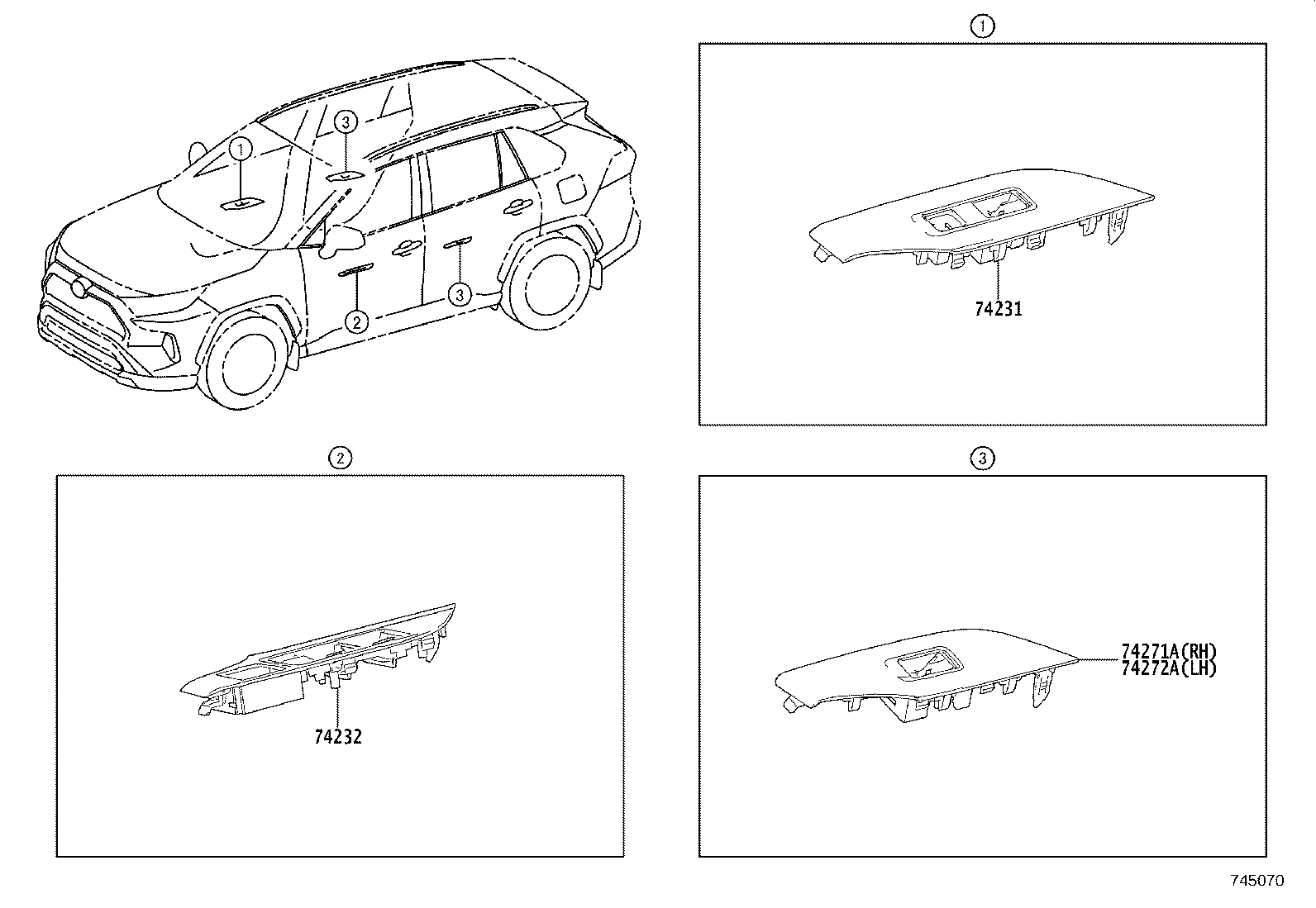

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0R160

AXAH5#,MXAA5#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0R160

AXAH5#,MXAA5#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0R160

AXAH5#,MXAA5#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0R160

AXAH5#,MXAA5#

 1

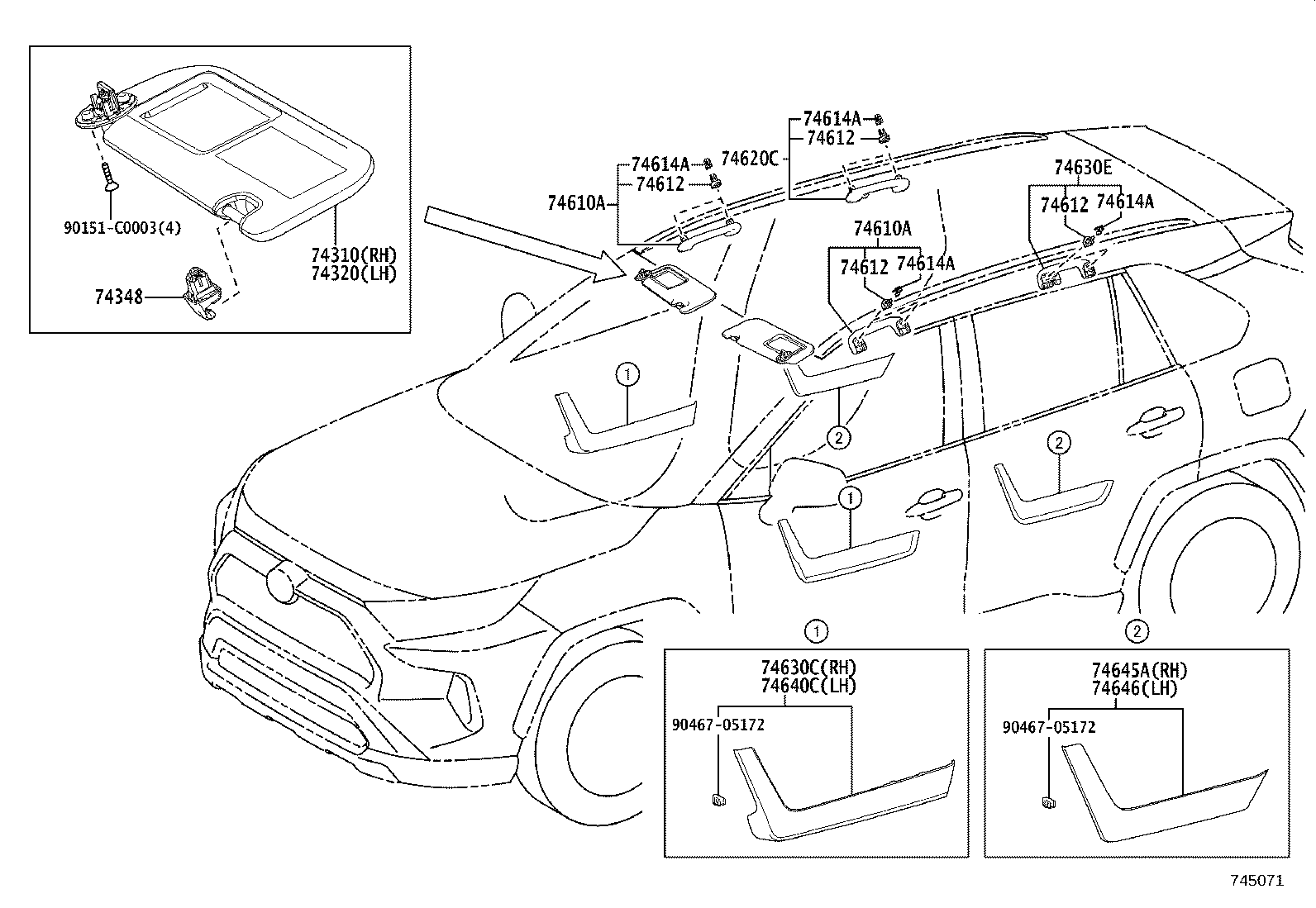

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348 74610A 74610A 74612 74612 74612 74612 74614A 74614A 74614A 74614A 74620C 74630C 74630E 74640C 74645A 74646 90151C0003 9046705172 9046705172
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0R130B0

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 1
74320 - VISOR ASSY, LH
74320-0R150B0

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 1
74348 - HOLDER, VISOR
74348-47010B3

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 2
74612 - COVER, ASSIST GRIP
74612-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-F4010B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 8
74614A - PLATE, ASSIST GRIP LOCK
74614-F4010

AXAH5#,MXAA5#

 8
74614A - PLATE, ASSIST GRIP LOCK
74614-F4010

AXAH5#,MXAA5#

 8
74614A - PLATE, ASSIST GRIP LOCK
74614-F4010

AXAH5#,MXAA5#

 8
74614A - PLATE, ASSIST GRIP LOCK
74614-F4010

AXAH5#,MXAA5#

 8
74620C - GRIP ASSY, ASSIST, REAR RH
74610-07020B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 1
74630C - GRIP ASSY, DOOR ASSIST, RH
74641-0R100C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-07030B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74642-0R100C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-0R100C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-0R100C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
Common parts
90151-C0003
90467-05172
