AXAH54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

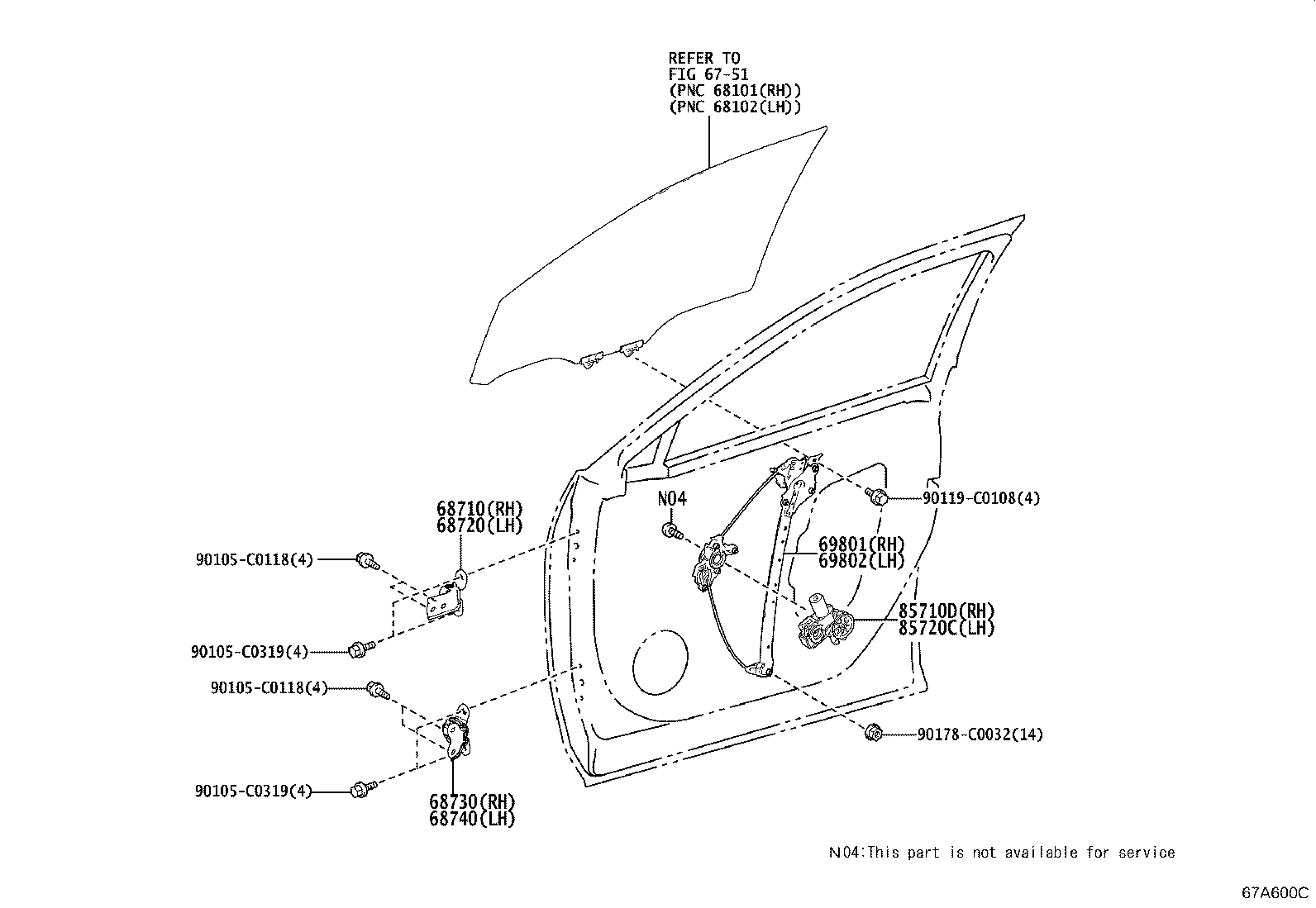

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 69801 69802 85710D 85720C 90105C0118 90105C0118 90105C0319 90105C0319 90119C0108 90178C0032
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02031

AXAH5#,MXAA5#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02031

AXAH5#,MXAA5#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02061

AXAH5#,MXAA5#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02061

AXAH5#,MXAA5#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0R110

AXAH5#,MXAA5#

 1
69801-0R060

AXAH5#,MXAA5#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0R060

AXAH5#,MXAA5#

 1
69802-0R110

AXAH5#,MXAA5#

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0R030

AXAH5#,MXAA5#

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0R090

AXAH5#,MXAA5#

 1
Common parts
90105-C0118
90105-C0319
90119-C0108
90178-C0032
Linked diagrams
6751
