AXAH54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

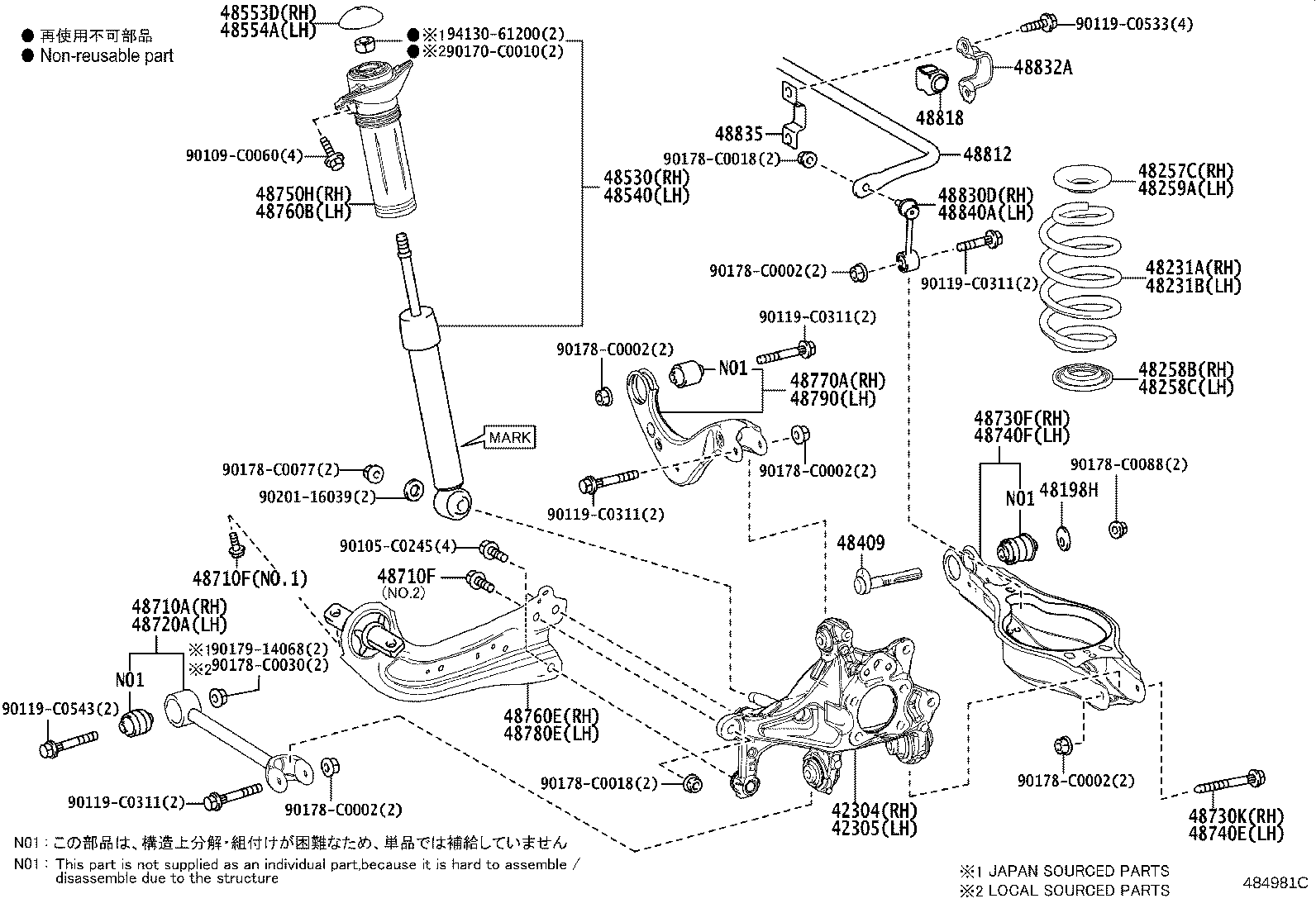

Click highlighted areas on diagram

diagram 42304 42305 48198H 48231A 48231B 48257C 48258B 48258C 48259A 48409 48530 48540 48553D 48554A 48710A 48710F 48710F 48720A 48730F 48730K 48740E 48740F 48750H 48760B 48760E 48770A 48780E 48790 48812 48818 48830D 48832A 48835 48840A 90105C0245 90109C0060 90119C0311 90119C0311 90119C0311 90119C0311 90119C0533 90119C0543 90170C0010 90178C0002 90178C0002 90178C0002 90178C0002 90178C0002 90178C0018 90178C0018 90178C0030 90178C0077 90178C0088 9017914068 9020116039 9413061200
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-0R120

AXAH54,MXAA54

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-0R120

AXAH54,MXAA54

 1
48198H - CAM, CAMBER ADJUST, NO.2
48198-47010

AXAH5#,MXAA5#

 2
48231A - SPRING, COIL, REAR RH
48231-0R370

AXAH54

 1
48231-0R371

AXAH54

 1
48231B - SPRING, COIL, REAR LH
48231-0R370

AXAH54

 1
48231-0R371

AXAH54

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-06040

AXAH5#,MXAA5#

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-06240

AXAH5#,MXAA5#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-06240

AXAH5#,MXAA5#

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-06040

AXAH5#,MXAA5#

 1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-47011

AXAH5#,MXAA5#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-8Z146

AXAH54

MARK 48530-0R090

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-8Z146

AXAH54

MARK 48530-0R090

 1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-F4020

AXAH5#,MXAA5#

 1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-F4020

AXAH5#,MXAA5#

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-0R070

AXAH5#,MXAA5#

 1
48710F - BOLT(FOR REAR TRAILING ARM)
90119-C0551

AXAH5#,MXAA5#

NO.1:REFER ILLUST.

 4
90119-C0537

AXAH5#,MXAA5#

NO.2:REFER ILLUST.

 2
48710F - BOLT(FOR REAR TRAILING ARM)
90119-C0551

AXAH5#,MXAA5#

NO.1:REFER ILLUST.

 4
90119-C0537

AXAH5#,MXAA5#

NO.2:REFER ILLUST.

 2
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-0R070

AXAH5#,MXAA5#

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-0R060

AXAH5#,MXAA5#

 1
48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH)
90119-C0310

AXAH5#,MXAA5#

 1
48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH)
90119-C0310

AXAH5#,MXAA5#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48730-0R060

AXAH5#,MXAA5#

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-0R020

AXAH5#,MXAA5#

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-0R020

AXAH5#,MXAA5#

 1
48760E - ARM ASSY, TRAILING, REAR RH
48760-0R050

AXAH5#,MXAA5#

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-0R030

AXAH5#,MXAA5#

 1
48780E - ARM ASSY, TRAILING, REAR LH
48780-0R050

AXAH5#,MXAA5#

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-0R030

AXAH5#,MXAA5#

 1
48812 - BAR, STABILIZER, REAR
48812-0R080

AXAH5#,MXAA54

 1
48818 - BUSH, STABILIZER, REAR
48818-0R080

AXAH5#,MXAA54

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-0R040

AXAH5#,MXAA5#

 1
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-0R040

AXAH5#,MXAA5#

 2
48835 - BRACKET, REAR STABILIZER, LOWER
48835-0R020

AXAH5#,MXAA5#

 2
48840A - LINK ASSY, REAR STABILIZER, LH
48830-0R040

AXAH5#,MXAA5#

 1
Common parts
90105-C0245
90109-C0060
90119-C0311
90119-C0533
90119-C0543
90170-C0010
90178-C0002
90178-C0018
90178-C0030
90178-C0077
90178-C0088
90179-14068
90201-16039
94130-61200
