AXAH54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

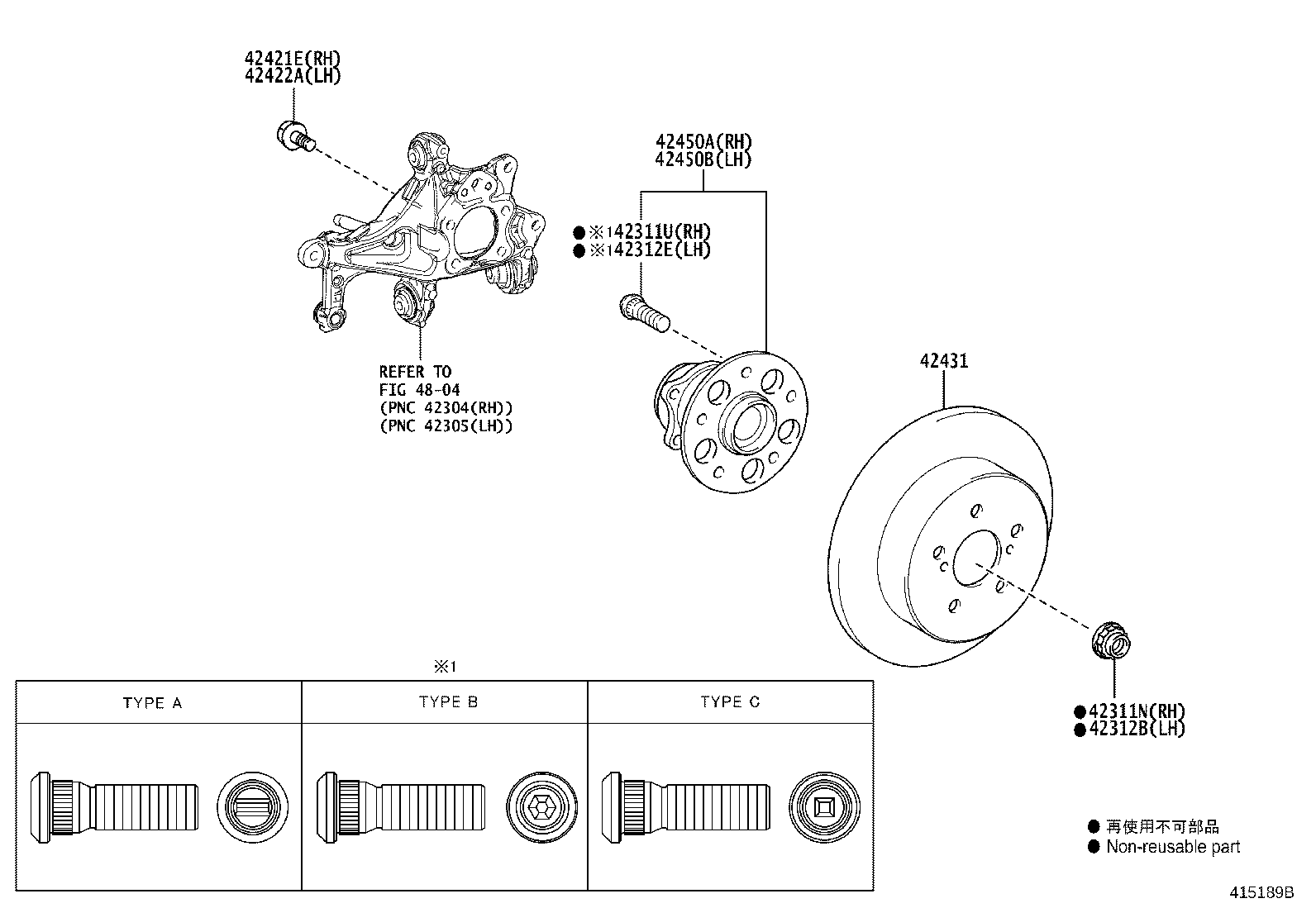

ILLUST NO. 1 OF 2(1911- )AXAH54,MXAA54

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42421E 42422A 42431 42450A 42450B 4804
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90177-22001

AXAH54,MXAA54

(J)

 1
90177-C0004

AXAH54,MXAA54

(L)

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02081

AXAH5#,MXAA5#

TYPE B:REFER ILLUST.

 5
90942-02082

AXAH5#,MXAA5#

TYPE C:REFER ILLUST.

 5
90942-02049

AXAH5#,MXAA5#

TYPE A:REFER ILLUST.

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90177-22001

AXAH54,MXAA54

(J)

 1
90177-C0004

AXAH54,MXAA54

(L)

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02082

AXAH5#,MXAA5#

TYPE C:REFER ILLUST.

 5
90942-02081

AXAH5#,MXAA5#

TYPE B:REFER ILLUST.

 5
90942-02049

AXAH5#,MXAA5#

TYPE A:REFER ILLUST.

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-C0328

AXAH5#,MXAA5#

(L)

 4
90105-12406

AXAH5#,MXAA5#

(J)

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12406

AXAH5#,MXAA5#

(J)

 4
90105-C0328

AXAH5#,MXAA5#

(L)

 4
42431 - DISC, REAR
42431-F4010

AXAH5#,MXAA5#

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-0R040

AXAH54,MXAA54

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-0R040

AXAH54,MXAA54

 1
Linked diagrams
4804

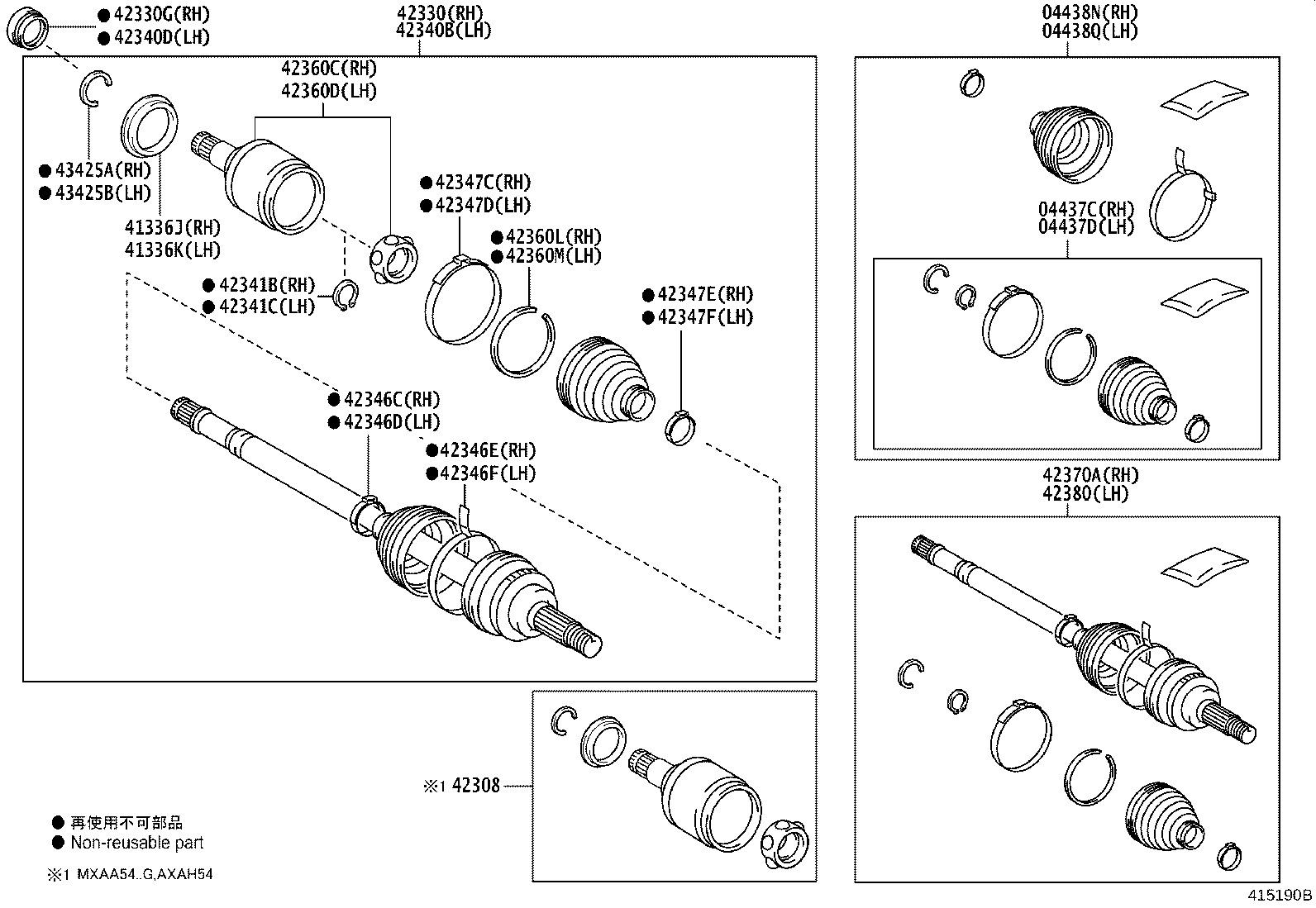

ILLUST NO. 2 OF 2(1911- )AXAH54,MXAA54

Click highlighted areas on diagram

diagram 04437C 04437D 04438N 04438Q 41336J 41336K 42308 42330 42330G 42340B 42340D 42341B 42341C 42346C 42346D 42346E 42346F 42347C 42347D 42347E 42347F 42360C 42360D 42360L 42360M 42370A 42380 43425A 43425B
Part # Description Qty Price
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04439-0R040

AXAH54;MXAA54..G

 1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04439-0R040

AXAH54;MXAA54..G

 1
04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH
04429-0R030

AXAH54;MXAA54..G

 1
04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH
04429-0R030

AXAH54;MXAA54..G

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-0R070

AXAH54;MXAA54..G

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-0R070

AXAH54;MXAA54..G

 1
42308 - JOINT SET, REAR AXLE INBOARD
42308-0R020

AXAH54

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-0R070

AXAH54

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-42057

AXAH54

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-0R060

AXAH54

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-42058

AXAH54

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
43425-0E260

AXAH54,MXAA54

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
43425-0E260

AXAH54,MXAA54

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-0R210

AXAH54,MXAA54

ID=28.3

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0R210

AXAH54,MXAA54

ID=28.3

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-0E310

AXAH54,MXAA54

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-0E310

AXAH54,MXAA54

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-0R200

AXAH54,MXAA54

ID=73.6

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-0R200

AXAH54,MXAA54

ID=73.6

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-0R210

AXAH54,MXAA54

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-0R210

AXAH54,MXAA54

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-0R080

AXAH54

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-0R080

AXAH54

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
43425-0E270

AXAH54,MXAA54

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
43425-0E270

AXAH54,MXAA54

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-09180

AXAH54

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-09200

AXAH54

 1
43425A - RING, DRIVE SHAFT SNAP, RH
43425-0E250

AXAH54;MXAA54..G

 1
43425B - RING, DRIVE SHAFT SNAP, LH
43425-0E250

AXAH54;MXAA54..G

 1
