AXAH54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

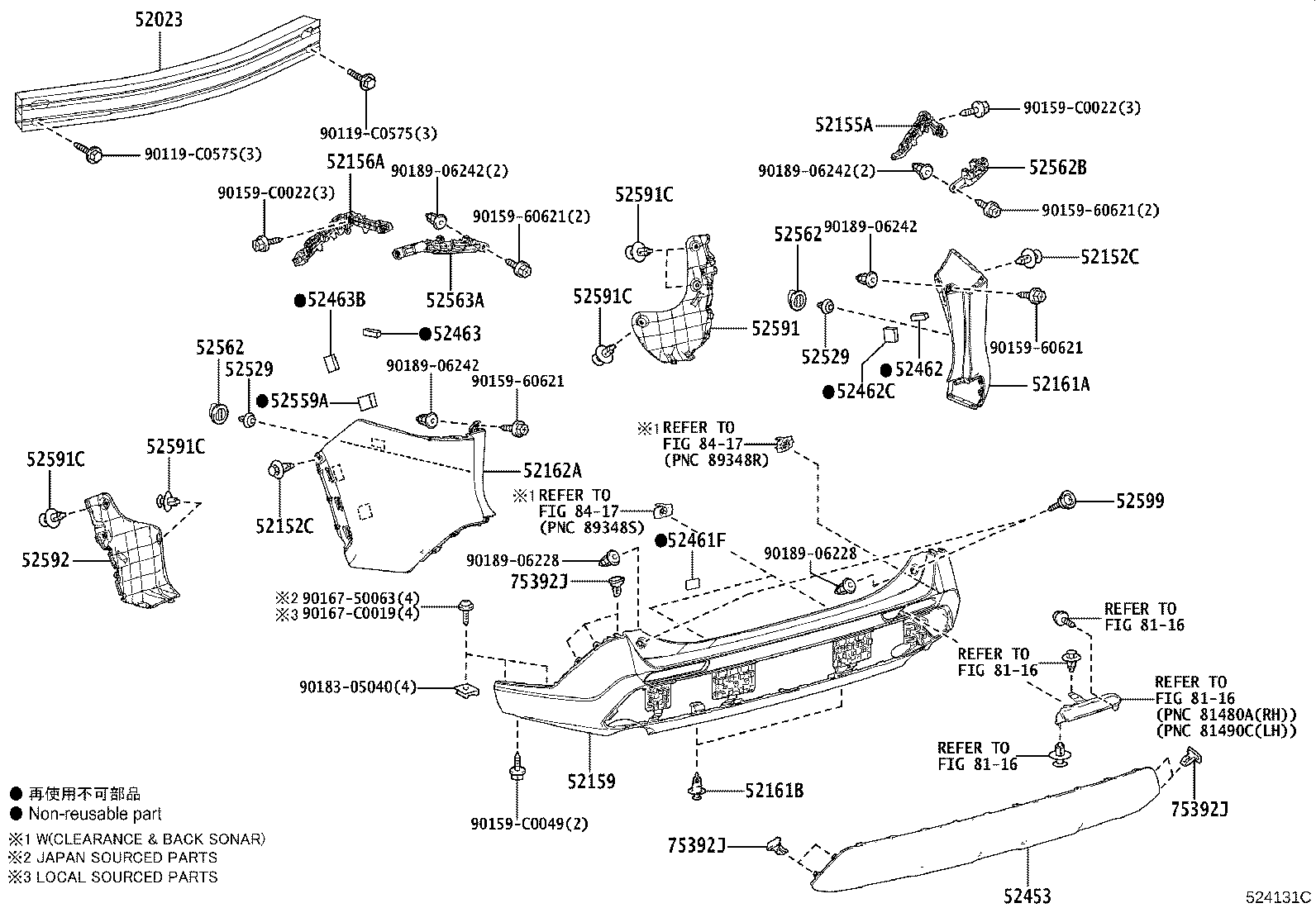

Click highlighted areas on diagram

diagram 52023 52152C 52152C 52155A 52156A 52159 52161A 52161B 52162A 52453 52461F 52462 52462C 52463 52463B 52529 52529 52559A 52562 52562 52562B 52563A 52591 52591C 52591C 52591C 52591C 52592 52599 75392J 75392J 75392J 8116 8116 8116 8116 8417 8417 90119C0575 90119C0575 9015960621 9015960621 9015960621 9015960621 90159C0022 90159C0022 90159C0049 9016750063 90167C0019 9018305040 9018906228 9018906228 9018906242 9018906242 9018906242 9018906242
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-0R060

AXAH5#,MXAA5#

 1
52152C - CLIP, REAR BUMPER SIDE
90467-C0043

AXAH5#,MXAA5#

 2
52152C - CLIP, REAR BUMPER SIDE
90467-C0043

AXAH5#,MXAA5#

 2
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0R080

AXAH5#,MXAA5#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0R080

AXAH5#,MXAA5#

 1
52159 - COVER, REAR BUMPER
52159-0R240

AXAH5#,MXAA5#..M,X

NO PAINT REQ.

 1
52159-0R250

AXAH5#,MXAA5#..G

NO PAINT REQ.

 1
52161A - PIECE, REAR BUMPER, RH
52161-0R908

AXAH5#,MXAA5#

 1
52161B - PIECE, REAR BUMPER
52161-02040

AXAH5#,MXAA5#

 2
52162A - PIECE, REAR BUMPER, LH
52162-0R908

AXAH5#,MXAA5#

 1
52453 - GUARD, REAR BUMPER, CENTER
52453-0R090B0

AXAH5#,MXAA5#..G,M

GRAY,070 ,089 ,1K6 ,209 ,2KR ,2PN ,2PU ,2QU ,2QV ,2RX ,2RY ,2RZ ,2SA ,3T3 ,4V8 ,6X3 ,8W9

 1
52461F - PAD, REAR BUMPER
52461-0R040

AXAH5#,MXAA5#

 8
52462 - PAD, REAR BUMPER, RH
52462-0R030

AXAH5#,MXAA5#

 1
52462C - PAD, REAR BUMPER, RH
52463-0R020

AXAH5#,MXAA5#

 1
52463 - PAD, REAR BUMPER, LH
52462-0R030

AXAH5#,MXAA5#

 1
52463B - PAD, REAR BUMPER, LH
52463-0R020

AXAH5#,MXAA5#

 1
52529 - RETAINER, REAR BUMPER, UPPER CORNER
76829-60020

AXAH5#,MXAA5#

 2
52529 - RETAINER, REAR BUMPER, UPPER CORNER
76829-60020

AXAH5#,MXAA5#

 2
52559A - PAD, REAR BUMPER FILLER, LH
52559-0R010

AXAH5#,MXAA5#

 1
52562 - RETAINER, REAR BUMPER, UPPER SIDE
76828-60030

AXAH5#,MXAA5#

 2
52562 - RETAINER, REAR BUMPER, UPPER SIDE
76828-60030

AXAH5#,MXAA5#

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-0R080

AXAH5#,MXAA5#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-0R080

AXAH5#,MXAA5#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0R080

AXAH5#,MXAA5#

 1
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-C0043

AXAH5#,MXAA5#

 2
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-C0043

AXAH5#,MXAA5#

 2
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-C0043

AXAH5#,MXAA5#

 2
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-C0043

AXAH5#,MXAA5#

 2
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0R080

AXAH5#,MXAA5#

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

AXAH5#,MXAA5#

 2
75392J - RETAINER, OUTSIDE MOULDING
75392-0R030

AXAH5#,MXAA5#

 10
75392J - RETAINER, OUTSIDE MOULDING
75392-0R030

AXAH5#,MXAA5#

 10
75392J - RETAINER, OUTSIDE MOULDING
75392-0R030

AXAH5#,MXAA5#

 10
Common parts
90119-C0575
90159-60621
90159-C0022
90159-C0049
90167-50063
90167-C0019
90183-05040
90189-06228
90189-06242
