AXAH54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

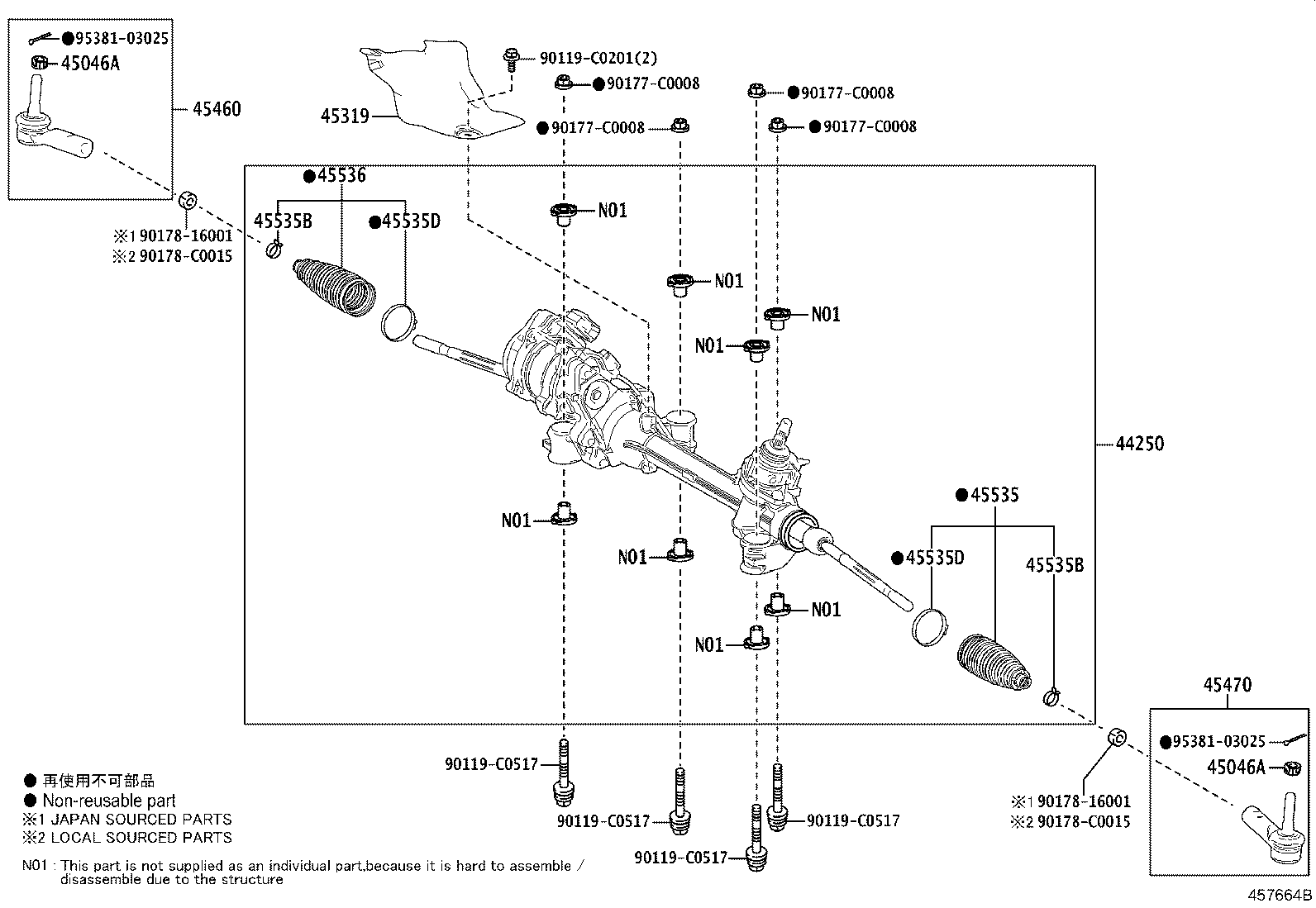

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45319 45460 45470 45535 45535B 45535B 45535D 45535D 45536 90119C0201 90119C0517 90119C0517 90119C0517 90119C0517 90177C0008 90177C0008 90177C0008 90177C0008 9017816001 9017816001 90178C0015 90178C0015 9538103025 9538103025
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-0R030

AXAH5#;MXAA5#..M,X

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12015

AXAH5#,MXAA54..G

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12015

AXAH5#,MXAA54..G

 2
45319 - INSULATOR, STEERING GEAR HEAT
45319-0R020

AXAH5#,MXAA5#

 1
45460 - ROD ASSY, TIE, RH
45460-09350

AXAH5#;MXAA5#..M,X

 1
45470 - ROD ASSY, TIE, LH
45460-09350

AXAH5#;MXAA5#..M,X

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09590

AXAH5#,MXAA5#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D030

AXAH5#,MXAA5#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D030

AXAH5#,MXAA5#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-06040

AXAH5#,MXAA5#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-06040

AXAH5#,MXAA5#

 2
45536 - BOOT, STEERING RACK, NO.2
45535-09590

AXAH5#,MXAA5#

 1
Common parts
90119-C0201
90119-C0517
90177-C0008
90178-16001
90178-C0015
95381-03025
