AXAH52L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1911- )

Click highlighted areas on diagram

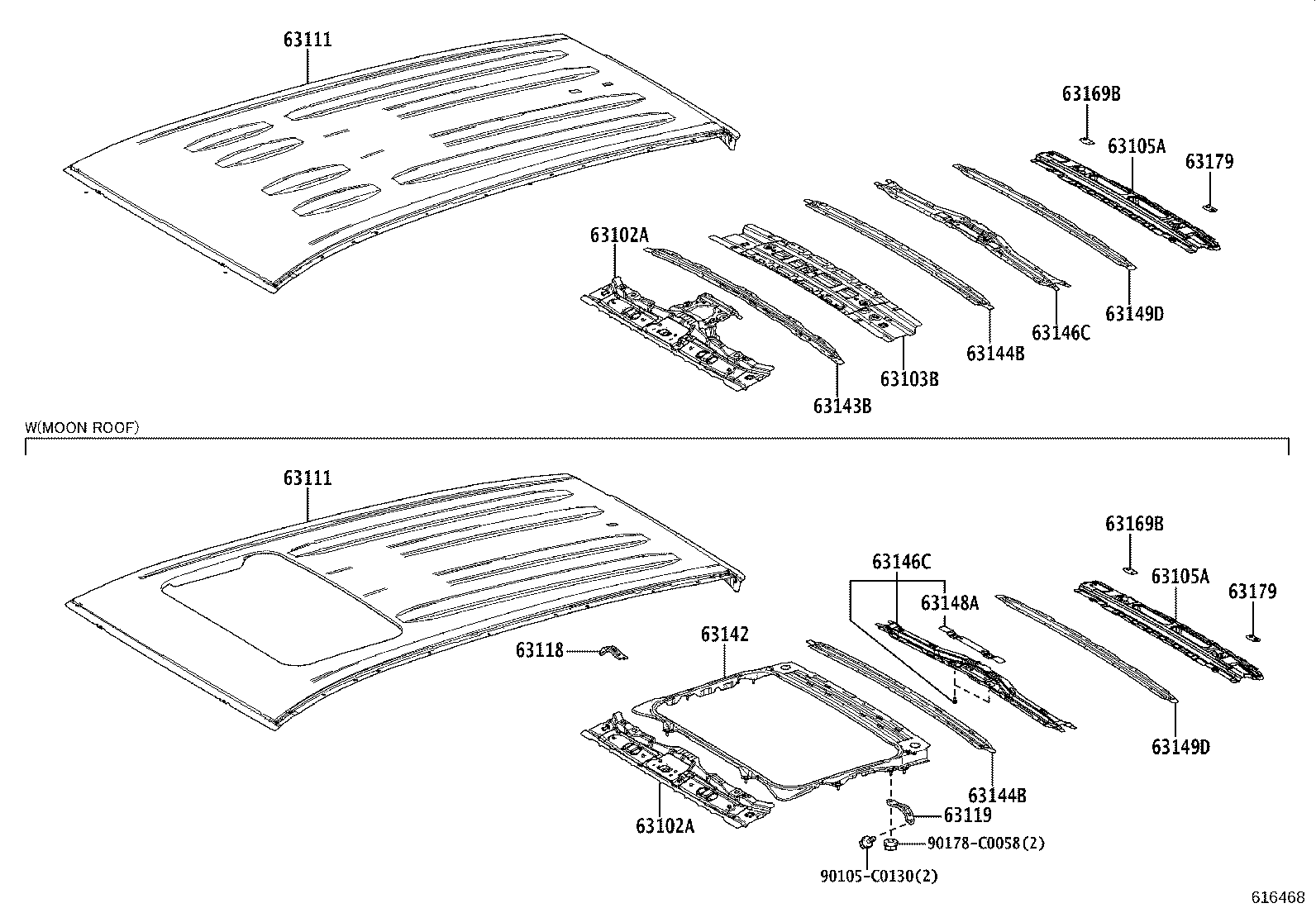

ROOF PANEL(NORMAL & MOON ROOF)

diagram 63102A 63102A 63103B 63105A 63105A 63111 63111 63118 63119 63142 63143B 63144B 63144B 63146C 63146C 63148A 63149D 63149D 63169B 63169B 63179 63179 90105C0130 90178C0058
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0R909

AXAH5#,MXAA5#..M

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0R909

AXAH5#,MXAA5#..M

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0R060

AXAH5#,MXAA5#

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0R060

AXAH5#,MXAA5#

 1
63111 - PANEL, ROOF
63111-0R180

AXAH5#,MXAA5#..M

 1
63111 - PANEL, ROOF
63111-0R180

AXAH5#,MXAA5#..M

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-0R060

AXAH5#,MXAA5#..M

 1
63119 - SUPPORT, ROOF PANEL, LH
63118-0R060

AXAH5#,MXAA5#..M

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-0R070

AXAH5#,MXAA5#..M

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-0R070

AXAH5#,MXAA5#..M,X

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-0R070

AXAH5#,MXAA5#..M,X

 1
63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63108-0R020

AXAH5#,MXAA5#..M,X

 1
63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63108-0R020

AXAH5#,MXAA5#..M,X

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-0R060

AXAH5#,MXAA5#..M

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63149-0R070

AXAH5#,MXAA5#..M,X

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63149-0R070

AXAH5#,MXAA5#..M,X

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-0R040

AXAH5#,MXAA5#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-0R040

AXAH5#,MXAA5#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-0R040

AXAH5#,MXAA5#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-0R040

AXAH5#,MXAA5#

 1
Common parts
90105-C0130
90178-C0058

ILLUST NO. 1 OF 3(1911- )

Click highlighted areas on diagram

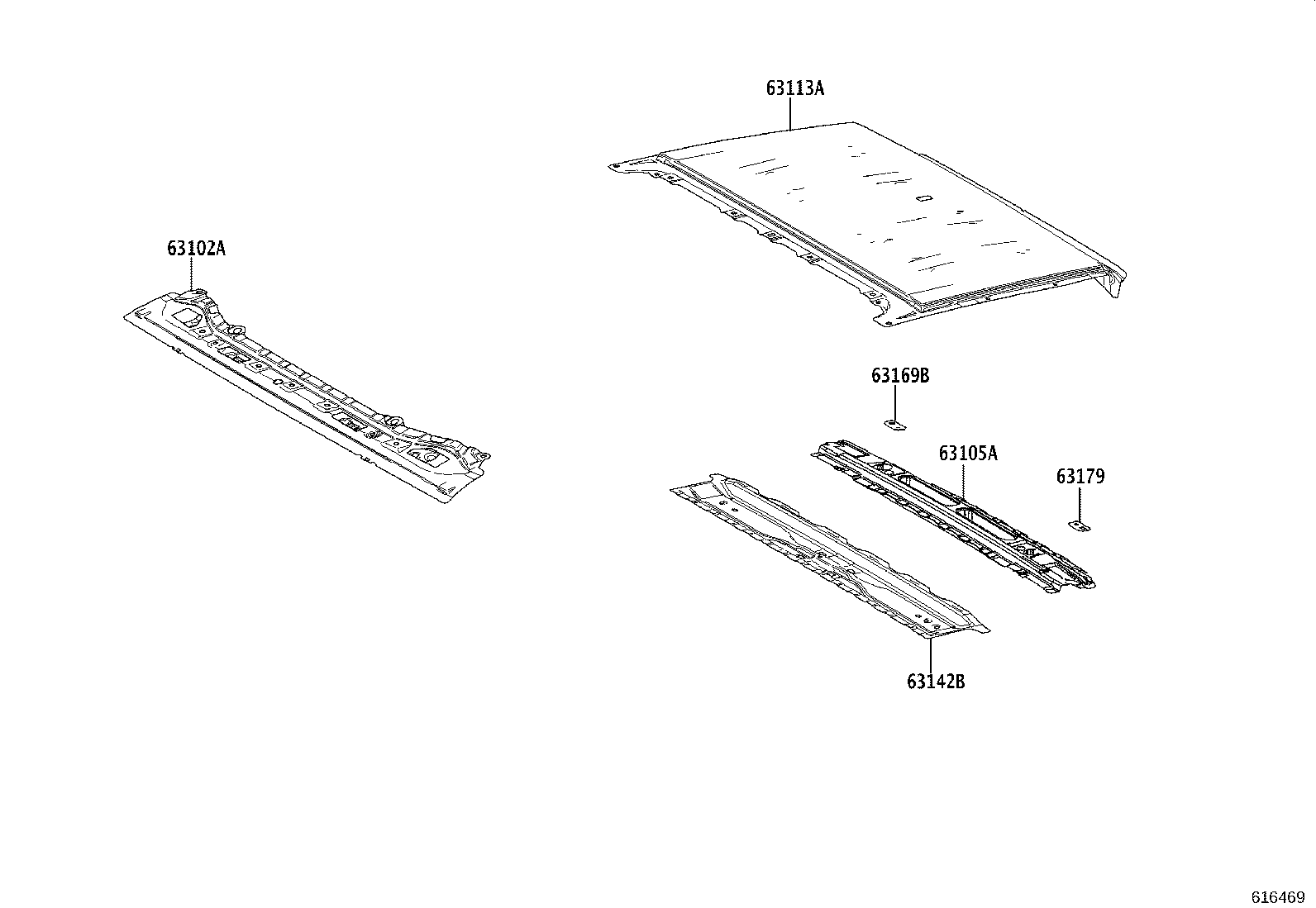

ROOF PANEL(PANORAMA ROOF)

diagram 63102A 63105A 63113A 63142B 63169B 63179
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0R909

AXAH5#,MXAA5#..M

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0R060

AXAH5#,MXAA5#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-0R040

AXAH5#,MXAA5#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-0R040

AXAH5#,MXAA5#

 1

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

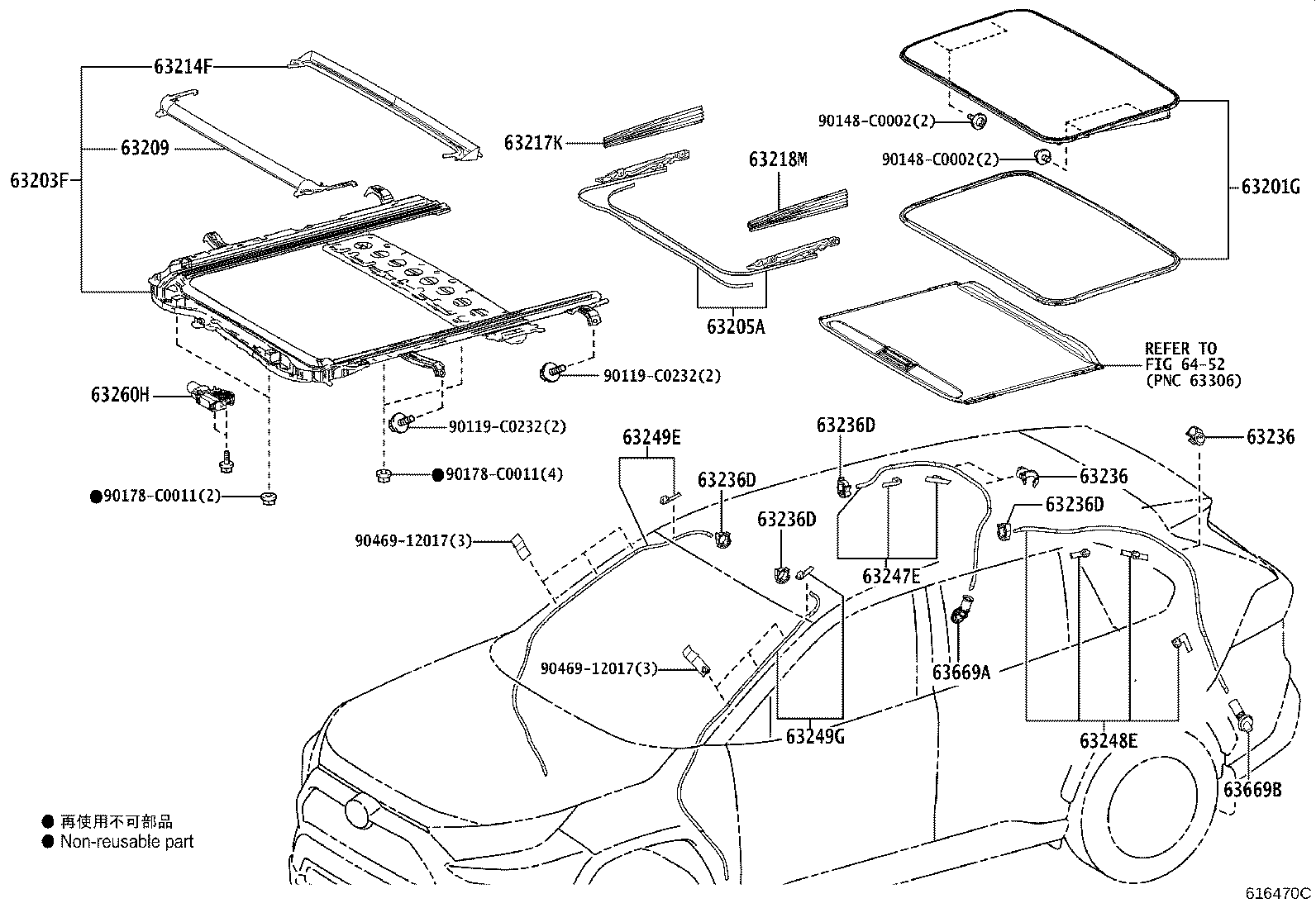

SLIDING ROOF(MOON ROOF)

diagram 63201G 63203F 63205A 63209 63214F 63217K 63218M 63236 63236 63236D 63236D 63236D 63236D 63247E 63248E 63249E 63249G 63260H 63669A 63669B 6452 90119C0232 90119C0232 90148C0002 90148C0002 90178C0011 90178C0011 9046912017 9046912017
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-0R090

AXAH5#,MXAA5#..M

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-0R110

AXAH5#,MXAA5#..M

 1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-02110

AXAH5#,MXAA5#..M

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-0R060

AXAH5#,MXAA5#..M

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-02160

AXAH5#,MXAA5#..M

 1
63217K - GARNISH, SLIDING ROOF SIDE, RH
63217-07020

AXAH5#,MXAA5#..M

 1
63218M - GARNISH, SLIDING ROOF SIDE, LH
63217-07020

AXAH5#,MXAA5#..M

 1
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-0R010

AXAH5#,MXAA5#..M

 3
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-0R010

AXAH5#,MXAA5#..M

 3
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-33030

AXAH5#,MXAA5#..M

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-33030

AXAH5#,MXAA5#..M

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-33030

AXAH5#,MXAA5#..M

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-33030

AXAH5#,MXAA5#..M

 4
63247E - HOSE, SLIDING ROOF DRAIN, REAR RH
63247-0R060

AXAH5#,MXAA5#..M

 1
63248E - HOSE, SLIDING ROOF DRAIN, REAR LH
63248-0R050

AXAH5#,MXAA5#..M

 1
63249E - HOSE, SLIDING ROOF DRAIN
63249-0R090

AXAH5#,MXAA5#..M

 1
63249G - HOSE, SLIDING ROOF DRAIN
63249-0R100

AXAH5#,MXAA5#..M

 1
63260H - GEAR ASSY, SLIDING ROOF DRIVE
63260-0R061

AXAH5#,MXAA5#..M

 1
63260-0R060

AXAH5#,MXAA5#..M

 1
63669A - GROMMET, SLIDING ROOF DRAIN
63669-30040

AXAH5#,MXAA5#..M

 1
63669B - GROMMET, SLIDING ROOF DRAIN
90480-26026

AXAH5#,MXAA5#..M

 1
Common parts
90119-C0232
90148-C0002
90178-C0011
90469-12017
Linked diagrams
6452

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

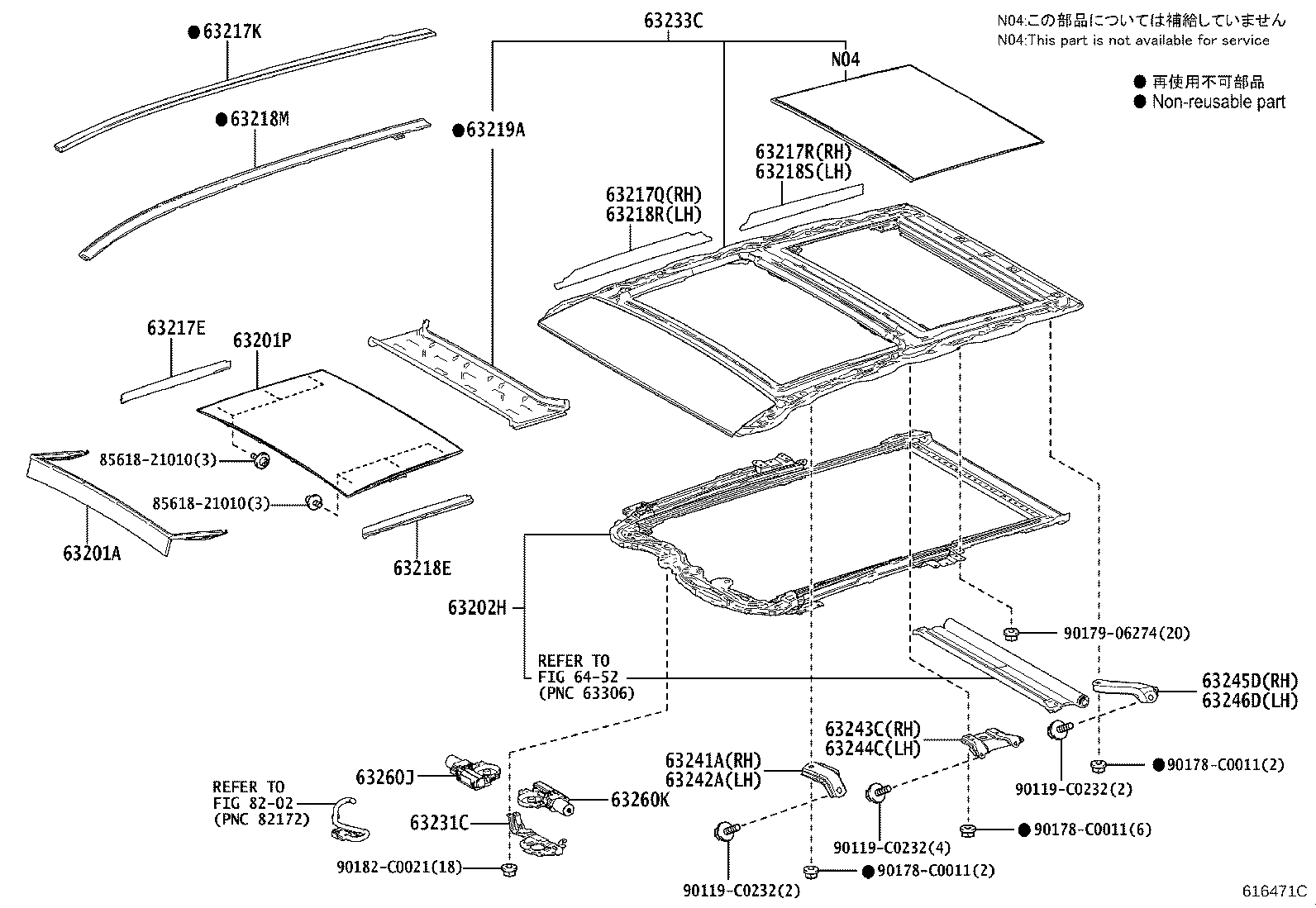

SLIDUNG ROOF(PANORAMA ROOF)

diagram 63201A 63201P 63202H 63217E 63217K 63217Q 63217R 63218E 63218M 63218R 63218S 63219A 63231C 63233C 63241A 63242A 63243C 63244C 63245D 63246D 63260J 63260K 6452 8202 8561821010 8561821010 90119C0232 90119C0232 90119C0232 90178C0011 90178C0011 90178C0011 9017906274 90182C0021
Part # Description Qty Price
63217K - GARNISH, SLIDING ROOF SIDE, RH
63217-07020

AXAH5#,MXAA5#..M

 1
63218M - GARNISH, SLIDING ROOF SIDE, LH
63217-07020

AXAH5#,MXAA5#..M

 1
Common parts
85618-21010
90119-C0232
90178-C0011
90179-06274
90182-C0021
Linked diagrams
6452
8202

ILLUST NO. 3 OF 3(1911- )

Click highlighted areas on diagram

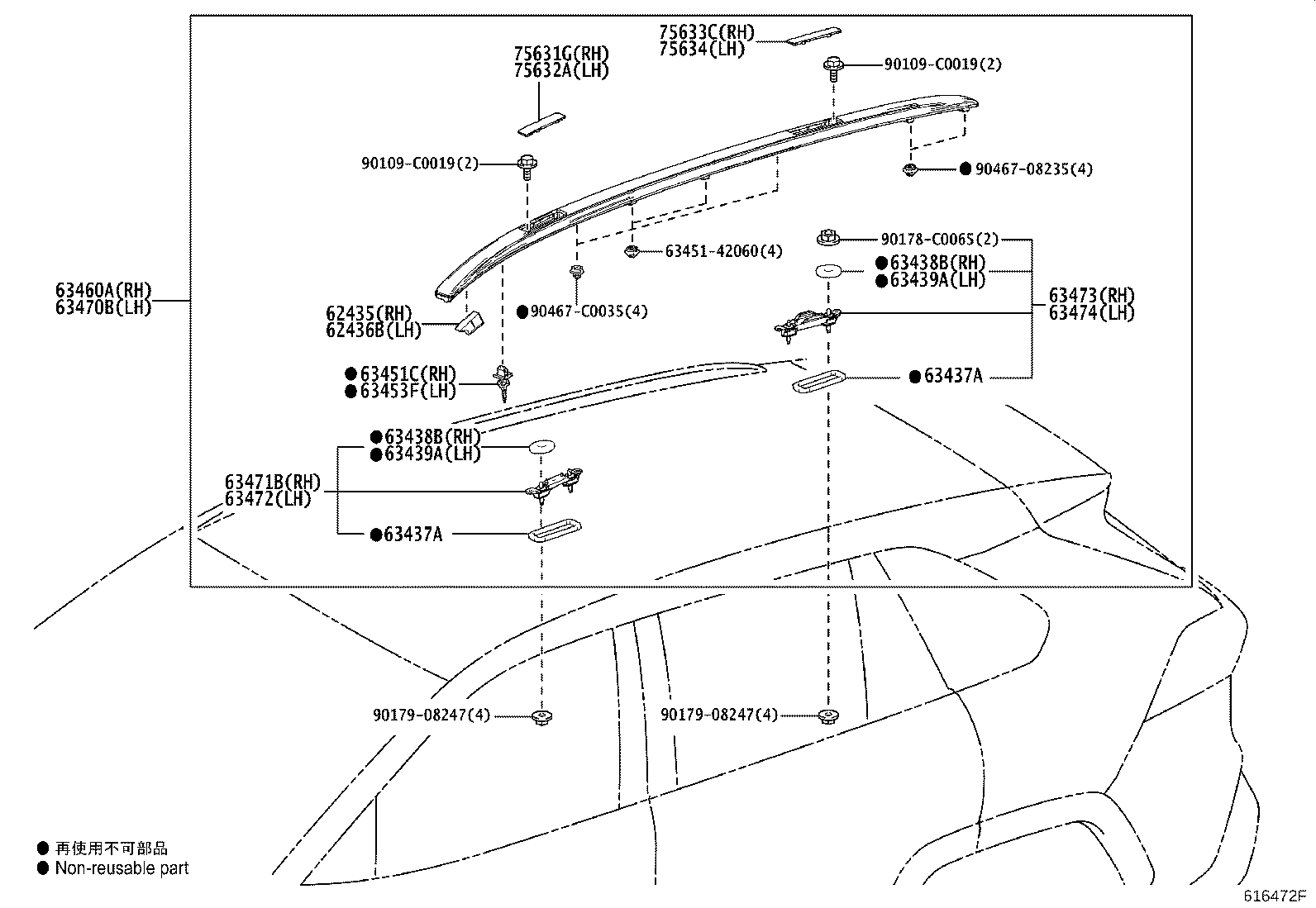

ROOF RACK

diagram 62435 62436B 63437A 63437A 63438B 63438B 63439A 63439A 6345142060 63451C 63453F 63460A 63470B 63471B 63472 63473 63474 75631G 75632A 75633C 75634 90109C0019 90109C0019 90178C0065 9017908247 9017908247 9046708235 90467C0035
Part # Description Qty Price
Common parts
63451-42060
90109-C0019
90178-C0065
90179-08247
90467-08235
90467-C0035
