AXAH52L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine A25BFXS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

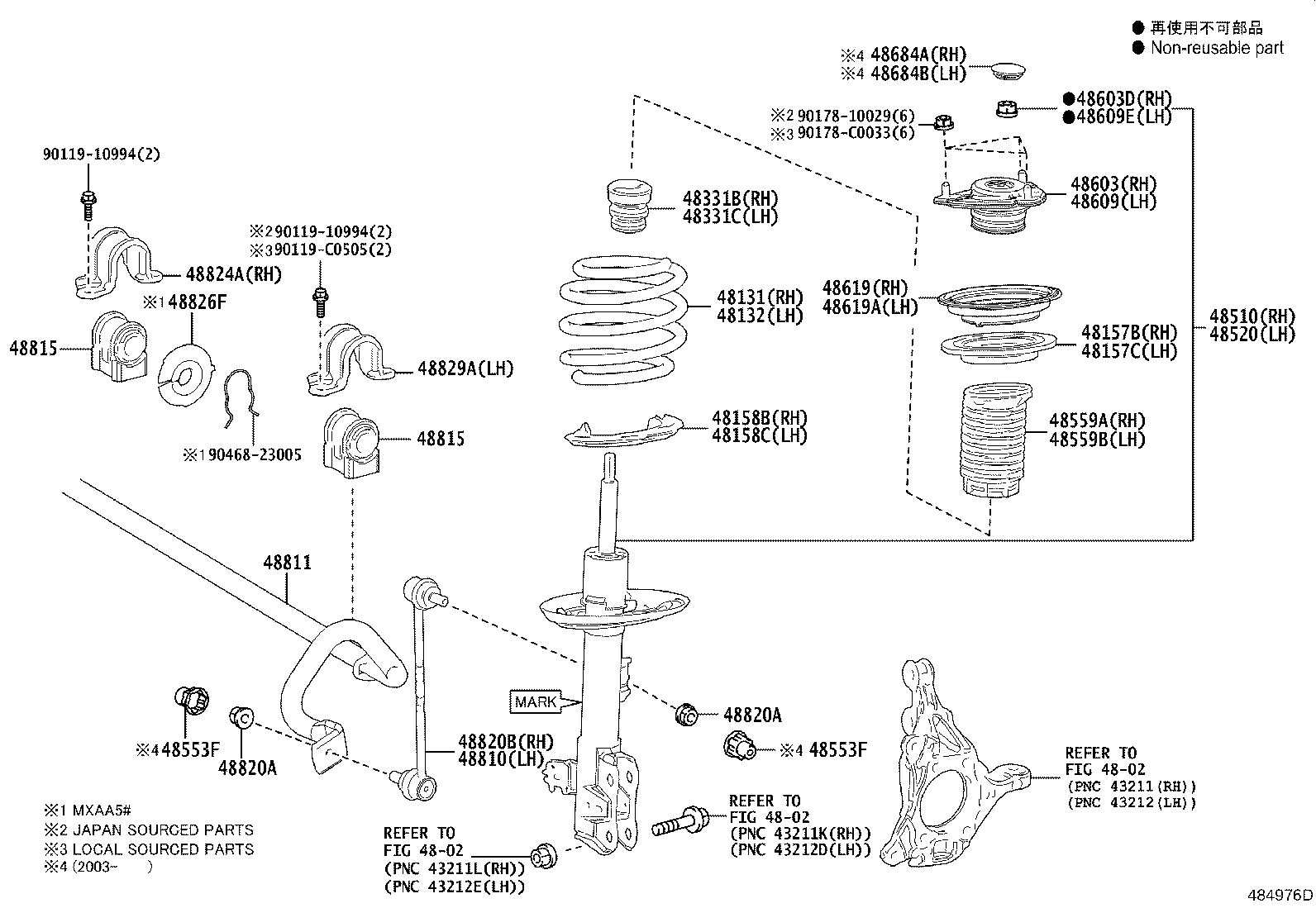

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48520 48553F 48553F 48559A 48559B 48603 48603D 48609 48609E 48619 48619A 48684A 48684B 48810 48811 48815 48815 48820A 48820A 48820B 48824A 48826F 48829A 9011910994 9011910994 90119C0505 9017810029 90178C0033 9046823005
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-0R321

AXAH5#;MXAA54..G

 1
48131-0R320

AXAH5#;MXAA54..G

 1
48132 - SPRING, FRONT COIL, LH
48131-0R320

AXAH5#;MXAA54..G

 1
48131-0R321

AXAH5#;MXAA54..G

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-07030

AXAH5#,MXAA5#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-07030

AXAH5#,MXAA5#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-07030

AXAH5#,MXAA5#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-07030

AXAH5#,MXAA5#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-0R060

AXAH5#,MXAA5#

 1
48331C - BUMPER, FRONT SPRING, LH
48331-0R060

AXAH5#,MXAA5#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-8Z429

AXAH5#

MARK 48510-0R230

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-8Z283

AXAH5#

MARK 48520-0R230

 1
48553F - CAP
48553-52030

AXAH5#,MXAA5#

 4
48553F - CAP
48553-52030

AXAH5#,MXAA5#

 4
48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559-0R040

AXAH5#,MXAA5#

 1
48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48559-0R040

AXAH5#,MXAA5#

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-0R060

AXAH5#,MXAA5#

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14007

AXAH5#,MXAA5#

(J)

 1
90177-C0025

AXAH5#,MXAA5#

(L)

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-0R060

AXAH5#,MXAA5#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14007

AXAH5#,MXAA5#

(J)

 1
90177-C0025

AXAH5#,MXAA5#

(L)

 1
48619 - BEARING, STRUT MOUNTING, RH
48619-0R060

AXAH5#,MXAA5#

 1
48619A - BEARING, STRUT MOUNTING, LH
48619-0R060

AXAH5#,MXAA5#

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-33030

AXAH5#,MXAA5#

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-33030

AXAH5#,MXAA5#

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-06130

AXAH5#,MXAA5#

 1
48820-0R030

AXAH5#,MXAA5#

 1
48811 - BAR, STABILIZER, FRONT
48811-0R080

AXAH5#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0R170

AXAH5#

 2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0R170

AXAH5#

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

AXAH5#,MXAA5#

(J)

 4
90178-C0018

AXAH5#,MXAA5#

(L)

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

AXAH5#,MXAA5#

(J)

 4
90178-C0018

AXAH5#,MXAA5#

(L)

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-0R030

AXAH5#,MXAA5#

 1
48820-06130

AXAH5#,MXAA5#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-06060

AXAH5#

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-06060

AXAH5#

 1
Common parts
90119-10994
90119-C0505
90178-10029
90178-C0033
90468-23005
