ASA44L-ANTQKC (2013)
Toyota Rav4 (China)

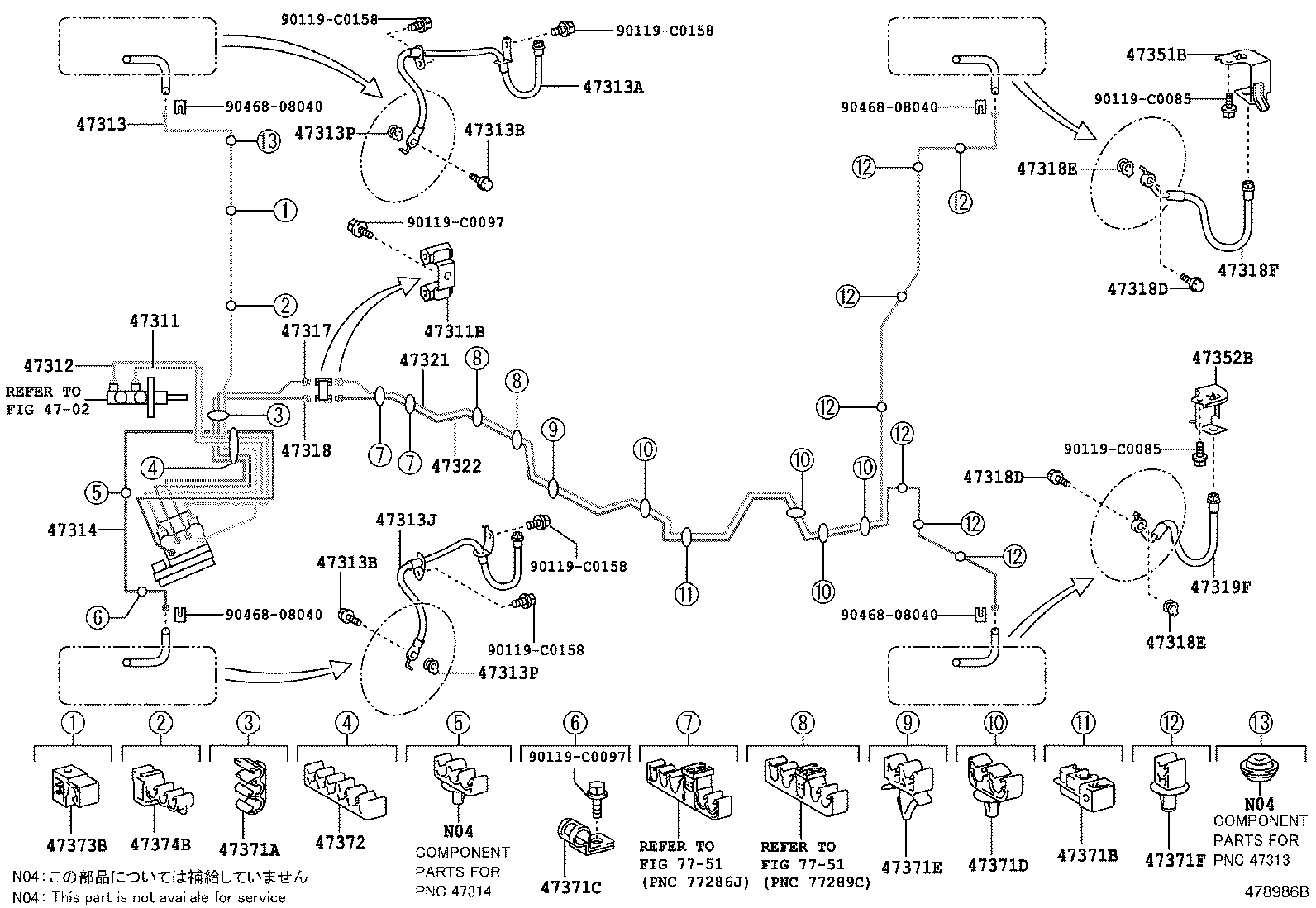

ILLUST NO. 1 OF 2(1308-1607)ZSA44 ; (1308-1607)ASA44,ZSA42..M,X
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47311-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47311-0R080 |
ASA44,ZSA4# |
1 | ||
| 47311-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0001 |
ASA44,ZSA4# |
1 | ||
| 90412-10260 |
ASA4#,ZSA4# (J) |
1 | ||
| 90412-C0001 |
ASA4#,ZSA4# (L) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R071 |
ASA4#,ZSA4# |
1 | ||
| 47312-0R070 |
ASA44,ZSA4# |
1 | ||
| 47312-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47312-0R040 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47313-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47313-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313-0R080 |
ASA44,ZSA4# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2061 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2061 |
ASA44,ZSA4# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2062 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2062 |
ASA44,ZSA4# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R121 |
ASA4#,ZSA4# |
1 | ||
| 47314-0R120 |
ASA44,ZSA4# |
1 | ||
| 47314-0R011 |
ASA44;ZSA44..G |
1 | ||
| 47314-0R051 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47317-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47317-0R080 |
ASA44,ZSA4# |
1 | ||
| 47317-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318-0R080 |
ASA44,ZSA4# |
1 | ||
| 47318-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47318-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2063 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2063 |
ASA44,ZSA4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2064 |
ASA44,ZSA4# |
1 | ||
| 90947-C2064 |
ASA4#,ZSA4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R040 |
ASA44,ZSA4# |
1 | ||
| 47321-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R040 |
ASA44,ZSA4# |
1 | ||
| 47322-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ASA44,ZSA4# |
1 | ||
| 47351-42071 |
ASA4#,ZSA4# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA4#,ZSA4# (J) |
1 | ||
| 47352-0R040 |
ASA4#,ZSA4# (L) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ASA44,ZSA4# |
1 | ||
| 90949-01E56 |
ASA4#,ZSA4# |
1 | ||
| 90949-01E57 |
ASA44,ZSA4# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ASA4#,ZSA4# |
1 | ||
| 77299-32030 |
ASA44,ZSA4# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ASA4#,ZSA4# |
1 | ||
| 90461-10781 |
ASA44,ZSA4# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90949-01E02 |
ASA4#,ZSA4# |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ASA4#,ZSA4# |
1 | ||
| 90469-07019 |
ASA44,ZSA4# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E01 |
ASA4#,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ASA44,ZSA4# |
1 | ||
| 90949-01E16 |
ASA4#,ZSA4# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
ASA44,ZSA4# |
1 | ||
| 90949-01C82 |
ASA4#,ZSA4# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ASA4#,ZSA4# |
1 | ||
| 90949-01D05 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0158 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

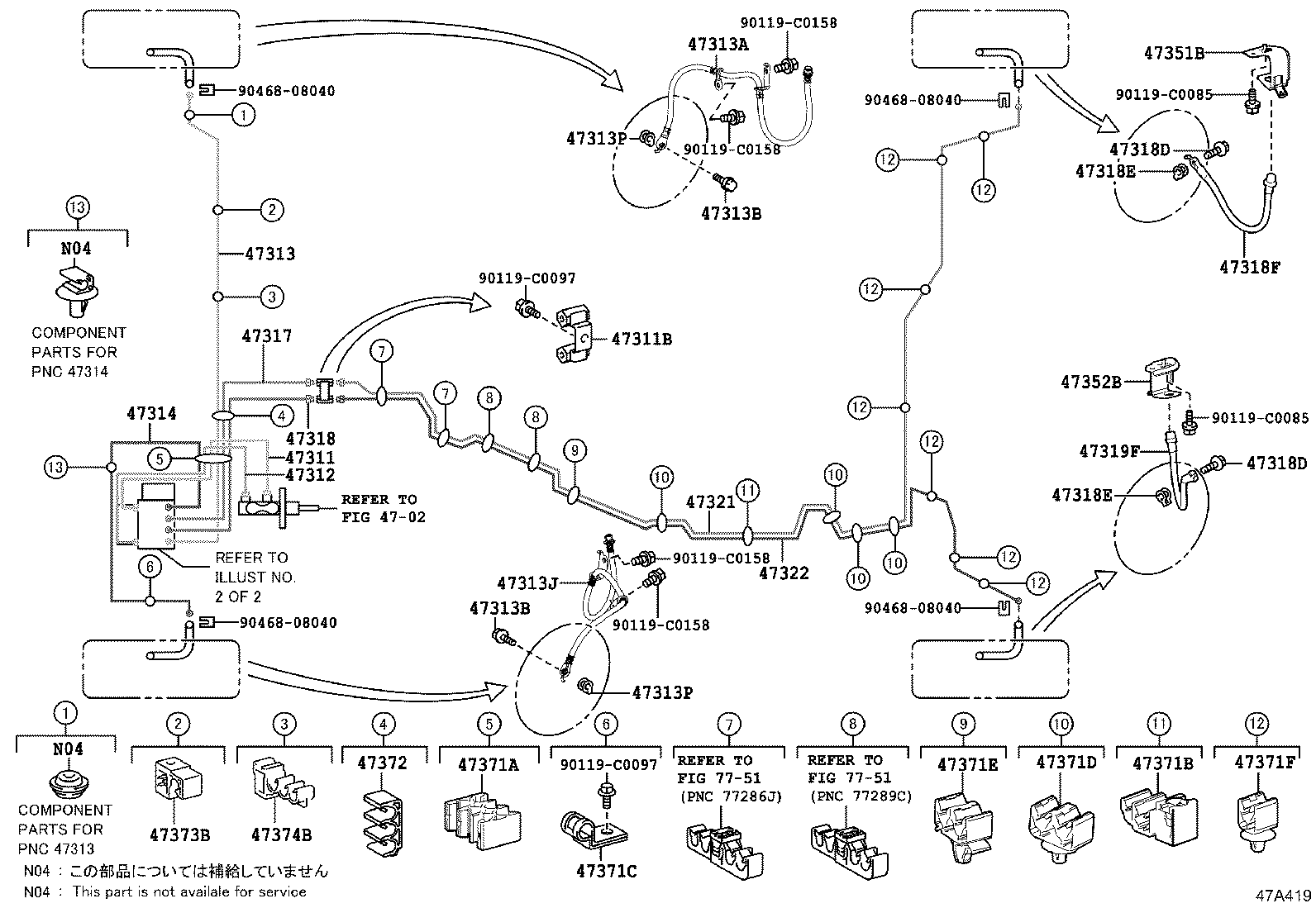

ILLUST NO. 1 OF 2(1308-1607)ASA44,ZSA44
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47311-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47311-0R080 |
ASA44,ZSA4# |
1 | ||
| 47311-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0001 |
ASA44,ZSA4# |
1 | ||
| 90412-10260 |
ASA4#,ZSA4# (J) |
1 | ||
| 90412-C0001 |
ASA4#,ZSA4# (L) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R071 |
ASA4#,ZSA4# |
1 | ||
| 47312-0R070 |
ASA44,ZSA4# |
1 | ||
| 47312-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47312-0R040 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47313-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47313-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313-0R080 |
ASA44,ZSA4# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2061 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2061 |
ASA44,ZSA4# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2062 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2062 |
ASA44,ZSA4# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R121 |
ASA4#,ZSA4# |
1 | ||
| 47314-0R120 |
ASA44,ZSA4# |
1 | ||
| 47314-0R011 |
ASA44;ZSA44..G |
1 | ||
| 47314-0R051 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47317-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47317-0R080 |
ASA44,ZSA4# |
1 | ||
| 47317-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318-0R080 |
ASA44,ZSA4# |
1 | ||
| 47318-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47318-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2063 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2063 |
ASA44,ZSA4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2064 |
ASA44,ZSA4# |
1 | ||
| 90947-C2064 |
ASA4#,ZSA4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R040 |
ASA44,ZSA4# |
1 | ||
| 47321-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R040 |
ASA44,ZSA4# |
1 | ||
| 47322-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ASA44,ZSA4# |
1 | ||
| 47351-42071 |
ASA4#,ZSA4# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA4#,ZSA4# (J) |
1 | ||
| 47352-0R040 |
ASA4#,ZSA4# (L) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ASA44,ZSA4# |
1 | ||
| 90949-01E56 |
ASA4#,ZSA4# |
1 | ||
| 90949-01E57 |
ASA44,ZSA4# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ASA4#,ZSA4# |
1 | ||
| 77299-32030 |
ASA44,ZSA4# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ASA4#,ZSA4# |
1 | ||
| 90461-10781 |
ASA44,ZSA4# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90949-01E02 |
ASA4#,ZSA4# |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ASA4#,ZSA4# |
1 | ||
| 90469-07019 |
ASA44,ZSA4# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E01 |
ASA4#,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ASA44,ZSA4# |
1 | ||
| 90949-01E16 |
ASA4#,ZSA4# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
ASA44,ZSA4# |
1 | ||
| 90949-01C82 |
ASA4#,ZSA4# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ASA4#,ZSA4# |
1 | ||
| 90949-01D05 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0158 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

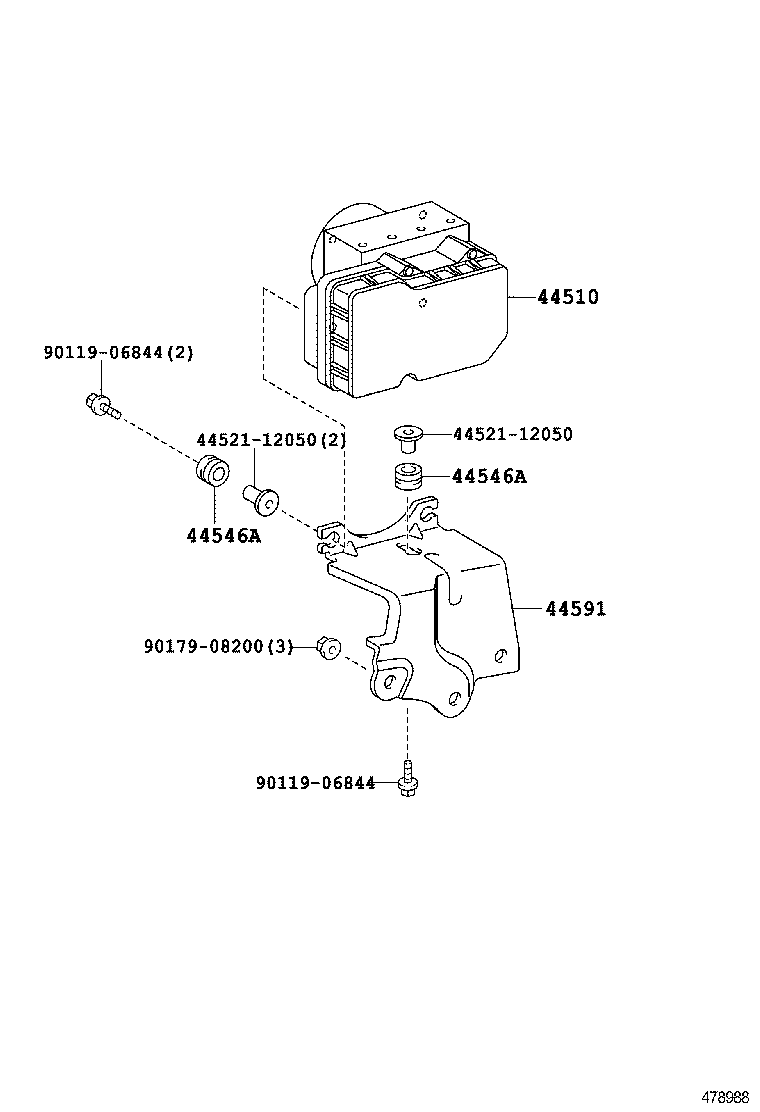

ILLUST NO. 2 OF 2(1308-1607)ZSA44 ; (1308-1607)ASA44,ZSA42..M,X
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R350 |
ASA44..Q |
1 | ||
| 44050-0R220 |
ASA44..G,M VSC-WITH(HSAC & DAC) |
1 | ||
| 44050-0R360 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 44050-0R200 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 44050-0R210 |
ZSA44..G;ASA44..G,M |
1 | ||
| 44050-0R280 |
ASA4#..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R270 |
ASA4#,ZSA4#..G,M,X |
1 | ||
| 44050-0R350 |
ASA44..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R280 |
ASA4#..Q |
1 | ||
| 44050-0R220 |
ASA44..Q |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-42060 |
ASA44;ZSA44..G |
1 | ||
| 44591-0R030 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90179-08200 | ||||

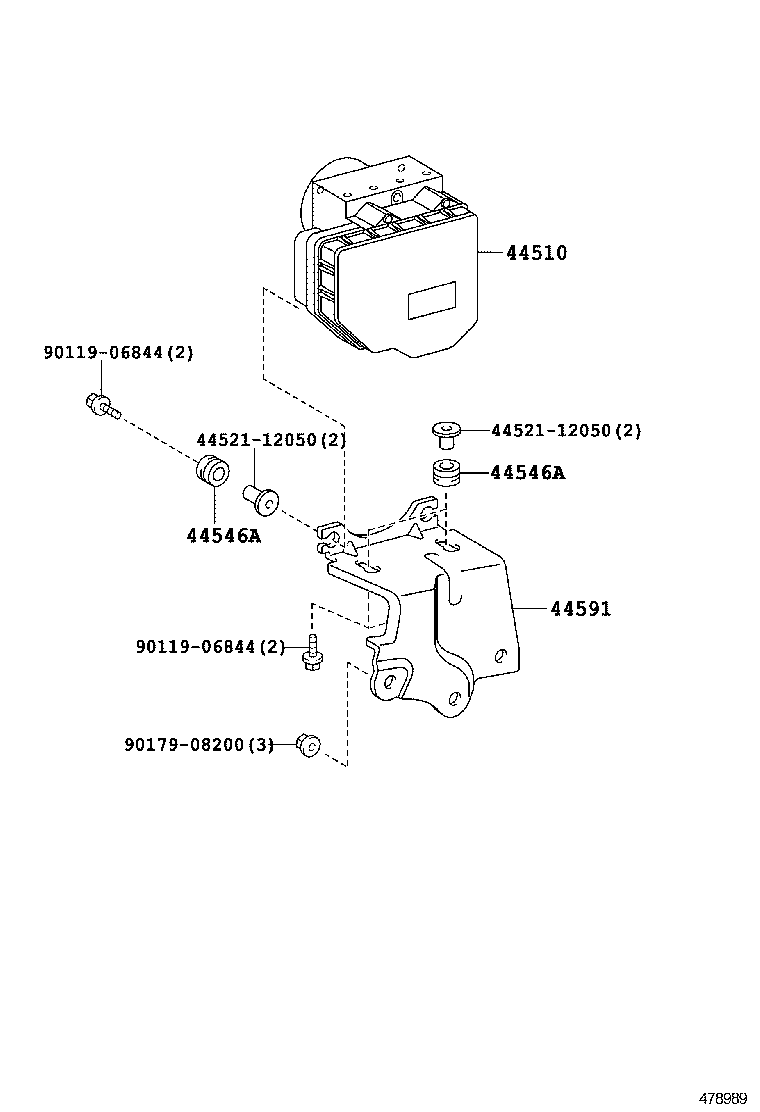

ILLUST NO. 2 OF 2(1308-1607)ASA44,ZSA44
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R350 |
ASA44..Q |
1 | ||
| 44050-0R220 |
ASA44..G,M VSC-WITH(HSAC & DAC) |
1 | ||
| 44050-0R360 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 44050-0R200 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 44050-0R210 |
ZSA44..G;ASA44..G,M |
1 | ||
| 44050-0R280 |
ASA4#..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R270 |
ASA4#,ZSA4#..G,M,X |
1 | ||
| 44050-0R350 |
ASA44..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R280 |
ASA4#..Q |
1 | ||
| 44050-0R220 |
ASA44..Q |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-42060 |
ASA44;ZSA44..G |
1 | ||
| 44591-0R030 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90179-08200 | ||||
ILLUST NO. 1 OF 2(1607- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47311-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47311-0R080 |
ASA44,ZSA4# |
1 | ||
| 47311-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0001 |
ASA44,ZSA4# |
1 | ||
| 90412-10260 |
ASA4#,ZSA4# (J) |
1 | ||
| 90412-C0001 |
ASA4#,ZSA4# (L) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R071 |
ASA4#,ZSA4# |
1 | ||
| 47312-0R070 |
ASA44,ZSA4# |
1 | ||
| 47312-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47312-0R040 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47313-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47313-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47313-0R080 |
ASA44,ZSA4# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2061 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2061 |
ASA44,ZSA4# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2062 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2062 |
ASA44,ZSA4# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R121 |
ASA4#,ZSA4# |
1 | ||
| 47314-0R120 |
ASA44,ZSA4# |
1 | ||
| 47314-0R011 |
ASA44;ZSA44..G |
1 | ||
| 47314-0R051 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47317-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47317-0R080 |
ASA44,ZSA4# |
1 | ||
| 47317-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R050 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 47318-0R080 |
ASA44,ZSA4# |
1 | ||
| 47318-0R010 |
ASA44;ZSA44..G |
1 | ||
| 47318-0R081 |
ASA4#,ZSA4# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ASA44,ZSA4# |
2 | ||
| 90401-C0001 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA44,ZSA4# |
2 | ||
| 47389-50020 |
ASA4#,ZSA4# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2063 |
ASA4#,ZSA4# |
1 | ||
| 90947-C2063 |
ASA44,ZSA4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2064 |
ASA44,ZSA4# |
1 | ||
| 90947-C2064 |
ASA4#,ZSA4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R040 |
ASA44,ZSA4# |
1 | ||
| 47321-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R040 |
ASA44,ZSA4# |
1 | ||
| 47322-0R060 |
ASA4#,ZSA4# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ASA44,ZSA4# |
1 | ||
| 47351-42071 |
ASA4#,ZSA4# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA44,ZSA4# |
1 | ||
| 47352-42081 |
ASA4#,ZSA4# (J) |
1 | ||
| 47352-0R040 |
ASA4#,ZSA4# (L) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ASA44,ZSA4# |
1 | ||
| 90949-01E56 |
ASA4#,ZSA4# |
1 | ||
| 90949-01E57 |
ASA44,ZSA4# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ASA4#,ZSA4# |
1 | ||
| 77299-32030 |
ASA44,ZSA4# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ASA4#,ZSA4# |
1 | ||
| 90461-10781 |
ASA44,ZSA4# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90469-07020 |
ASA44,ZSA4# |
4 | ||
| 90949-01E02 |
ASA4#,ZSA4# |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ASA4#,ZSA4# |
1 | ||
| 90469-07019 |
ASA44,ZSA4# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E01 |
ASA4#,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 90949-01D29 |
ASA44,ZSA4# |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ASA44,ZSA4# |
1 | ||
| 90949-01E16 |
ASA4#,ZSA4# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
ASA44,ZSA4# |
1 | ||
| 90949-01C82 |
ASA4#,ZSA4# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ASA4#,ZSA4# |
1 | ||
| 90949-01D05 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0158 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

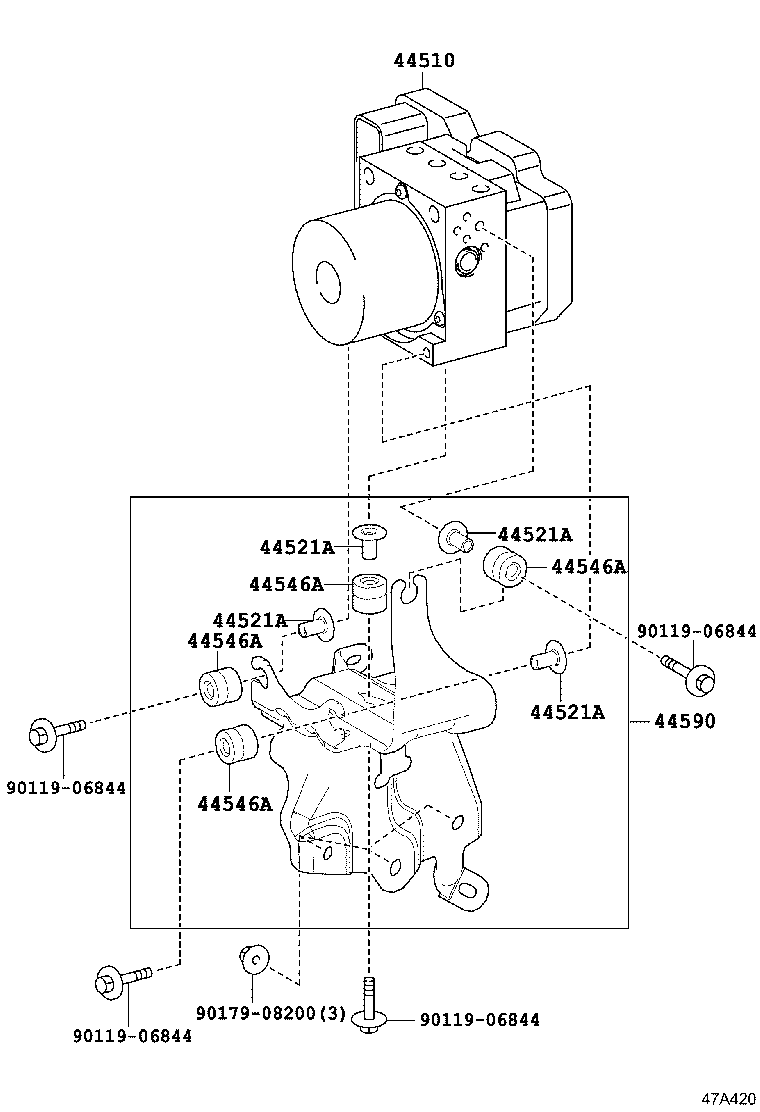

ILLUST NO. 2 OF 2(1607- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R350 |
ASA44..Q |
1 | ||
| 44050-0R220 |
ASA44..G,M VSC-WITH(HSAC & DAC) |
1 | ||
| 44050-0R360 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 44050-0R200 |
ASA44..M;ZSA44..G VSC-WITHOUT |
1 | ||
| 44050-0R210 |
ZSA44..G;ASA44..G,M |
1 | ||
| 44050-0R280 |
ASA4#..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R270 |
ASA4#,ZSA4#..G,M,X |
1 | ||
| 44050-0R350 |
ASA44..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-0R280 |
ASA4#..Q |
1 | ||
| 44050-0R220 |
ASA44..Q |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ASA4#,ZSA4# |
4 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ASA4#,ZSA4# |
4 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ASA4#,ZSA4# |
4 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ASA4#,ZSA4# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA44;ZSA44..G |
4 | ||
| 44546-12110 |
ASA4#,ZSA4# |
4 | ||
| 44546-12110 |
ASA44..M;ZSA44..G VSC-WITHOUT |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0R100 |
ASA4#,ZSA4# |
1 | ||
| 44590-78010 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90179-08200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
