ASA44L-ANTMKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Nov 2019
Engine 5ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

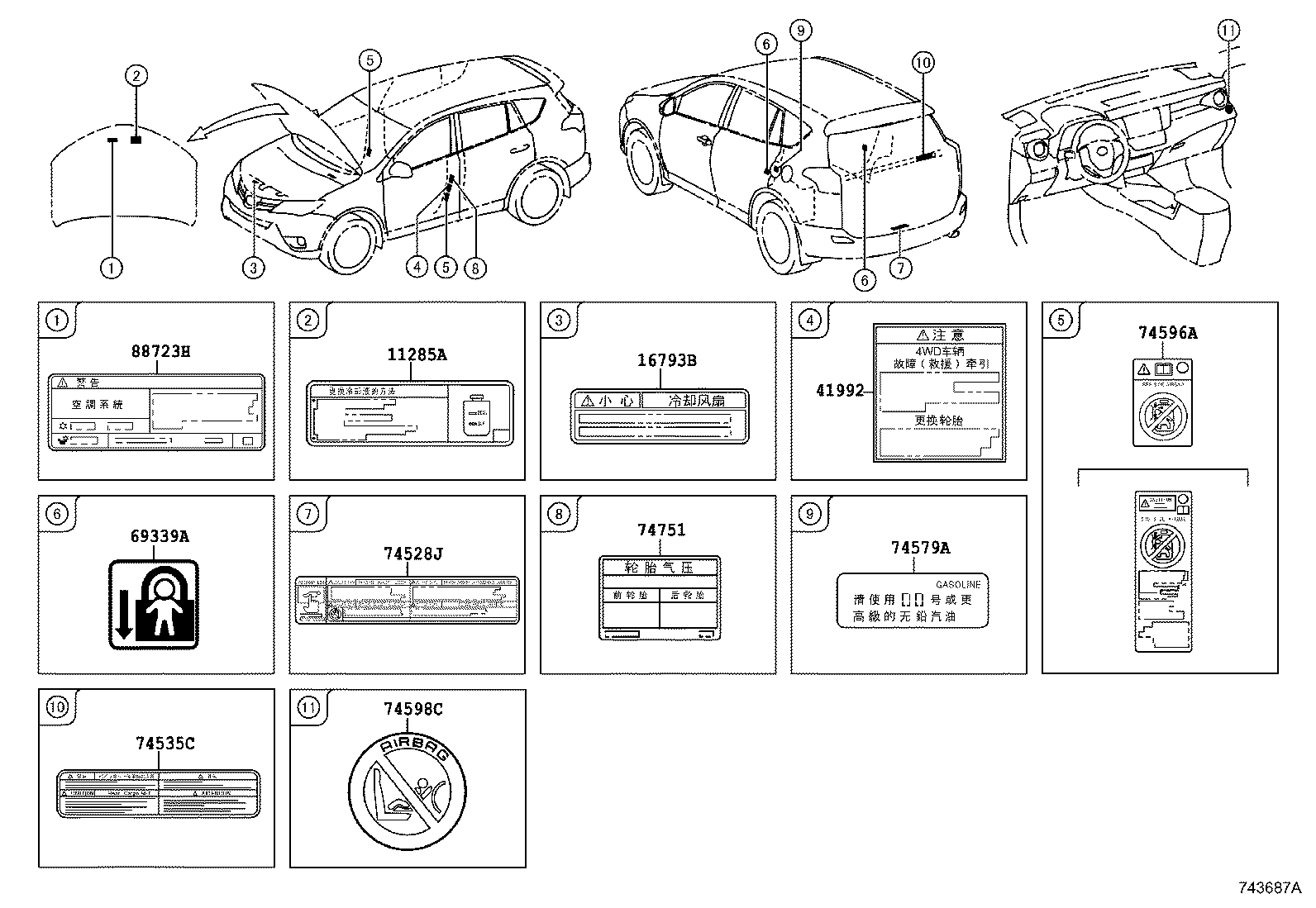

Click highlighted areas on diagram

diagram 11285A 16793B 41992 69339A 74528J 74535C 74579A 74596A 74598C 74751 88723H
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-0H010

5ARFE,6ZRFE..ASA44,ZSA4#

 1
11285-0H010

2ARFE,5ARFE,6ZRFAE..ASA4#,ZSA4#

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-0D010

2ARFE,5ARFE,6ZRFAE..ASA4#,ZSA4#

 1
16793-0D010

5ARFE,6ZRFE..ASA44,ZSA4#

 1
41992 - LABEL, DIFFERENTIAL NOTICE
41992-0R020

ASA4#,ZSA44

 1
41992-0R020

ASA44,ZSA44

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-06080

ASA4#,ZSA4#

 2
69339-06080

ASA44,ZSA4#

 2
74528J - LABEL, POWER BACK DOOR CAUTION
74528-0R030

ASA4#..M;ZSA4#..G

POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)

 1
74535C - LABEL, TOP COVER CAUTION
74535-0R020

ASA44,ZSA4#..G,M,X

WITH(NET TRAY & TONNEAU COVER)

 1
74535-0R021

ASA4#,ZSA4#..G,M,X

TONNEAU COVER-WITH

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-0D010

ASA4#,ZSA4#

(L)

 1
74579-26011

ASA44

 1
74579-0D010

ASA44

(L)

 1
74579-26011

ASA44

(J)

 1
74579-26011

ASA4#,ZSA4#

(J)

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-0G010

ASA44,ZSA4#

 2
74596-0G010

ASA44,ZSA4#

 2
74596-53020

ASA44,ZSA4#

 2
74598C - LABEL, PASSENGER AIR BAG CAUTION
74598-06040

ASA4#,ZSA4#

 1
74598-06040

ASA44,ZSA4#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0R130

ASA44..M

 1
42661-0R140

ASA44..M

 1
42661-0R140

ASA4#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0R030

ASA44,ZSA4#

 1
88723-0R030

ASA4#,ZSA4#

 1
