ASA44L-ANTMKC (2013)
Toyota Rav4 (China)

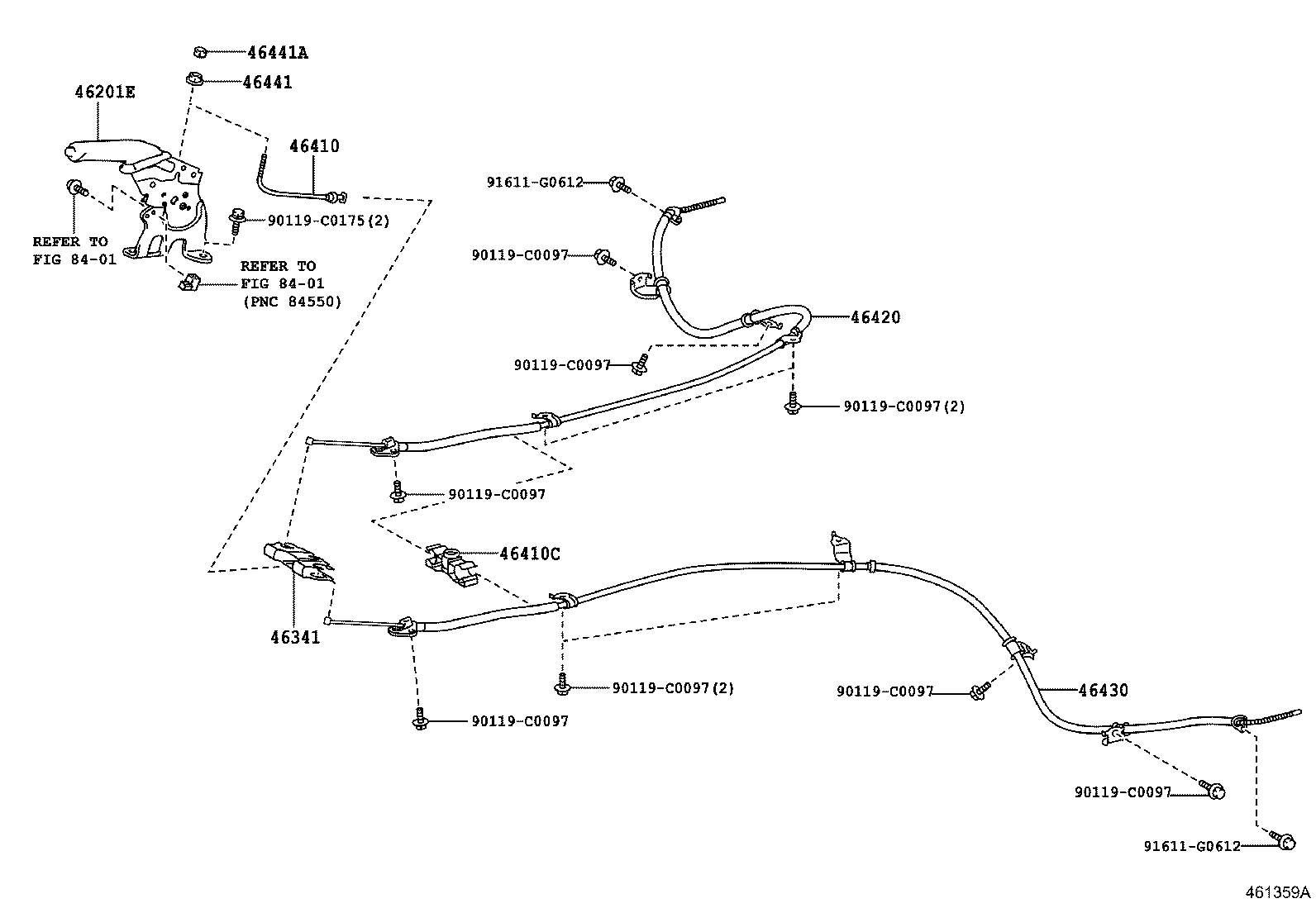

ILLUST NO. 1 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0R070C0 |
ASA44..M BLACK,TRIM2#,3#,4# |
1 | ||
| 46201-0R070C0 |
ASA4#..M BLACK,TRIM2#,3#,4# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46341-0R020 |
ASA44,ZSA4# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0R020 |
ASA44,ZSA4# |
1 | ||
| 46410-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46411-0R020 |
ASA44,ZSA4# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0R024 |
ASA44,ZSA4# |
1 | ||
| 46420-0R025 |
ASA4#,ZSA4# |
1 | ||
| 46420-0R023 |
ASA44,ZSA4# |
1 | ||
| 46420-0R023 |
ASA44,ZSA4# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0R023 |
ASA44,ZSA4# |
1 | ||
| 46430-0R025 |
ASA4#,ZSA4# |
1 | ||
| 46430-0R023 |
ASA44,ZSA4# |
1 | ||
| 46430-0R024 |
ASA44,ZSA4# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ASA44,ZSA4# |
1 | ||
| 46441-12010 |
ASA4#,ZSA4# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
ASA4#,ZSA4# |
1 | ||
| 90179-06299 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-C0097 | ||||
| 90119-C0175 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

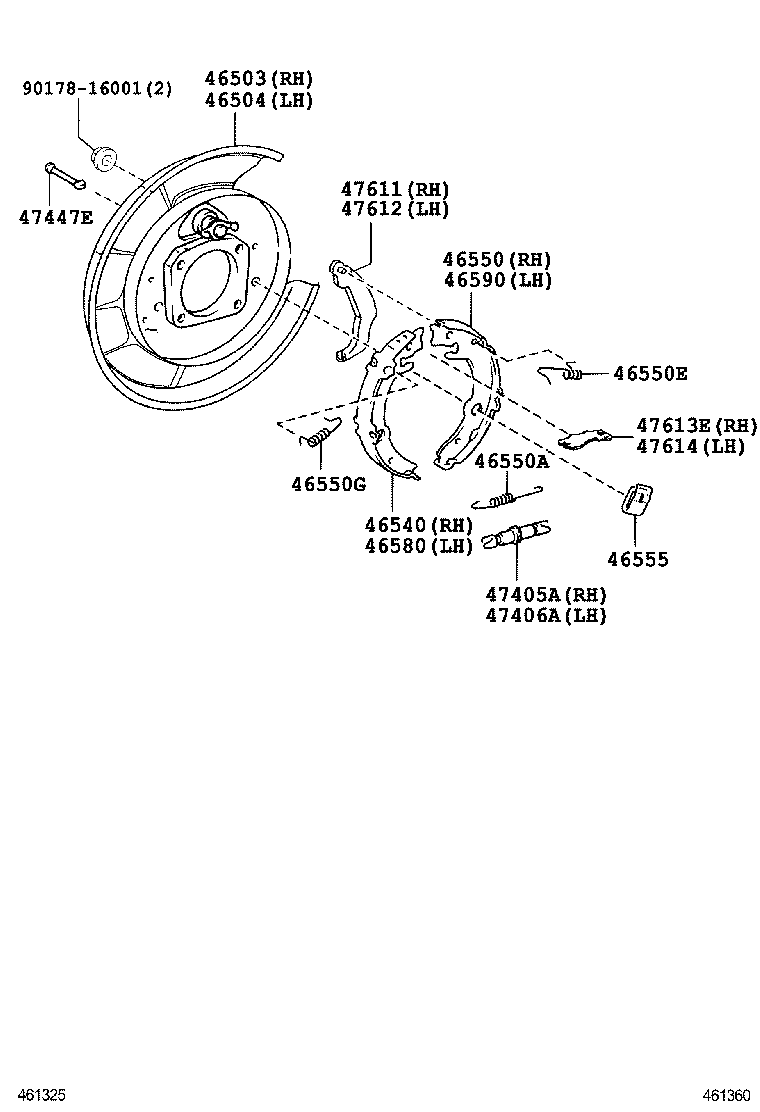

ILLUST NO. 2 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-0R020 |
ASA44,ZSA4# |
1 | ||
| 46503-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-0R020 |
ASA44,ZSA4# |
1 | ||
| 46504-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46540-0R020 |
ASA44,ZSA4# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-0R020 |
ASA44,ZSA4# |
1 | ||
| 46540-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-DY016 |
ASA44,ZSA4# |
2 | ||
| 90016-DY016 |
ASA4#,ZSA4# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-DY014 |
ASA44,ZSA4# RH |
1 | ||
| 90016-DY015 |
ASA44,ZSA4# LH |
1 | ||
| 90016-DY014 |
ASA4#,ZSA4# RH |
1 | ||
| 90016-DY015 |
ASA4#,ZSA4# LH |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-DY013 |
ASA44,ZSA4# |
2 | ||
| 90016-DY013 |
ASA4#,ZSA4# |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-0R020 |
ASA4#,ZSA4# |
4 | ||
| 46555-0R020 |
ASA44,ZSA4# |
4 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46540-0R020 |
ASA44,ZSA4# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-0R020 |
ASA44,ZSA4# |
1 | ||
| 46540-0R020 |
ASA4#,ZSA4# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 46605-0R020 |
ASA44,ZSA4# |
1 | ||
| 46605-0R020 |
ASA4#,ZSA4# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 46606-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46606-0R020 |
ASA44,ZSA4# |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-0D070 |
ASA44,ZSA4# |
4 | ||
| 47447-0D070 |
ASA4#,ZSA4# |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46601-0R020 |
ASA44,ZSA4# |
1 | ||
| 46601-0R020 |
ASA4#,ZSA4# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46602-0R020 |
ASA44,ZSA4# |
1 | ||
| 46602-0R020 |
ASA4#,ZSA4# |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-0R020 |
ASA44,ZSA4# |
1 | ||
| 46612-0R020 |
ASA4#,ZSA4# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46622-0R020 |
ASA4#,ZSA4# |
1 | ||
| 46622-0R020 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90178-16001 | ||||
