Toyota Rav4 (china) ASA44 BACK DOOR LOCK & HINGE

Manufacturers Home
Toyota
GR
RAV4 (CHINA)
ASA44L-ANTGKC (2013)
6762 - BACK DOOR LOCK & HINGE

ASA44L-ANTGKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016

Engine 5ARFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1308- )

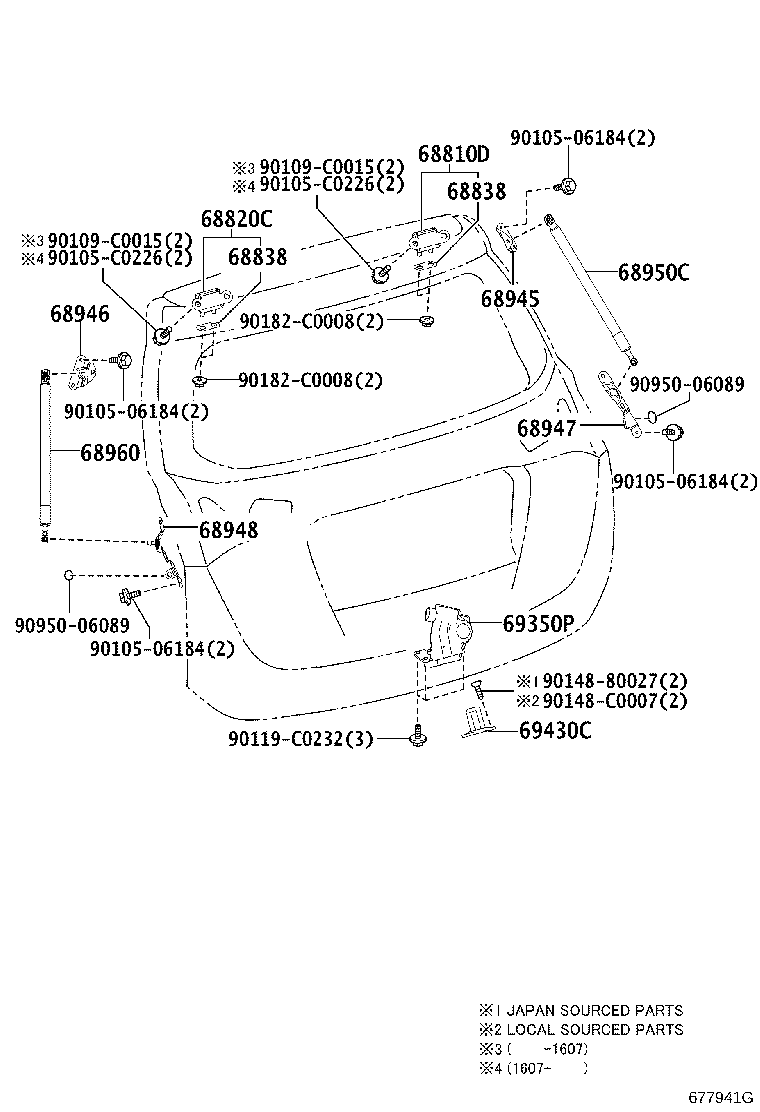

Click highlighted areas on diagram

W/O(POWER BACK DOOR)

Part #	Description	Period	Qty
68810D - HINGE ASSY, BACK DOOR, RH
68810-0R061	ASA44,ZSA4#	12/2015 - 07/2016	1
68810-0R060	ASA44,ZSA4#	08/2013 - 11/2015	1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0R060	ASA44,ZSA4#	08/2013 - 11/2015	1
68810-0R061	ASA44,ZSA4#	12/2015 - 07/2016	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-0R020	ASA44,ZSA4# T=1.0	08/2013 - 07/2016	2
68838-0R040	ASA44,ZSA4# T=2.0	08/2013 - 07/2016	2
68838-0R030	ASA44,ZSA4# T=1.5	08/2013 - 07/2016	2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-0R020	ASA44,ZSA4# T=1.0	08/2013 - 07/2016	2
68838-0R040	ASA44,ZSA4# T=2.0	08/2013 - 07/2016	2
68838-0R030	ASA44,ZSA4# T=1.5	08/2013 - 07/2016	2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0R030	ASA44..G	08/2013 - 12/2014	1
68945-0R030	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68945-0R030	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0R030	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68946-0R030	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68946-0R030	ASA44..G	08/2013 - 12/2014	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0R020	ASA44..G	08/2013 - 12/2014	1
68947-0R020	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68947-0R020	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68903-42014	ASA44..G	12/2014 - 07/2016	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0R020	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68948-0R020	ASA44..G	08/2013 - 12/2014	1
68948-0R020	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68904-42014	ASA44..G	12/2014 - 07/2016	1
68950C - STAY ASSY, BACK DOOR, RH
68950-0R030	ASA44..G	08/2013 - 12/2014	1
68950-0R030	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68950-0R030	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68960 - STAY ASSY, BACK DOOR, LH
68960-0R030	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68960-0R030	ASA44..G	08/2013 - 12/2014	1
68960-0R030	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0R011	ZSA44;ASA44,ZSA42..M,X	12/2015 - 07/2016	1
69350-0R010	ZSA44;ASA44,ZSA42..M,X	08/2013 - 11/2015	1
69350-28160	ASA44..G	12/2014 - 12/2015	1
69350-0R010	ASA44..G	08/2013 - 12/2014	1
69350-28161	ASA44..G,Q	01/2016 - 07/2016	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0R020	ASA44,ZSA4#	08/2013 - 07/2016	1
Common parts
90105-06184
90105-C0226
90109-C0015
90119-C0232
90148-80027
90148-C0007
90182-C0008
90950-06089

(1308- )

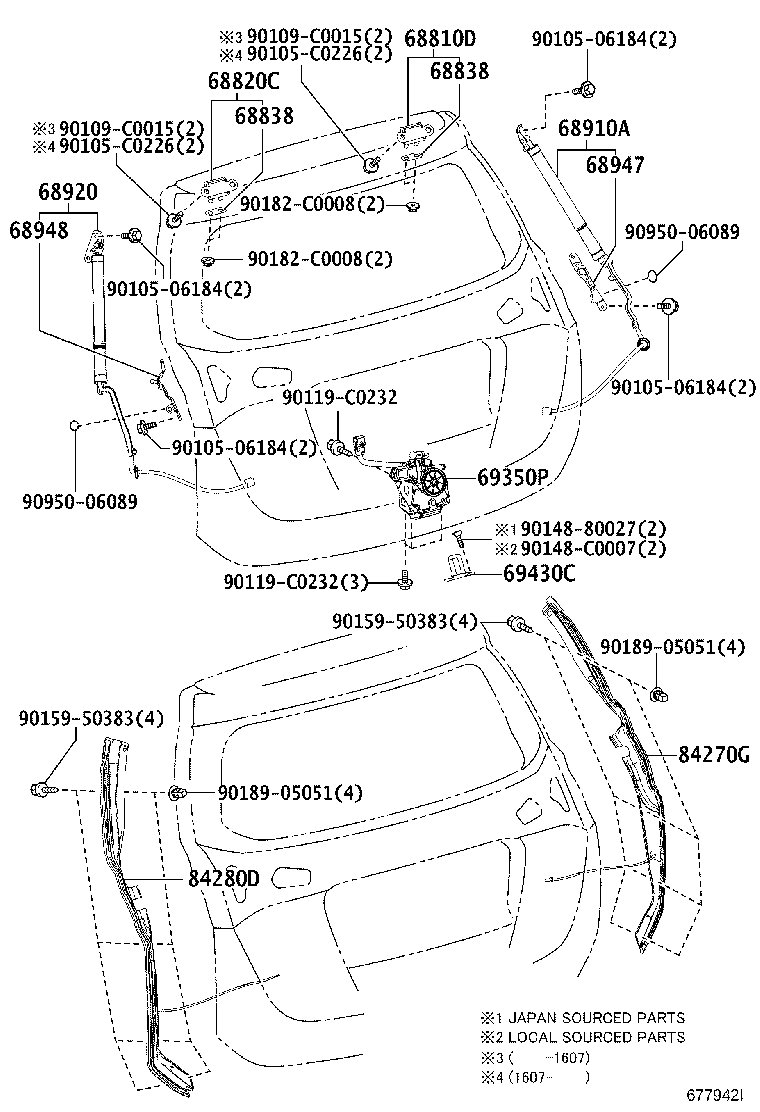

Click highlighted areas on diagram

W(POWER BACK DOOR)

Part #	Description	Period	Qty
68810D - HINGE ASSY, BACK DOOR, RH
68810-0R061	ASA44,ZSA4#	12/2015 - 07/2016	1
68810-0R060	ASA44,ZSA4#	08/2013 - 11/2015	1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0R060	ASA44,ZSA4#	08/2013 - 11/2015	1
68810-0R061	ASA44,ZSA4#	12/2015 - 07/2016	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-0R020	ASA44,ZSA4# T=1.0	08/2013 - 07/2016	2
68838-0R040	ASA44,ZSA4# T=2.0	08/2013 - 07/2016	2
68838-0R030	ASA44,ZSA4# T=1.5	08/2013 - 07/2016	2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-0R020	ASA44,ZSA4# T=1.0	08/2013 - 07/2016	2
68838-0R040	ASA44,ZSA4# T=2.0	08/2013 - 07/2016	2
68838-0R030	ASA44,ZSA4# T=1.5	08/2013 - 07/2016	2
68910A - UNIT ASSY SET, POWER BACK DOOR, RH
68910-09050	ASA44..G,Q	03/2015 - 07/2016	1
68910-49047	ASA44..G	12/2014 - 03/2015	1
68910-49047	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	10/2014 - 12/2014	1
68920 - UNIT ASSY SET, POWER BACK DOOR, LH
68920-49047	ASA44..G	12/2014 - 03/2015	1
68920-49047	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	10/2014 - 12/2014	1
68920-09040	ASA44..G,Q	03/2015 - 07/2016	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0R020	ASA44..G	08/2013 - 12/2014	1
68947-0R020	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68947-0R020	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68903-42014	ASA44..G	12/2014 - 07/2016	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0R020	ASA44..G POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)	08/2013 - 12/2014	1
68948-0R020	ASA44..G	08/2013 - 12/2014	1
68948-0R020	ZSA44;ASA44,ZSA42..M,X	08/2013 - 07/2016	1
68904-42014	ASA44..G	12/2014 - 07/2016	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0R011	ZSA44;ASA44,ZSA42..M,X	12/2015 - 07/2016	1
69350-0R010	ZSA44;ASA44,ZSA42..M,X	08/2013 - 11/2015	1
69350-28160	ASA44..G	12/2014 - 12/2015	1
69350-0R010	ASA44..G	08/2013 - 12/2014	1
69350-28161	ASA44..G,Q	01/2016 - 07/2016	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0R020	ASA44,ZSA4#	08/2013 - 07/2016	1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-42010	ASA44..G	12/2014 - 02/2015	1
84270-0R020	ASA44..G,Q	03/2015 - 07/2016	1
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-0R020	ASA44..G,Q	03/2015 - 07/2016	1
84280-42010	ASA44..G	12/2014 - 02/2015	1
Common parts
90105-06184
90105-C0226
90109-C0015
90119-C0232
90148-80027
90148-C0007
90159-50383
90182-C0008
90189-05051
90950-06089

ASA44L-ANTGKC (2013)

(1308- )

(1308- )
