ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1011)

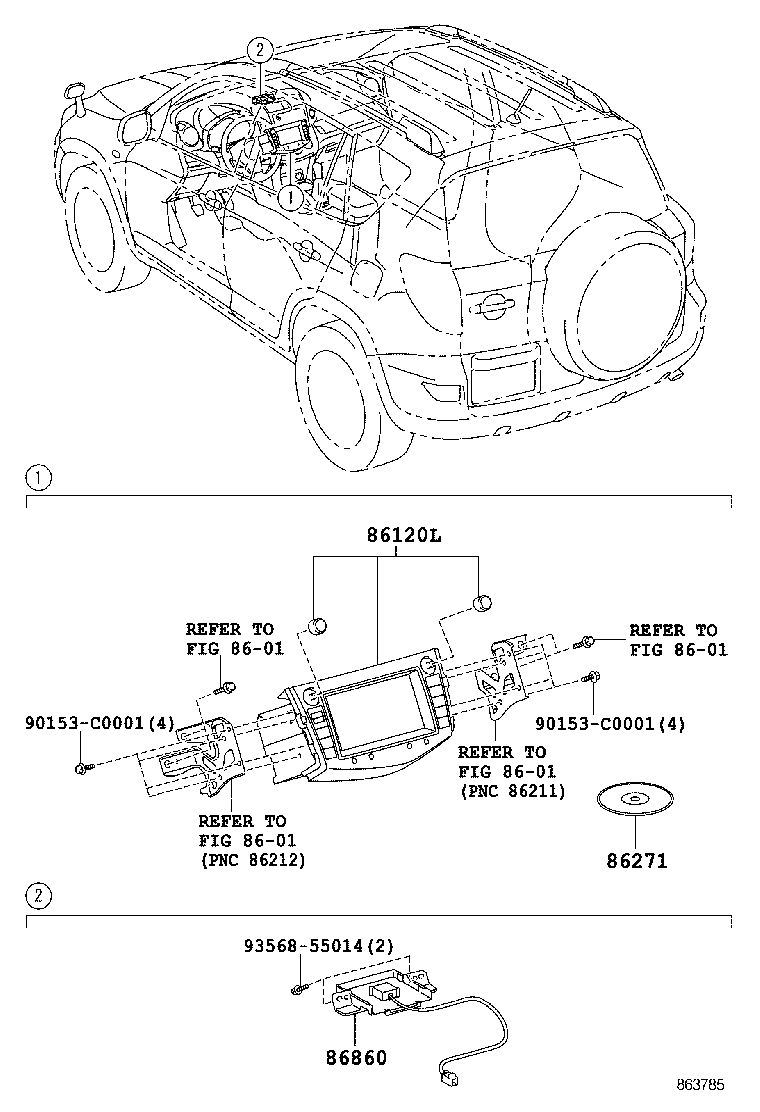

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86271 86860 90153C0001 90153C0001 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-0R060

ACA33,37

DENSO,ID=E8009,AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
86271 - DISC, DISC PLAYER
86807-0W026

ACA33,37

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
86807-0W024

ACA33,37

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
86807-0W027

ACA33,37

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
86807-0W025

ACA33,37

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-42030

ACA33,37

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

 1
Common parts
90153-C0001
93568-55014
Linked diagrams
8601
