ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ACA37

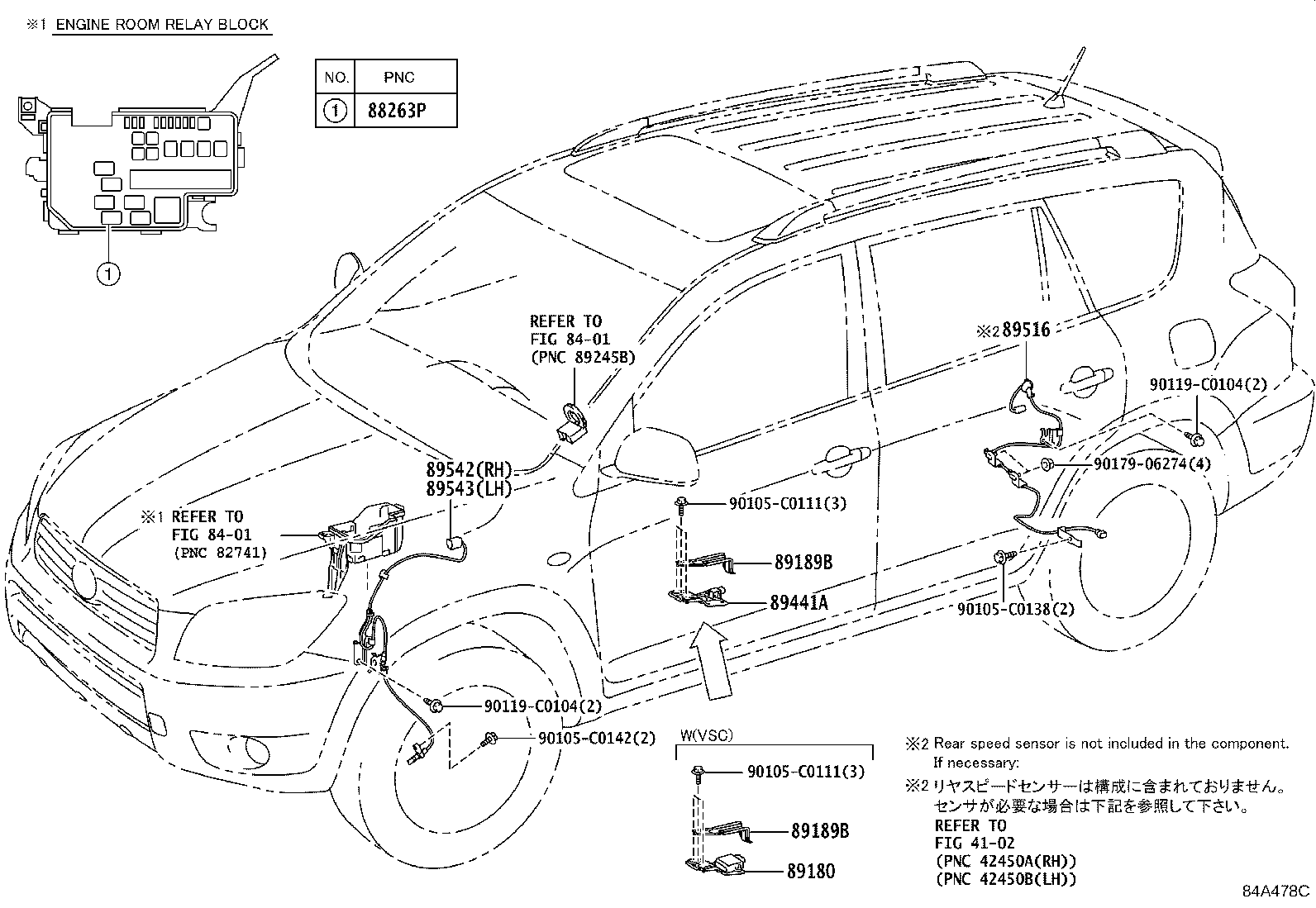

Click highlighted areas on diagram

diagram 4102 8401 8401 88263P 89180 89189B 89189B 89441A 89516 89542 89543 90105C0111 90105C0111 90105C0138 90105C0142 90119C0104 90119C0104 9017906274
Part # Description Qty Price
88263P - RELAY, STOP LAMP CONTROL
90987-T4001

ACA37

DLX PACKAGE

 1
89180 - SENSOR ASSY, YAWRATE
89180-42040

ACA37

DLX PACKAGE&VSC-WITH

 1
89180-42030

ACA37

DLX PACKAGE&VSC-WITH

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA3#

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA3#

 1
89441A - SENSOR, DECELERATION
89440-42050

ACA37

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-0R040

ACA37

LH

 1
89516-0R030

ACA37

RH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0R020

ACA3#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0R020

ACA3#

 1
Common parts
90105-C0111
90105-C0138
90105-C0142
90119-C0104
90179-06274
Linked diagrams
4102
8401
