ACA37L-ANPXKC (2009)
Toyota Rav4 (China)
ILLUST NO. 1 OF10(0903- )
ENGINE ROOM(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0R060 |
ACA37 DLX PACKAGE |
1 | ||
| 82111-0R050 |
ACA37 |
1 | ||
| 82111-0R050 |
ACA37 PART NUMBER LABEL=82111-0R050 |
1 | ||
| 82111-0R060 |
ACA37 PART NUMBER LABEL=82111-0R060 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA3# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA3# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA3# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA3# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
1 | ||
| 82824-50340 |
ACA3# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
1 | ||
| 82824-50340 |
ACA3# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACA3# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACA3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
ILLUST NO. 2 OF10(0903- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0R070 |
ACA3#..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0R030 |
ACA3# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0R040 |
ACA3#..4FC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-42250 |
ACA3# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
ACA3# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ACA3# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-0R010 |
ACA3# |
1 | ||
| Common parts | ||||
| 90105-C0136 | ||||
| 90105-C0137 | ||||
| 90119-08103 | ||||
| 90119-C0096 | ||||
| 90119-C0100 | ||||
| 90178-C0032 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(0903- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0R410 |
ACA37..4FC AUDIO-DVD-NAVIGATION,CD,BLUETOOTH |
1 | ||
| 82141-0R350 |
ACA37..4FC |
1 | ||
| 82141-0R410 |
ACA37..4FC PART NUMBER LABEL=82141-0R260 OR 82141-0R410 |
1 | ||
| 82141-0R350 |
ACA37..4FC PART NUMBER LABEL=82141-0R200 OR 82141-0R350 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0R020 |
ACA3# |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0R020 |
ACA3# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42160 |
ACA3# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42231 |
ACA3# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42241 |
ACA3# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42171 |
ACA3# |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ACA3# |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42050 |
ACA3# |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42060 |
ACA3# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
2 | ||
| 82824-50340 |
ACA3# |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3# |
2 | ||
| 82824-50340 |
ACA3# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ACA3# NO.5 |
2 | ||
| 82824-42210 |
ACA3# NO.3 |
24 | ||
| 82824-42190 |
ACA3# NO.4 |
4 | ||
| 82824-42180 |
ACA3# NO.1 |
4 | ||
| 82824-42200 |
ACA3# NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ACA3# NO.5 |
2 | ||
| 82824-42210 |
ACA3# NO.3 |
24 | ||
| 82824-42190 |
ACA3# NO.4 |
4 | ||
| 82824-42180 |
ACA3# NO.1 |
4 | ||
| 82824-42200 |
ACA3# NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ACA3# NO.5 |
2 | ||
| 82824-42210 |
ACA3# NO.3 |
24 | ||
| 82824-42190 |
ACA3# NO.4 |
4 | ||
| 82824-42180 |
ACA3# NO.1 |
4 | ||
| 82824-42200 |
ACA3# NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ACA3# NO.5 |
2 | ||
| 82824-42210 |
ACA3# NO.3 |
24 | ||
| 82824-42190 |
ACA3# NO.4 |
4 | ||
| 82824-42180 |
ACA3# NO.1 |
4 | ||
| 82824-42200 |
ACA3# NO.2 |
28 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ACA3# NO.5 |
2 | ||
| 82824-42210 |
ACA3# NO.3 |
24 | ||
| 82824-42190 |
ACA3# NO.4 |
4 | ||
| 82824-42180 |
ACA3# NO.1 |
4 | ||
| 82824-42200 |
ACA3# NO.2 |
28 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACA3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0903- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0R050 |
ACA37 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0R050 |
ACA37 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0R020 |
ACA3# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-0R020 |
ACA3# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0R050 |
ACA37 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF10(0903- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0R110 |
ACA37 DLX PACKAGE |
1 | ||
| 82161-0R130 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0R100 |
ACA37 |
1 | ||
| 82161-0R100 |
ACA37 PART NUMBER LABEL=82161-0R100 |
1 | ||
| 82161-0R110 |
ACA37 PART NUMBER LABEL=82161-0R110 |
1 | ||
| 82161-0R130 |
ACA37 PART NUMBER LABEL=82161-0R130 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0R190 |
ACA37 |
1 | ||
| 82162-0R200 |
ACA37 PART NUMBER LABEL=82162-0R200 |
1 | ||
| 82162-0R200 |
ACA37 DLX PACKAGE |
1 | ||
| 82162-0R190 |
ACA37 PART NUMBER LABEL=82162-0R190 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-0R011 |
ACA3# |
1 | ||
| 82165-0R010 |
ACA3# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0R050 |
ACA37 DLX PACKAGE |
1 | ||
| 82171-0R051 |
ACA37 DLX PACKAGE |
1 | ||
| 82171-0R040 |
ACA37 |
1 | ||
| 82171-0R050 |
ACA37 PART NUMBER LABEL=82171-0R050 |
1 | ||
| 82171-0R040 |
ACA37 PART NUMBER LABEL=82171-0R040 |
1 | ||
| 82171-0R051 |
ACA37 PART NUMBER LABEL=82171-0R051 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-0R020 |
ACA3# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42200 |
ACA3# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42260 |
ACA3# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42210 |
ACA3# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42280 |
ACA3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
ILLUST NO. 6 OF10(0903- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 8219B-02010 |
ACA37 SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0R020 |
ACA37 SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
ILLUST NO. 7 OF10(0903- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-35520 | ||||
| 82715-21110 | ||||
| 82715-28A50 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-42760 | ||||
| 82715-42870 | ||||
| 82715-42D00 | ||||
| 90119-C0096 | ||||
| 90119-C0097 | ||||
| 90119-C0100 | ||||
| 90119-C0109 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
ILLUST NO. 8 OF10(0903- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-C7004 |
ACA3# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-C7003 |
ACA3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91622-61016 | ||||

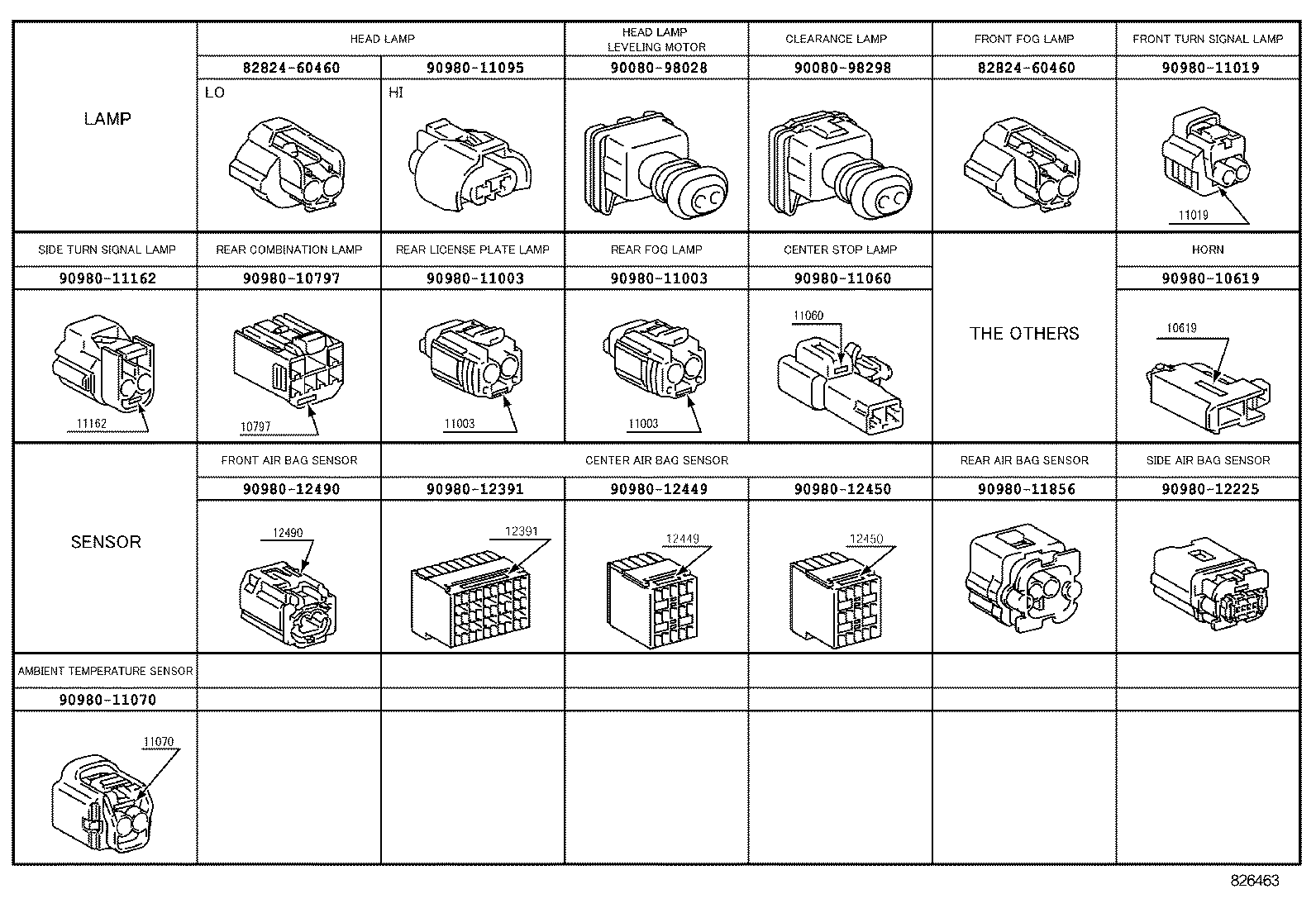

ILLUST NO. 9 OF10(0903- )ACA33,37
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11095 | ||||
| 90980-11162 | ||||
| 90980-11856 | ||||
| 90980-12225 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||

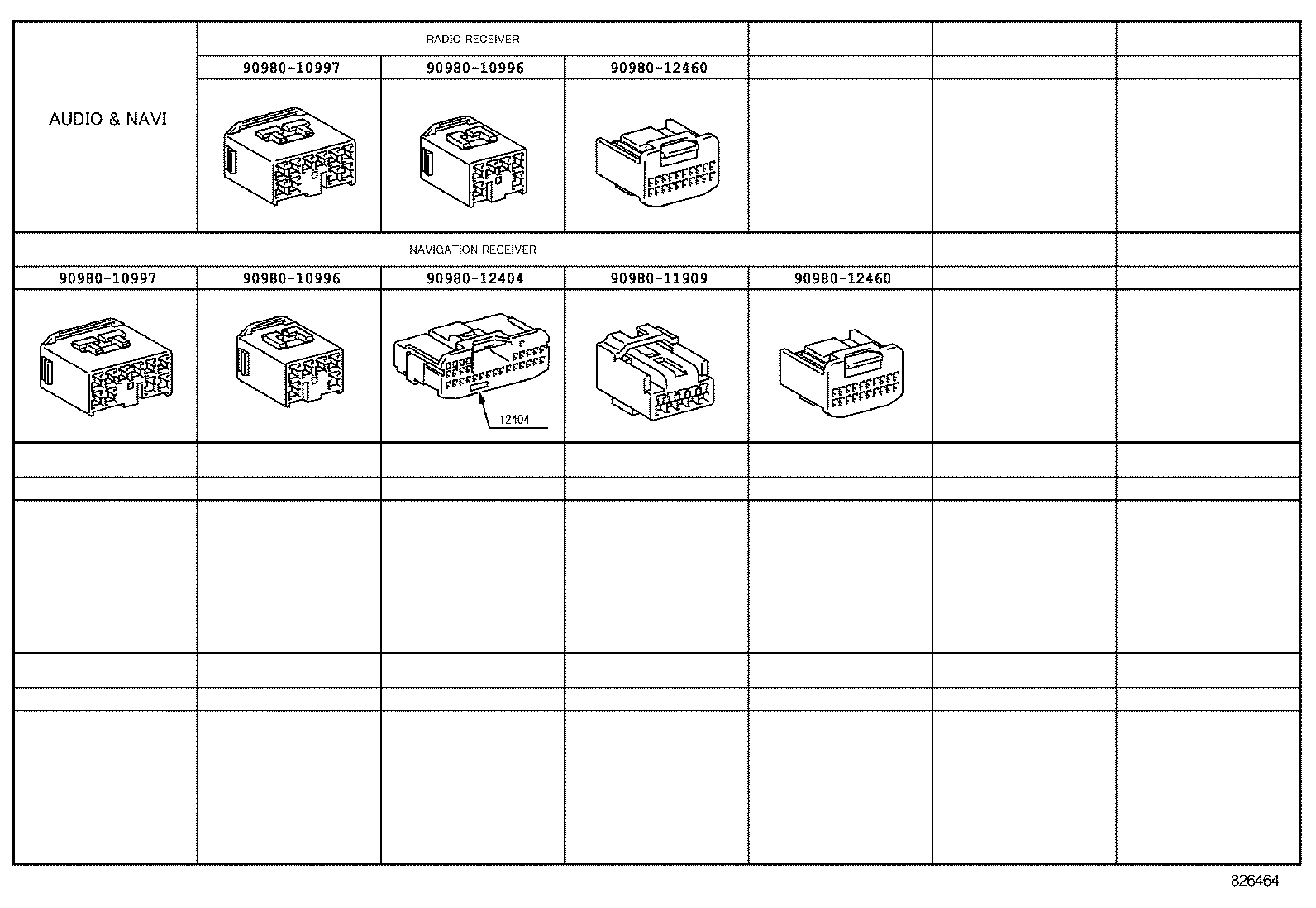

ILLUST NO.10 OF10(0903- )ACA33,37
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
ILLUST NO. 1 OF10(0903- )
ENGINE ROOM(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
