ACA37L-ANPXKC (2009)
Toyota Rav4 (China)

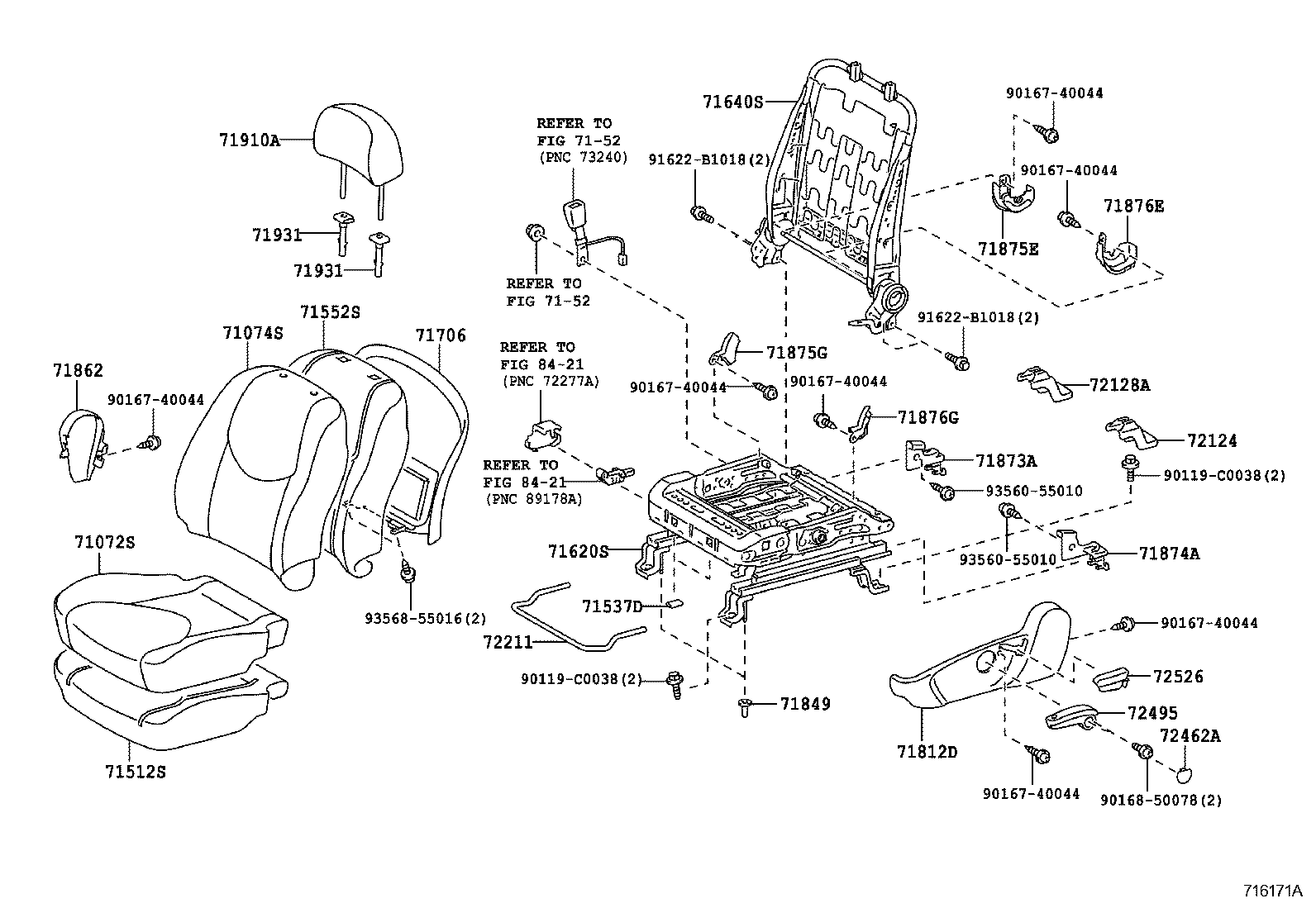

ILLUST NO. 1 OF 3(0903-1108)ACA37
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R050B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71072-0R060B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-0R051B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R050B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0R060B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0R091B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074-0R051B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R090B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0R050 |
ACA37 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-02020 |
ACA3# |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0R060 |
ACA37 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R010 |
ACA37 |
1 | ||
| 71620-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0R010 |
ACA37 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-0R020B2 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71812-0R040B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACA3# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06130B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06280 |
ACA3# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06240 |
ACA3# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06340 |
ACA3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71875-06240B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06230 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-06370 |
ACA37 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06270B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R040B1 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71910-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06040 |
ACA37 |
2 | ||
| 72211-06040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-06050B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-02130B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06050B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93560-55010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 3(0903- )
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R050B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71072-0R060B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-0R051B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R050B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0R060B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0R091B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074-0R051B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R090B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0R030B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71440-0R031B0 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71440-0R040B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0R050 |
ACA37 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-02020 |
ACA3# |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R010 |
ACA37 |
1 | ||
| 71620-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-0R020B2 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71812-0R040B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACA3# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06130B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06280 |
ACA3# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06240 |
ACA3# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06340 |
ACA3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71875-06240B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06230 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-06370 |
ACA37 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06270B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R040B1 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71910-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06040 |
ACA37 |
2 | ||
| 72211-06040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-06050B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-02130B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06050B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93560-55010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 3(0903- )
DRIVER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R050B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71072-0R060B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-0R051B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R050B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-0R060B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0R091B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71074-0R051B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R090B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0R030B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71440-0R031B0 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71440-0R040B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0R050 |
ACA37 |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-02020 |
ACA3# |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R010 |
ACA37 |
1 | ||
| 71620-0R020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-0R020B2 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71812-0R040B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACA3# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06130B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-0R030B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0R020B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06280 |
ACA3# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06240 |
ACA3# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06340 |
ACA3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71875-06240B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06230 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-06370 |
ACA37 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06270B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-0R020B0 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R040B1 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71910-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-06050 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72760-06051 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-06020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-06080 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-06060 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0R040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-0R030 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90084-16012 | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 91622-B1018 | ||||
| 93560-54012 | ||||
| 93560-55010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

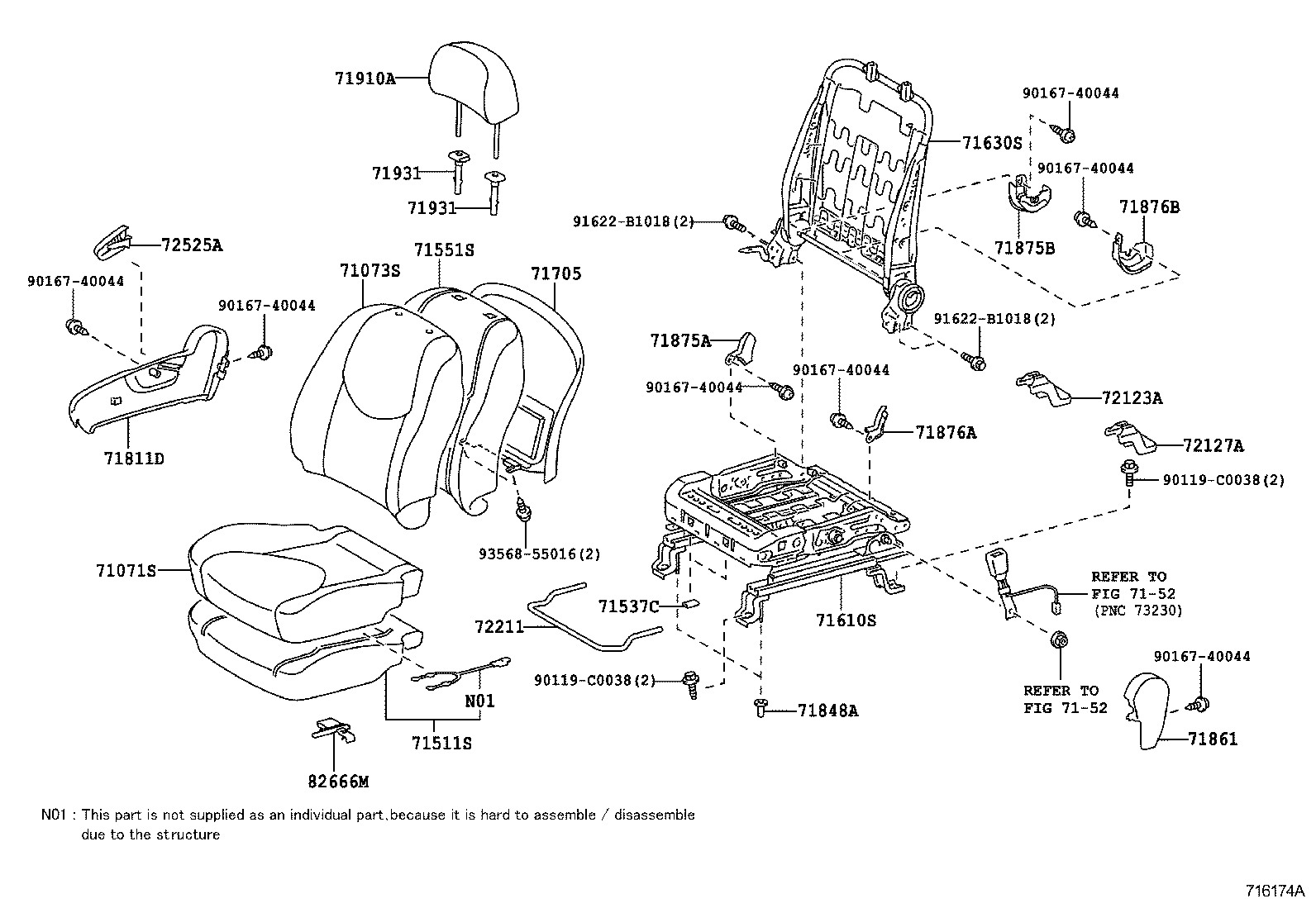

ILLUST NO. 2 OF 3(0903-1108)ACA37
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0R060B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-0R050B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71071-0R051B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0R100B2 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R120B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0R090B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71073-0R101B2 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R091B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0R020 |
ACA37 |
1 | ||
| 71051-0R030 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-02020 |
ACA3# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0R060 |
ACA37 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0R010 |
ACA3# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0R010 |
ACA37 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-0R020B2 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ACA3# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06340 |
ACA3# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06370 |
ACA3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R040B1 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71910-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06040 |
ACA37 |
2 | ||
| 72211-06040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06050B1 |
ACA3# GRAY,TRIM1# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ACA3# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 91622-B1018 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 3(0903- )
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0R060B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-0R050B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71071-0R051B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0R100B2 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R120B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0R090B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71073-0R101B2 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-0R091B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0R030B3 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71430-0R040B2 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71430-0R031B0 |
ACA37 DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0R020 |
ACA37 |
1 | ||
| 71051-0R030 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-02020 |
ACA3# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0R010 |
ACA3# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-0R020B2 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ACA3# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06340 |
ACA3# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06370 |
ACA3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R040B1 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71910-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06040 |
ACA37 |
2 | ||
| 72211-06040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06050B1 |
ACA3# GRAY,TRIM1# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ACA3# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0R040 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-0R030 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90167-40044 | ||||
| 91622-B1018 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(0903- )
REAR SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-0R030 |
ACA3# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0R030 |
ACA3# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0R040B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71075-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71075-0R041B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0R061B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71077-0R060B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71077-0R070B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0R020 |
ACA3# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0R030 |
ACA3# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0R020 |
ACA3# |
2 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71918A - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42020 |
ACA3# OUTER |
1 | ||
| 71918-42010 |
ACA3# INNER |
1 | ||
| 71918A - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42020 |
ACA3# OUTER |
1 | ||
| 71918-42010 |
ACA3# INNER |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R060B2 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71940-0R070B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-0R020 |
ACA3# |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42030 |
ACA3# LH |
1 | ||
| 72380-42020 |
ACA3# RH |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-0R020 |
ACA3# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0R030 |
ACA3# |
1 | ||
| 72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH | ||||
| 72677-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-0R030 |
ACA3# |
1 | ||
| 72735 - LEVER, REAR SEAT RECLINING RELEASE | ||||
| 72735-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3# |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3# |
4 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-0R020B0 |
ACA3# GRAY,TRIM1# |
4 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79966-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-C0105 | ||||
| 90119-C0107 | ||||
| 90167-40044 | ||||
| 90463-10060 | ||||
| 90467-13046 | ||||
| 90468-16019 | ||||
| 94150-80600 | ||||
| 96160-00900 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(0903- )
REAR SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-0R020 |
ACA3# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0R020 |
ACA3# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0R040B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71076-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71076-0R041B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0R060B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71078-0R070B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71078-0R061B2 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-0R020 |
ACA3# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0R020 |
ACA3# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0R020 |
ACA3# |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0R020 |
ACA3# |
2 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2 | ||||
| 71918-42010 |
ACA37 |
1 | ||
| 71918-42020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,INNER |
1 | ||
| 71918-42010 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,OUTER |
1 | ||
| 71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2 | ||||
| 71918-42010 |
ACA37 |
1 | ||
| 71918-42020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,INNER |
1 | ||
| 71918-42010 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,OUTER |
1 | ||
| 71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2 | ||||
| 71918-42010 |
ACA37 |
1 | ||
| 71918-42020 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,INNER |
1 | ||
| 71918-42010 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,OUTER |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360B1 |
ACA3# W(LOCK),GRAY,TRIM1# |
3 | ||
| 71931-02120B1 |
ACA3# W/O(LOCK),GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R060B2 |
ACA37 GRAY,TRIM1# |
2 | ||
| 71940-0R070B1 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0R060B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 71960-0R070B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-0R020 |
ACA3# |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42030 |
ACA3# LH |
1 | ||
| 72380-42020 |
ACA3# RH |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72597-0R020 |
ACA3# |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-0R040 |
ACA3# |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-0R030B0 |
ACA3# GRAY,TRIM1#,NO.1 |
1 | ||
| 72635-0R040B0 |
ACA3# GRAY,TRIM1#,NO.2 |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-0R030B0 |
ACA3# GRAY,TRIM1#,NO.1 |
1 | ||
| 72635-0R040B0 |
ACA3# GRAY,TRIM1#,NO.2 |
1 | ||
| 72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH | ||||
| 72678-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-0R010 |
ACA3# |
1 | ||
| 72736 - LEVER, REAR SEAT RECLINING RELEASE, LH | ||||
| 72736-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-0R030 |
ACA3# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3# |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3# |
4 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-42010 |
ACA3# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72830-0R040B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-0R040B1 |
ACA37 GRAY,TRIM1# |
1 | ||
| 72840-0R050B0 |
ACA37 DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 72998C - COVER, REAR SEAT, LH | ||||
| 72998-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-0R020B0 |
ACA3# GRAY,TRIM1# |
4 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79967-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 79968 - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79968-0R030B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72622-42010 | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-C0105 | ||||
| 90119-C0107 | ||||
| 90167-40044 | ||||
| 90176-08030 | ||||
| 90179-08241 | ||||
| 90463-10060 | ||||
| 90467-13046 | ||||
| 90468-16019 | ||||
| 91553-80818 | ||||
| 94150-80600 | ||||
| 96160-00900 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
