ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1108)

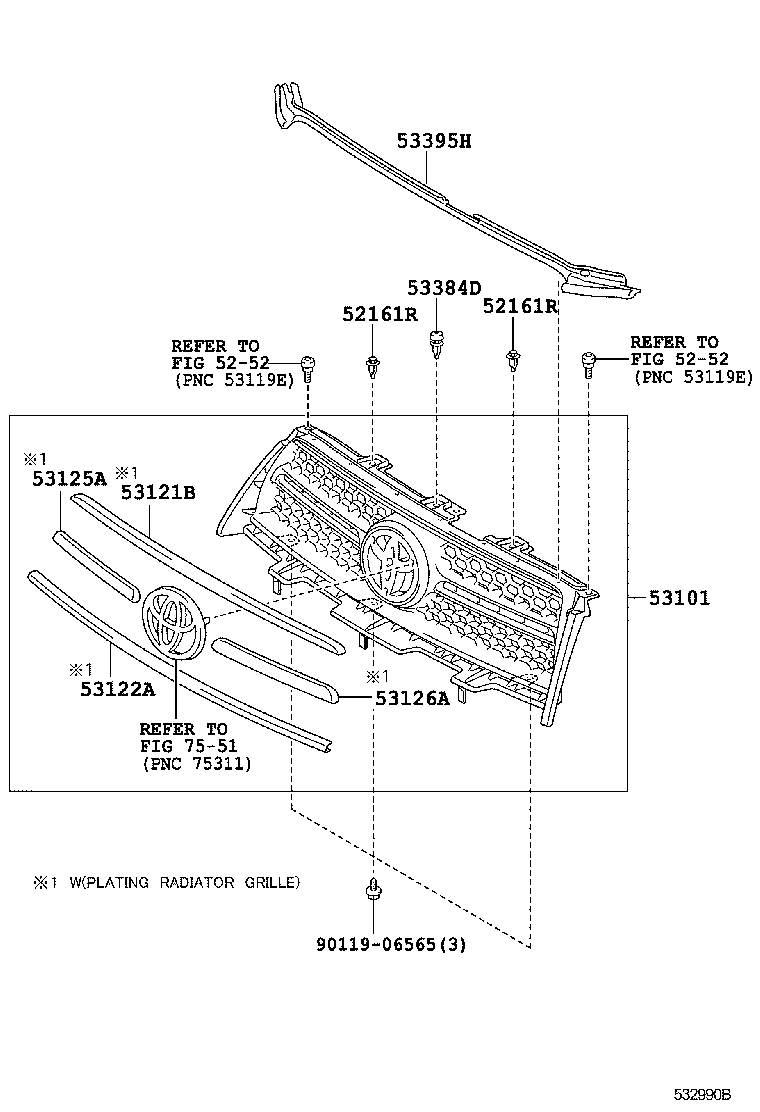

Click highlighted areas on diagram

diagram 52161R 52161R 5252 5252 53101 53121B 53122A 53125A 53126A 53384D 53395H 7551 9011906565
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-02040

ACA3#

 2
52161R - PIECE, FRONT BUMPER
52161-02040

ACA3#

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-0R080

ACA37

PLATED,RADIATOR GRILLE-PLATING

 1
53101-0R070

ACA37

NO PAINT REQ.

 1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-0R030

ACA37

RADIATOR GRILLE-PLATING

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-0R030

ACA37

RADIATOR GRILLE-PLATING

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53125-0R030

ACA37

RADIATOR GRILLE-PLATING

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53126-0R030

ACA37

RADIATOR GRILLE-PLATING

 1
53384D - CUSHION, HOOD, CENTER
53384-68010

ACA3#

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-0R020

ACA3#

 1
Common parts
90119-06565
Linked diagrams
5252
7551
