ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

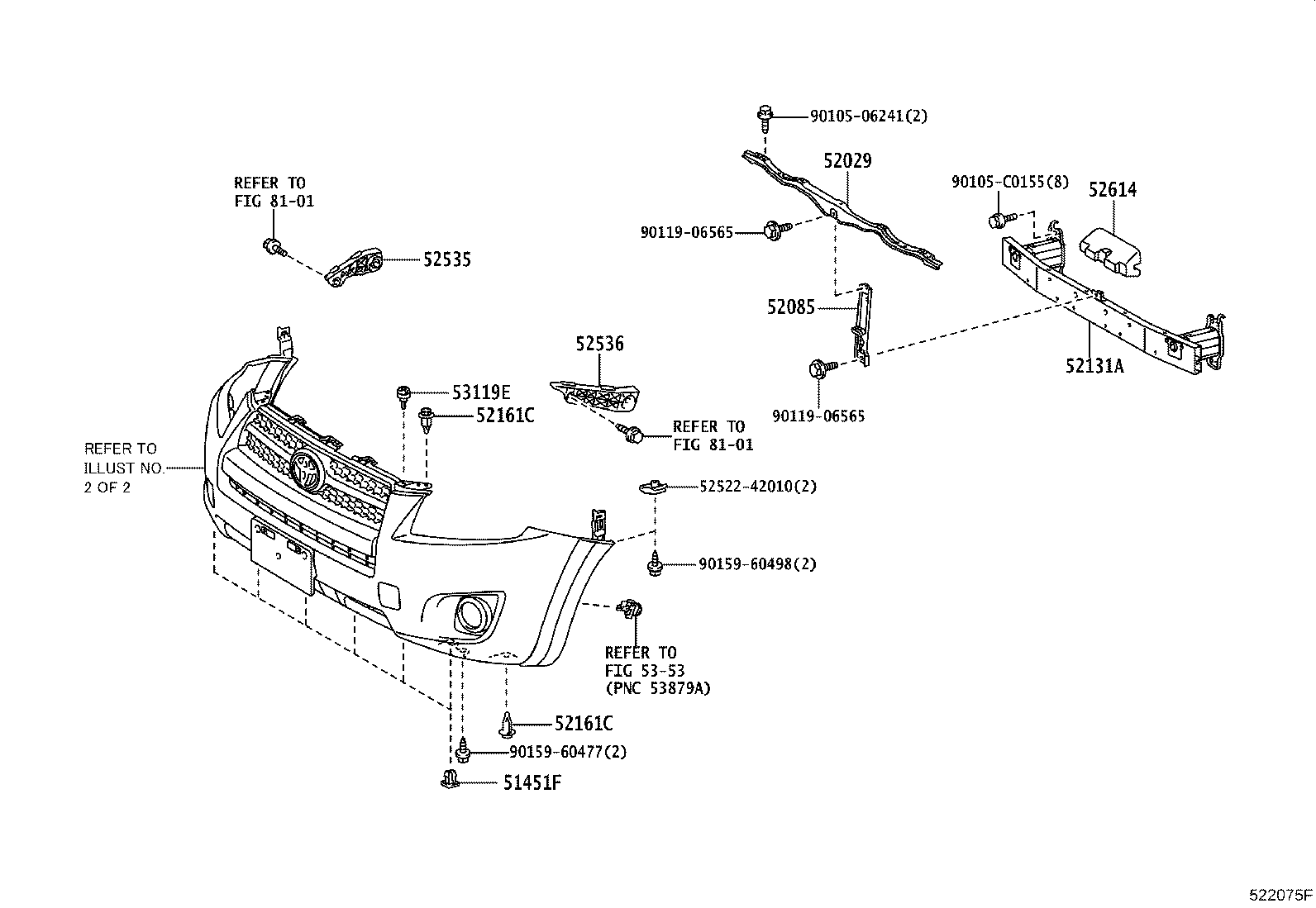

ILLUST NO. 1 OF 2(0903-1108)

Click highlighted areas on diagram

diagram 51451F 52029 52085 52131A 52161C 52161C 5252242010 52535 52536 52614 53119E 5353 8101 8101 9010506241 90105C0155 9011906565 9011906565 9015960477 9015960498
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACA3#

 6
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-0R020

ACA3#

 1
52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER
52085-0R010

ACA3#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-0R030

ACA3#

 1
52161C - PIECE, FRONT BUMPER
52161-02040

ACA3#

 4
52161C - PIECE, FRONT BUMPER
52161-02040

ACA3#

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0R020

ACA3#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0R020

ACA3#

 1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-0R020

ACA3#

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACA3#

 2
Common parts
52522-42010
90105-06241
90105-C0155
90119-06565
90159-60477
90159-60498
Linked diagrams
5353
8101

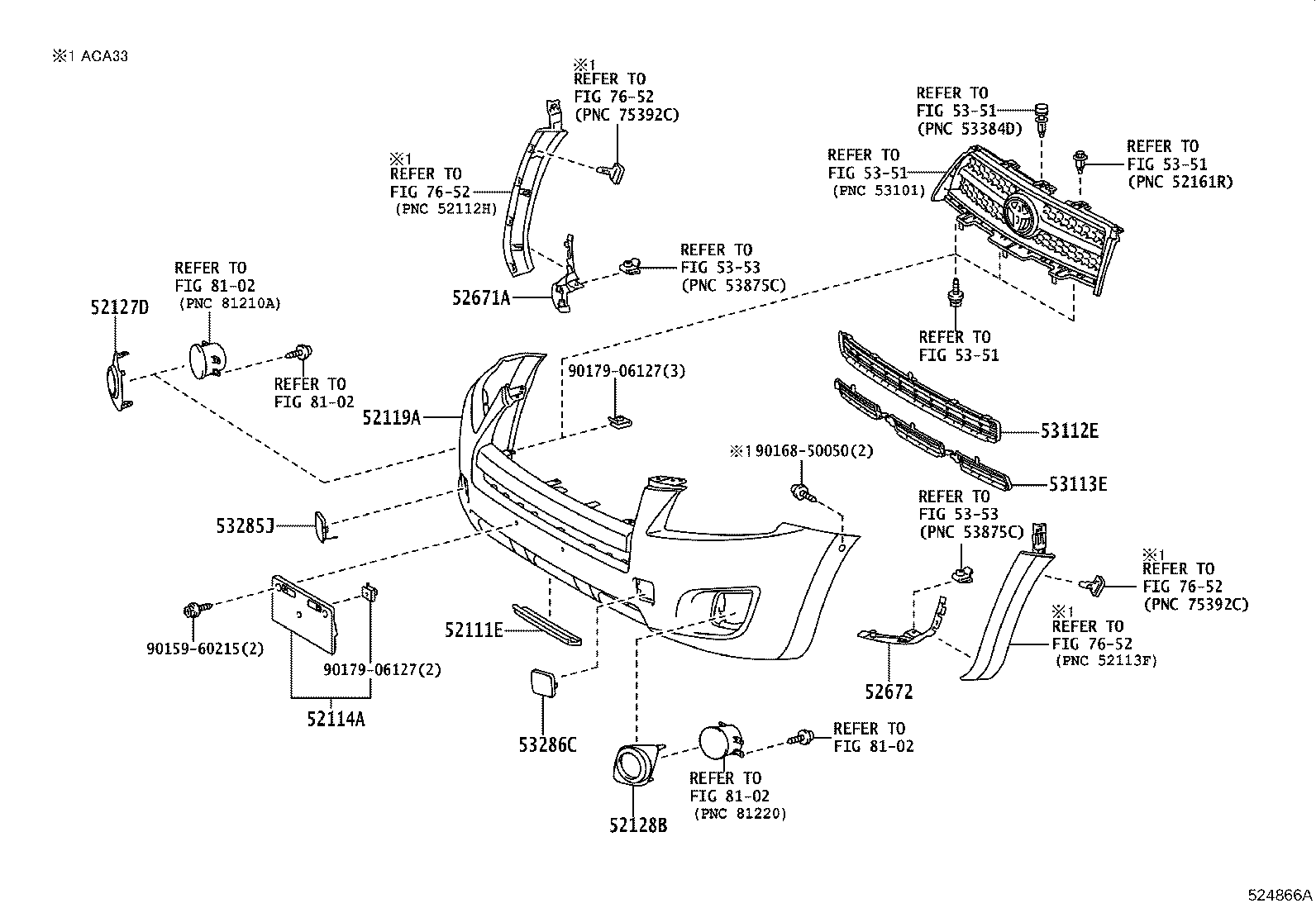

ILLUST NO. 2 OF 2(0903-1108)

Click highlighted areas on diagram

diagram 52111E 52114A 52119A 52127D 52128B 52671A 52672 53112E 53113E 53285J 53286C 5351 5351 5351 5351 5353 5353 7652 7652 7652 7652 8102 8102 8102 8102 9015960215 9016850050 9017906127 9017906127
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-0R020

ACA3#

NO PAINT REQ.

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-0R030

ACA3#

 1
52119A - COVER, FRONT BUMPER
52119-0R904

ACA37

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0R040

ACA3#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0R040

ACA3#

 1
52671A - EXTENSION, FRONT BUMPER ARM, RH
52671-0R030

ACA3#

 1
52672 - EXTENSION, FRONT BUMPER ARM, LH
52672-0R030

ACA3#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0R020

ACA3#

NO PAINT REQ.

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-0R020

ACA3#

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-0R906

ACA3#

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-0R906

ACA3#

 1
Common parts
90159-60215
90168-50050
90179-06127
Linked diagrams
5351
5353
7652
8102
