ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ACA37

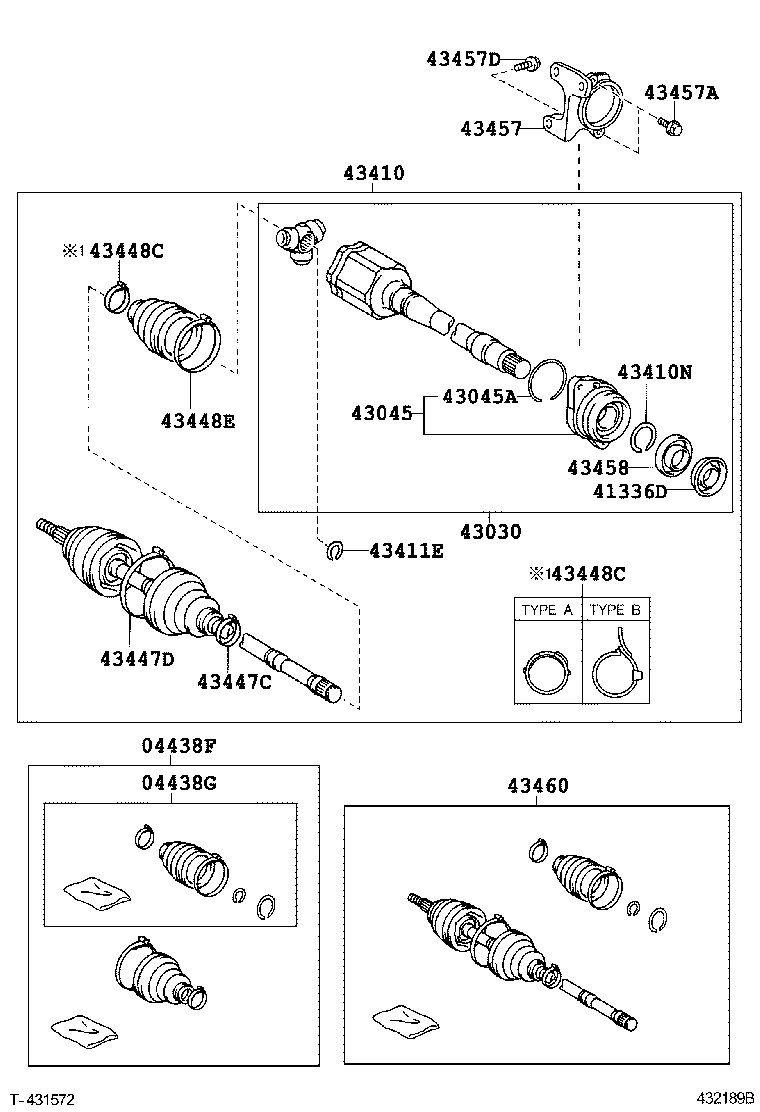

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410N 43411E 43447C 43447D 43448C 43448C 43448E 43457 43457A 43457D 43458 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0R060

ACA37..4FC

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-0R050

ACA37

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ACA37

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-0R010

ACA37

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-64020

ACA37

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
90520-69002

ACA37

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0R060

ACA37..4FC

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ACA37

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACA3#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100

ACA3#..4FC

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090

ACA3#..4FC

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ACA3#

TYPE A:REFER ILLUST.

 1
90949-01559

ACA3#

TYPE B:REFER ILLUST.

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ACA3#

TYPE A:REFER ILLUST.

 1
90949-01559

ACA3#

TYPE B:REFER ILLUST.

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACA3#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42090

ACA37..4FC

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-C0124

ACA37

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-C0014

ACA3#

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ACA37

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-09X40

ACA37..4FC

 1

(0903- )

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43447E 43447F 43448F 43448F 43448G 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-0R040

ACA3#..4FC

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-0R030

ACA3#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ACA37;ACA33..5F

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-0R010

ACA37;ACA33..5F

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACA3#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0R060

ACA37..4FC

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACA3#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100

ACA3#..4FC

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090

ACA3#..4FC

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06410

ACA37..4FC

TYPE C:REFER ILLUST.

 1
42345-42010

ACA37..4FC

TYPE A:REFER ILLUST.

 1
90949-01559

ACA3#

TYPE B:REFER ILLUST.

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06410

ACA37..4FC

TYPE C:REFER ILLUST.

 1
42345-42010

ACA37..4FC

TYPE A:REFER ILLUST.

 1
90949-01559

ACA3#

TYPE B:REFER ILLUST.

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ACA3#

TYPE A:REFER ILLUST.

 1
42345-06400

ACA3#..4FC

TYPE B:REFER ILLUST.

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ACA3#

TYPE A:REFER ILLUST.

 1
42345-06400

ACA3#..4FC

TYPE B:REFER ILLUST.

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09X80

ACA37..4FC

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-0R020

ACA37..4FC

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06420

ACA3#..4FC

 1
