ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )4FC

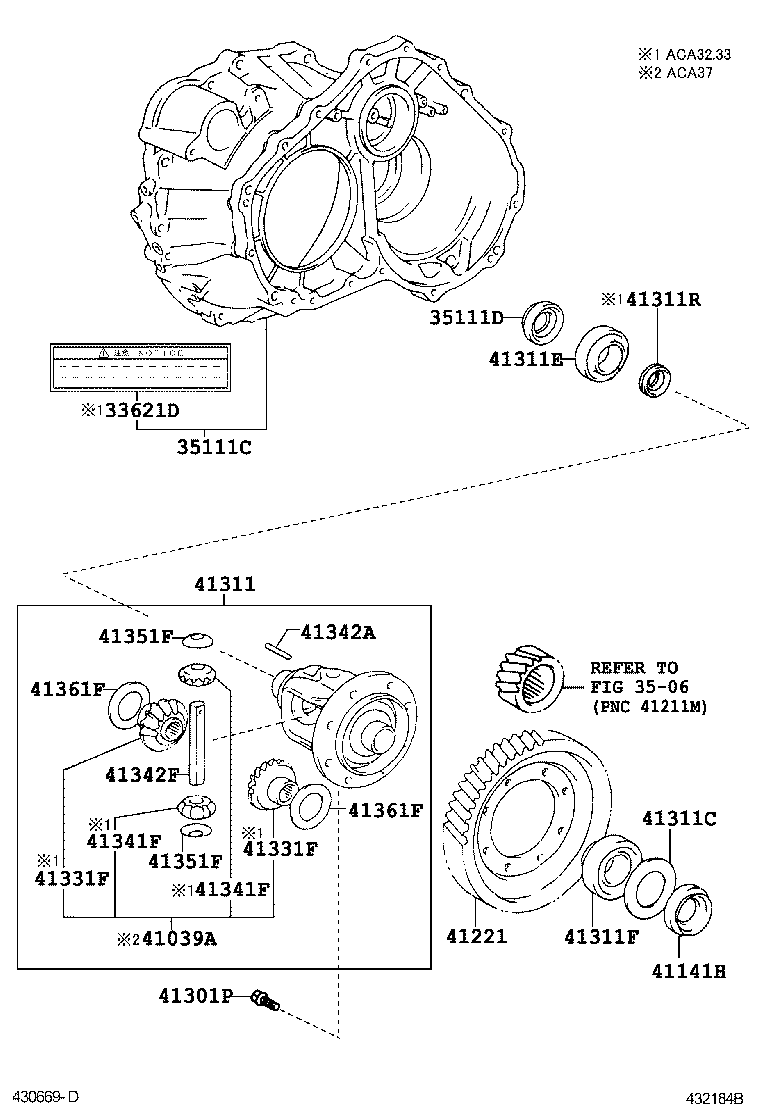

Click highlighted areas on diagram

U140F,U241E

diagram 33621D 3506 35111C 35111D 41039A 41141H 41221 41301P 41311 41311C 41311E 41311F 41311R 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-28032

ACA37..4FC

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-40031

ACA37..4FC

 1
41039A - GEAR KIT, DIFFERENTIAL
41039-28020

ACA37..4FC

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-50036

ACA37..4FC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-33170

ACA37..4FC

 1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12303

ACA37..4FC

 10
41311 - CASE, FRONT DIFFERENTIAL
41301-28090

ACA37..4FC

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-68009

ACA37..4FC

T=2.05,MARK 3

 1
90564-68006

ACA37..4FC

T=1.90,MARK 0

 1
90564-68008

ACA37..4FC

T=2.00,MARK 2

 1
90564-68014

ACA37..4FC

T=2.30,MARK 8

 1
90564-68013

ACA37..4FC

T=2.25,MARK 7

 1
90564-68010

ACA37..4FC

T=2.10,MARK 4

 1
90564-68018

ACA37..4FC

T=2.50,MARK C

 1
90564-68012

ACA37..4FC

T=2.20,MARK 6

 1
90564-68021

ACA37..4FC

T=2.65,MARK F

 1
90564-68023

ACA37..4FC

T=2.75,MARK H

 1
90564-68024

ACA37..4FC

T=2.80,MARK J

 1
90564-68007

ACA37..4FC

T=1.95,MARK 1

 1
90564-68011

ACA37..4FC

T=2.15,MARK 5

 1
90564-68015

ACA37..4FC

T=2.35,MARK 9

 1
90564-68017

ACA37..4FC

T=2.45,MARK B

 1
90564-68019

ACA37..4FC

T=2.55,MARK D

 1
90564-68022

ACA37..4FC

T=2.70,MARK G

 1
90564-68020

ACA37..4FC

T=2.60,MARK E

 1
90564-68016

ACA37..4FC

T=2.40,MARK A

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-50075

ACA37..4FC

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50078

ACA37..4FC

 1
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ACA3#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28030

ACA37..4FC

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-28010

ACA37..4FC

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-28010

ACA37..4FC

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28260

ACA37;ACA33..5F

T=1.3,MARK 4

 2
41361-28240

ACA37;ACA33..5F

T=1.1,MARK 2

 2
41361-28230

ACA37;ACA33..5F

T=1.0,MARK 1

 2
41361-28250

ACA37;ACA33..5F

T=1.2,MARK 3

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28260

ACA37;ACA33..5F

T=1.3,MARK 4

 2
41361-28240

ACA37;ACA33..5F

T=1.1,MARK 2

 2
41361-28230

ACA37;ACA33..5F

T=1.0,MARK 1

 2
41361-28250

ACA37;ACA33..5F

T=1.2,MARK 3

 2
Linked diagrams
3506
