ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )4FC

Click highlighted areas on diagram

U140F,U241E

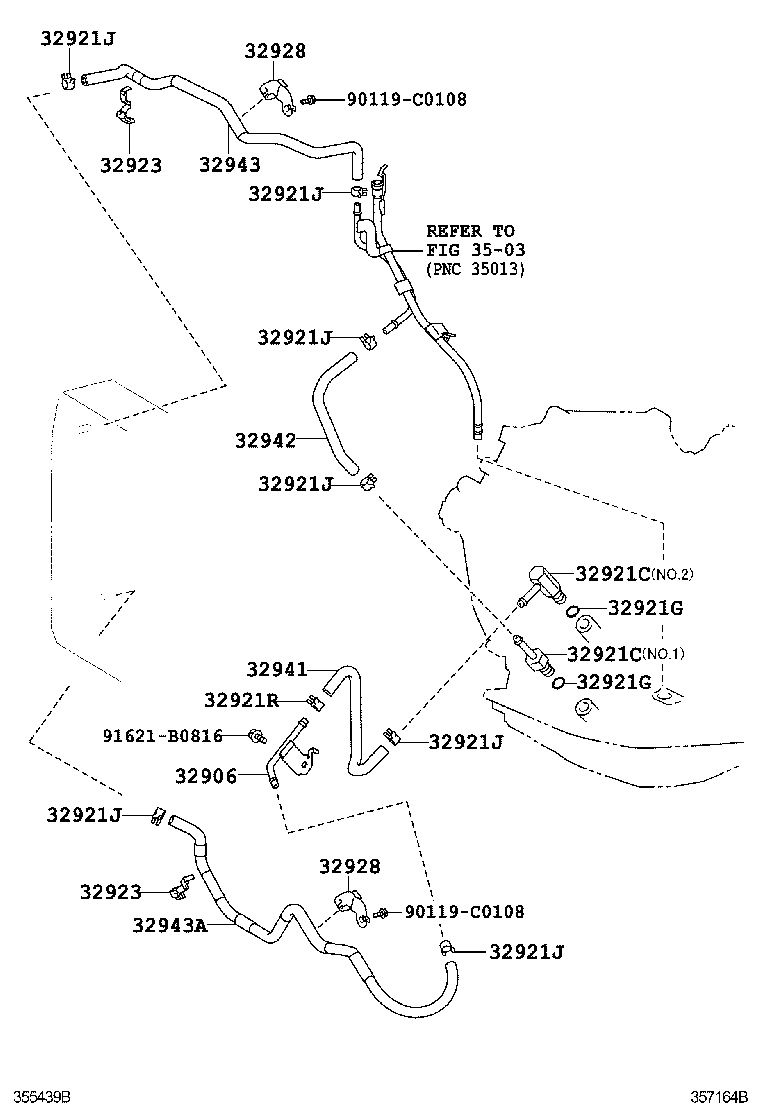

diagram 32906 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921R 32923 32923 32928 32928 32941 32942 32943 32943A 3503 90119C0108 90119C0108 91621B0816
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32907-0R010

ACA3#..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ACA3#..4FC

NO.1

 1
90407-13009

ACA3#..4FC

NO.2

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ACA3#..4FC

NO.1

 1
90407-13009

ACA3#..4FC

NO.2

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACA3#..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACA3#..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

ACA3#..4FC

 7
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

ACA3#..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
82711-51020

ACA3#..4FC

 2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
82711-51020

ACA3#..4FC

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-42010

ACA3#..4FC

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-42010

ACA3#..4FC

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-42020

ACA3#..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-42010

ACA3#..4FC

 1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-42010

ACA3#..4FC

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-42020

ACA3#..4FC

 1
Common parts
90119-C0108
91621-B0816
Linked diagrams
3503
